Arbitrary Color Reduction and Palette Ordered Dithering

I was looking for a shader like this, but anything similar out there either only supported grayscale, a specified palette, 3bpp/8 color, or had errors cutting off the highest or lowest values. I couldn’t find much info on an actual color reduction algorithm besides the one on the wikipedia article which was pretty vague and I couldn’t get anything near that to work. Anyway I came up with this one, and it works pretty well. Also usable with a specified palette!

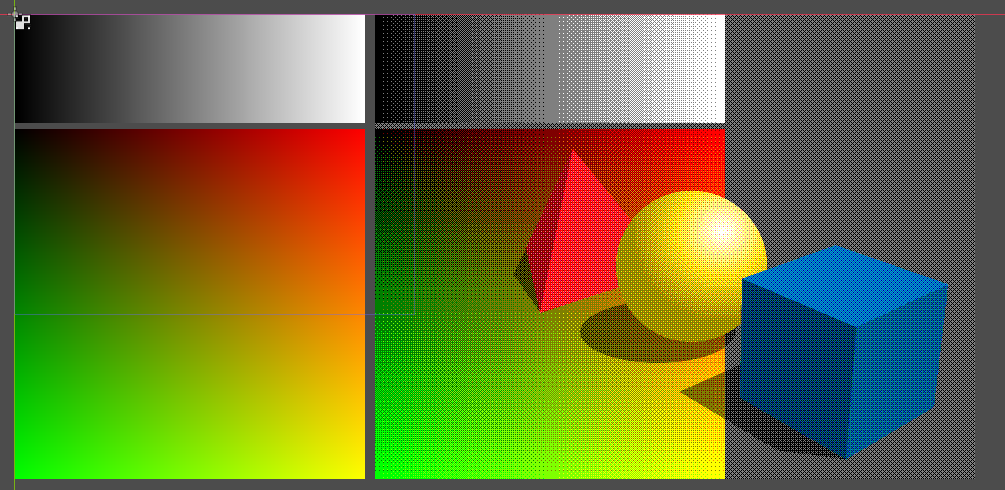

This shader is actually four effects together: Quantize, Dither, Adjustment, and Palette. They are easily separated out, so each are in their own .gdshaderinc file. Unfortunately, GodotShaders doesn’t allow you to paste multiple files, so pay attention to the comments.

To use:

• Add the .gdshader portion to a new shader file.
• Add the .gdshaderinc portions to new shader include files.
  • In Godot’s shader editor, click “File”, then “New Shader Include”
• Update the #include sections to match your filepaths.
• Adjust the texture mode and alpha mode depending on the node you’re using and effect you want.

Caveats:

• Cannot guarantee total TextureRect compatibility, since TextureRect UVs are very finnicky.

Update June 2025:

• Consolidated into one main shader with selectable modes.
• Added Mask and Mesh support
• Better documentation (though due to a bug, currently doc comments don’t work in shader include files in Godot)
• Various optimizations and refactoring

Update May 2024:

• ColorRect support
• Adjusts to editor zoom scale to reflect in game resolution
• Separated quantization and dither into .gdshaderinc files for better reusability
• Less jitter
• Supports skew, rotation, flipping, centering, and offsets
• Optional handling of subpixels

The uniform parameters are:

• Main
  • Texture Mode:
    • 0 = Texture: For use with Sprite2Ds, TextureRects, and 2D Meshes
    • 1 = Screen: For use with ColorRect
  • Alpha Mode:
    • 0 = Normal: No alpha change
    • 1 = Alpha black: Outputs alpha as black
    • 2 = Alpha cut: Cuts textures as a mask. Use with CanvasGroup node.
• Quantization
  • Quantize Size: Pixel resolution scale (0 is bypass)
  • Snap To World: Pixels are snapped based on world coordinates vs local coordinates.
  • Limit Subpixels: Auto-scales the quantize size when zoom is < 1, preventing subpixel artifacts
• Dithering
  • Dither Enabled: Turns the dithering on or off.
  • Bayer Pattern: Specifies the Bayer matrix pattern to use.
    The higher the number the more detail.
    • 1 = 2×2
    • 2 = 4×4
    • 3 = 8×8
  • Levels:
    • When Palette Mode is 0 (color reduction), it specifies the number of shades per color channel.
      • 1 = Black and white
      • 2 = 8 colors
      • 3 = 27 colors
      • etc.
    • When Palette Mode is 1 (palette), it specifies the number of shades in the palette. So if you provide a four-color palette, set it to 4.
• Adjustment
  • Contrast: Modifies the contrast of the image.
  • Brightness: Shifts the colors brightness higher or lower.
  • Average: When Levels is 1 (black and white), or if Palette mode is 1, the colors are averaged. This slider mixes between a luminance average, or a normal average.
• Palette
  • Palette Mode:
    • 0 = No palette: Simple color reduction
    • 1 = Palette lookup based on average
  • Palette: A palette image or a GradientTexture1D for realtime editing. Update Levels to match the number of colors in the palette.

Feel free to make any suggestions!

Shader code

/**
This should be your main shader file.
*/

shader_type canvas_item;
group_uniforms Main;
/**
0 = Texture: For use with Sprite2Ds, TextureRects, and Meshes
1 = Screen: For use with ColorRect
*/
uniform int texture_mode : hint_range(0, 1) = 0;
/**
0 = Normal: No alpha change
1 = Alpha black: Outputs alpha as black
2 = Alpha cut: Cuts textures as a mask. Use within CanvasGroup node.
*/
uniform int alpha_mode : hint_range(0, 2) = 0;
group_uniforms;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, repeat_disable, filter_nearest;

#include "res://shaders/quantize.gdshaderinc"
#include "res://shaders/dither.gdshaderinc"
#include "res://shaders/adjustment.gdshaderinc"
#include "res://shaders/palette.gdshaderinc"

void vertex() {
    float zoom = length(CANVAS_MATRIX[1].xyz);
    v_quant_size = getQuantizeSize(zoom);
    v_model_matrix = MODEL_MATRIX;
    mat4 world_to_clip = SCREEN_MATRIX * CANVAS_MATRIX;
    v_vertex = VERTEX;

    if (texture_mode == 0) {
        v_alt_matrix = inverse(MODEL_MATRIX);
        v_texture_data.xy = 1. / TEXTURE_PIXEL_SIZE;
        // Is texture flipped
        v_texture_data.zw = max(-sign((UV - 0.5) * VERTEX), 0.);
    } else {
        v_alt_matrix = world_to_clip;

        if (!snap_to_world) {
            v_alt_matrix = inverse(v_alt_matrix);
        }

        vec2 local_origin = (MODEL_MATRIX * vec4(0.0, 0.0, 0, 1)).xy;
        vec2 clip = (world_to_clip * vec4(local_origin, 0,1)).xy;
        vec2 screen_origin_uv = clip * 0.5 + 0.5;
        vec2 screen_size = vec2(textureSize(SCREEN_TEXTURE, 0));
        vec2 screen_pixel_size = 1. / screen_size * zoom;
        vec2 quant_pixel_size = screen_pixel_size * float(v_quant_size);
        v_texture_data.xy = screen_origin_uv;
        v_texture_data.zw = quant_pixel_size;
    }
}

void fragment() {
    vec4 color;
    vec4 uvResult;

    if (texture_mode == 0) {
        uvResult = getQuantizeTextureUV(UV);
        color = texture(TEXTURE, uvResult.xy);
    } else {
        uvResult = getQuantizeScreenUV(SCREEN_UV);
        color = texture(SCREEN_TEXTURE, uvResult.xy);
    }

    // Set alpha as color
    if (alpha_mode != 0) {
        color.rgb = vec3(1. - color.a);
    }

    color.rgb = adjust(color.rgb, palette_mode == 1 || levels == 1);
    color = dither(color, uvResult.zw, v_quant_size);
    color = addPalette(color, float(levels));

    // Set color as alpha
    if (alpha_mode != 0) {
        color = vec4(0, 0, 0, 1. - color.r);
    }

    // Show background in cutout
    if (alpha_mode == 2) {
        color = vec4(texture(SCREEN_TEXTURE, SCREEN_UV).rgb, color.a);
    }

    COLOR = color;
}

/**
Quantization Shader Include
*/

group_uniforms Quantization;
/**Pixel resolution scale (0 is bypass)*/
uniform int quantize_size : hint_range(0,100) = 1;
/**Pixels are snapped based on world coordinates vs local coordinates.*/
uniform bool snap_to_world;
/**Auto-scales the quantize size when zoom is < 1, preventing subpixel artifacts*/
uniform bool limit_subpixels = true;
group_uniforms;

varying mat4 v_model_matrix;
varying mat4 v_alt_matrix;
varying vec2 v_vertex;
varying flat int v_quant_size;
varying flat vec4 v_texture_data;

const float EPSILON = 0.0001;

int getQuantizeSize(float in_zoom) {
    int q_size = quantize_size;

    if (limit_subpixels && in_zoom < 1.) {
        q_size = int(round(float(quantize_size) * (1. / in_zoom)));
    }

    return q_size;
}

vec2 _snap(vec2 in_uv, float in_q_size) {
    return (floor(in_uv / in_q_size) + 0.5) * in_q_size;
}

vec4 getQuantizeScreenUV(vec2 in_screen_uv) {
    vec4 result;

    if (v_quant_size == 0) {
        result.xy = in_screen_uv;
        result.zw = (v_model_matrix * vec4(v_vertex, 0, 1)).xy;
        return result;
    }

    if (snap_to_world) {
        vec2 uv = (v_model_matrix * vec4(v_vertex, 0, 1)).xy;
        result.zw = uv + EPSILON;
        uv = _snap(uv, float(v_quant_size));
        uv = (v_alt_matrix * vec4(uv, 0,1)).xy;
        uv = uv * 0.5 + 0.5;
        result.xy = uv;
        return result;
    } else {
        vec2 origin_uv = v_texture_data.xy;
        vec2 quant_pixel_size = v_texture_data.zw;
        vec2 uv = in_screen_uv - origin_uv;
        uv = (floor(uv / quant_pixel_size) + 0.5) * quant_pixel_size;

        uv = uv + origin_uv;
        vec2 clipXY = uv * 2.0 - 1.;
        vec2 world_pos = (v_alt_matrix * vec4(clipXY, 0.0, 1.0)).xy;
        result.zw = world_pos + EPSILON;
        result.xy = uv;
        return result;
    }
}

vec4 getQuantizeTextureUV(vec2 in_uv) {
    vec4 result;
    vec2 texture_size = v_texture_data.xy;
    vec2 flip = v_texture_data.zw;

    if (v_quant_size == 0) {
        result.xy = in_uv;
        result.zw = (v_model_matrix * vec4(in_uv * texture_size, 0, 1)).xy;
        return result;
    }

    vec2 offset;
    float q = float(v_quant_size);
    vec2 uv = in_uv;
    uv = mix(uv, 1.0 - uv, flip);

    if (snap_to_world) {
        vec2 inv_texture_size = 1. / texture_size;
        offset = v_vertex * inv_texture_size;
        offset = uv - offset;
        uv -= offset;

        uv *= texture_size;
        uv = (v_model_matrix * vec4(uv, 0, 1)).xy;
        result.zw = uv;
        uv = _snap(uv, q);
        uv = (v_alt_matrix * vec4(uv, 0, 1)).xy;
        uv *= inv_texture_size;

        uv = offset + uv;
    } else {
        uv *= texture_size;
        result.zw = uv;
        uv = _snap(uv, q);
        uv /= texture_size;
    }

    uv = mix(uv, 1.0 - uv, flip);
    result.xy = uv + EPSILON;
    return result;
}

/**
Dithering Shader Include
*/

group_uniforms Dithering;
/**Turns the dithering on or off.*/
uniform bool dither_enabled = false;
/**
The Bayer matrix pattern to use
1 -> 2x2, 2 -> 4x4, 3 -> 8x8
*/
uniform int dither_pattern : hint_range(0, 3) = 1;
/**
Specifies the number of times each color channel should be split.
The higher the number the more colors are allowed. (not applicable if a palette is used)
1 is 3bpp or 8 colors, 2 is 4bpp or 16 colors, etc.
*/
uniform int levels : hint_range(1, 128) = 2;
group_uniforms;

const int matrix2[4] = {
    0, 2,
    3, 1
};
const int matrix4[16] = {
    0,  8,  2,  10,
    12, 4,  14, 6,
    3,  11, 1,  9,
    15, 7,  13, 5
};
const int matrix8[64] = {
    0,  32, 8,  40, 2,  34, 10, 42,
    48, 16, 56, 24, 50, 18, 58, 26,
    12, 44, 4,  36, 14, 46, 6,  38,
    60, 28, 52, 20, 62, 30, 54, 22,
    3,  35, 11, 43, 1,  33, 9,  41,
    51, 19, 59, 27, 49, 17, 57, 25,
    15, 47, 7,  39, 13, 45, 5,  37,
    63, 31, 55, 23, 61, 29, 53, 21
};

int _getBayer(ivec2 cell) {
    int bayer_size = 1 << dither_pattern;
    ivec2 iv = ivec2(cell.x % bayer_size, cell.y % bayer_size);
    int index = iv.x + iv.y * bayer_size;

    switch (bayer_size) {
        case 2:
            return matrix2[index];
        case 4:
            return matrix4[index];
        default:
            return matrix8[index];
    }
}

int _getDitherValue(vec2 in_world_vertex, int in_quant_size) {
    int q_size = max(in_quant_size, 1);
    ivec2 cell = ivec2(floor(in_world_vertex / float(q_size)));
    return _getBayer(cell);
}

vec4 _ditherInternal(vec4 in_c, int in_dither_value) {
    vec3 c = in_c.rgb;
    float a = in_c.a;

    float bayer_size = float(1 << dither_pattern);
    float inv_bayer_squared = 1. / (bayer_size * bayer_size);
    float levels_f = max(float(levels) - 1., 1.);
    float inv_levels_f = 1. / levels_f;

    // normalize the dither value
    float dN = (float(in_dither_value) * inv_bayer_squared) - 0.5;
    // get the normalizing value for the division gap
    float r = inv_levels_f;
    float l = r * (inv_bayer_squared * 0.5);
    // add dither value to color
    c += r * dN + l;
    // convert normalized color to quantized range
    c = round(c * levels_f) * inv_levels_f;
    return vec4(c, a);
}

vec4 dither(vec4 in_color, vec2 in_world_vertex, int in_quant_size) {
    if (!dither_enabled) {
        return in_color;
    }

    int dither_value = _getDitherValue(in_world_vertex, in_quant_size);
    vec4 color = _ditherInternal(in_color, dither_value);

    return color;
}

/**
Adjustment Shader Include
*/

group_uniforms Adjustment;
/**Modifies the contrast of the image.*/
uniform float contrast : hint_range(0, 4) = 1.0;
/**Shifts the colors higher or lower.*/
uniform float brightness : hint_range (-1, 1) = 0;
/**
When Levels is 1 (black and white), or if Palette mode is 1, the colors are averaged.
This slider mixes between a luminance average, or a normal average.
0 = luminance average
1 = average
*/
uniform float average : hint_range(0.,1.) = 0;
group_uniforms;

const vec3 lum = vec3(0.2126, 0.7152, 0.0722);

float _getAverage(vec3 in_color) {
    float avg = (in_color.r + in_color.g + in_color.b) * 0.3333;
    float lum_avg = dot(in_color, lum);
    return mix(lum_avg, avg, average);
}

vec3 adjust(vec3 in_c, bool in_average) {
    vec3 c = in_c;

    if (in_average) {
        c = vec3(_getAverage(c));
    }

    return (c - 0.5 + brightness) * contrast + 0.5;
}

/**
Palette Shader Include
*/

group_uniforms Palette;
/**
0 = No palette: Simple color reduction
1 = Palette lookup based on luminance
*/
uniform int palette_mode : hint_range(0,1) = 0;

/**
A palette image or a GradientTexture1D for realtime editing.
Make sure the width of the GradientTexture1D matches the number of colors.
*/
uniform sampler2D palette : filter_nearest, repeat_disable;
group_uniforms;

vec4 addPalette(vec4 in_c, float in_levels) {
    if (palette_mode == 0) {
        return in_c;
    }

    vec3 c = in_c.rgb;
    float a = in_c.a;
    float levels_f = in_levels - 1.;
    int index;
    ivec2 palette_size = textureSize(palette, 0);
    int palette_total = palette_size.x * palette_size.y - 1;
    c *= levels_f;

    c.r = (c.r + c.g + c.b) * 0.3333;
    c.r = clamp(c.r / levels_f, 0.0, 1.0);
    index = int(round(c.r * float(palette_total)));

    // handle any height palette
    index = clamp(index, 0, palette_total);
    int col = index % palette_size.x;
    int row = index / palette_size.x ;
    vec2 uv = (vec2(ivec2(col, row)) + 0.5) / vec2(palette_size);
    return texture(palette, uv);
}

Tags
