Aurora Borealis

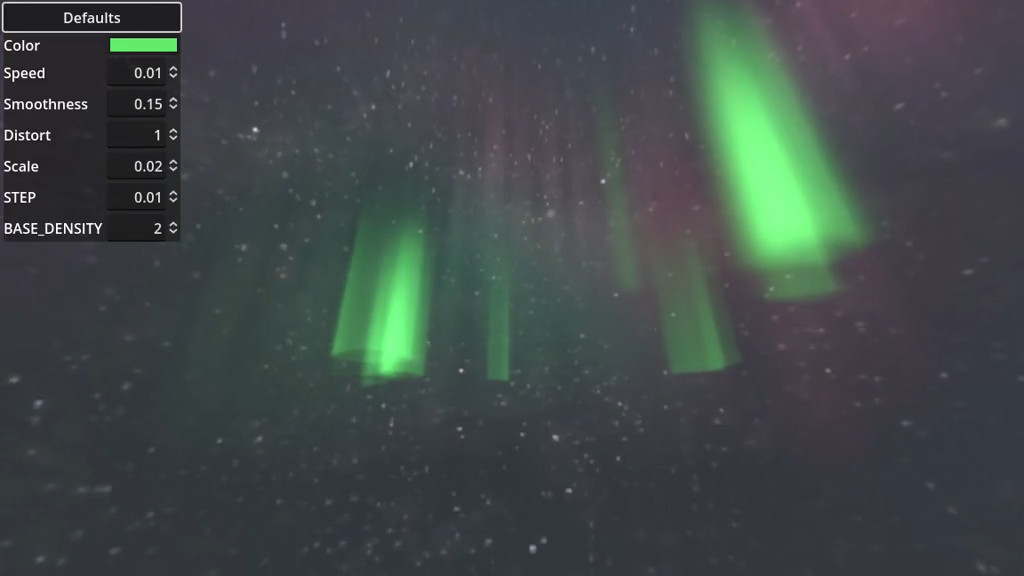

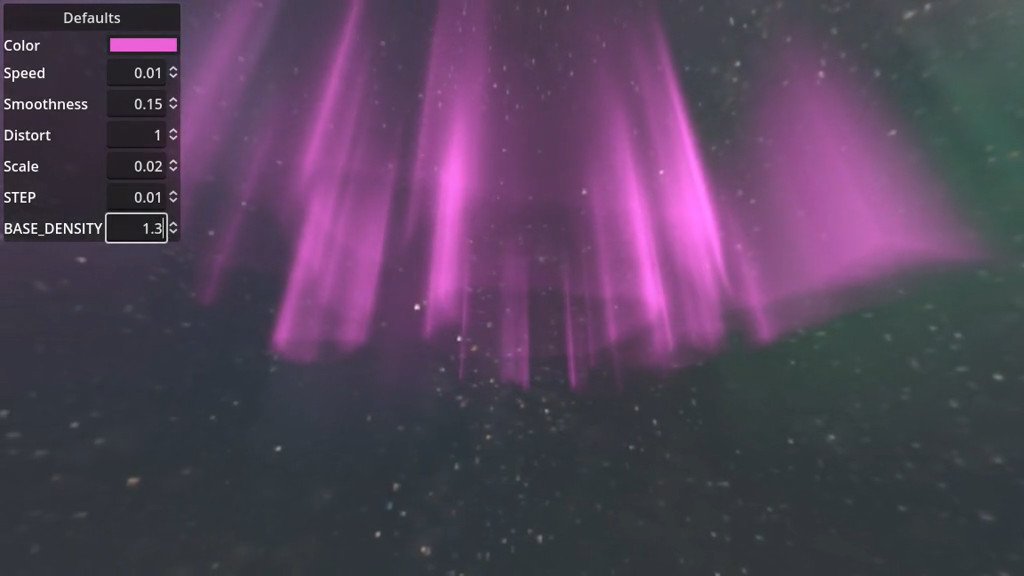

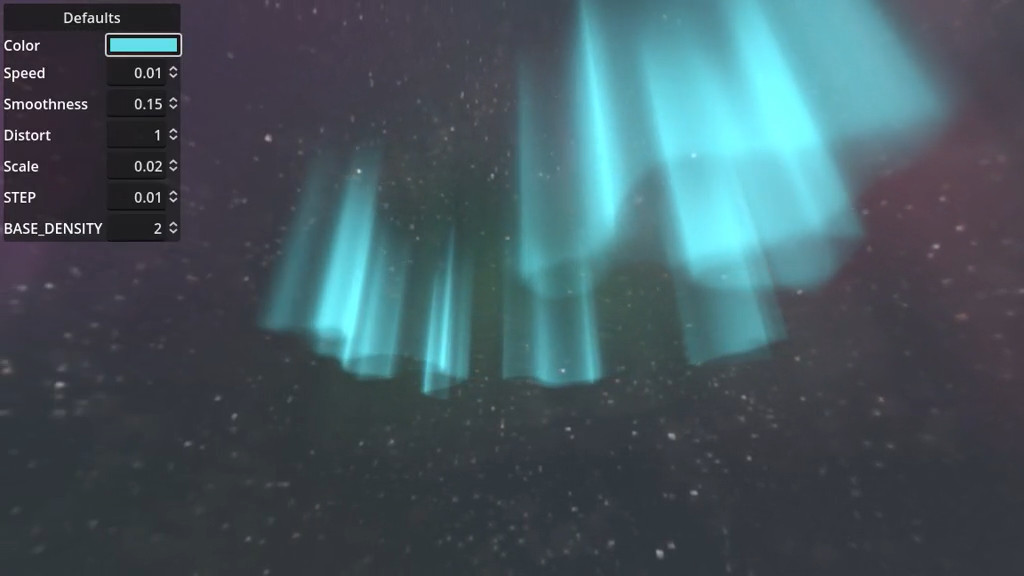

A shader that combines raymarching and noise texture to create the Aurora Borealis effect.

Shader code
shader_type spatial;

uniform float speed = 0.01;
uniform vec4 color : source_color;
uniform float emission_strength = 5.0;
uniform sampler2D noise;
uniform float offset = 0.0;
uniform float smoothness = 0.15;
uniform float distort = 1.0;
uniform float scale = 0.02;

group_uniforms Raymarching;
uniform float STEP = 0.01;
uniform float BASE_DENSITY = 2.0;

varying vec3 camera_position;
varying vec3 vertex_position;


float amplify(float value) {
	float magic_number = 0.166504;
	float output = 0.0;
	value = clamp(value, 0.0, 1.0);
	value = pow(value, 2);
	output += pow(magic_number, 4) * value;
	value = pow(value, 2);
	output += magic_number * value;
	value = pow(value, 2);
	output += value;
	return output;
}

float interpolate_noise(vec2 uv1, vec2 uv2) {
	return smoothstep(
		-smoothness, smoothness, texture(noise, uv1).r - texture(noise, uv2).r
	);
}

float random_wave(vec2 uv) {
	vec2 uv_distort = texture(noise, uv).rr * distort * 0.5;
	vec2 uv1 = uv * scale + vec2(TIME * speed, TIME * speed - offset) + uv_distort;
	vec2 uv2 = uv * scale + vec2(TIME * speed + 0.5, TIME * speed + offset) + uv_distort;
	float interpolated_noise = interpolate_noise(uv1, uv2);
	float intensity = 0.2 + clamp((0.5 - abs(interpolated_noise - 0.5)) * 1.5, 0.0, 1.0);
	float wave = amplify(intensity);
	return wave;
}

float ray_march(vec3 ray_origin, vec3 ray_direction, float start, float time) {
	float density = 0.0;
	float dist = start + STEP;

	while (true) {
		vec3 point = ray_origin + ray_direction * (dist);
		// Check if the point is outside of the mesh (-1 to 1 in all directions)
		if (clamp(point, vec3(-1, -1, -1), vec3(1, 1, 1)) != point) {
			break;
		}
		vec2 uv = vec2((point.x + 1.0) * 0.5, (point.z + 1.0) * 0.5);
		float wave_value = random_wave(uv);
		float height_factor = (1.0 - point.y) * 0.5;
		float point_density = BASE_DENSITY * STEP * height_factor * wave_value;
		density += point_density;
		dist += STEP;
	}

	return density;
}

void vertex() {
	vertex_position = VERTEX;
	// Use object space
	camera_position = (inverse(MODELVIEW_MATRIX) * vec4(0, 0, 0, 1)).xyz;
}

void fragment() {
	vec3 ray_origin = camera_position;
	vec3 ray_direction =  normalize(vertex_position - ray_origin);
	float density = ray_march(
		ray_origin, ray_direction, length(camera_position - vertex_position), TIME
	);

	ALBEDO = color.rgb * density;
	EMISSION = color.rgb * density * emission_strength;
	ALPHA = density;
}
Tags
aurora borealis, noise, northern lights, raymarching, sky, Volume
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

More from miskatonicstudio

Burning paper

Raindrops glass

Pride

Related shaders

2d aurora borealis

Subscribe
Notify of
guest

9 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Muffin
Muffin
2 years ago

Line 54 (pasted below) results in an Error “Expected expression, found:” in godot 3.5; no idea how to fix

if (clamp(point, vec3(-1, -1, -1), vec3(1, 1, 1)) != point) {
Scarm
2 years ago
Reply to  Muffin

do -1.0 and 1.0

godot 3.5+ now requires float specifications

superintendent chalmers
superintendent chalmers
2 years ago

Ah- Aurora Borealis!? At this time of year, at this time of day, in this part of the country, localized entirely within your computer!?

Dmitry Zajarchenko
Dmitry Zajarchenko
2 years ago

may I see it?

EvilBunnyMan
EvilBunnyMan
4 months ago

Came for this, not disappointed

Last edited 4 months ago by EvilBunnyMan
Rogotch
Rogotch
1 year ago

Looks great! But when I change mesh size, shader stopped working

Rogotch
Rogotch
1 year ago
Reply to  Rogotch

oh, nevermind. I found where set size

DRYTHES
DRYTHES
3 months ago

If you want the colours to change, you can add ‘uniform sampler2d colourgrad;’ and assign a gradient with the colours you desire, and then replace lines 82 to 84 with

  	vec4 input = texture((noise),UV);
  	float grayscale_value = dot(input.rgb, vec3(0.299,0.587,0.114));
  	vec3 sampled_color = texture(colourgrad,vec2(grayscale_value,0.0)).rgb;
	ALBEDO = (sampled_color) * density;
	EMISSION = (sampled_color) * density * emission_strength;
	ALPHA = density;
