Bodycam footage

For all your porcine needs

This is more of a shader stack than a single shader

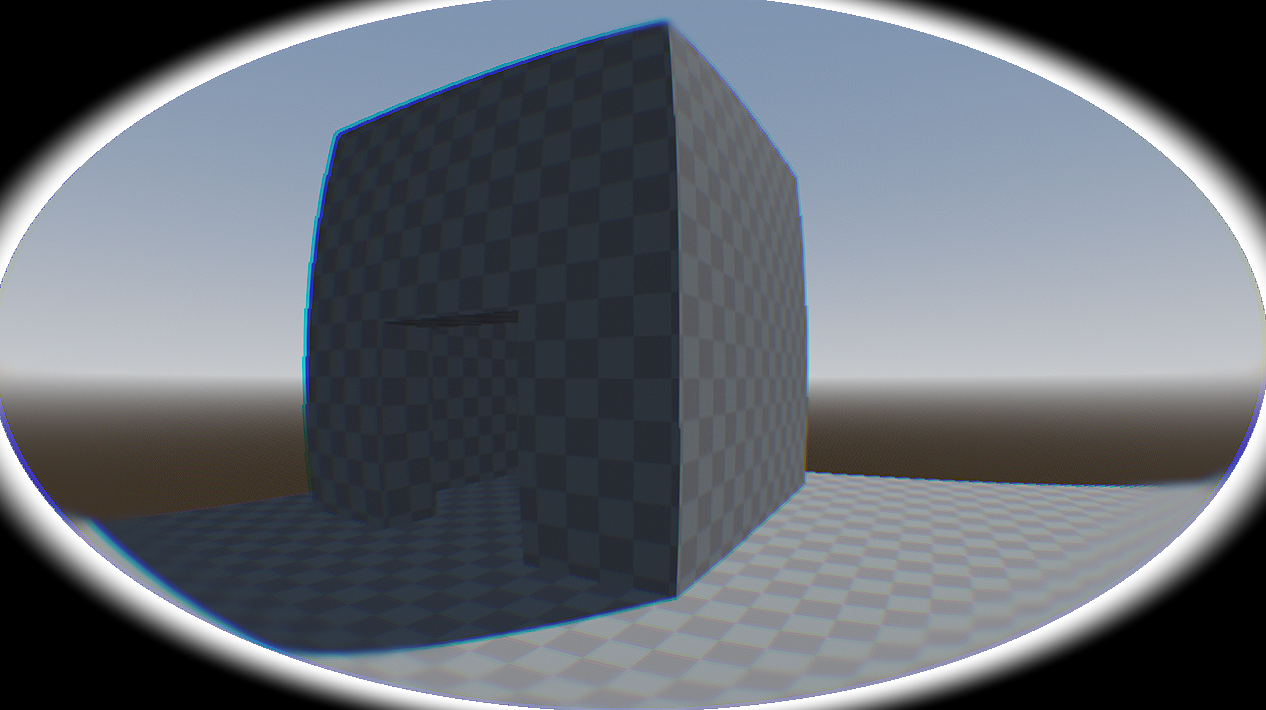

Fisheye Effect + Chromatic Aberration + Grain + Radial Crop Feathering

Instructions:

1- Create a CanvasLayer node

2- Add a ColorRect to the CanvasLayer node

3- Click on the ColorRect -> Material -> New ShaderMaterial -> Shader -> Create New Shader -> Paste the code below

CREDITS

• Grain by zuwiwano https://godotshaders.com/shader/grain-old-movie/
• Radial Distortion by jamesfrize https://godotshaders.com/shader/2d-radial-distortion-fisheye-barrel/

Shader code

shader_type canvas_item;

uniform float aspect = 1.0;
uniform float distortion = 1.0;
uniform float radius = 1.07;
uniform float alpha : hint_range(0.0, 1.0, 0.1) = 1.0;
uniform float crop = 0.943;
uniform vec4 crop_color : source_color = vec4(0,0,0,1);
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;
uniform float crop_feathering = 0.1;

const float base_distortion = 0.99;
uniform float channel_offset : hint_range(-0.1, 0.1, 0.001) = 0.005;
uniform float noise_strength = 5.0;

vec2 distort(vec2 p)
{
    float d = length(p);
    float z = sqrt(distortion + d * d * -distortion);
    float r = atan(d, z) / 3.1415926535;
    float phi = atan(p.y, p.x);
    return vec2(r * cos(phi) * (1.0 / aspect) + 0.5, r * sin(phi) + 0.5);
}

void fragment()
{
    vec2 xy = (SCREEN_UV * 2.0 - 1.0);
    xy = vec2(xy.x * aspect, xy.y);
    float d = length(xy);
    vec4 tex;
    if (d < radius)
    {
        vec2 distorted_uv_r = distort(xy * (base_distortion + 0.0 * channel_offset));
        vec2 distorted_uv_g = distort(xy * (base_distortion + 1.0 * channel_offset));
        vec2 distorted_uv_b = distort(xy * (base_distortion + 2.0 * channel_offset));

        tex.r = texture(SCREEN_TEXTURE, distorted_uv_r).r;
        tex.g = texture(SCREEN_TEXTURE, distorted_uv_g).g;
        tex.b = texture(SCREEN_TEXTURE, distorted_uv_b).b;
    	float x = (UV.x + 4.0 ) * (UV.y + 4.0 ) * (TIME * 10.0);
		tex = tex+vec4(mod((mod(x, 13.0) ) * (mod(x, 123.0) ), 0.01)-0.005) * noise_strength;
        COLOR = tex;
        COLOR.a = alpha;
    }

    if (d > crop)
    {
        float softness = smoothstep(crop, crop + crop_feathering, d);
        COLOR = mix(tex, crop_color, softness);
        COLOR.a = alpha;
    }
}
