Fresnel Bubble smoke (explosion)
Made with Godot 4.5

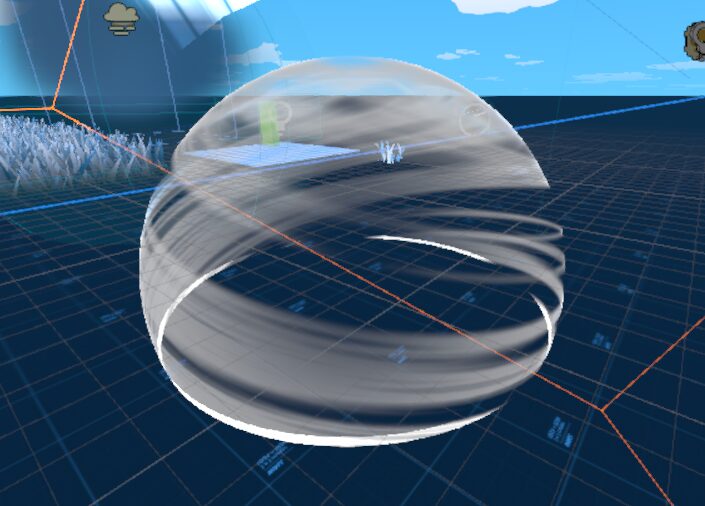

Want some Valorant-style explosion? Try this
Sorry, I don’t even play Valorant, so idk if it’s accurate

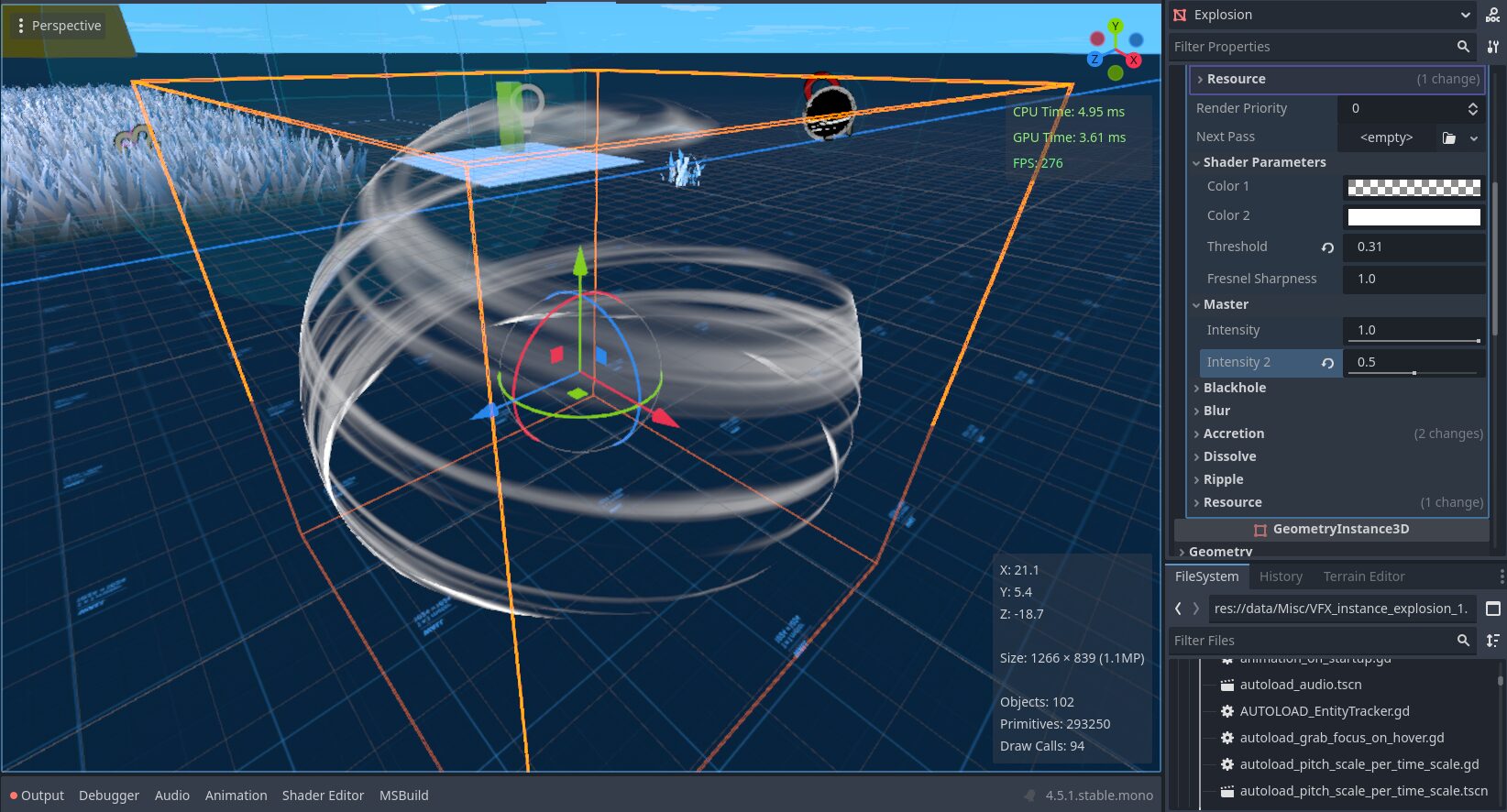

There are 2 uniforms, Intensity 1 and 2. The Intensity 1 controls the overall transparency, and the Intensity 2 controls the smoke effect.
Also, one thing, it has screen space distortion with chromatic effect, because this is literally the old shader that I simply recoded. Sorry for the inconvenience.
For more flashy effect (startup glow) like in the demo video/gif, change the Fresnel Sharpness from -2 to 1 using tween (or AnimationPlayer)
Dunno, tweak however u like
Shader code
shader_type spatial;
render_mode unshaded, cull_disabled, blend_mix;
// Screen texture for refraction
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;
// Fresnel & depth colors
uniform sampler2D depth_texture : source_color, hint_depth_texture;
uniform vec4 color1 : source_color = vec4(1,1,1,0.1);
uniform vec4 color2 : source_color = vec4(1,1,1,1.0);
uniform float threshold = 0.2;
uniform float fresnel_sharpness = 1.0;
// Master control
group_uniforms master;
uniform float intensity : hint_range(0.0, 1.0) = 1.0;
uniform float intensity_2 : hint_range(0.0, 1.0) = 1.0;
// Black hole distortion
group_uniforms blackhole;
uniform bool distortion_enabled = true;
uniform float distortion_strength : hint_range(0.0, 2.0) = 0.6;
uniform float edge_distortion_power : hint_range(1.0, 5.0) = 2.5;
uniform float chromatic_aberration : hint_range(0.0, 0.1) = 0.03;
uniform float event_horizon_radius : hint_range(0.0, 1.0) = 0.3;
uniform float event_horizon_darkness : hint_range(0.0, 1.0) = 0.85;
// Blur effect
group_uniforms blur;
uniform bool blur_enabled = true;
uniform float blur_amount : hint_range(0.0, 10.0) = 3.0;
uniform int blur_samples : hint_range(4, 16) = 8;
// Accretion disk glow
group_uniforms accretion;
uniform vec3 accretion_color : source_color = vec3(1.0, 0.6, 0.2);
uniform float accretion_intensity : hint_range(0.0, 3.0) = 1.2;
uniform float accretion_width : hint_range(1.0, 10.0) = 3.0;
// SDF Noise dissolve effect
group_uniforms dissolve;
uniform int noise_detail : hint_range(1, 8) = 4;
uniform float noise_inflate : hint_range(0.0, 1.0) = 0.1;
uniform float noise_speed : hint_range(0.0, 1.0) = 0.1;
uniform bool invert_dissolve = false;
// Base values (will be interpolated by intensity_2)
uniform float noise_scale_min : hint_range(0.1, 10.0) = 2.0;
uniform float noise_scale_max : hint_range(0.1, 10.0) = 4.0;
uniform float noise_roughness_min : hint_range(0.0, 1.0) = 0.5;
uniform float noise_roughness_max : hint_range(0.0, 1.0) = 0.3;
// Collision ripple effect
group_uniforms ripple;
uniform bool ripple_enabled = true;
uniform float ripple_time = 0.0;
uniform float ripple_frequency : hint_range(1.0, 30.0) = 12.0;
uniform float ripple_speed : hint_range(0.0, 10.0) = 3.0;
uniform float ripple_amplitude : hint_range(0.0, 0.3) = 0.08;
uniform float ripple_fade_distance : hint_range(0.1, 5.0) = 1.5;
uniform vec3 ripple_center = vec3(0.0, -1.0, 0.0);
varying vec3 world_position;
varying vec3 world_normal;
varying vec3 object_position;
// SDF noise functions
float smin(float a, float b, float k) {
float h = max(k - abs(a - b), 0.0);
return min(a, b) - h * h * 0.25 / k;
}
float smax(float a, float b, float k) {
float h = max(k - abs(a - b), 0.0);
return max(a, b) + h * h * 0.25 / k;
}
float sph(vec3 i, vec3 f, vec3 c) {
vec3 p = 17.0 * fract((i + c) * 0.3183099 + vec3(0.11, 0.17, 0.13));
float w = fract(p.x * p.y * p.z * (p.x + p.y + p.z));
float r = 0.7 * w * w;
return length(f - c) - r;
}
float sdBase(in vec3 p) {
vec3 i = floor(p);
vec3 f = fract(p);
return min(min(min(sph(i, f, vec3(0,0,0)),
sph(i, f, vec3(0,0,1))),
min(sph(i, f, vec3(0,1,0)),
sph(i, f, vec3(0,1,1)))),
min(min(sph(i, f, vec3(1,0,0)),
sph(i, f, vec3(1,0,1))),
min(sph(i, f, vec3(1,1,0)),
sph(i, f, vec3(1,1,1)))));
}
mat3 y_rot(float angle) {
return mat3(
vec3(cos(angle), 0.0, -sin(angle)),
vec3(0.0, 1.0, 0.0),
vec3(sin(angle), 0.0, cos(angle))
);
}
float sdFbm(in vec3 p, in int detail, in float rough, in float inflate, in float smooth_fac, in float d) {
float s = 1.0;
for(int i = 0; i < min(detail, 8); i++) {
float n = s * sdBase(p);
n = smax(n, d - inflate * s, smooth_fac * s);
d = smin(n, d, smooth_fac * s);
p = mat3(vec3(0.00, 1.60, 1.20),
vec3(-1.60, 0.72, -0.96),
vec3(-1.20, -0.96, 1.280)) * p;
s = rough * s;
}
return d;
}
void vertex() {
world_position = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;
world_normal = normalize((MODEL_MATRIX * vec4(NORMAL, 0.0)).xyz);
object_position = VERTEX;
}
void fragment() {
// Calculate edge factor (0 at center, 1 at edges)
float view_dot = abs(dot(normalize(VIEW), NORMAL));
float edge_factor = 1.0 - view_dot;
float edge_power = pow(edge_factor, edge_distortion_power);
// --- Ripple calculation ---
float ripple_offset = 0.0;
float ripple_glow = 0.0;
if (ripple_enabled && ripple_time > 0.0) {
float dist = distance(world_position, ripple_center);
float wave_phase = dist * ripple_frequency - ripple_time * ripple_speed;
float wave = sin(wave_phase) * 0.5 + 0.5;
float fade = exp(-dist * ripple_fade_distance) * (1.0 - ripple_time);
ripple_offset = wave * ripple_amplitude * fade;
ripple_glow = wave * fade * 0.5;
}
// --- Black hole screen distortion with blur ---
vec3 final_color = vec3(0.0);
if (distortion_enabled) {
float distortion = (distortion_strength * edge_power * intensity) + ripple_offset;
vec2 distort_vec = NORMAL.xy * distortion;
float angle = edge_factor * 0.5;
mat2 rotation = mat2(vec2(cos(angle), -sin(angle)), vec2(sin(angle), cos(angle)));
distort_vec = rotation * distort_vec;
vec2 base_uv = SCREEN_UV + distort_vec;
if (blur_enabled && intensity > 0.0) {
vec3 blur_sum = vec3(0.0);
float blur_size = blur_amount * 0.001 * intensity;
for (int i = 0; i < blur_samples; i++) {
float angle_offset = float(i) * 6.28318 / float(blur_samples);
vec2 offset = vec2(cos(angle_offset), sin(angle_offset)) * blur_size;
float chroma = chromatic_aberration * edge_power * intensity;
blur_sum.r += texture(SCREEN_TEXTURE, base_uv + offset + vec2(chroma, 0.0)).r;
blur_sum.g += texture(SCREEN_TEXTURE, base_uv + offset).g;
blur_sum.b += texture(SCREEN_TEXTURE, base_uv + offset - vec2(chroma, 0.0)).b;
}
final_color = blur_sum / float(blur_samples);
} else {
float chroma = chromatic_aberration * edge_power * intensity;
final_color.r = texture(SCREEN_TEXTURE, base_uv + vec2(chroma, 0.0)).r;
final_color.g = texture(SCREEN_TEXTURE, base_uv).g;
final_color.b = texture(SCREEN_TEXTURE, base_uv - vec2(chroma, 0.0)).b;
}
float event_horizon_mask = smoothstep(event_horizon_radius, 1.0, edge_factor);
final_color *= mix(1.0 - event_horizon_darkness * intensity, 1.0, event_horizon_mask);
float accretion_mask = pow(edge_factor, accretion_width) * accretion_intensity * intensity;
final_color += accretion_color * accretion_mask;
} else {
final_color = texture(SCREEN_TEXTURE, SCREEN_UV).rgb;
}
// --- Depth comparison for collision effect ---
float depth = texture(depth_texture, SCREEN_UV).x;
vec3 ndc = vec3(SCREEN_UV * 2.0 - 1.0, depth);
vec4 view = INV_PROJECTION_MATRIX * vec4(ndc, 1.0);
view.xyz /= view.w;
float linear_depth = -view.z;
float object_depth = FRAGCOORD.z;
vec3 object_ndc = vec3(SCREEN_UV * 2.0 - 1.0, object_depth);
vec4 object_view = INV_PROJECTION_MATRIX * vec4(object_ndc, 1.0);
object_view.xyz /= object_view.w;
float linear_object_depth = -object_view.z;
// Fresnel
float fresnel = pow(1.0 - view_dot, fresnel_sharpness) * intensity;
vec4 base_col;
if (linear_depth - linear_object_depth > threshold) {
base_col = color1;
} else {
base_col = color2;
}
base_col.a *= intensity;
if (ripple_enabled && ripple_time > 0.0 && linear_depth - linear_object_depth <= threshold) {
base_col.rgb += vec3(0.4, 0.7, 1.0) * ripple_glow * 2.0;
}
// --- SDF Noise dissolve effect (controlled by intensity_2) ---
float dissolve_alpha = 1.0;
// Interpolate parameters based on intensity_2
// intensity_2 = 0: smooth, sharp dissolve
// intensity_2 = 1: rough, soft dissolve
float noise_smoothness = mix(0.6, 0.01, intensity_2);
float dissolve_sharpness = mix(50.0, 1.0, intensity_2);
float noise_scale = mix(noise_scale_min, noise_scale_max, intensity_2);
float noise_roughness = mix(noise_roughness_min, noise_roughness_max, intensity_2);
vec3 noise_pos = object_position;
vec3 noise_offset = vec3(0.0, -TIME * noise_speed, 0.0);
noise_pos = y_rot(noise_pos.y * 10.0) * noise_pos;
noise_pos = noise_pos * noise_scale + noise_offset;
float sphere_dist = length(object_position) - 0.5;
float noise_dist = sdFbm(noise_pos, noise_detail, noise_roughness,
noise_inflate, noise_smoothness, sphere_dist);
// Convert to alpha with sharp cutoff
float noise_alpha_raw = 1.0 - clamp(-noise_dist * dissolve_sharpness, 0.0, 1.0);
noise_alpha_raw = pow(noise_alpha_raw, 2.0);
// Invert if needed
if (invert_dissolve) {
noise_alpha_raw = 1.0 - noise_alpha_raw;
}
// Apply dissolve effect
dissolve_alpha = noise_alpha_raw;
// Blend distorted background with base color
float distortion_blend = edge_factor * 0.7;
if (linear_depth - linear_object_depth <= threshold) {
distortion_blend *= 0.3;
}
ALBEDO = mix(base_col.rgb, final_color, distortion_blend);
// intensity controls overall transparency, dissolve_alpha controls the noise pattern
ALPHA = (base_col.a + fresnel) * dissolve_alpha * intensity;
}Live Preview
Bro I CANT TAKE SOME OF MY OLD SHADER DOWN. Anyway, there is some uniforms that absolutely doing nothing, it was part of my fault but FUCK YOU, i’m not updating this!!!
Actually I love u <3
There’s been some issues with removing and editing shaders, but it have been fixed. So you should be able to remove an uploaded shader now.
thank u admin :3
Dammmmn, that’s good! Imma give it a go 😀
Sorry for the stupid question, but how do I “play” this effect? I just add to a MeshInstance and its done? Thanks for providing this shader, it’s awesome!
there is 2 intensity value, Intensity 1 control the overall transparency, Intensity 2 control the smoke intensity (like how i do in the gif). Because im SUCK so you can either use AnimationPlayer or Tween (this one will require a lot of coding) to control both of value that meet your expectation.
And yeah i still don’t know how to fix intensity 2 so even if the value is 0, there will still some left over smoke effect (which is why i made 2 intensity instead of just one 😭)
