Canvas Group Outline

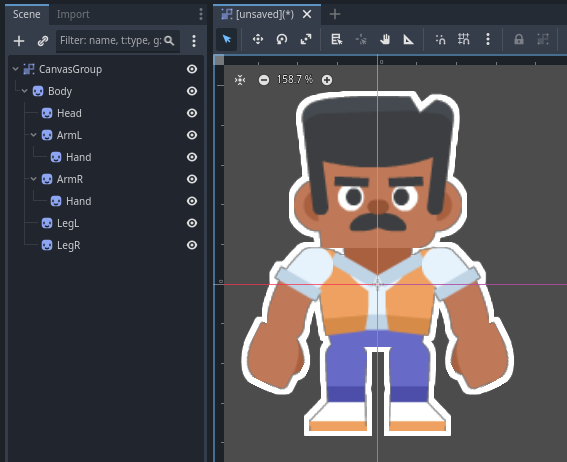

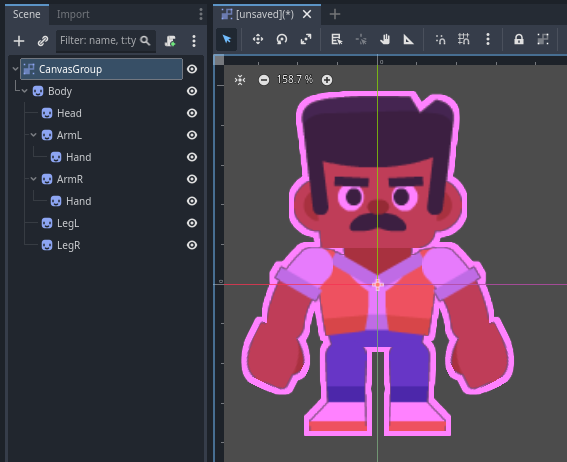

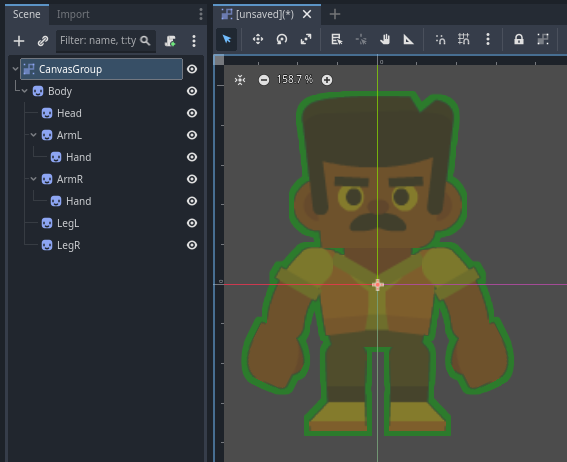

Adds an outer stroke to a Canvas Group. It works well with pixel art and assets with anti-aliased edges and accounts for the modulate colour.

This shader creates an outline by applying dilation to the Canvas Group’s alpha channel (using a square kernel) and blending colours.

I adapted this shader from other solutions that couldn’t suit my needs. This is also my first shader, any feedback is appreciated!

Shader code
shader_type canvas_item;

uniform vec3 line_colour: source_color = vec3(1.0);
uniform int line_thickness: hint_range(0, 10) = 1;
uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_nearest;

void fragment() {
	vec2 size = SCREEN_PIXEL_SIZE * float(line_thickness);
	float line_alpha = 0.0;
	for (float i = -size.x; i <= size.x; i += SCREEN_PIXEL_SIZE.x) {
		for (float j = -size.y; j <= size.y; j += SCREEN_PIXEL_SIZE.y) {
			line_alpha += texture(screen_texture, SCREEN_UV + vec2(i, j)).a;
		}
	}
	vec4 colour = texture(screen_texture, SCREEN_UV);
	vec4 outline = vec4(line_colour, min(line_alpha, 1.0));
	COLOR *= mix(outline, colour, colour.a);
}
Tags
2d, border, CanvasGroup, godot4, outline, stroke
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
