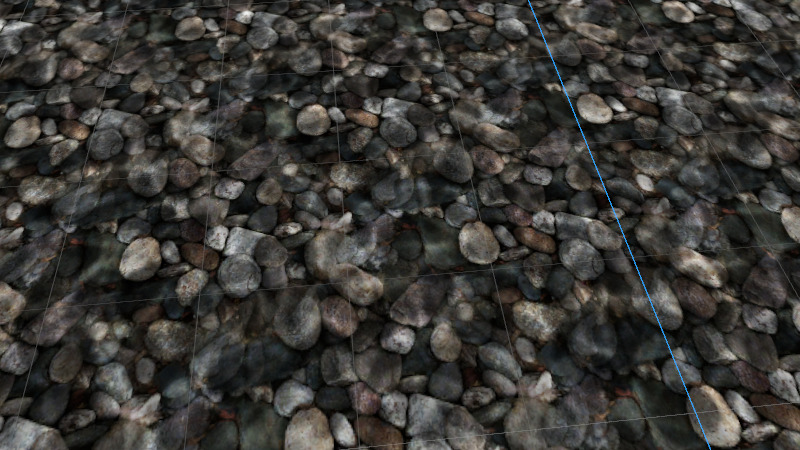

Cheap caustics

Fake unshade caustics deform giving the appearance that they follow the ground.

Shader code
shader_type spatial;
render_mode specular_schlick_ggx, cull_back, unshaded, async_visible;

uniform sampler2D ground_rgb : hint_albedo;
uniform sampler2D caustics_bw: hint_white;
uniform float slowdown : hint_range( 0.1, 10.0, 0.1 ) = 5.0;
uniform float time_caust : hint_range( 0.01, 1.0, 0.01 ) = 0.13;
uniform float tile_caust: hint_range( 0.1, 16.0, 0.1 ) = 4.0;
uniform float tile_ground: hint_range( 0.1, 16.0, 0.1 ) = 8.0;

void fragment() {

// caustics_bw
    vec2 caustics_bw_uv1 = UV * (tile_caust + sin(TIME / slowdown) * time_caust);
	vec2 caustics_bw_uv2 = UV * (tile_caust + cos(TIME / slowdown) * time_caust);
	float caustics_bw1_read = texture(caustics_bw, caustics_bw_uv1.xy).r;
	float caustics_bw2_read = texture(caustics_bw, caustics_bw_uv2.yx).r;
	// ground_rgb
	vec3 ground_rgb_read = texture(ground_rgb, UV * (tile_ground)).rgb;

	ALBEDO = ground_rgb_read.rgb * caustics_bw1_read * caustics_bw2_read;

caustics, river, sea, water
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
