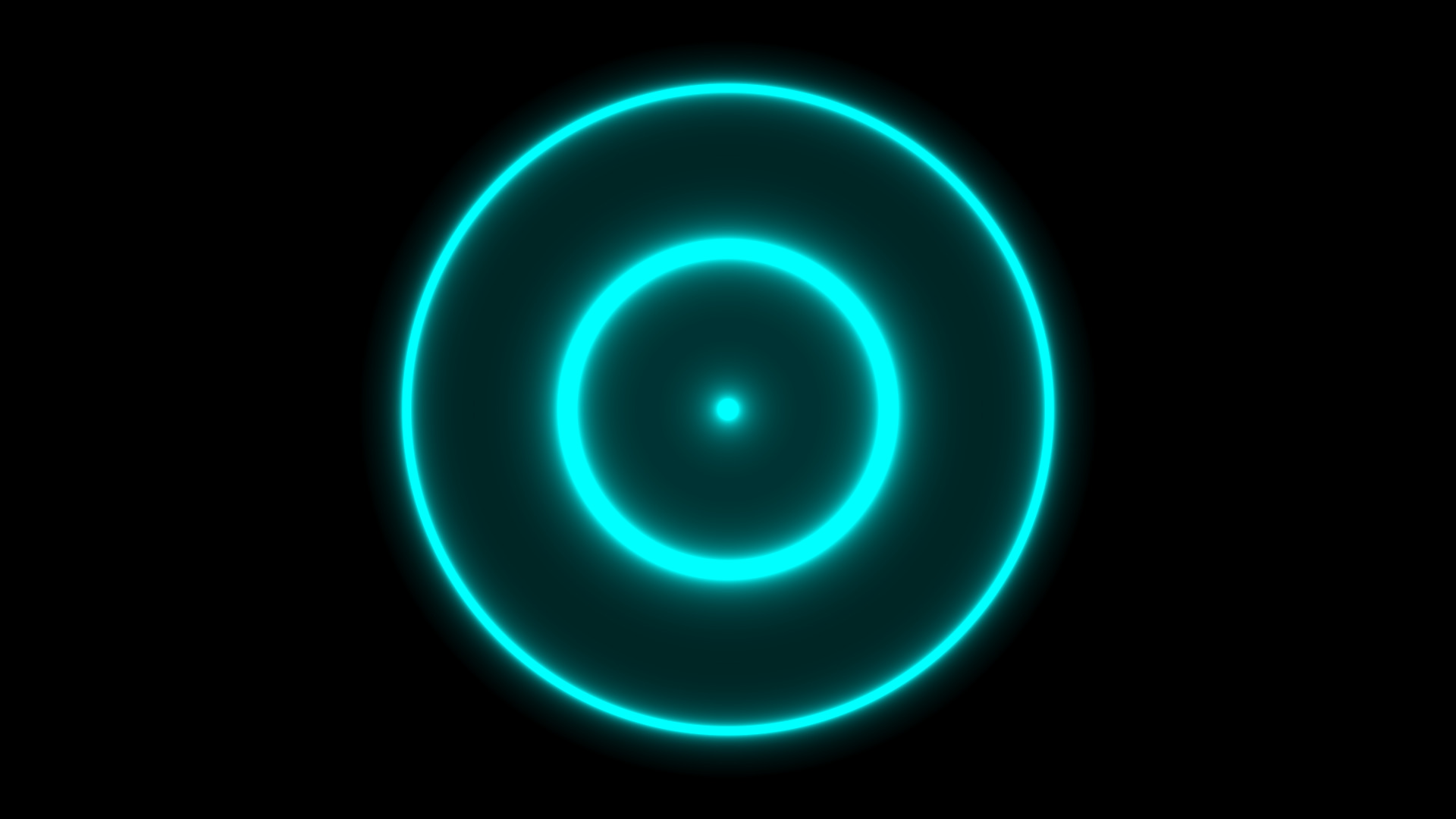

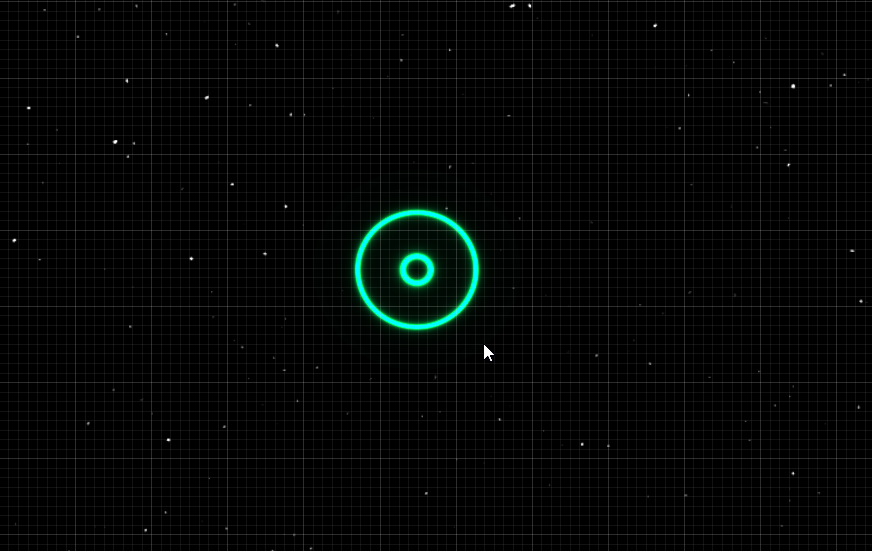

Colorful Signal effect

A colorful signal effect for 2D games.


Add a ColorRect to your scene.

Then proceed the classic way to add a shader and paste the code.

Change size, speed, color and ray number in Shader Param.

For Rainbow Color, check the code

Shader code
shader_type canvas_item;

uniform vec4 color_signal : hint_color = vec4 (1.0);
uniform float size : hint_range(0.0, 1.0, 0.01) = 0.2;
uniform float zoom : hint_range(0.0, 20, 1) = 8.0;
uniform float speed : hint_range(-10.0, 10.0, 1.0) = 1.0;

void fragment(){
	float d = length((UV-0.5)*2.0);
	float t = pow(smoothstep(0.9,0.2,d),0.35);
	// For rainbow effect, keep this line :
	vec3 rainbow = 0.5 + 0.5*cos(TIME+UV.xyx+vec3(0,2,4));
	vec4 color = vec4(rainbow.rgb,1.0);
	// For idle color, delete "//" below :
	//color = vec4(color_signal.rgb,1.0);

	d = sin(zoom*d - speed*TIME);
	d = abs(d);
	d = size/d;
	color *= d*t;
	COLOR = vec4(color);
2d, animation, signal
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
