Fnaf / Clickteam perspective (displacement) – Godot 4.2

Works in Godot 4.2

This shader was made by someone named “Fishy” who created this shader for me, and he gave me permission to share this shader.

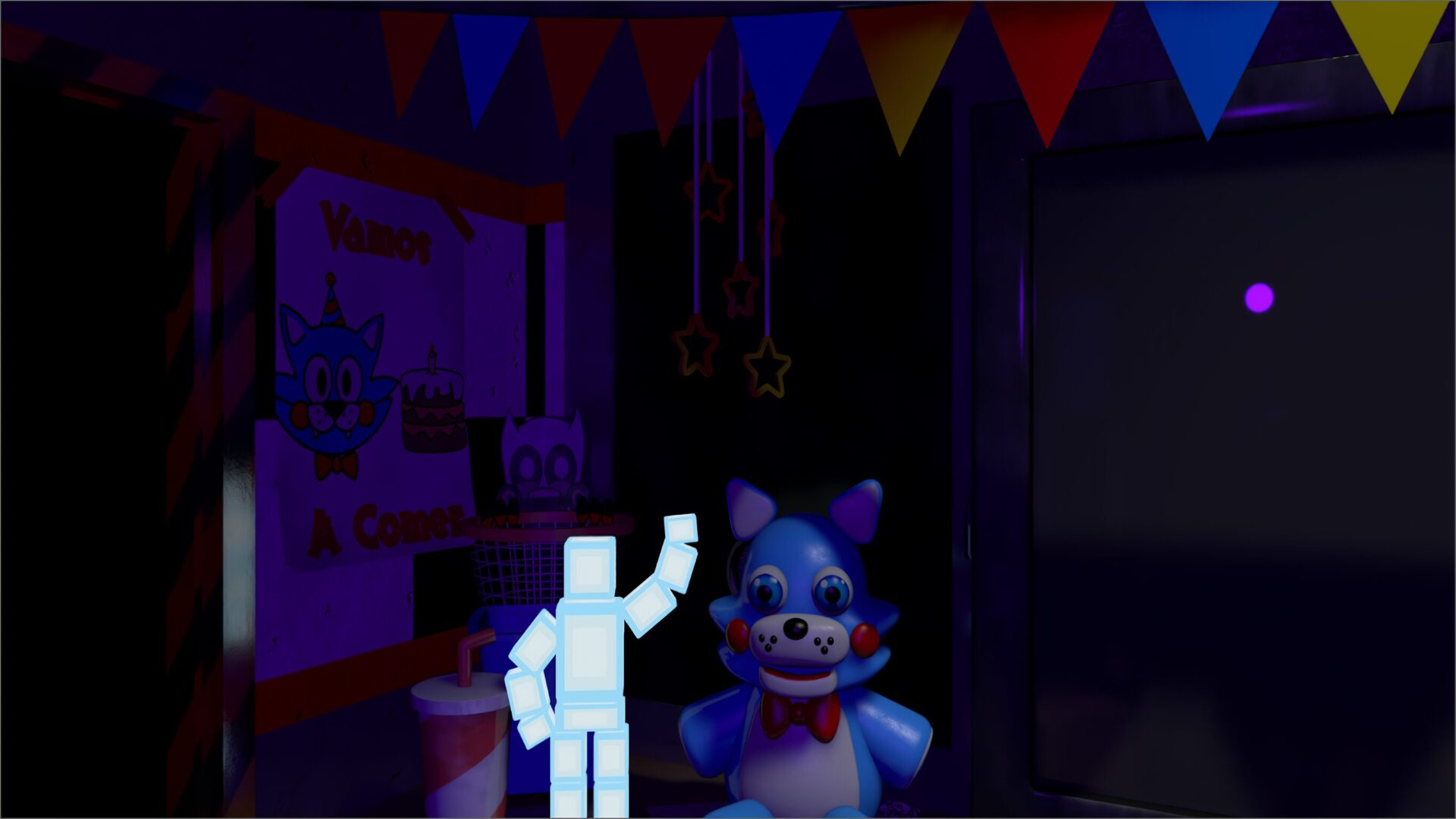

This is a recreation of a shader seen in Clickteam Fusion. This shader is used in games like Fnaf (Five Nights at Freddy’s)

This shader is applied to the entire screen, such as by using a ColorRect node. Also, the effect won’t be affected if the window size changes.

Here are the properties you can change: Zoom, Sharpness, Direction, and Wrapping Mode

Shader code

shader_type canvas_item;

/**
 * In relative units now (0-1)
 */
uniform float zoom = 1.0;

/**
 * Higher values = less distortion in the center
 */
uniform float sharpness = 2.0;

/**
 * (1, 0) for horizontal only, (0, 1) for vertical only
 */
uniform vec2 direction = vec2(1.0, 0.0);

/**
 * 0: Repeats
 * 1: Clamps
 * 2: Clips
 */
uniform int wrapping_mode = 0;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;

void fragment() {
    float fB;
    float fC;

    vec2 posTex;
    vec4 color = vec4(0.0, 0.0, 0.0, 1.0);
    vec2 uv = SCREEN_UV;
    vec2 ndir = normalize(direction);
    float fac1 = abs(dot(uv - 0.5, normalize(ndir.yx))) * 2.0;
    float fac2 = -dot(uv - 0.5, normalize(ndir)) * 2.0;
    vec2 new_uv = uv + pow(fac1, sharpness) * fac2 * zoom * ndir;
    switch (wrapping_mode)
    {
        case 2:
            if (0.0 > new_uv.x || new_uv.x > 1.0 || 0.0 > new_uv.y || new_uv.y > 1.0)
            {
                COLOR = vec4(0);
                break;
            }
        case 0:
            new_uv = fract(new_uv);
            // fall-through
        case 1:
            new_uv = clamp(new_uv, vec2(0), vec2(1));
            COLOR = textureLod(SCREEN_TEXTURE, new_uv, 0.0);
            break;
    }
}
