Foggy Glass Shader
A foggy glass shader for the settings background of a VN im working on.
To use it apply it to a color rect, or whatever you want to have the affect, then add the noise image(or really any image you want) and tick seamless.
if you’re wanting a more pixelated “fogginess” effect change “filter_linear_mipmap” in ScreenTexture to “filter_nearest_mipmap”
GlassColor: modulation color aplied to the shader
Fogginess: how blurred the texture is
NoiseTexture: the texture overlayed to give variation
NoiseMoveSpeed: how fast the texture overlay moves, its sin(TIME / NoiseMoveSpeed) so lower = faster
TextureModulationStregnth: how strong the texture overlay is
CelShading: toggles the celshading effect, it doesnt work well if using "filter_nearest_mipmap" and NoiseTexture overlay
CelShadingStregnth: uses COLOR.rgb = round(COLOR.rgb * CelShadingStregnth) / CelShadingStregnth so the lower the CelShadingStregnth the more intense the color limiting, round numbers work best
mess around with the variables to get what you want, the default settings are what i am useing
Shader code
shader_type canvas_item;
uniform sampler2D ScreenTexture : hint_screen_texture, repeat_disable, filter_linear_mipmap;
uniform vec4 GlassColor : source_color;
uniform float Fogginess : hint_range(0.0, 10.0, 0.1) = 2.0;
group_uniforms TextureOverlay;
uniform bool TextureOverlay = false;
uniform sampler2D TextureOverlayTexture : hint_default_white, repeat_enable;
uniform float TextureMoveSpeed : hint_range(1.0, 200.0, 1.0) = 75;
uniform float TextureModulationStregnth : hint_range(0.0, 1.0, 0.1) = .1;
group_uniforms CelShading;
uniform bool CelShading = false;
uniform float CelShadingStregnth : hint_range(1.0, 20.0, 0.1) = 10;
void fragment() {
COLOR = textureLod(ScreenTexture, SCREEN_UV, Fogginess);
if (TextureOverlay == true) {
COLOR.rgb = clamp(COLOR.rgb + GlassColor.rgb + (texture(TextureOverlayTexture, UV + sin(TIME / TextureMoveSpeed)).rgb * TextureModulationStregnth) , 0, 1);
} else {
COLOR.rgb = clamp(COLOR.rgb + GlassColor.rgb, 0, 1);
}
if (CelShading == true) {
COLOR.rgb = round(COLOR.rgb * CelShadingStregnth) / CelShadingStregnth;
}
COLOR.a = GlassColor.a;
}

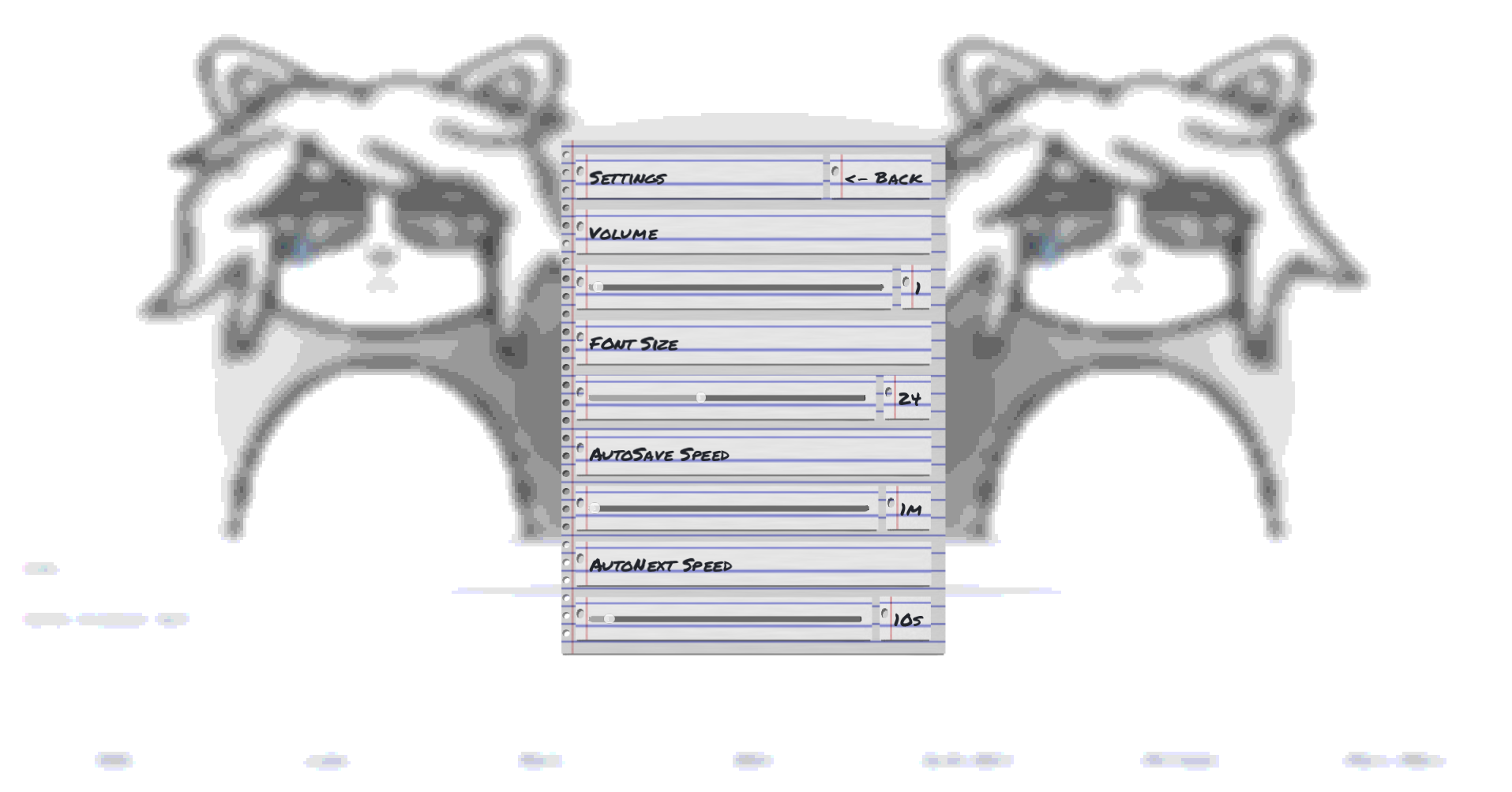

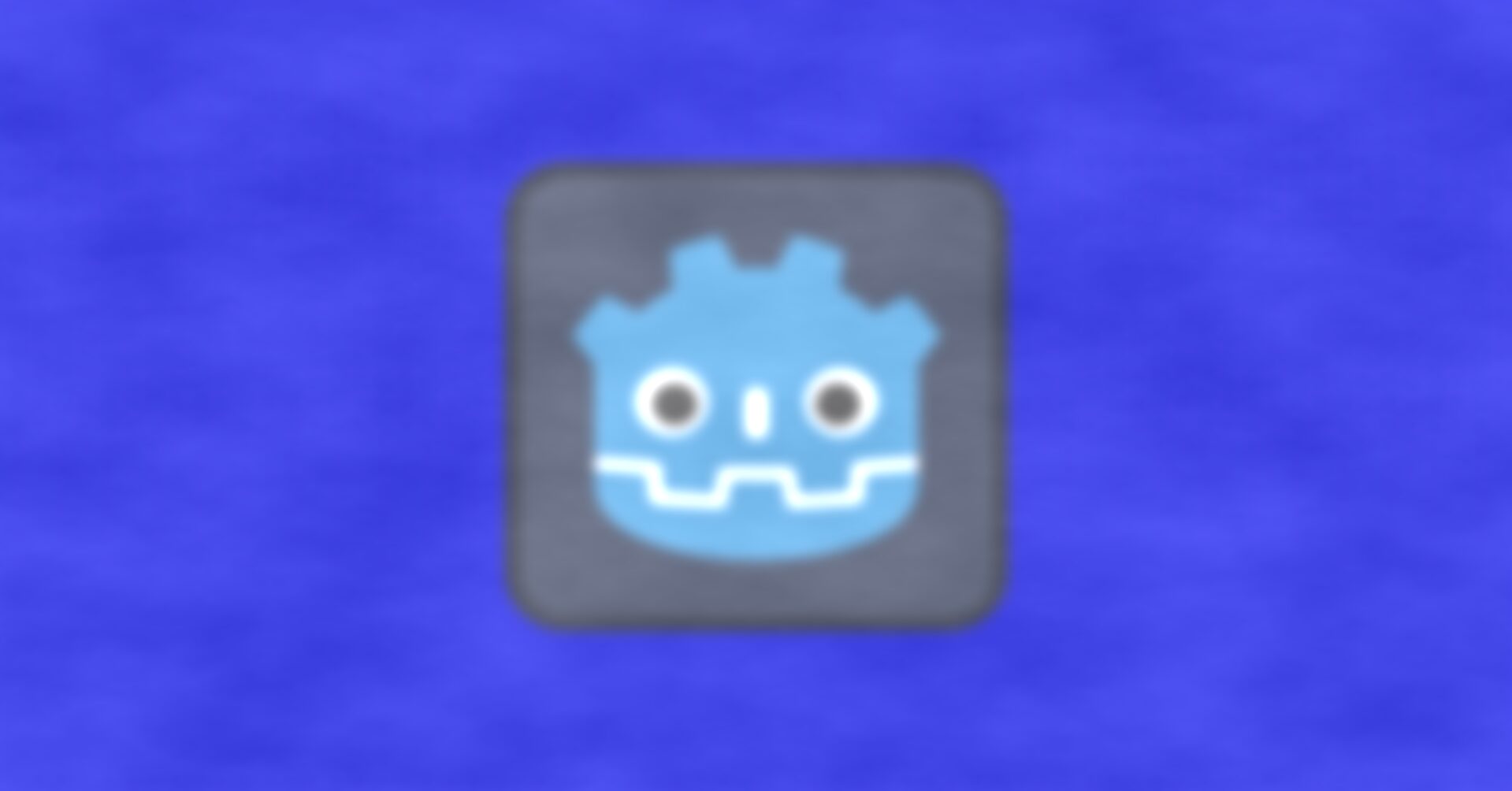

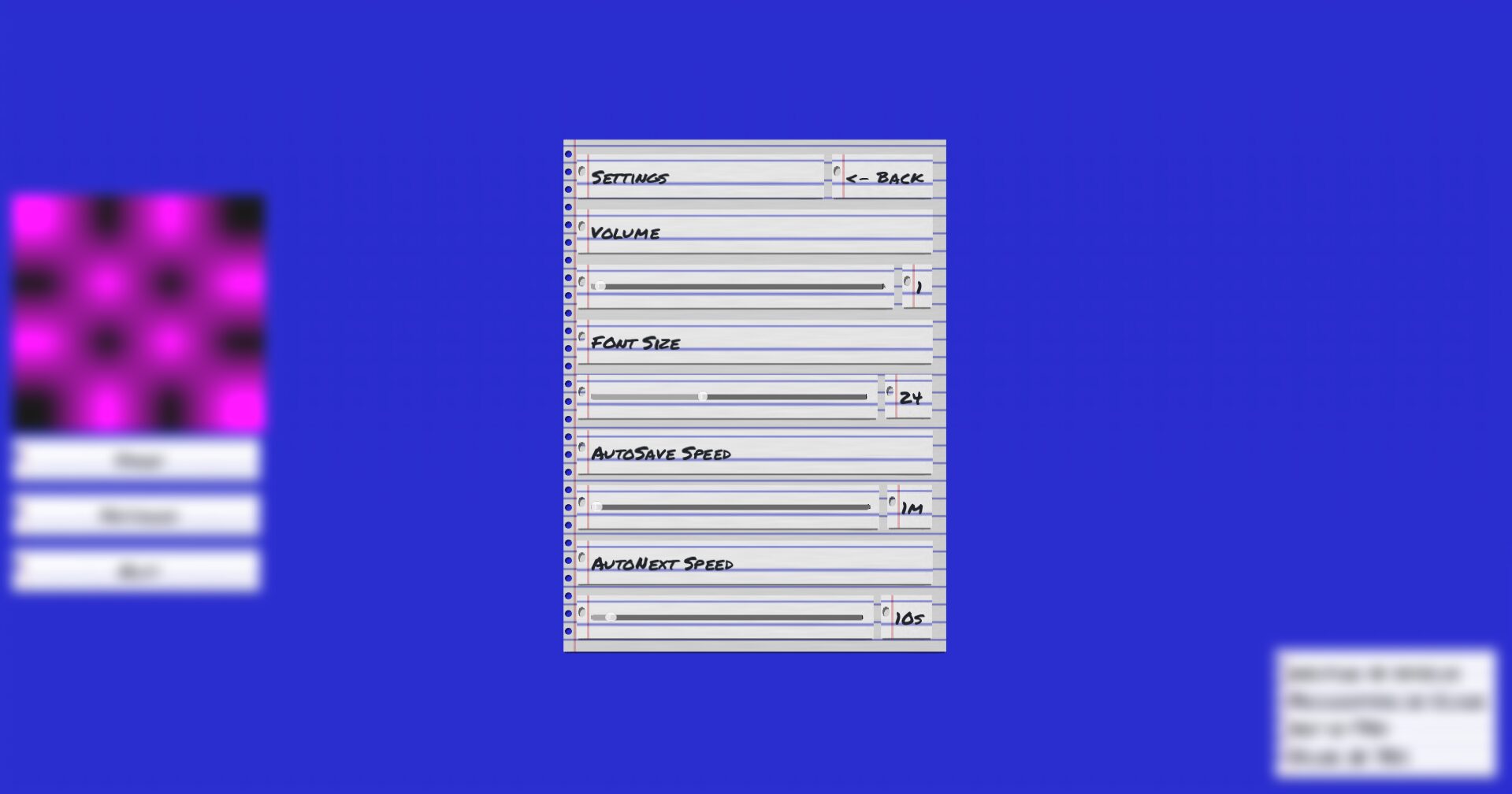

Live Preview
