Generalized Kuwahara

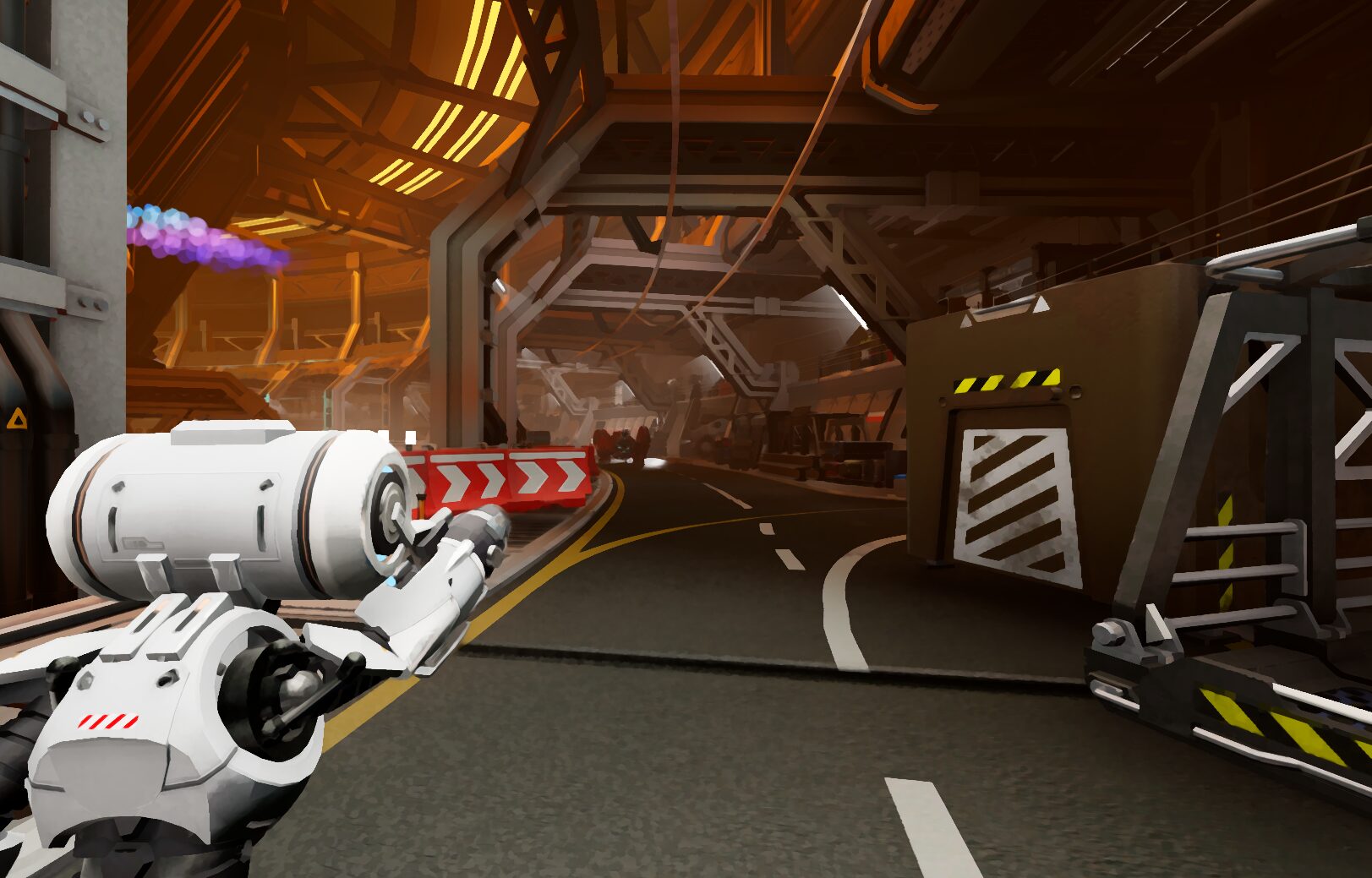

Postprocessing Kuwahara shader

Ported from Unity to Godot 4, orignal by Acerola

– Video by Acerola: This is the Kuwahara Filter

– Source code: https://github.com/GarrettGunnell/Post-Processing/tree/main/Assets/Kuwahara%20Filter

Shader code
shader_type canvas_item;

const int _N = 8;

uniform sampler2D SCREEN_TEXTURE: hint_screen_texture, filter_linear_mipmap, repeat_disable;

uniform int _KernelSize: hint_range(2, 20, 1) = 2;

uniform float _Hardness: hint_range(1.0f, 100.0f) = 8.0f;
uniform float _Sharpness: hint_range(1.0f, 18.0f) = 8.0f;
uniform float _ZeroCrossing: hint_range(0.01f, 2.0f) = 0.58f;
uniform float _Zeta: hint_range(0.01f, 3.0f) = 1.0f;

varying vec2 texelSize;


float gaussian(float sigma, float pos) {
	return (1.0f / sqrt(2.0f * PI * sigma * sigma)) * exp(-(pos * pos) / (2.0f * sigma * sigma));
}


void vertex() {
	texelSize = vec2(1.0 / vec2(textureSize(SCREEN_TEXTURE, 0)));
}


void fragment() {
	vec4 m[8];
	vec3 s[8];

	int kernelRadius = _KernelSize / 2;

	//float zeta = 2.0f / (kernelRadius);
	float zeta = _Zeta;

	float zeroCross = _ZeroCrossing;
	float sinZeroCross = sin(zeroCross);
	float eta = (zeta + cos(zeroCross)) / (sinZeroCross * sinZeroCross);

	for (int k = 0; k < _N; ++k) {
		m[k] = vec4(0.0f);
		s[k] = vec3(0.0f);
	}

	for (int y = -kernelRadius; y <= kernelRadius; ++y) {
		for (int x = -kernelRadius; x <= kernelRadius; ++x) {
			vec2 v = vec2(float(x), float(y)) / float(kernelRadius);
			vec3 c = texture(SCREEN_TEXTURE, UV + vec2(float(x), float(y)) * texelSize.xy).rgb;
			c = clamp(c, 0.0f, 1.0f);
			float sum = 0.0f;
			float w[8];
			float z, vxx, vyy;

			/* Calculate Polynomial Weights */
			vxx = zeta - eta * v.x * v.x;
			vyy = zeta - eta * v.y * v.y;
			z = max(0, v.y + vxx);
			w[0] = z * z;
			sum += w[0];
			z = max(0, -v.x + vyy);
			w[2] = z * z;
			sum += w[2];
			z = max(0, -v.y + vxx);
			w[4] = z * z;
			sum += w[4];
			z = max(0, v.x + vyy);
			w[6] = z * z;
			sum += w[6];
			v = sqrt(2.0f) / 2.0f * vec2(v.x - v.y, v.x + v.y);
			vxx = zeta - eta * v.x * v.x;
			vyy = zeta - eta * v.y * v.y;
			z = max(0, v.y + vxx);
			w[1] = z * z;
			sum += w[1];
			z = max(0, -v.x + vyy);
			w[3] = z * z;
			sum += w[3];
			z = max(0, -v.y + vxx);
			w[5] = z * z;
			sum += w[5];
			z = max(0, v.x + vyy);
			w[7] = z * z;
			sum += w[7];

			float g = exp(-3.125f * dot(v,v)) / sum;

			for (int k = 0; k < 8; ++k) {
				float wk = w[k] * g;
				m[k] += vec4(c * wk, wk);
				s[k] += c * c * wk;
			}
		}
	}

	vec4 output = vec4(0.0f);
	for (int k = 0; k < _N; ++k) {
		m[k].rgb /= m[k].w;
		s[k] = abs(s[k] / m[k].w - m[k].rgb * m[k].rgb);

		float sigma2 = s[k].r + s[k].g + s[k].b;
		float w = 1.0f / (1.0f + pow(_Hardness * 1000.0f * sigma2, 0.5f * _Sharpness));

		output += vec4(m[k].rgb * w, w);
	}

	COLOR.rgb = clamp(output / output.w, 0.0f, 1.0f).rgb;
}
Tags
acerola, Anime, generalized kuwahara, kuwahara, npr, Post processing, postprocessing, stylized
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
