Gradient Color Fog

fenchel

This is an attempt of implementing Harry Alisavakis multi-color fog shader using Godot.



A demo scene is published here.

Shader code
shader_type spatial;
render_mode unshaded;

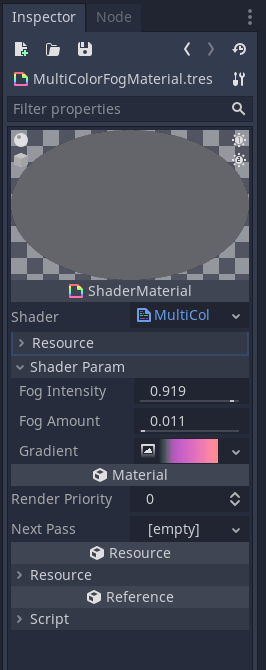

uniform sampler2D gradient: hint_albedo;
uniform float fog_intensity:  hint_range(0.0, 1.0);
uniform float fog_amount: hint_range(0.0, 1.0);

void vertex() {
	POSITION = vec4(VERTEX,	1.0);
}

void fragment() {
	vec4 original = texture(SCREEN_TEXTURE, SCREEN_UV);

	float depth = texture(DEPTH_TEXTURE, SCREEN_UV).x;
	vec3 ndc= vec3(SCREEN_UV, depth) * 2.0 - 1.0;
	vec4 view = INV_PROJECTION_MATRIX* vec4(ndc, 1.0);
	view.xyz /= view.w;
	depth = -view.z;

	float fog = depth * fog_amount;

	vec4 fog_color = texture(gradient, vec2(fog, 0.0));
	if (depth > 1.0)
		ALBEDO =  mix(original.rgb, fog_color.rgb, fog_color.a * fog_intensity);
	else
		ALBEDO = fog_color.rgb;
}

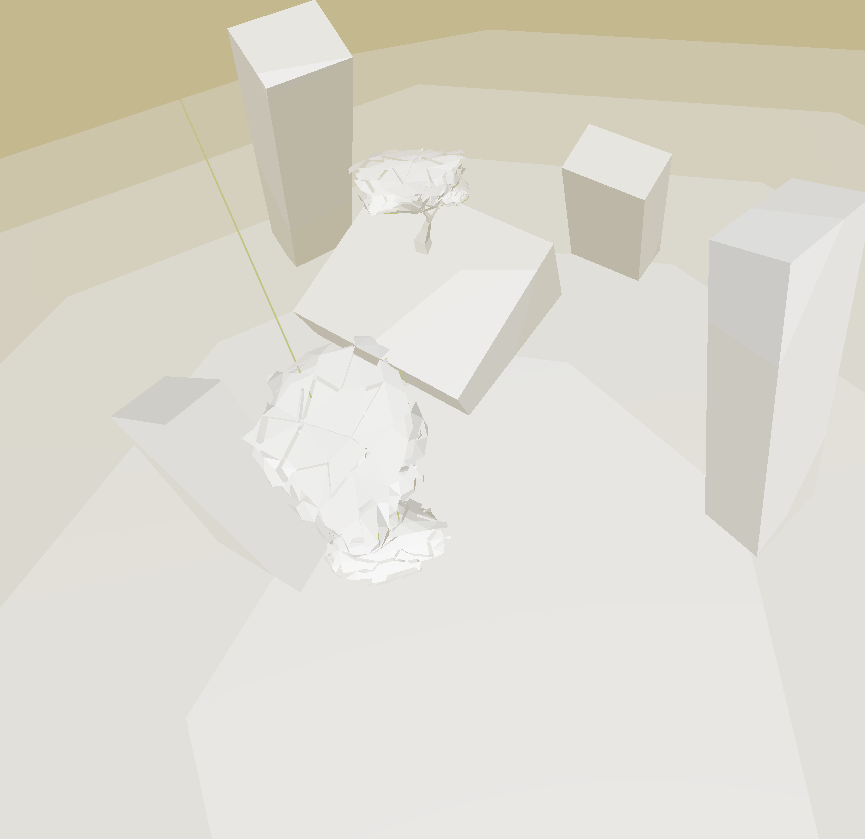

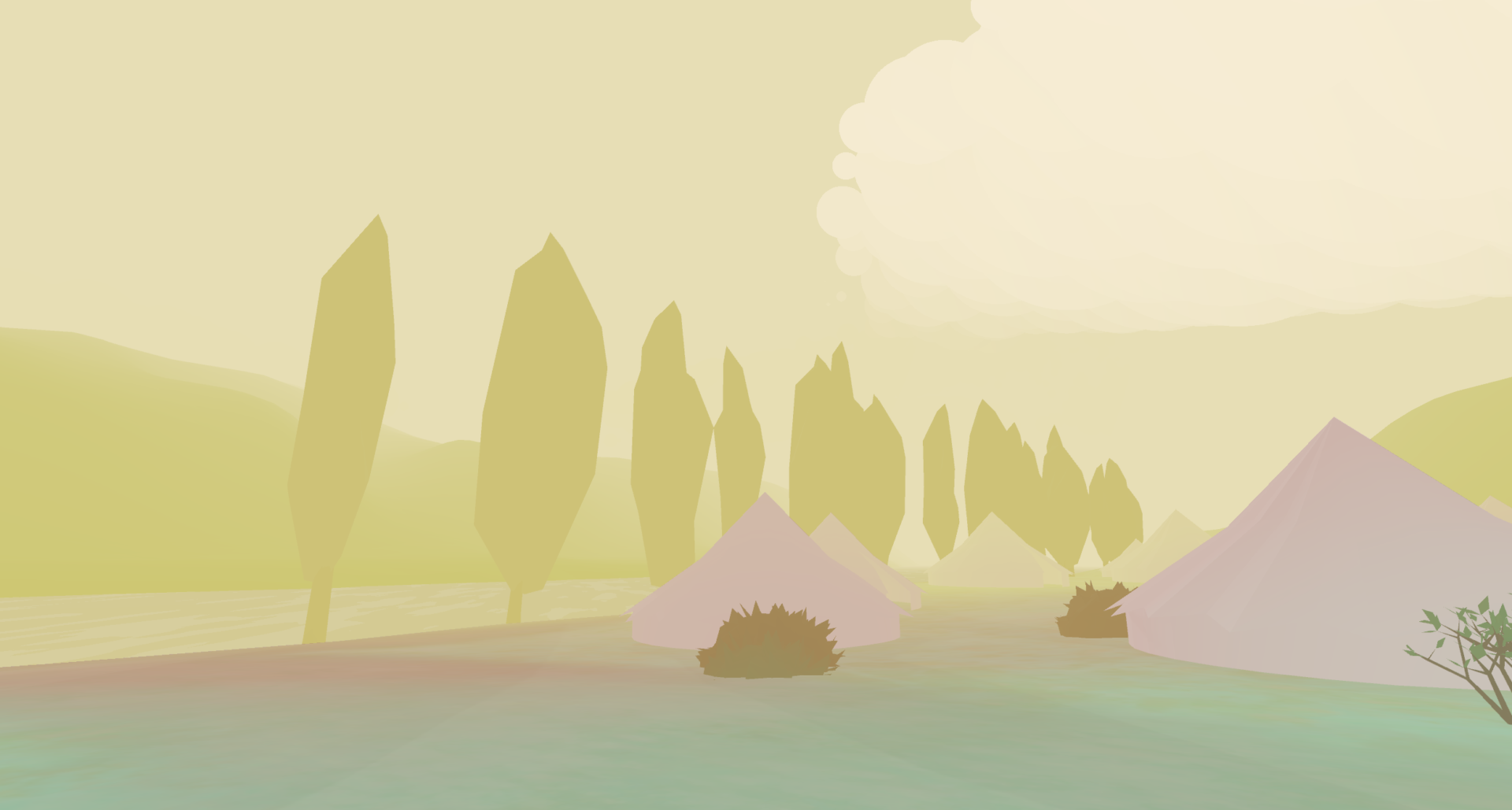

Live Preview
Tags
Fog, Spatial
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

Comments 7

  1. Krystof

    Very easy to implement and a fantastic effect. Thanks!

    0
  2. riverbank

    how do i add this to my game?

    0
  3. Alexander Skliris

    Heyy, I love your shader, but I have one problem with it and I need some help here. My problem is that the fog disables objects with a transparent material. For example I have some bullet holes which are a mesh with a material which has the transparent flag enabled and it's not visible because of the fog.

    0
  4. bebra

    change value in last if to 0.0 for dynamic camera. In my project default shader not working good, but also value change it work

    0

    1. Figured it out. Once you've updated all the variable names that change between Godot 3 and 4, you have to add cull_disabled to the render_mode.

      render_mode unshaded, cull_disabled;
      3

      1. Anyone know how to get it working on 4.4? I added

        render_mode unshaded, cull_disabled;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;
uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_linear_mipmap;

        and changed vertex() according to this article https://godotengine.org/article/introducing-reverse-z/

        void vertex() {
   POSITION = vec4(VERTEX.xy, 1.0, 1.0);
}

        But I just get a pure yellow screen, the depth doesn't seem to be working

        0
