Moving gradient noise fog/ mist for Godot 4

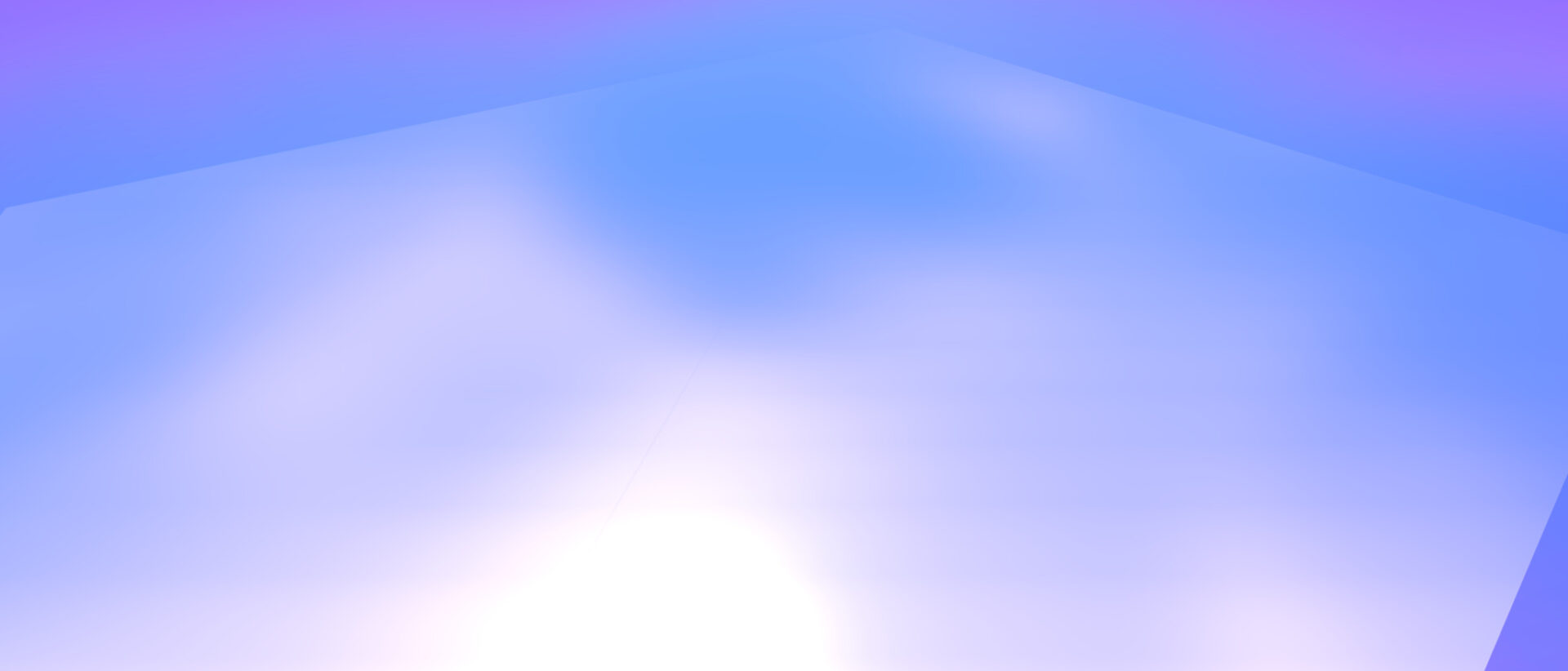

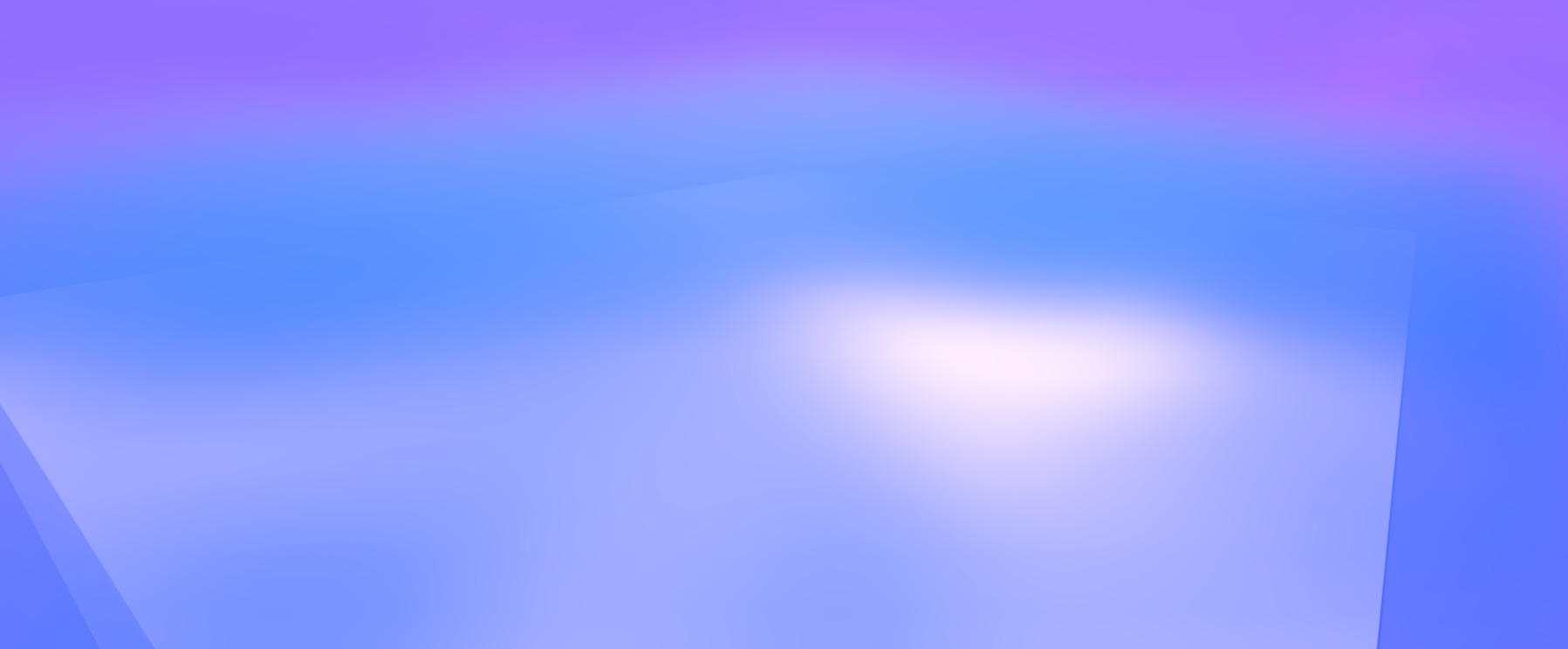

Fog shader that calculates gradient noise in 3D in three octaves that are moving in different directions and speeds. Makes for a nice atmospheric mist or ground fog. Implemented based on clayjohn’s issue comments on the fog shaders and Inigo Quilez’s 3D gradient noise from ShaderToy (under MIT license).

Just attach this to a FogVolume of the desired size and adjust the fade_out_height to the global coordinates of your volume (in case you don’t need this you can comment out line 25).

Tested in Godot 4.0 stable.

Shader code
shader_type fog;

/* main fog shader */
uniform float base_density: hint_range(0, 1) = 0.8;
uniform vec3 base_color: source_color;
uniform float fade_out_height = 2.0;
uniform float fade_out_distance = 1.5;

uniform vec3 noise_amounts = vec3(0.4, 0.35, 0.25); // should add up to 1
uniform vec3 noise_scales = vec3(1.0, 2.0, 4.0);
uniform vec3 noise_velocity1 = vec3(0.5, 0.0, 0.0);
uniform vec3 noise_velocity2 = vec3(1, 0.0, -1);
uniform vec3 noise_velocity3 = vec3(0.0, 0.6, 0.3);

void fog() {
	vec3 base_pos = WORLD_POSITION * vec3(0.1, 0.5, 0.1);
	DENSITY = base_density;
	float noise1 = noise(base_pos * noise_scales.x + TIME * noise_velocity1) * noise_amounts.x;
	float noise2 = noise(base_pos * noise_scales.y + TIME * noise_velocity2) * noise_amounts.y;
	float noise3 = noise(base_pos * noise_scales.z + TIME * noise_velocity3) * noise_amounts.z;
	DENSITY *= smoothstep(-0.1, 0.0, noise1 + noise2 + noise3);
	DENSITY *= 1.0 - smoothstep(fade_out_height, fade_out_height + fade_out_distance, WORLD_POSITION.y);
	ALBEDO = base_color;
}

/* gradient_noise_3d.gdshaderinc */
// The MIT License
// Copyright © 2013 Inigo Quilez
// Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

// All noise functions here:
//
// https://www.shadertoy.com/playlist/fXlXzf&from=0&num=12

vec3 hash(vec3 p) {
	p = vec3(dot(p,vec3(127.1,311.7, 74.7)),
			 dot(p,vec3(269.5,183.3,246.1)),
			 dot(p,vec3(113.5,271.9,124.6)));

	return -1.0 + 2.0 * fract(sin(p) * 43758.5453123);
}

// 3D gradient noise function
float noise(in vec3 p) {
	vec3 i = floor(p);
	vec3 f = fract(p);

	vec3 u = f*f*(3.0-2.0*f);

    return mix( mix( mix( dot( hash( i + vec3(0.0,0.0,0.0) ), f - vec3(0.0,0.0,0.0) ),
                          dot( hash( i + vec3(1.0,0.0,0.0) ), f - vec3(1.0,0.0,0.0) ), u.x),
                     mix( dot( hash( i + vec3(0.0,1.0,0.0) ), f - vec3(0.0,1.0,0.0) ),
                          dot( hash( i + vec3(1.0,1.0,0.0) ), f - vec3(1.0,1.0,0.0) ), u.x), u.y),
                mix( mix( dot( hash( i + vec3(0.0,0.0,1.0) ), f - vec3(0.0,0.0,1.0) ),
                          dot( hash( i + vec3(1.0,0.0,1.0) ), f - vec3(1.0,0.0,1.0) ), u.x),
                     mix( dot( hash( i + vec3(0.0,1.0,1.0) ), f - vec3(0.0,1.0,1.0) ),
                          dot( hash( i + vec3(1.0,1.0,1.0) ), f - vec3(1.0,1.0,1.0) ), u.x), u.y), u.z );
}
Tags
animated, atmospheric, Fog, mist
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

Gradient Color Fog

Fog of war with alpha cut off as white color

2D Fog Overlay

Subscribe
Notify of
guest

3 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Iliya
Iliya
11 months ago

Too many arguments for “noise()” call. Expected at most 0 but received 1. Godot 4 stable.

Nevermore
11 months ago
Reply to  Iliya

Hi, cut the hash() and noise() functions and paste it above the fog() function. then it wont give any errors.
