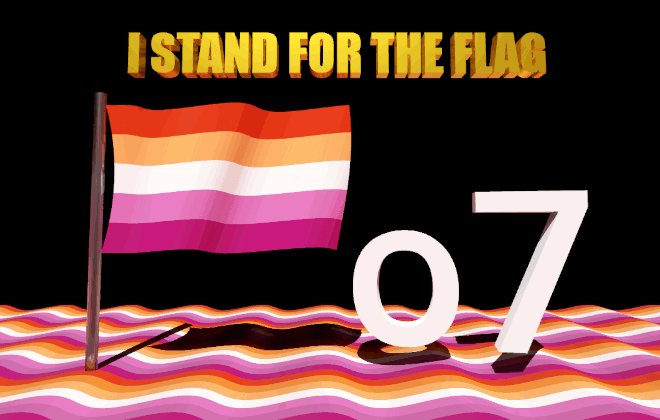

Lesbian

Yeah, we did it again. Experimenting with more dynamic wind, you can expect my full-on empirical model another 8 months from now.
5/31/26 – Updated to include basic smoothstep filtering
Instructions
Add plane mesh, keep size as default 2 x 2
Subdivide a million times
Under Node3D Transform, set X scale to 5/3 (about 1.667)
Apply shader directly to the affected area
Shader code

shader_type spatial;
render_mode cull_disabled;

uniform int flag_type : hint_enum("Sunset (5)", "Sunset (7)", "Butch", "Femme", "Labrys", "Rainbow") = 0;
/**
 * Pin left edge of the flag, assumes you're using a default 2 x 2 plane
*/
uniform bool pin = true;
/**
 * Contract length based on wind strength and frequency
*/
uniform bool length_contraction = true;

group_uniforms Wind;
uniform float strength : hint_range(0.0, 1.0) = 0.5;
/**
 * Wind speed given as periods per second
*/
uniform float speed = 1.5;
uniform float angle : hint_range(-0.8, 0.8) = 0.2;
/**
 * Wind frequency given as number of folds
*/
uniform float frequency : hint_range(1.0, 4.0) = 2.0;
uniform float phase = 0.0;
/**
 * Per-axis strength multiplier
*/
uniform vec3 multiplier = vec3(1.25, 1.0, -0.5);
group_uniforms;

void vertex() {
	float time = speed * 2.0 * PI * TIME + phase;

	float ripple_strength = strength * 0.15;
	if (pin) {
		// Falloff ripple strength from left edge
		ripple_strength *= smoothstep(-1.0, -0.5, VERTEX.x);

		// Bend at left edge
		float bend = -(VERTEX.z * VERTEX.z) + 1.0;
		float bend_strength = strength * (0.15 + sin(time + VERTEX.x) * 0.05);
		bend_strength *= smoothstep(1.0, -1.0, VERTEX.x);
		VERTEX.x += bend * bend_strength;

		// Pinch at right edge
		float pinch = VERTEX.x * 0.5 + 0.5;
		VERTEX.z /= 1.0 + pinch * strength * 0.1;

		// Length contraction from left edge
		if (length_contraction) {
			float contraction = 1.0 + (strength * frequency) * 0.05;
			VERTEX.x += 1.0;
			VERTEX.x /= contraction;
			VERTEX.x -= 1.0;
		}
	}
	else {
		// Length contraction from center
		if (length_contraction) {
			float contraction = 1.0 + (strength * frequency) * 0.05;
			VERTEX.x /= contraction;
		}
	}

	// Swayin' in the breeze
	float a = PI * frequency;
	float b = -time;
	float t = VERTEX.x * cos(angle) + VERTEX.z * sin(angle);
	float f_t = ripple_strength * sin(a * t + b);
	float df_dt = ripple_strength * a * cos(a * t + b);
	VERTEX += f_t * multiplier;
	NORMAL.xz = vec2(-df_dt * multiplier.y);
}

// Specify aspect ratio to prevent squashing/stretching on flags with patterns
#define aspect 5.0 / 3.0

// --- Colors ---

#define black vec3(0.0)
#define white vec3(1.0)
#define butch_vermilion vec3(0.665387, 0.026241, 0.0)
#define butch_orange vec3(0.863157, 0.181164, 0.020288)
#define butch_apricot vec3(1.0, 0.323143, 0.093059)
#define butch_peach vec3(1.0, 0.610495, 0.246201)
#define butch_yellow vec3(1.0, 0.417885, 0.002731)
#define butch_dark_goldenrod vec3(0.3564, 0.158961, 0.0)
#define femme_red_violet vec3(0.366252, 0.0, 0.122138)
#define femme_pink_lavender vec3(0.462076, 0.093058, 0.278894)
#define femme_pink vec3(0.637596, 0.122138, 0.371237)
#define femme_pearl vec3(0.775822, 0.412542, 0.623960)
#define femme_coral vec3(0.558340, 0.074213, 0.090841)
#define femme_red vec3(0.254152, 0.011612, 0.0)
#define labrys_lavender vec3(0.318546, 0.033104, 0.318546)
#define pride_red vec3(0.775822, 0.000911, 0.000911)
#define pride_orange vec3(1.0, 0.262251, 0.0)
#define pride_yellow vec3(1.0, 0.846873, 0.0)
#define pride_green vec3(0.0, 0.215860, 0.019382)
#define pride_blue vec3(0.028426, 0.291770, 0.701101)
#define pride_purple vec3(0.177888, 0.002124, 0.242281)
#define nonspecific_navy vec3(0.022173, 0.011612, 0.149959)

// --- SDF operations ---
// https://iquilezles.org/articles/distfunctions/

float op_add(float f1, float f2) {
	return min(f1, f2);
}

float op_sub(float f1, float f2) {
	return max(f1, -f2);
}

float op_onion(float f, float thickness) {
	return abs(f) - thickness;
}

// --- SDF primitives ---
// https://iquilezles.org/articles/distfunctions2d/

float sd_circle(vec2 p, float r) {
	return length(p) - r;
}

float sd_segment(vec2 p, vec2 a, vec2 b) {
	vec2 pa = p - a;
	vec2 ba = b - a;
	float h = clamp(dot(pa, ba) / dot(ba, ba), 0.0, 1.0);
	return length(pa - ba * h);
}

float sd_box( in vec2 p, in vec2 b ) {
	vec2 d = abs(p) - b;
	return length(max(d, 0.0)) + min(max(d.x, d.y), 0.0);
}

float sd_cross(vec2 p, vec2 b, float r) {
	p = abs(p);
	p = (p.y > p.x) ? p.yx : p.xy;
	vec2 q = p - b;
	float k = max(q.y, q.x);
	vec2 w = (k > 0.0) ? q : vec2(b.y - p.x, -k);
	return sign(k) * length(max(w, 0.0)) + r;
}

float sd_equilateral_triangle(vec2 p, float r) {
	const float k = sqrt(3.0);
	p.x = abs(p.x) - r;
	p.y = p.y + r / k;
	if (p.x + k * p.y > 0.0) p = vec2(p.x - k * p.y, -k * p.x - p.y) / 2.0;
	p.x -= clamp(p.x, -2.0 * r, 0.0);
	return -length(p) * sign(p.y);
}

float sd_venus(vec2 p, float thickness, float ring_radius, float cross_size) {
	float ring = op_onion(sd_circle(p, ring_radius), thickness);
	float d_cross = sd_cross(p + vec2(0.0, ring_radius + cross_size + thickness / 2.0), vec2(cross_size, thickness), 0.0);
	return op_add(ring, d_cross);
}

// --- Flags ---

vec3 color_sunset_5(vec2 uv, float delta) {
	vec3 color = butch_vermilion;
	color = mix(color, butch_apricot, smoothstep(1.0 / 5.0 - delta, 1.0 / 5.0 + delta, uv.y));
	color = mix(color, white, smoothstep(2.0 / 5.0 - delta, 2.0 / 5.0 + delta, uv.y));
	color = mix(color, femme_pink, smoothstep(3.0 / 5.0- delta, 3.0 / 5.0 + delta, uv.y));
	color = mix(color, femme_red_violet, smoothstep(4.0 / 5.0 - delta, 4.0 / 5.0 + delta, uv.y));
	return color;
}

vec3 color_sunset_7(vec2 uv, float delta) {
	vec3 color = butch_vermilion;
	color = mix(color, butch_orange, smoothstep(1.0 / 7.0 - delta, 1.0 / 7.0 + delta, uv.y));
	color = mix(color, butch_apricot, smoothstep(2.0 / 7.0 - delta, 2.0 / 7.0 + delta, uv.y));
	color = mix(color, white, smoothstep(3.0 / 7.0 - delta, 3.0 / 7.0 + delta, uv.y));
	color = mix(color, femme_pink, smoothstep(4.0 / 7.0 - delta, 4.0 / 7.0 + delta, uv.y));
	color = mix(color, femme_pink_lavender, smoothstep(5.0 / 7.0 - delta, 5.0 / 7.0 + delta, uv.y));
	color = mix(color, femme_red_violet, smoothstep(6.0 / 7.0 - delta, 6.0 / 7.0 + delta, uv.y));
	return color;
}

vec3 color_butch(vec2 uv, float delta) {
	vec3 color = butch_vermilion;
	color = mix(color, butch_orange, smoothstep(1.0 / 7.0 - delta, 1.0 / 7.0 + delta, uv.y));
	color = mix(color, butch_apricot, smoothstep(2.0 / 7.0 - delta, 2.0 / 7.0 + delta, uv.y));
	color = mix(color, white, smoothstep(3.0 / 7.0 - delta, 3.0 / 7.0 + delta, uv.y));
	color = mix(color, butch_peach, smoothstep(4.0 / 7.0 - delta, 4.0 / 7.0 + delta, uv.y));
	color = mix(color, butch_yellow, smoothstep(5.0 / 7.0 - delta, 5.0 / 7.0 + delta, uv.y));
	color = mix(color, butch_dark_goldenrod, smoothstep(6.0 / 7.0 - delta, 6.0 / 7.0 + delta, uv.y));
	return color;
}

vec3 color_femme(vec2 uv, float delta) {
	vec3 color = femme_red_violet;
	color = mix(color, femme_pink_lavender, smoothstep(1.0 / 7.0 - delta, 1.0 / 7.0 + delta, uv.y));
	color = mix(color, femme_pink, smoothstep(2.0 / 7.0 - delta, 2.0 / 7.0 + delta, uv.y));
	color = mix(color, white, smoothstep(3.0 / 7.0 - delta, 3.0 / 7.0 + delta, uv.y));
	color = mix(color, femme_pearl, smoothstep(4.0 / 7.0 - delta, 4.0 / 7.0 + delta, uv.y));
	color = mix(color, femme_coral, smoothstep(5.0 / 7.0 - delta, 5.0 / 7.0 + delta, uv.y));
	color = mix(color, femme_red, smoothstep(6.0 / 7.0 - delta, 6.0 / 7.0 + delta, uv.y));
	return color;
}

vec3 color_labrys(vec2 uv, float delta) {
	vec3 color = labrys_lavender;

	// Transform UV
	vec2 p = uv * 2.0 - 1.0;
	p.x *= aspect;
	delta *= 2.0;

	// Triangle
	const vec2 triangle_origin = vec2(0.0, -0.28);
	const float triangle_size = 0.97;
	float triangle = sd_equilateral_triangle(p - triangle_origin, triangle_size);
	color = mix(color, black, smoothstep(delta, -delta, triangle));

	// Labrys
	const vec2 head_origin = vec2(0.0, -0.44);
	const float head_radius = 0.55;
	float head = sd_circle(p - head_origin, head_radius);
	head = op_sub(head, sd_circle(abs(p - head_origin) + vec2(0.0, -head_radius * 1.2), head_radius));

	const vec2 handle_a = vec2(0.0, 0.56);
	const vec2 handle_b = vec2(0.0, -0.61);
	const float handle_radius = 0.037;
	const vec2 handle_scale = vec2(0.52, 1.0);
	float handle = sd_segment(p * handle_scale, handle_a , handle_b) - handle_radius;

	float labrys = op_add(op_sub(head, handle), handle + 0.007);
	color = mix(color, white, smoothstep(delta, -delta, labrys));

	return color;
}

vec3 color_rainbow(vec2 uv, float delta) {
	// Top stripes
	vec3 color = pride_red;
	color = mix(color, pride_orange, smoothstep(1.0 / 6.0 - delta, 1.0 / 6.0 + delta, uv.y));
	color = mix(color, pride_yellow, smoothstep(2.0 / 6.0 - delta, 2.0 / 6.0 + delta, uv.y));

	// Canton
	color = mix(color, nonspecific_navy, smoothstep(2.0 / 5.0 + delta, 2.0 / 5.0 - delta, uv.x));

	// Bottom stripes
	color = mix(color, pride_green, smoothstep(3.0 / 6.0 - delta, 3.0 / 6.0 + delta, uv.y));
	color = mix(color, pride_blue, smoothstep(4.0 / 6.0 - delta, 4.0 / 6.0 + delta, uv.y));
	color = mix(color, pride_purple, smoothstep(5.0 / 6.0 - delta, 5.0 / 6.0 + delta, uv.y));

	// Transform UV
	vec2 p = uv * 2.0 - 1.0;
	p.y *= -1.0;
	p -= vec2(-0.6, 0.62);
	p.x *= aspect;
	delta *= 2.0;

	// Venus symbols
	const float venus_thickness = 0.031;
	const float venus_ring_radius = 0.23;
	const float venus_cross_size = 0.12;
	const float venus_distance = 0.16;
	float venus_1 = sd_venus(p + vec2(venus_distance, 0.0), venus_thickness, venus_ring_radius, venus_cross_size);
	float venus_2 = sd_venus(p - vec2(venus_distance, 0.0), venus_thickness, venus_ring_radius, venus_cross_size);
	float emblem = op_add(venus_1, venus_2);
	color = mix(color, white, smoothstep(delta, -delta, emblem));

	return color;
}

void fragment() {
	vec3 color = vec3(0.0);

	float delta = length(dFdx(UV) + dFdy((UV))) * 0.5;
	switch(flag_type) {
		case 0:
			color = color_sunset_5(UV, delta);
			break;
		case 1:
			color = color_sunset_7(UV, delta);
			break;
		case 2:
			color = color_butch(UV, delta);
			break;
		case 3:
			color = color_femme(UV, delta);
			break;
		case 4:
			color = color_labrys(UV, delta);
			break;
		case 5:
			color = color_rainbow(UV, delta);
			break;
	}
	ALBEDO = color;

	// Add backlight to simulate translucent fabric
	BACKLIGHT = vec3(0.125);
}
