Modular Environmental Particles (dust, leaves, rain, etc.)

Use this for all your environmental particle needs! Wind, dust, rain, leaves. ripples, flying hot dogs, anything you can think of! Bring your particles to life by having them settle and stop before fading away. Leaves look especially nice as they sway and fall.

Includes optional color modes: single color, full imported palette, 4-color subset of palette.

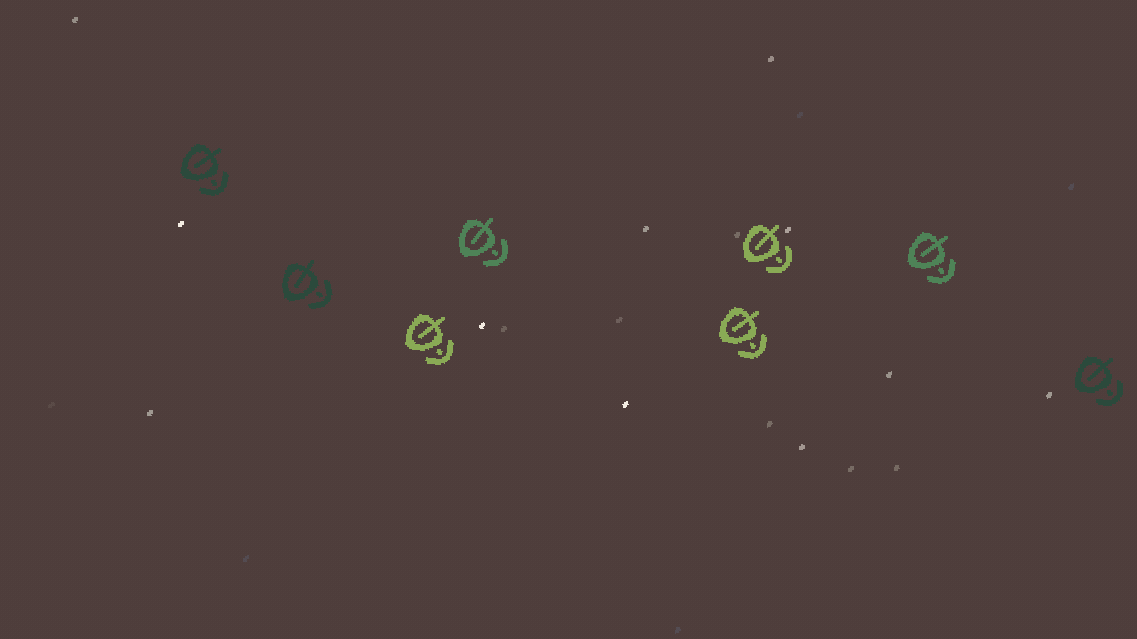

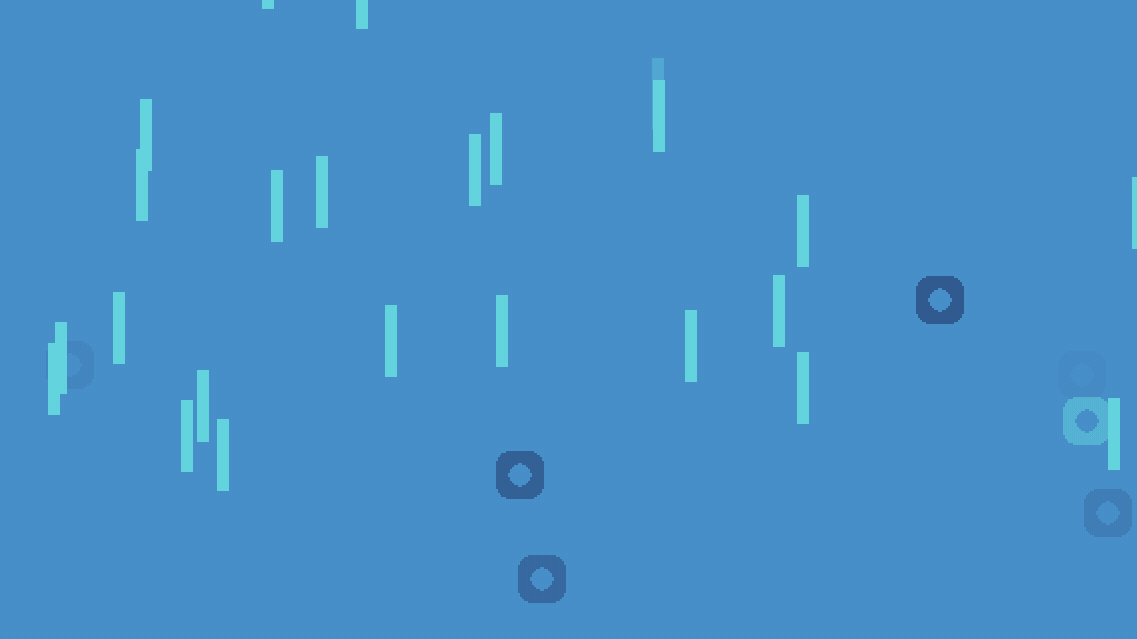

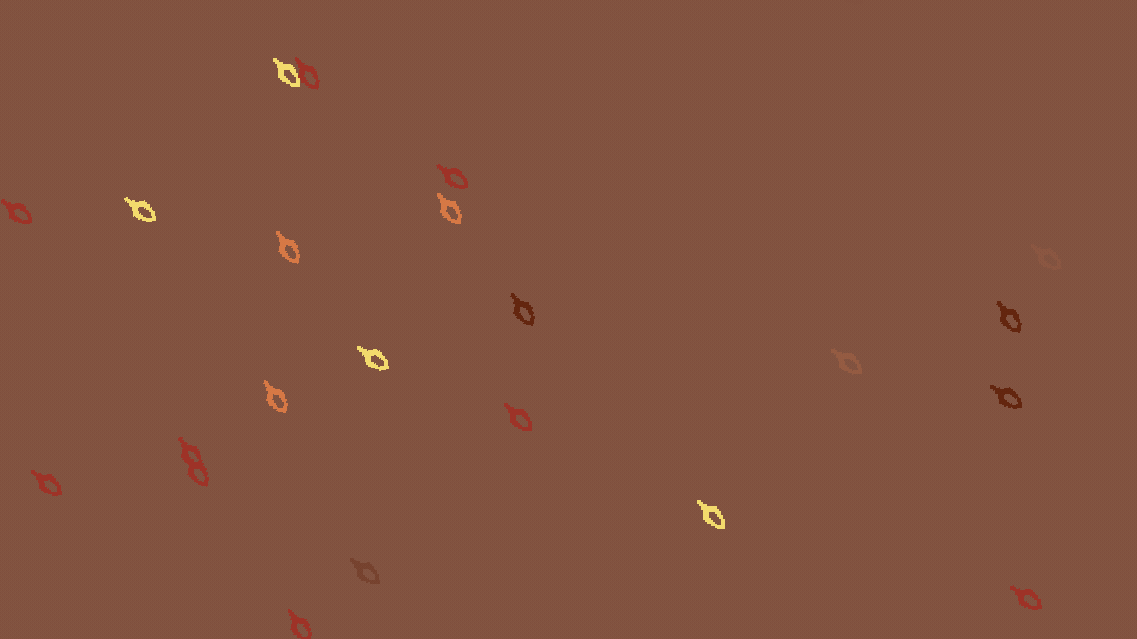

The cover image and screenshots are static because the site was not accepting my gifs 🙁

• Spawn Box: the area where particles can spawn
• Spawn Offset: move the area away from the origin
• X Speed: horizontal velocity
• Y Speed: vertical velocity
• Color Mode: 0=single color, 1=full palette, 2=palette subset
• Color: for single color mode
• Palette: must be 1 pixel tall by palette color count wide
• Palette Color Count: number of colors in palette
• Palette Color Index Array: index of the 4 colors used in palette subset mode
• Speed Stop: stop particle movement after percentage of particle lifetime
• Fade Start: start particle fade after percentage of particle lifetime
• X Sway Speed: how fast the particle sways horizontally
• X Sway Amout: how much the particle sways horizontally
• Rotate with Sway Amount: how much the particle rotates with sway

Shader code

shader_type particles;

uniform vec2 spawn_box = vec2(100.0, 100.0);
uniform vec2 spawn_offset = vec2(0.0, 0.0);
uniform float x_speed: hint_range(-250.0, 250.0, 1.0) = -20.0;
uniform float y_speed: hint_range(-250, 250, 1.0) = 20.0;

uniform int color_mode: hint_range(0, 2) = 0;
uniform vec3 color: source_color = vec3(1.0);
// palette must be 1 pixel tall by `palette color count` wide
uniform sampler2D palette: filter_nearest, repeat_disable;
uniform int palette_color_count = 8;
uniform ivec4 palette_color_index_array = ivec4(0, 1, 2, 3);

uniform float speed_stop: hint_range(0.0, 1.0, 0.01) = 0.7;
uniform float fade_start: hint_range(0.0, 1.0, 0.01) = 0.9;
uniform float x_sway_speed: hint_range(0.0, 20.0, 1.0) = 2.0;
uniform float x_sway_amount: hint_range(0.0, 100.0, 1.0) = 40.0;
uniform float rotate_with_sway_amount: hint_range(0.0, 1.0, 0.1) = 0.2;

float hash(vec2 uv) { // magic function for pseudo-random floats
	// returns 0 to 1
	return fract(sin(dot(uv.xy, vec2(12.9898, 78.233))) * 43758.5453123);
}

vec4 get_color_from_palette(int index) {
	int clamped_index = clamp(index, 0, palette_color_count - 1);
	float u = (float(clamped_index) + 0.5) / float(palette_color_count);
	return texture(palette, vec2(u, 0.5));
}

void start() {
	// convert NUMBER into something less than 1
	// the decimals don't really matter, they just need to be different
	// we need unique numbers for each particle to hash into
	// new psueo-random numbers
	float n = fract(float(NUMBER) * 0.01);
	float n2 = fract(float(NUMBER) * 0.02);
	float n3 = fract(float(NUMBER) * 0.03);
	float rand_x = hash(vec2(n, n2));
	float rand_y = hash(vec2(n2, n));

	// set the position to a random spot within the spawn box
	vec2 offset = vec2(rand_x, rand_y) * 2.0 - 1.0; // spread out to -1 to 1
	TRANSFORM[3].xy = offset * spawn_box + spawn_offset;

	// set the initial velocity
	VELOCITY = vec3(x_speed, y_speed, 0.0);

	switch(color_mode){
		case 0: // single color mode
			COLOR.rgb = color;
			COLOR.a = 1.0;
			break;
		case 1: // full palette mode
			// get a random index from the palette for each particle
			int index = int(hash(vec2(n, n3)) * float(palette_color_count));
			COLOR = get_color_from_palette(index);
			break;
		case 2: // palette subset mode
			// get a random index and set it to one of 4 colors of the palette
			int index = int(hash(vec2(n3, n)) * 4.0);
			COLOR = get_color_from_palette(palette_color_index_array[index]);
			break;
	}
	CUSTOM.x = 0.0; // this will hold the time the particle has been alive
}

void process() {
	// Called every frame on existing particles (according to the Fixed FPS property).
	CUSTOM.x += DELTA;
	float life_progress = CUSTOM.x / LIFETIME;

	// if at end of life, start fading
	if (life_progress > fade_start) {
		COLOR.a = 1.0 - smoothstep(fade_start, 1.0, life_progress);
	}
	// if after speed stop ratio, pause movement
	if (life_progress > speed_stop) {
		VELOCITY = vec3(0.0);
	} else {
		// implement x sway
		float current_time = TIME + CUSTOM.x;
		TRANSFORM[3].y += y_speed * DELTA;
		TRANSFORM[3].x += sin(current_time * x_sway_speed) * x_sway_amount * DELTA;
		// implement rotation sway
		float rot_sway = sin(current_time * x_sway_speed) * rotate_with_sway_amount;
		TRANSFORM[0].xy = vec2(cos(rot_sway), -sin(rot_sway));
		TRANSFORM[1].xy = vec2(sin(rot_sway), cos(rot_sway));
	}
}
