Normal-based Edge Detection with Sobel Operator -Screenspace

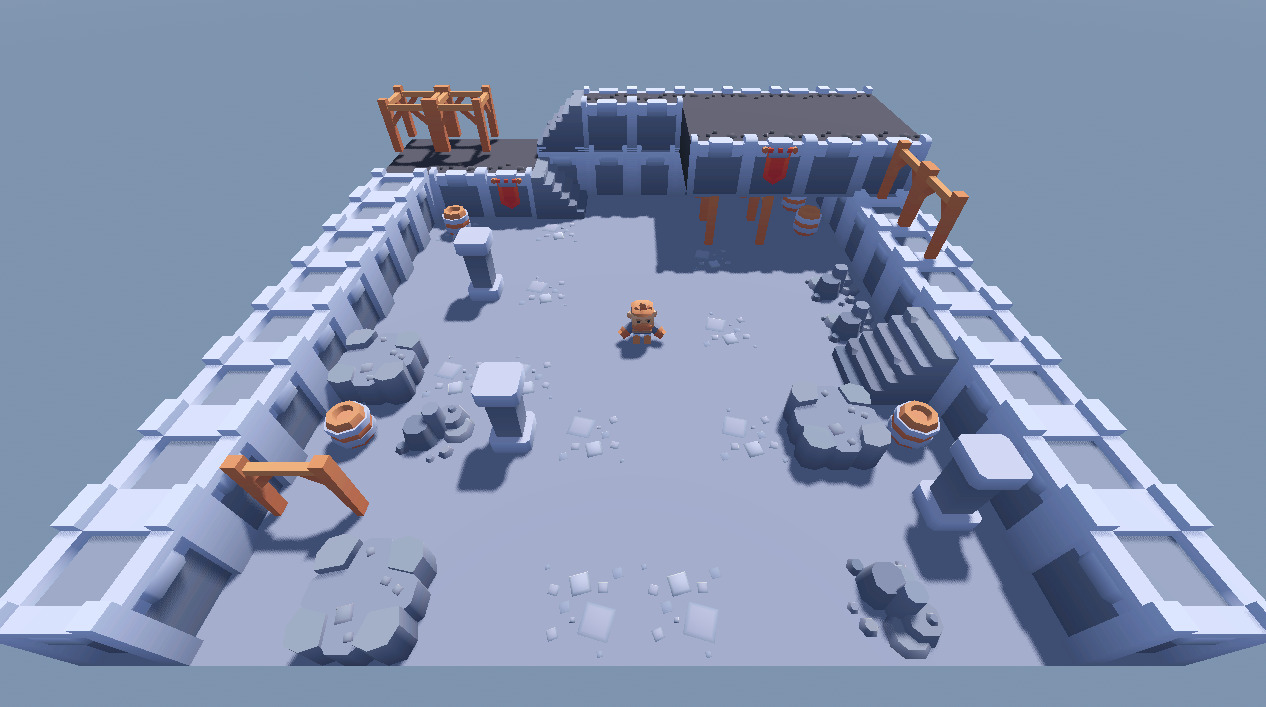

Spatial shader that uses the normal texture to find edges. This is a less-complex look at edge detection, perfect for learning screenspace shaders.

Instructions:

  1. Create a new MeshInstance3D in your 3D scene
  2. Add a QuadMesh mesh to the instance
    • Optional? Move the mesh out of the center of the screen
  3. In `Geometry` for the instance, increase the `Extra Cull Margin` to the max
    • As of writing, 16384 m
  4. In the Quadmesh, increase the size from 1×1 m to 2×2 m
  5. In the Quadmesh, check the `Flip Faces` box so that it’s `True`
  6. In the Quadmesh, in `Material`, choose `New Shader Material`
  7. In the Material, in `Shader`, choose `New Shader`
  8. Here you can choose a name for your shader and we can start customizing!

Notes:

This shader does an okay job at edge detection, but it has some issues.

  • If two objects at different heights have similar normal vectors, an edge won’t be detected.

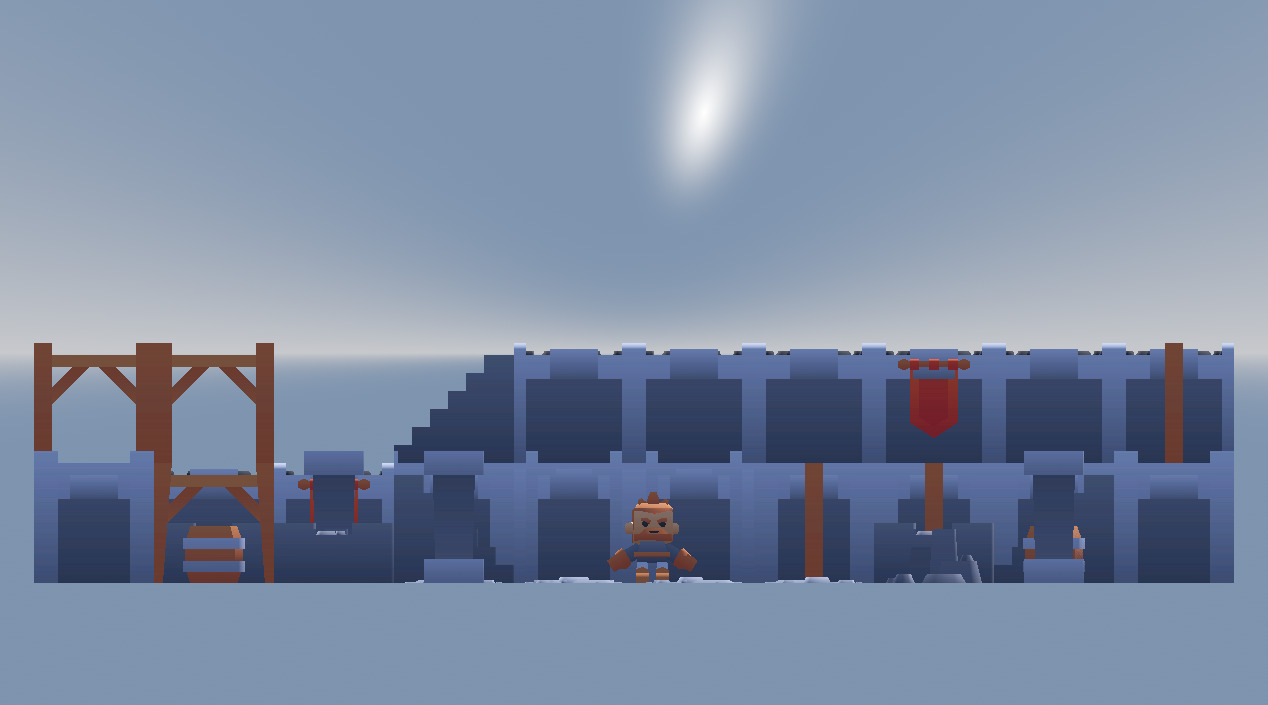

    • example – a square box on a flat floor. The top of the box and the floor have the same normal, so a perspective view wouldn’t show an edge.
    • in an orthogonal or straight on view, normals have trouble flagging edges due to this
    • there are lots of ways to solve this issue, the one I’ve heard about most is to use the depth vectors
    • basically to make sure the two pixels are on different planes
  • you can get thinner lines by reducing your offset
    • vec2 offset = 0.5 / VIEWPORT_SIZE;
    • this effectively upscales your normal texture when looking at neighboring pixels
    • I have been told this has a large impact on performance, so be wary

Check out my full write-up here: https://github.com/nuzcraft/unga-dungeon/blob/main/shader_notes/normal_based_edge_detection_w_sobel.md

Models by Kenny – https://kenney.nl/

Shader code
shader_type spatial;
render_mode unshaded;

uniform sampler2D SCREEN_TEXTURE: hint_screen_texture, filter_linear_mipmap;
uniform sampler2D NORMAL_TEXTURE : hint_normal_roughness_texture, filter_linear_mipmap;

uniform float edge_threshold = 0.2;
uniform vec3 line_color: source_color = vec3(0.043, 0.282, 0.467);
uniform vec3 background_color: source_color = vec3(0.408, 0.969, 0.694);

const mat3 sobel_y = mat3(
	vec3(1.0, 0.0, -1.0),
	vec3(2.0, 0.0, -2.0),
	vec3(1.0, 0.0, -1.0)
);

const mat3 sobel_x = mat3(
	vec3(1.0, 2.0, 1.0),
	vec3(0.0, 0.0, 0.0),
	vec3(-1.0, -2.0, -1.0)
);

void vertex(){
	POSITION = vec4(VERTEX, 1.0);
}

void fragment() {
	vec2 uv = SCREEN_UV;
	vec4 screen_color = texture(SCREEN_TEXTURE, uv);
	vec3 normal = texture(NORMAL_TEXTURE, uv).rgb;
	normal = normal * 2.0 - 1.0;
	vec2 offset = 1.0 / VIEWPORT_SIZE;

	vec3 n = texture(NORMAL_TEXTURE, uv + vec2(0.0, -offset.y)).rgb;
	vec3 s = texture(NORMAL_TEXTURE, uv + vec2(0.0, offset.y)).rgb;
	vec3 e = texture(NORMAL_TEXTURE, uv + vec2(offset.x, 0.0)).rgb;
	vec3 w = texture(NORMAL_TEXTURE, uv + vec2(-offset.x, 0.0)).rgb;
	vec3 nw = texture(NORMAL_TEXTURE, uv + vec2(-offset.x, -offset.y)).rgb;
	vec3 ne = texture(NORMAL_TEXTURE, uv + vec2(offset.x, -offset.y)).rgb;
	vec3 sw = texture(NORMAL_TEXTURE, uv + vec2(-offset.x, offset.y)).rgb;
	vec3 se = texture(NORMAL_TEXTURE, uv + vec2(offset.x, offset.y)).rgb;

	mat3 surrounding_pixels = mat3(
		vec3(length(nw-normal), length(n-normal), length(ne-normal)),
		vec3(length(w-normal), length(normal-normal), length(e-normal)),
		vec3(length(sw-normal), length(s-normal), length(se-normal))
	);

	float edge_x = dot(sobel_x[0], surrounding_pixels[0]) + dot(sobel_x[1], surrounding_pixels[1]) + dot(sobel_x[2], surrounding_pixels[2]);
	float edge_y = dot(sobel_y[0], surrounding_pixels[0]) + dot(sobel_y[1], surrounding_pixels[1]) + dot(sobel_y[2], surrounding_pixels[2]);

	float edge = sqrt(pow(edge_x, 2.0)+pow(edge_y, 2.0));

	if (edge > edge_threshold) {
		ALBEDO = line_color;
	} else {
		ALBEDO = background_color;
	}
}
Tags
3d, buffer, depth, detection, edge, godot, Normal, operator, screen, ScreenSpace, Sobel, space
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
