Orthographic blending (wip)

• Prevent perspective from warping models near the screen edges
• Has a depth offset for 3D model “sorting”

Shader code

shader_type spatial;
render_mode skip_vertex_transform;

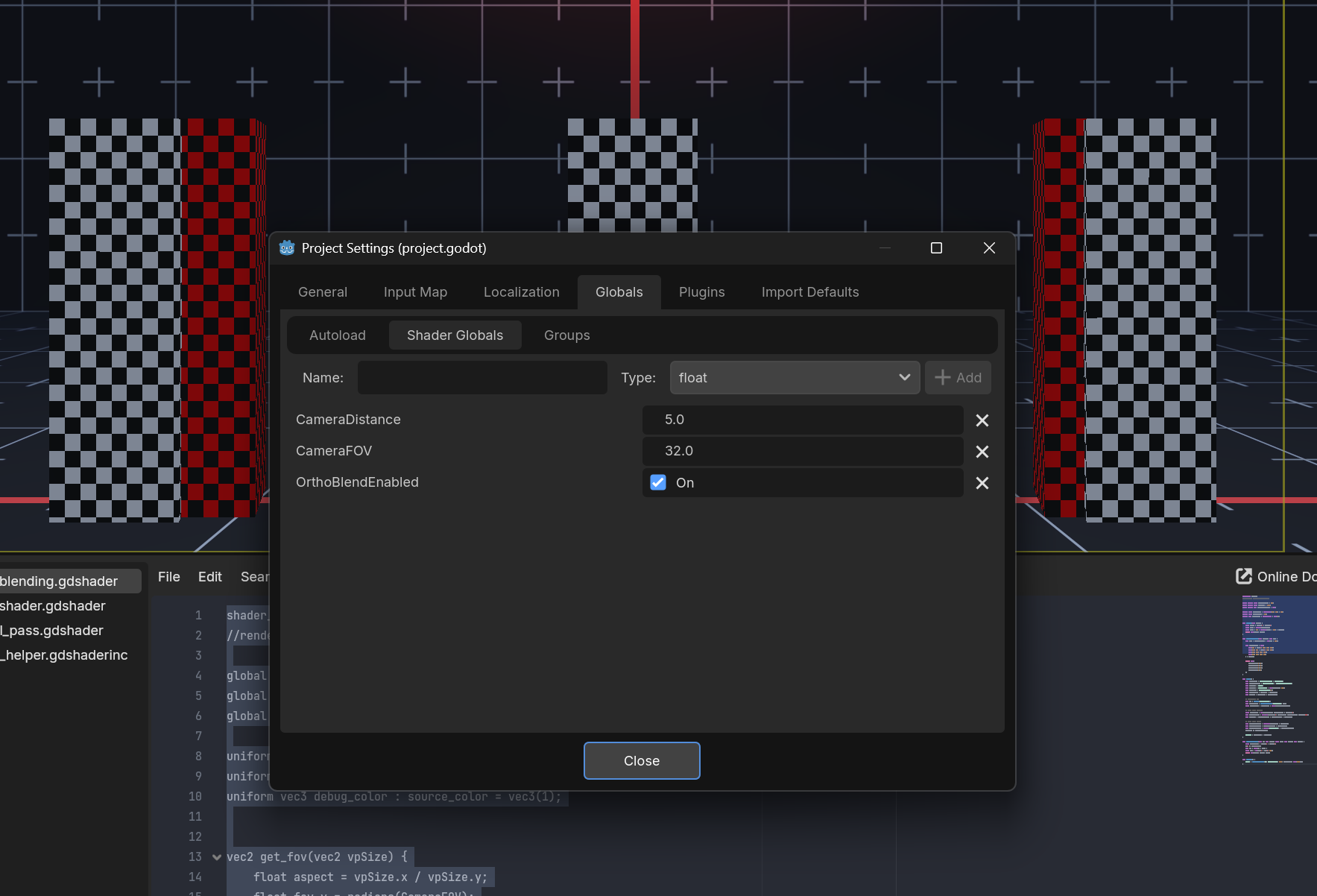

global uniform float CameraDistance = 5.4;
global uniform float CameraFOV = 32.0;
global uniform bool OrthoBlendEnabled = true;

uniform vec3 tint_color : source_color = vec3(1);
uniform sampler2D albedo_texture : source_color;
uniform float ortho_blend : hint_range(0.0, 1.0) = 0.7;
uniform float depth_offset = 0.0;

vec2 get_fov(vec2 vpSize) {
    float aspect = vpSize.x / vpSize.y;
    float fov_y = radians(CameraFOV);
    float fov_x = 2.0 * atan(tan(fov_y * 0.5) * aspect);
    return vec2(fov_x, fov_y);
}

vec4 get_ortho_vector(mat4 viewMtx, vec2 fov) {
    vec2 size = CameraDistance * tan(fov * 0.5);

    mat4 ortho_matrix = mat4(
        vec4(1.0 / size.x, 0.0, 0.0, 0.0),
        vec4(0.0, 1.0 / size.y, 0.0, 0.0),
        vec4(0.0, 0.0, 0.0, 0.0),
        vec4(0.0, 0.0, 0.0, 1.0)
    ) * viewMtx;

    return vec4(
        ortho_matrix[0][0],
        ortho_matrix[1][0],
        ortho_matrix[2][0],
        ortho_matrix[3][0]
    );
}

void vertex() {
    NORMAL = normalize((MODELVIEW_MATRIX * vec4(NORMAL, 0.0)).xyz);
    BINORMAL = normalize((MODELVIEW_MATRIX * vec4(BINORMAL, 0.0)).xyz);
    TANGENT = normalize((MODELVIEW_MATRIX * vec4(TANGENT, 0.0)).xyz);
    mat4 CLIP_MATRIX = PROJECTION_MATRIX * VIEW_MATRIX;
    mat4 INV_CLIP_MATRIX = INV_VIEW_MATRIX * INV_PROJECTION_MATRIX;
    vec3 local_pos = VERTEX;
    vec4 world_pos = MODEL_MATRIX * vec4(local_pos, 1.0);
    vec4 camera_pos = INV_VIEW_MATRIX[3];
    vec4 relative_pos = world_pos - camera_pos;
    vec4 clip_pos = CLIP_MATRIX * relative_pos;

    // Reconstruct FOV
    vec2 fov = get_fov(VIEWPORT_SIZE);
    vec4 ortho_vector = get_ortho_vector(VIEW_MATRIX, fov);
    float blend_amount = OrthoBlendEnabled ? ortho_blend : 0.0;

    // Apply ortho blending
    float ortho_value = dot(ortho_vector, relative_pos) * clip_pos.w;
    vec4 ortho_clip_pos = vec4(mix(clip_pos.x, ortho_value, blend_amount), clip_pos.yzw);
    vec4 final_pos = INV_CLIP_MATRIX * ortho_clip_pos;
    final_pos += camera_pos;

    // Apply depth offset
    vec4 camera_direction = normalize(camera_pos - world_pos);
    vec4 depth_pos_offset = camera_direction * depth_offset;
    final_pos += depth_pos_offset;

    POSITION = CLIP_MATRIX * final_pos;
}

void fragment() {
    vec4 tex = texture(albedo_texture, UV);
    ALBEDO = tex.xyz * tint_color;
}

Live Preview
