Portal Card (N64 entrance)

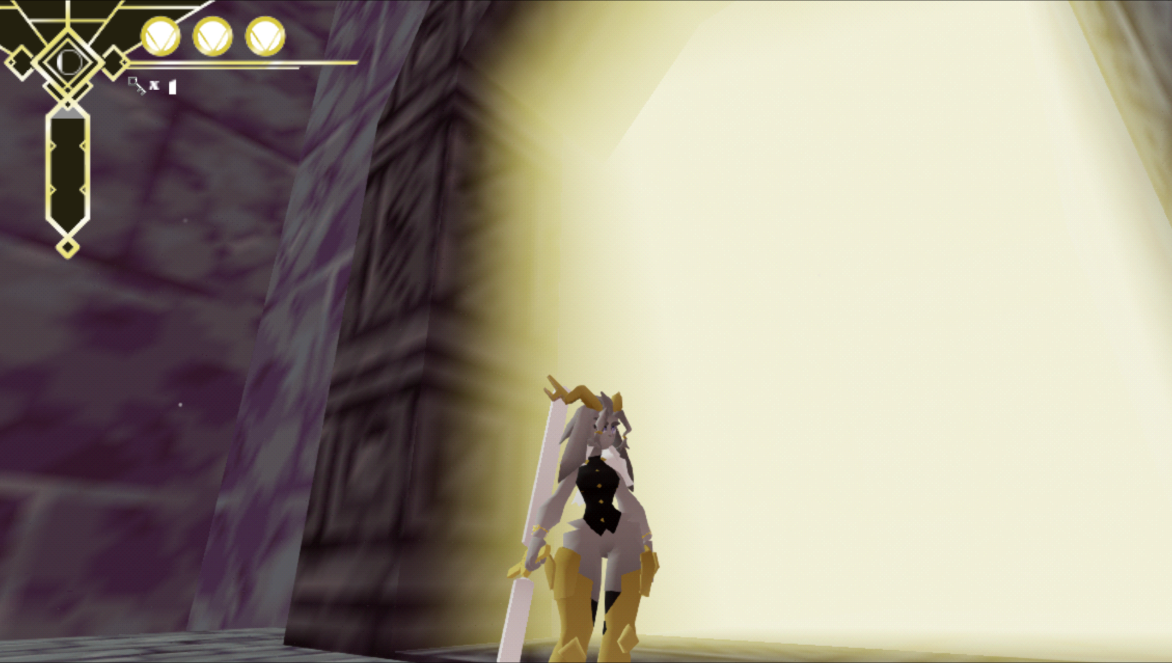

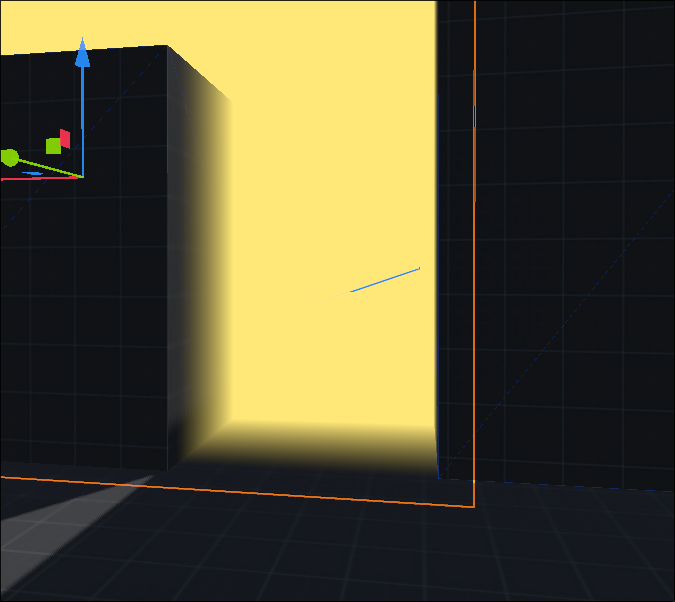

This shader is a called a “portal card” which can be used to occlude areas while still drawing attention to those areas, or it can be used as an N64 style door way or entrance. You can see this effect in Zelda Ocarina of time, Animal Crossing, Pseudoregalia, and many others.

this shader currently needs a little bit of work but its a bit above my skill level so if anyone has improvements and is willing to abide by the license, drop your code and I’ll add it and credit you. The shader needs to handle darker colors better, it would be nice to be able to fade into a different color, options to have extra emission, fade in from a different color based on distance (ie a blue fades into a black doorway depending on player distance) etc…

references:

GDC talk by Abzu about Ira special effects

portal card

Everything you need to know about Scene Depth – Godot 4 – Digvijaysinh Gohil

Pseudoregalia – Rittz

Godot 3 Entrance Fog

Shader code

shader_type spatial;
render_mode unshaded;

/// some info about how this works:
/// https://www.youtube.com/watch?v=NCXr8zrT5zs

/** base color **/
uniform vec4 color : source_color;
//uniform vec4 second_color : source_color;

/** how deep can we see behind the plane before objects are obscured with fog **/
uniform float depth_fade_distance : hint_range(0.0, 33.0, 0.01) = 1.5;

group_uniforms camera;
/** fade out portal card as the camera gets closer to it **/
uniform bool use_camera_fade = true;
/** camera distance before the material starts to fade **/
uniform float cam_fade_length : hint_range(0.0, 10.0, 0.01) = 5.0;

/// vertical edge fade (softens edges)
//uniform float fade_falloff_v : hint_range(0.0, 10.0, 0.01) = 0.5;
/// upper edge fade (softens edges)
//uniform float fade_falloff_u : hint_range(0.0, 10.0, 0.01) = 0.5;
//uniform float depth_fade_falloff : hint_range(0.0, 33.0, 0.01) = 0.5;

uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_linear_mipmap;
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;

void fragment() {
	// represented as value from 0 - 1
	float depth = textureLod(DEPTH_TEXTURE, SCREEN_UV, 0.0).r;
	// represented as value from -1 - 1
	vec4 ndc = vec4(SCREEN_UV * 2.0 - 1.0, depth, 1.0);

	// slow way:
	//vec4 view = INV_PROJECTION_MATRIX * ndc;
	//view.z /= view.w;
	//float linear_depth = view.z;

	// faster way to do the above
	float linear_depth = 1.0 / (depth * INV_PROJECTION_MATRIX[2].w  + INV_PROJECTION_MATRIX[3].w); // 1.0 is negated like -view.z
	// in view space, represents the objects distance past the plane
	float cam_to_plane = linear_depth + VERTEX.z;

	// clamp distance to fade off after this point
	float final = clamp(cam_to_plane / depth_fade_distance, 0, 1); // 3.0 being in meters behind the plane

	float fadeout = clamp(smoothstep(0.0, cam_fade_length, length(VERTEX)), 0.0, 1.0);

	ALBEDO = vec3(final) * color.rgb;
	ALPHA = final * fadeout;
}
