Animated 2D Fog(Optional Pixelation)

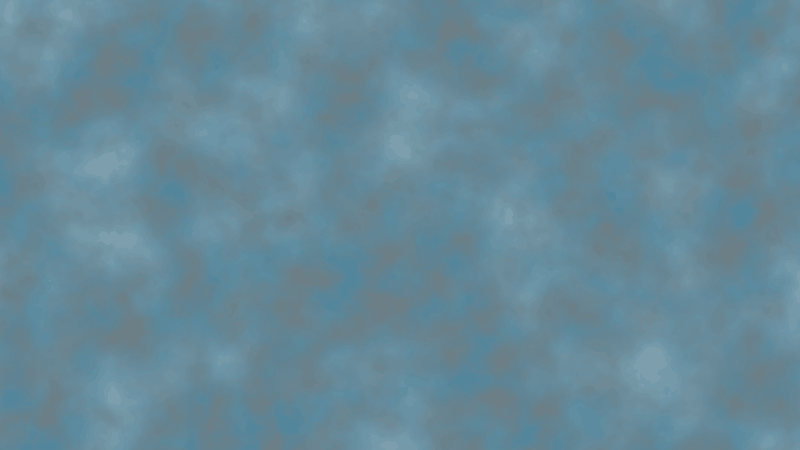

Animated and customizable 2D fog for Godot 4. Utilizing a noise texture you can achieve many variations and customize it to your liking. The shader allows you to change the color and pixelation amount to suit your project. You can also experiment with different types noise textures and their values to create different effects. Add a gradient to the color ramp of the noise texture and experiment with the sliders to make the darker parts darker and lighter parts lighter.

I DID NOT MAKE THIS! Credit for the original Godot 3 shader goes entirely to Gonkee and Godot Shaders as well as ChatGPT. I’ve only made very minor changes and asked ChatGPT to combine the two as well as to add the noise texture to introduce variation and further customization to the fog which yielded this result.

Credits:

• Gonkee’s shader repository
• Godot Shader’s Pixelate Shader

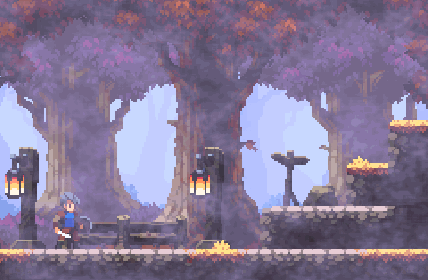

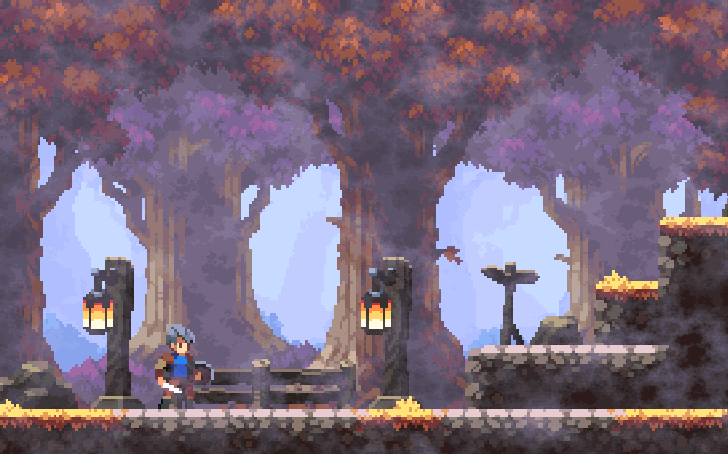

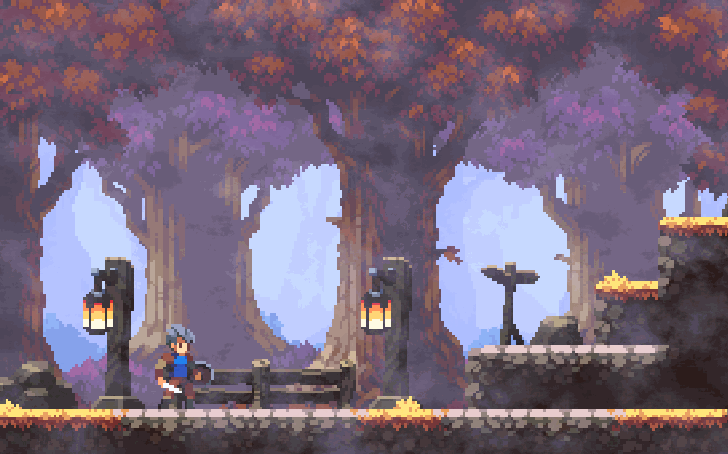

• Oak Woods by Brullov(used in the screenshots)

No credit in any way shape or form needed for me but Gonkee does specify in his shaders that he prefers it.

Shader code

shader_type canvas_item;

// Credit for the original shader goes to Gonkee: https://github.com/Gonkee/Gonkees-Shaders/blob/master/fog.shader
// Pixelate by Godot Shaders: https://godotshaders.com/shader/pixelate/

uniform vec4 color : source_color;
uniform int OCTAVES = 4;
uniform bool enable_pixelation = true;
uniform int pixelation_amount = 150;
uniform sampler2D fog_mask;  // Texture mask for fog control
uniform vec2 fog_direction = vec2(1.0, 1.0); // Use -1 and 1 values to change direction. Increase the speed in that direction with values higher/lower than 1
uniform bool scroll_noise_tex = false;
uniform vec2 noise_scroll_direction = vec2(1.0, 0.0);  // Direction to scroll the noise texture

float rand(vec2 coord){
    return fract(sin(dot(coord, vec2(56, 78)) * 1000.0) * 1000.0);
}

float noise(vec2 coord){
    vec2 i = floor(coord);
    vec2 f = fract(coord);

    float a = rand(i);
    float b = rand(i + vec2(1.0, 0.0));
    float c = rand(i + vec2(0.0, 1.0));
    float d = rand(i + vec2(1.0, 1.0));

    vec2 cubic = f * f * (3.0 - 2.0 * f);

    return mix(a, b, cubic.x) + (c - a) * cubic.y * (1.0 - cubic.x) + (d - b) * cubic.x * cubic.y;
}

float fbm(vec2 coord){
    float value = 0.0;
    float scale = 0.5;

    for(int i = 0; i < OCTAVES; i++){
        value += noise(coord) * scale;
        coord *= 2.0;
        scale *= 0.5;
    }
    return value;
}

void fragment() {
    vec2 grid_uv = UV;
    if (enable_pixelation) {
        grid_uv = round(UV * float(pixelation_amount)) / float(pixelation_amount);
    }

    // Compute noise based on pixelated or non-pixelated coordinates
    vec2 coord = grid_uv * 20.0;

    // Scroll the noise texture if enabled
    if (scroll_noise_tex) {
        coord += noise_scroll_direction * TIME;
    }

    vec2 motion = vec2(fbm(coord + fog_direction * TIME));

    float final = fbm(coord + motion);

    // Get the fog density from the texture mask
    float mask_value = texture(fog_mask, UV).r;  // Assuming the mask is grayscale

    // Modulate the fog density by the mask value
    final *= mask_value;

    // Use the alpha value of the color to control the overall fog opacity
    COLOR = vec4(color.rgb, final * color.a * 0.5);
}
