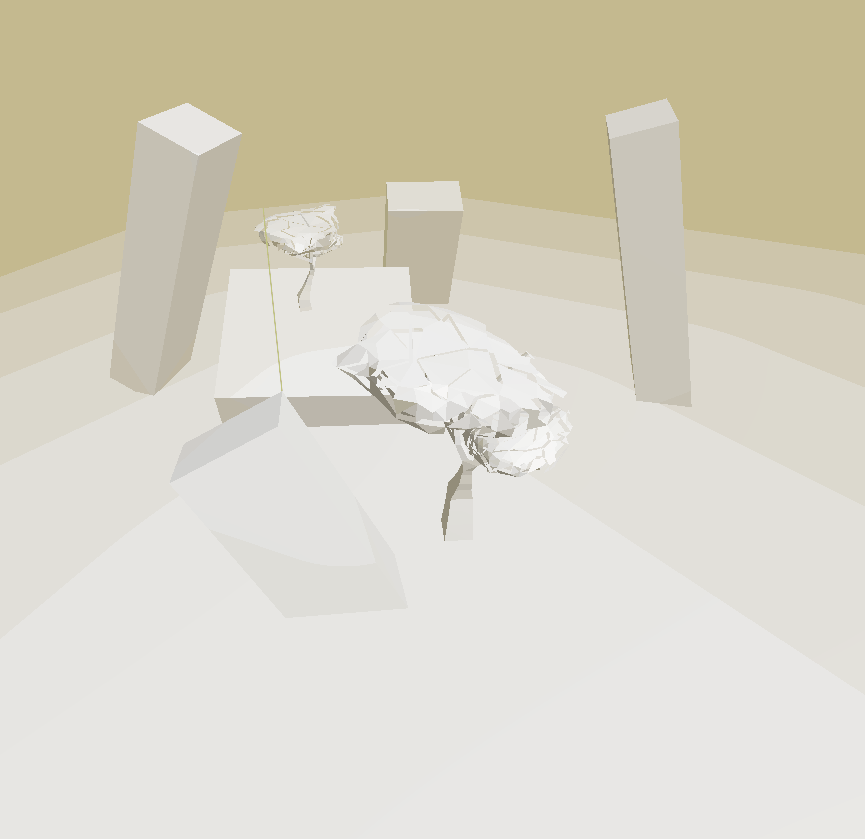

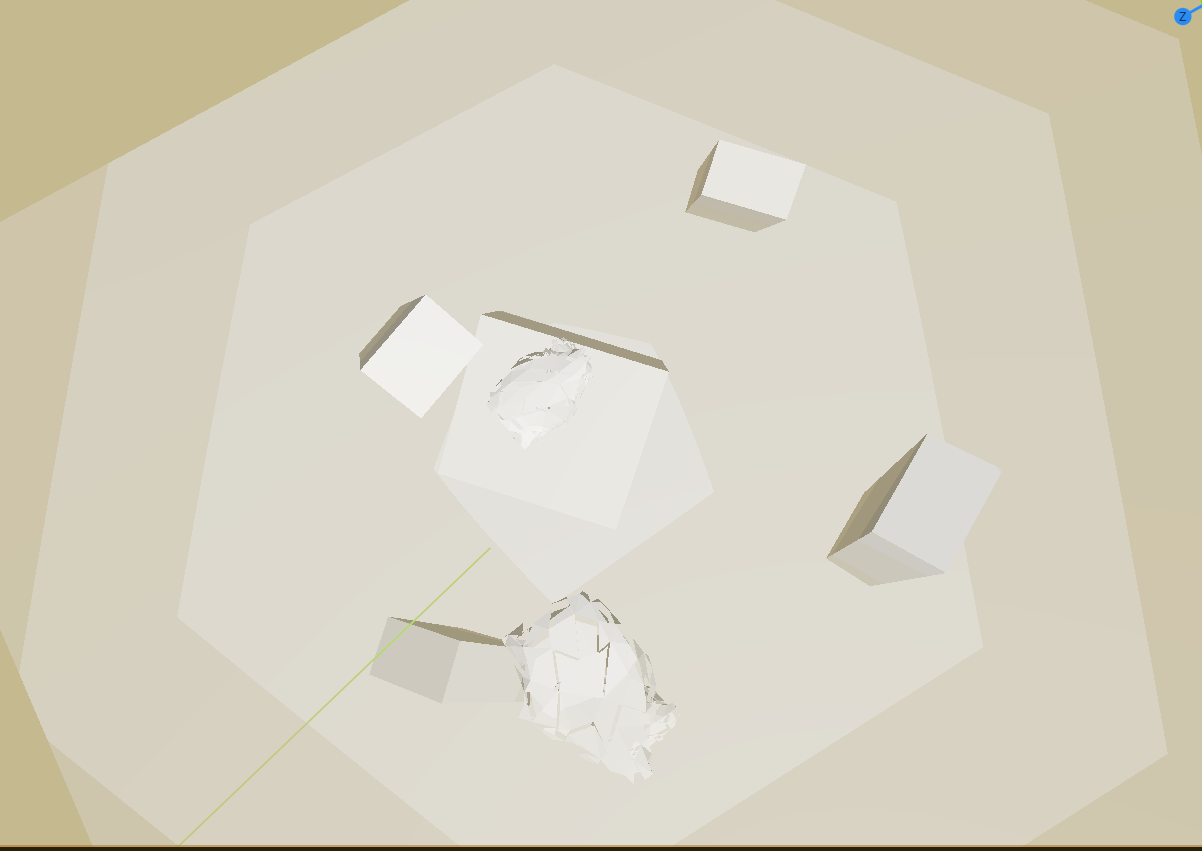

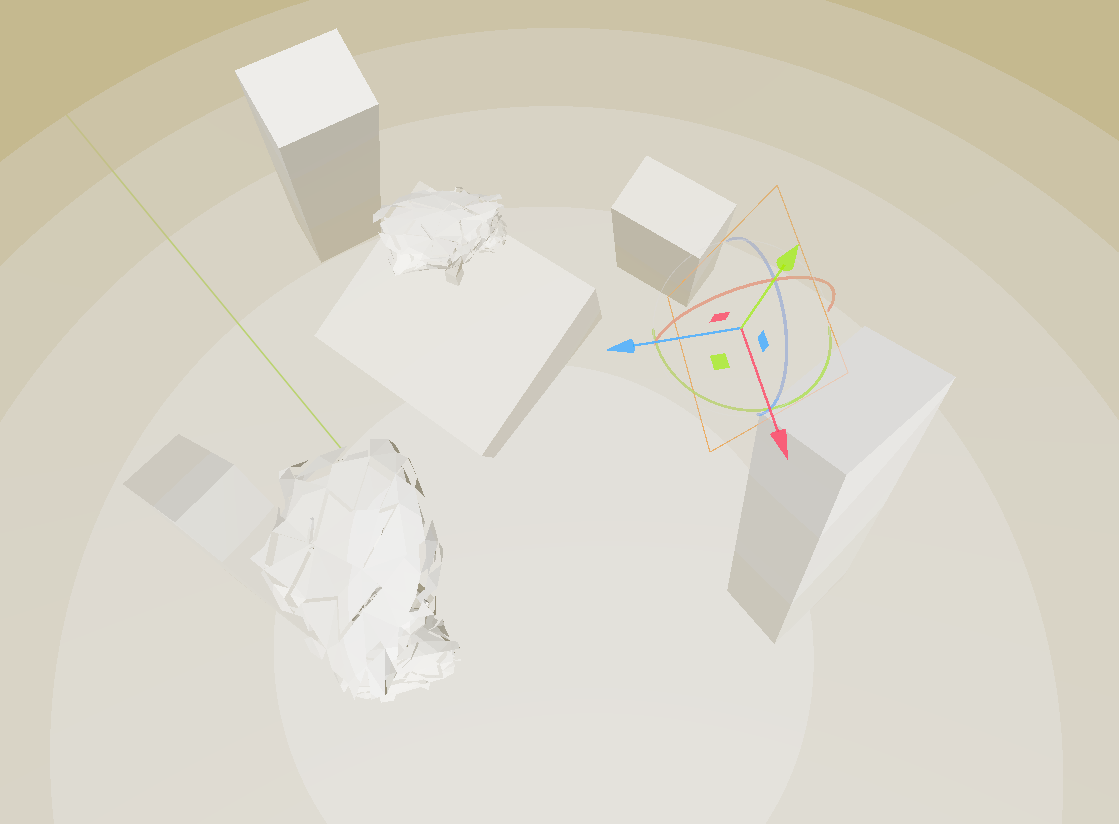

Banded Depth Fog (+ Low Poly Fog)

To use the compute shader version create two files in the same folder inside your project:

“Poly Fog.gd” containing this code:

@tool
class_name PolyFog extends CompositorEffect

# ———————–
# Exported parameters (match push-constant layout, split vec2s)
# ———————–
@export var fog_color : Color = Color(0.6, 0.7, 0.8, 1.0)

# split uCameraNearANDFar -> two exports
@export var camera_near : float = 0.1
@export var camera_far  : float = 4000.0
@export_range(0.0, 180.0) var camera_fov_deg : float = 75.0

# split uBandCountANDDensity -> two exports
@export var band_count : int = 8
@export var band_density : float = 15.0

@export_range(2, 32) var polygon_edges : int = 6        # 2=disabled, 3..32 = N-gon
@export_range(0.0, 1.0) var polygon_round : float = 0.0    # 0 = sharp

@export_range(0.0, 1.0) var fog_strength : float = 1.0
@export_range(0.0, 1.0) var fov_curve_strength : float = 1.0

@export_range(0.0, 1.0) var polygon_planar_faces : float = 1.0
@export_range(0.0, 80.0) var polygon_aperture_deg : float = 40.0

@export var polygon_lock_world : bool = true   # 0 camera-locked, 1 world-locked
@export_range(0.0, 1.0) var polygon_rotation_deg : float = 0.0

# NOTE: the inverse view matrix is per-view and will be appended per-view to push constants

var rd : RenderingDevice
var shader : RID
var pipeline : RID
var linear_sampler: RID

func _init() -> void:
RenderingServer.call_on_render_thread(initialize_compute_shader)

func _notification(what: int) -> void:
if what == NOTIFICATION_PREDELETE:
if shader.is_valid():
RenderingServer.free_rid(shader)
if linear_sampler.is_valid():
RenderingServer.free_rid(linear_sampler)

# pad a PackedFloat32Array so that its byte-size is a multiple of align_bytes
func pad_pc_to_alignment(pc: PackedFloat32Array, align_bytes: int) -> void:
var bytes := pc.size() * 4
var remainder := bytes % align_bytes
if remainder == 0:
return
var pad := align_bytes – remainder
# pad must be a multiple of 4 bytes; if not, round up to next 4
if pad % 4 != 0:
pad += 4 – (pad % 4)
var floats_to_append := pad / 4
for i in floats_to_append:
pc.append(0.0)

# Convert a Godot Transform3D (inv_view) to a column-major float list for GLSL mat4
# GLSL expects mat4 as column-major by default. This produces:
# [m00, m10, m20, m30,  m01, m11, m21, m31,  m02, m12, m22, m32,  m03, m13, m23, m33]
func transform3d_to_mat4_column_major_floats(inv_view : Transform3D) -> PackedFloat32Array:
var a := PackedFloat32Array()
# basis.x is the first column’s xyz, basis.y second, basis.z third, origin is translation
# Column 0
a.append(inv_view.basis.x.x)
a.append(inv_view.basis.x.y)
a.append(inv_view.basis.x.z)
a.append(0.0)
# Column 1
a.append(inv_view.basis.y.x)
a.append(inv_view.basis.y.y)
a.append(inv_view.basis.y.z)
a.append(0.0)
# Column 2
a.append(inv_view.basis.z.x)
a.append(inv_view.basis.z.y)
a.append(inv_view.basis.z.z)
a.append(0.0)
# Column 3 (translation)
a.append(inv_view.origin.x)
a.append(inv_view.origin.y)
a.append(inv_view.origin.z)
a.append(1.0)
return a

func align_push_constant_bytes(data: PackedByteArray, align_to: int = 16) -> PackedByteArray:
var remainder := data.size() % align_to
if remainder != 0:
var padding := align_to – remainder
for i in padding:
data.append(0)
return data

# ———————–
# Main rendering callback (adapted from your function)
# ———————–
func _render_callback(effect_callback_type: int, render_data: RenderData) -> void:
if not rd:
return

var scene_buffers : RenderSceneBuffersRD = render_data.get_render_scene_buffers()
var scene_data : RenderSceneDataRD = render_data.get_render_scene_data()
if not scene_buffers or not scene_data:
return

var size : Vector2i = scene_buffers.get_internal_size()
if size.x == 0 or size.y == 0:
return

var x_groups : int = size.x / 16 + 1
var y_groups : int = size.y / 16 + 1

# —- Build base (view-independent) push-constant buffer —-
var base_pc : PackedFloat32Array = PackedFloat32Array()

# uViewportSize
base_pc.append(float(size.x))
base_pc.append(float(size.y))
pad_pc_to_alignment(base_pc,16)
# uFogColor (r,g,b,a)
base_pc.append(fog_color.r)
base_pc.append(fog_color.g)
base_pc.append(fog_color.b)
base_pc.append(fog_color.a)

pad_pc_to_alignment(base_pc,8)

# uCameraNearANDFar (split into two floats)
base_pc.append(float(camera_near))
base_pc.append(float(camera_far))

# uCameraFovDeg
base_pc.append(float(camera_fov_deg))
#pad to 8 bytes
pad_pc_to_alignment(base_pc,8)
# uBandCountANDDensity (split)
base_pc.append(float(band_count))
base_pc.append(float(band_density))

# uPolygonEdges, uPolygonRound
base_pc.append(float(polygon_edges)) # int stored as float in push constants
base_pc.append(float(polygon_round))

# uFogStrength, uFovCurveStrength
base_pc.append(float(fog_strength))
base_pc.append(float(fov_curve_strength))

# uPolygonPlanarFaces, uPolygonApertureDeg
base_pc.append(float(polygon_planar_faces))
base_pc.append(float(polygon_aperture_deg))

# uPolygonLockWorld, uPolygonRotationDeg
base_pc.append(float(1 if polygon_lock_world else 0))
base_pc.append(float(polygon_rotation_deg))
pad_pc_to_alignment(base_pc,8)

# At this point base_pc contains all entries UP TO but NOT INCLUDING the mat4 (per-view)
# Now prepare common RD objects used inside the loop (sampler/uniform sets, pipeline, etc.)
# NOTE: you probably want to create/bind these outside the per-view loop for efficiency

# Build the uniform for depth texture binding (binding 0)
# NOTE: we will set the texture id per-view below by creating a per-view uniform set (or modify cached sets)
# If depth texture can be different per view, you must make per-view uniform sets or update the uniform each loop.

# ——– per-view loop ——–
for view in scene_buffers.get_view_count():
# NOTE: get_view_projection(view) returns a projection matrix; inverse() gives you the view *projection* inverse.
# You need a proper inverse view (camera->world) transform for reconstructing world positions.
# Adjust this code if scene_data exposes different data types.
var inv_view = scene_data.get_view_projection(view).inverse()
# If inv_view is Transform3D / Basis + origin, use transform3d_to_mat4_column_major_floats()
# If it’s already a Projection or a Matrix, adapt accordingly.
#var mat_floats : PackedFloat32Array = transform3d_to_mat4_column_major_floats(inv_view)
var mat_floats : PackedFloat32Array = PackedFloat32Array()
mat_floats.append(inv_view[2].x)
mat_floats.append(inv_view[2].z)

# Build per-view uniform set referencing the depth texture
var depth_tex : RID = scene_buffers.get_depth_layer(view)
var sampler_uniform : RDUniform = RDUniform.new()
sampler_uniform.uniform_type = RenderingDevice.UNIFORM_TYPE_SAMPLER_WITH_TEXTURE
sampler_uniform.binding = 0
sampler_uniform.add_id(linear_sampler)
sampler_uniform.add_id(depth_tex)
var screen_tex : RID = scene_buffers.get_color_layer(view)
var image_uniform : RDUniform = RDUniform.new()
image_uniform.uniform_type = RenderingDevice.UNIFORM_TYPE_IMAGE
image_uniform.binding = 1
image_uniform.add_id(screen_tex)
# now get a single uniform set for set 0 with BOTH uniforms
var uniform_set : RID = UniformSetCacheRD.get_cache(shader, 0, [sampler_uniform, image_uniform])
# Create a fresh push constant buffer: copy base_pc and append 16 floats of the mat4
var pc : PackedFloat32Array = PackedFloat32Array(base_pc) # copy
for i in mat_floats:
pc.append(i)
var pc_byte_arr : PackedByteArray = align_push_constant_bytes(pc.to_byte_array(),16)
# Begin compute (or render) dispatch for this view
var compute_list : int = rd.compute_list_begin()
rd.compute_list_bind_compute_pipeline(compute_list, pipeline)
# bind it once (set index 0)
rd.compute_list_bind_uniform_set(compute_list, uniform_set, 0)
rd.compute_list_set_push_constant(compute_list, pc_byte_arr, pc_byte_arr.size())
rd.compute_list_dispatch(compute_list, x_groups, y_groups, 1)
rd.compute_list_end()

func initialize_compute_shader() ->void:
rd = RenderingServer.get_rendering_device()
if not rd: return
var dir = get_script().get_path().get_base_dir() + “/Poly Fog.glsl”
print(dir)
if ! ResourceLoader.exists(dir): return
var glsl_file : RDShaderFile = load(dir)
shader = rd.shader_create_from_spirv(glsl_file.get_spirv())
pipeline = rd.compute_pipeline_create(shader)
var sampler_state: RDSamplerState = RDSamplerState.new()
sampler_state.min_filter = RenderingDevice.SAMPLER_FILTER_LINEAR
sampler_state.mag_filter = RenderingDevice.SAMPLER_FILTER_LINEAR
linear_sampler = rd.sampler_create(sampler_state)

And “Poly Fog.glsl” containing this code:

#[compute]
#version 450

layout(local_size_x = 16, local_size_y = 16, local_size_z = 1) in;

// INPUTS
layout(binding = 0, set = 0) uniform sampler2D uDepthTex;             // depth texture
layout(binding = 1, rgba16f, set = 0) uniform image2D uOut;  // output image (RGBA)

//NOTE: uniforms do not support ints
layout(push_constant, std430) uniform Params {

// Uniforms
uniform vec2  uViewportSize;          // width, height
uniform vec4  uFogColor;              // fog_color
vec2 uCameraNearANDFar;
uniform float uCameraFovDeg;

vec2 uBandCountANDDensity;

uniform float  uPolygonEdges;          // 2 = disabled (circular); 3..32 = N-gon
uniform float uPolygonRound;          // 0 = sharp, >0 = rounded

uniform float uFogStrength;
uniform float uFovCurveStrength;      // 0..1

uniform float uPolygonPlanarFaces;    // 0 = curved, 1 = planar-faced
uniform float uPolygonApertureDeg;    // 0 = prisms, >0 = pyramids

uniform float  uPolygonLockWorld;      // 0 = camera-locked, 1 = world-locked
uniform float uPolygonRotationDeg;    // extra rotation in degrees

uniform vec2  uInvViewMatrixXZ;         // inverse view matrix (for world yaw)

} p;

// Loaded Uniforms
vec2  uViewportSize;          // width, height
vec4  uFogColor;              // fog_color
float uCameraNear;
float uCameraFar;
float uCameraFovDeg;

int   uBandCount;
float uBandDensity;

int   uPolygonEdges;          // 2 = disabled (circular); 3..32 = N-gon
float uPolygonRound;          // 0 = sharp, >0 = rounded

float uFogStrength;
float uFovCurveStrength;      // 0..1

float uPolygonPlanarFaces;    // 0 = curved, 1 = planar-faced
float uPolygonApertureDeg;    // 0 = prisms, >0 = pyramids

int   uPolygonLockWorld;      // 0 = camera-locked, 1 = world-locked
float uPolygonRotationDeg;    // extra rotation in degrees

vec2 uInvViewMatrixXZ;         // inverse view matrix (for world yaw)

// ———————————————————————

const float PI = 3.14159265358979323846;
const int   MAX_EDGES = 32;

// Finite check and safe ops
bool is_finite(float x) { return (x == x) && abs(x) < 1e30; } // NaN fails x==x

float safe_div(float a, float b, float fallback) {
    return (abs(b) > 1e-20) ? (a / b) : fallback;
}

float saturate_non_nan(float x) {
    return is_finite(x) ? clamp(x, 0.0, 1.0) : 0.0;
}

// World-space distance between adjacent band steps
float band_step_world() {
return uCameraFar / max(1.0, uBandDensity * float(uBandCount));
}

// Smooth max; k=0 => hard max, higher k => rounder corners
float smooth_max(float a, float b, float k) {
if (k <= 0.0) return max(a, b);
float h = clamp(0.5 + 0.5 * (a – b) / k, 0.0, 1.0);
return mix(b, a, h) + k * h * (1.0 – h);
}

// World-space yaw of the camera (radians), using inverse view matrix
float camera_yaw(vec2 inv_view_xz) {
// Matches your Godot variant: atan(_INV_VIEW_MATRIX[2].x, -_INV_VIEW_MATRIX[2].z)
return atan(inv_view_xz.x, -inv_view_xz.y);
}

// Polygon support with explicit angle offset (tan-space q)
float polygonal_support_rot(vec2 q, int edges, float roundness, float angle_offset) {
    if (edges <= 2) {
        return length(q); // fallback: circular (disabled)
    }
    float step_ang = 2.0 * PI / float(edges);
    float c = cos(PI / float(edges));
    float k = roundness * 0.35; // smoothing width in tan-space

    float m = -1e9;
    for (int i = 0; i < MAX_EDGES; i++) {
        if (i >= edges) break;
        float a = angle_offset + step_ang * float(i);
        vec2 n = vec2(cos(a), sin(a));
        float v = dot(q, n) / c;
        m = (i == 0) ? v : smooth_max(m, v, k);
    }
    return m;
}

// Curved (FOV) multiplier from q
float fov_ray_multiplier_from_q(vec2 q, int edges, float roundness, float angle_offset) {
float r = (edges <= 2) ? length(q) : polygonal_support_rot(q, edges, roundness, angle_offset);
    return sqrt(1.0 + r * r);
}

// Planar-faced “polyhedral” measure: level sets are unions of planes (no curvature).
// slope = tan(aperture), controls how fast bands shrink with depth (0 = vertical prisms).
float polyhedral_measure_oriented(vec3 view_pos, int edges, float roundness, float slope, float angle_offset) {
if (edges < 3) {
return view_pos.z;
}
float c = cos(PI / float(edges));
float step_ang = 2.0 * PI / float(edges);

// Scale smoothing by band thickness for visibility (planar mode)
float k = (roundness <= 0.0) ? 0.0 : roundness * band_step_world() / c;

// Use camera right/up plane (view XY) like your fragment version
vec2 q = view_pos.xy;

float m = -1e9;
for (int i = 0; i < MAX_EDGES; i++) {
if (i >= edges) break;
float a = angle_offset + step_ang * float(i);
vec2 n = vec2(cos(a), sin(a));
float v = (dot(q, n) + slope * view_pos.z) / c;
m = (i == 0) ? v : smooth_max(m, v, k);
}
return m;
}

// Reconstruct linear view-space depth from sampled depth in [0,1]
float linearize_depth(float z_sample) {
float z_ndc = z_sample * 2.0 – 1.0;
return (2.0 * uCameraNear * uCameraFar) /
   (uCameraFar + uCameraNear – z_ndc * (uCameraFar – uCameraNear));
}

// Assigns unpacked uniforms from push constant block p
void load_params_from_push_constant() {
// Simple direct copies
uViewportSize       = p.uViewportSize;
uFogColor           = p.uFogColor;
uCameraFovDeg       = p.uCameraFovDeg;
uPolygonEdges       = int(p.uPolygonEdges);
uPolygonRound       = p.uPolygonRound;
uFogStrength        = p.uFogStrength;
uFovCurveStrength   = p.uFovCurveStrength;
uPolygonPlanarFaces = p.uPolygonPlanarFaces;
uPolygonApertureDeg = p.uPolygonApertureDeg;
uPolygonLockWorld   = int(p.uPolygonLockWorld);
uPolygonRotationDeg = p.uPolygonRotationDeg;
uInvViewMatrixXZ    = p.uInvViewMatrixXZ;

// Unpack combined vec2s
uCameraNear = p.uCameraNearANDFar.x;
uCameraFar  = p.uCameraNearANDFar.y;

uBandCount   = int(p.uBandCountANDDensity.x);
uBandDensity = p.uBandCountANDDensity.y;
}

void main() {
ivec2 pix = ivec2(gl_GlobalInvocationID.xy);
if (pix.x >= int(p.uViewportSize.x) || pix.y >= int(p.uViewportSize.y)) return;
load_params_from_push_constant();
// Map pixel -> uv
vec2 uv = (vec2(pix) + 0.5) / uViewportSize;

// Sample depth (mirror your original: depth = 1 – scene.r)
float depth_sample = 1.0 – texture(uDepthTex, uv).r;
float view_depth = linearize_depth(depth_sample);

float aspect = uViewportSize.x / max(1.0, uViewportSize.y);

// Rotation controls
float user_rot = radians(uPolygonRotationDeg);
float angle = user_rot;
if (uPolygonLockWorld != 0) {
angle -= camera_yaw(uInvViewMatrixXZ); // keep polygon aligned to world while camera yaws
}
// FOV → tan-half FOV
float fov_rad  = radians(uCameraFovDeg);
float half_fov = clamp(fov_rad * 0.5, 0.001, 1.55334); // ~[0.057°, 89.0°]
float tan_y    = tan(half_fov);
float tan_x    = tan_y * aspect;
// Build q in tan-space from the same UV
vec2 ndc = uv * 2.0 – vec2(1.0);
vec2 q   = ndc * vec2(tan_x, tan_y);
// 1) Curved (view-based)
float mult_curved    = fov_ray_multiplier_from_q(q, uPolygonEdges, uPolygonRound, angle);
float curved_measure = mix(view_depth, view_depth * mult_curved, clamp(uFovCurveStrength, 0.0, 1.0));
// 2) Planar-faced (no curvature)

float slope = tan(radians(clamp(uPolygonApertureDeg, 0.0, 89.9))); // 0 => prisms, >0 => pyramid
vec3 view_pos = vec3(ndc * vec2(tan_x, tan_y) * view_depth, view_depth);
float planar_measure = polyhedral_measure_oriented(view_pos, uPolygonEdges, uPolygonRound, slope, angle);
// Blend between curved and planar-faced
float effective_measure = mix(curved_measure, planar_measure, clamp(uPolygonPlanarFaces, 0.0, 1.0));
// Banding
float norm_eff = clamp(effective_measure / uCameraFar, 0.0, 1.0) * uBandDensity;
float depth_norm = clamp(norm_eff, 0.0, 1.0);
depth_norm *= int(uBandCount);
depth_norm = floor(depth_norm);
depth_norm /= int(uBandCount);
float out_alpha = saturate_non_nan(depth_norm * max(uFogStrength, 0.0));
vec4 color = imageLoad(uOut, pix);
vec3 out_color = mix(color.rgb, uFogColor.rgb , out_alpha);
//color.r = uPolygonEdges * 0.1;
//vec3 out_color = color.rgb;
imageStore(uOut, pix, vec4(out_color,1.0));
}
—
Now you should be able to access and enable it from the WorldEnvironment node, under “Compositor>Compositor Effects”.
