Pulse effect (Godot 4)

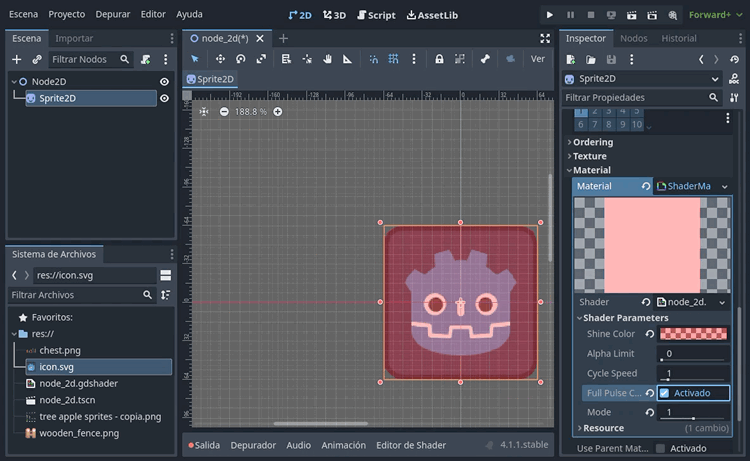

With this shader you can apply a pulse effect to your CanvasItem (for example a Sprite2D)

Parameters:

  • shine_color: Shine color to apply to the Texture
  • alpha_limit: Only apply the shine if the pixel alpha color is equals or greater than this value. (Usefull if you won’t to apply the shine to shadows for example)
  • cycle_speed: The speed of the pulse to apply the shine (Only for mode 1)
  • full_pulse_cycle: If true, the pulse is continuosly, otherwise, it makes a pause in each cycle.
  • mode: This parameter is used to enable, disable o set to pulse mode.
    • 0: Off
    • 1: Pulse mode. Apply the shine in a cycle mode
    • 2: On. Always apply the shine
Shader code
shader_type canvas_item;

uniform vec4 shine_color : source_color = vec4(1.0); //Shine color
uniform float alpha_limit : hint_range(0.0, 1.0, 0.1) = 0.0; //Alpha color limit to apply the shine, for example, if you won't to apply the shine to semi-transparent pixels
uniform float cycle_speed : hint_range(0.0, 10.0, 0.1) = 1.0; //Pulse cycle speed
uniform bool full_pulse_cycle = false; //[False = Do the effect and make a pause] [True = Do the effect continuosly]
uniform int mode : hint_range(0, 2, 1) = 0; //[0 = Always off] [1 = Pulse mode] [2 = Always on]

void fragment()
{
	//Check if the effect is enabled
	if (mode > 0)
	{
		//Check the pixel alpha value
		if (COLOR.a >= alpha_limit)
		{
			//Check the mode
			switch (mode)
			{
				case 1: //Pulse mode
				{
					float cycle = sin(TIME * cycle_speed);
					COLOR.rgb = mix(COLOR.rgb, shine_color.rgb, (((cycle >= 0.0) || (full_pulse_cycle)) ? abs(cycle) : 0.0) * shine_color.a);
					break;
				}
				case 2: //Always on
				{
					COLOR.rgb = mix(COLOR.rgb, shine_color.rgb, shine_color.a);
					break;
				}
			}
		}
	}
}
Tags
pulse, shine
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

WRIP EFFECT WITH GODOT SHADER

2D Water distortion effect (Godot 4)

Back glow effect for item backgrounds

Subscribe
Notify of
guest

2 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
TheYellowArchitect
4 months ago

Pretty good. Once I saw transparency is allowed, I realized the simple potential of such a common UI element.

Couldn’t this be simplified (so I edit further)

               COLOR.rgb = mix(COLOR.rgb, shine_color.rgb, (((cycle >= 0.0) || (full_pulse_cycle)) ? abs(cycle) : 0.0) * shine_color.a);
