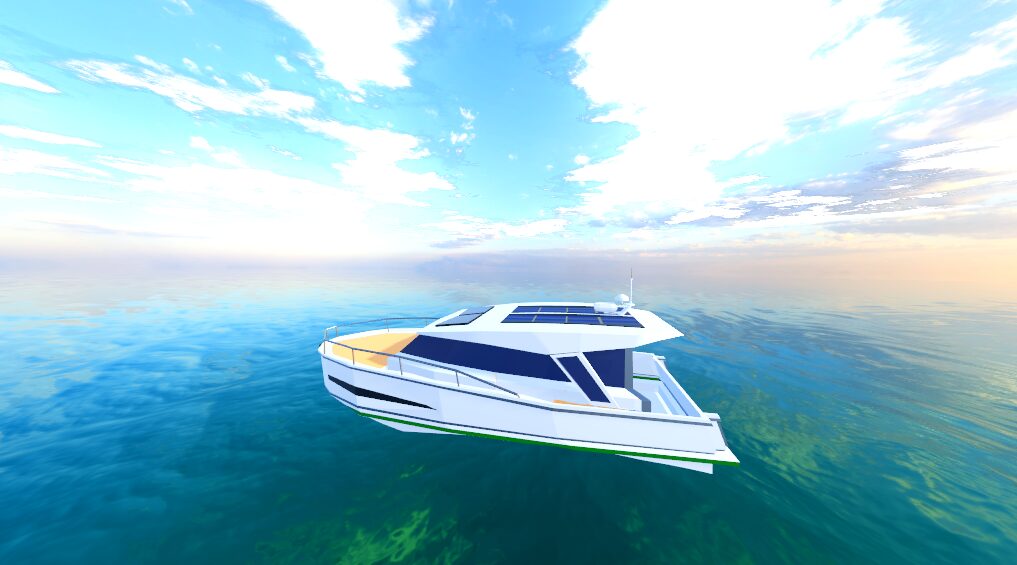

Stylized Spatial Clouds

I discovered an impressive 2D cloud shader and adapted it for 3D use. This shader is quite efficient and produces decent visuals. If you’re aiming for a more realistic appearance in your game, you might want to consider a volumetric cloud shader instead. However, this shader works best for games with a toon, low-poly, or simplistic style.

Instructions

1. Add a MeshInstance3D to your scene, setting mesh to a new PlaneMesh
2. Set mesh/material to a new ShaderMaterial
3. Set the shader to a new shader, with the code below inside it
4. Play around with the parameters to best fit your game. Enjoy.

Notes:

• If you want the clouds to stretch out very far but still want it to be as optimized as possible, try bringing the plane mesh closer to the ground and setting noise_scale to a higher value.
• Only adjust concentration if you absolutely need to.

Shader code

shader_type spatial;
render_mode unshaded, depth_draw_never, cull_disabled;

uniform float noise_scale = 11.24;
uniform float speed = 0.16;
uniform float darkness_amount = 9.155;
uniform float detail = 0.23;
uniform float concentration = 0.0;
uniform float amount = 0.12;
uniform float bloom = 2.0;
uniform float alpha = 8.0;
uniform vec3 cloud_tint : source_color = vec3(1.0, 1.0, 1.0);
uniform float edge_fade = -0.035;

uniform mat2 rotation_matrix = mat2(vec2(1.6, 1.2), vec2(-1.2, 1.6));

// --- Noise Functions ---
vec2 hash(vec2 p) {
    p = vec2(dot(p, vec2(127.1, 311.7)), dot(p, vec2(269.5, 183.3)));
    return -1.0 + 2.0 * fract(sin(p) * 43758.5453123);
}

float noise(vec2 p) {
    const float K1 = 0.366025404;
    const float K2 = 0.211324865;
    vec2 i = floor(p + (p.x + p.y) * K1);
    vec2 a = p - i + (i.x + i.y) * K2;
    vec2 o = (a.x > a.y) ? vec2(1.0, 0.0) : vec2(0.0, 1.0);
    vec2 b = a - o + K2;
    vec2 c = a - 1.0 + 2.0 * K2;
    vec3 h = max(0.5 - vec3(dot(a,a), dot(b,b), dot(c,c)), 0.0);
    vec3 n = h * h * h * h * vec3(dot(a, hash(i + 0.0)), dot(b, hash(i + o)), dot(c, hash(i + 1.0)));
    return dot(n, vec3(70.0));
}

float fbm(vec2 n) {
    float total = 0.0;
    float amplitude = 0.1;
    for (int i = 0; i < 7; i++) {
        total += noise(n) * amplitude;
        n = rotation_matrix * n;
        amplitude *= 0.4;
    }
    return total;
}

// --- Main Fragment ---
void fragment() {
    vec2 uv = UV;

    // Animate clouds
    float time = TIME * (speed / 10.0);
    float q = fbm(uv * noise_scale * 0.5);

    float r = 0.0;
    vec2 tuv = uv * noise_scale + q - time;
    float weight = 0.8;
    for (int i = 0; i < 8; i++) {
        r += abs(weight * noise(tuv));
        tuv = rotation_matrix * tuv + time;
        weight *= 0.7;
    }

    float f = 0.0;
    tuv = uv * noise_scale + q - time;
    weight = 0.7;
    for (int i = 0; i < 8; i++) {
        f += weight * noise(tuv);
        tuv = rotation_matrix * tuv + time;
        weight *= 0.6;
    }

    f *= r + f;

    vec3 cloud_color = clamp(cloud_tint * (darkness_amount * detail * f), 0.0, 1.0) * bloom;

    float cloud_strength = amount + alpha * f * r;
    cloud_strength = clamp(cloud_strength, 0.0, 1.0);

    // --- Edge fade ---
    float edge_dist = distance(uv, vec2(0.5));
    float fade = smoothstep(edge_fade, 0.5, edge_dist);

    ALBEDO = cloud_color;
    ALPHA = cloud_strength * (1.0 - fade) + concentration;
}
