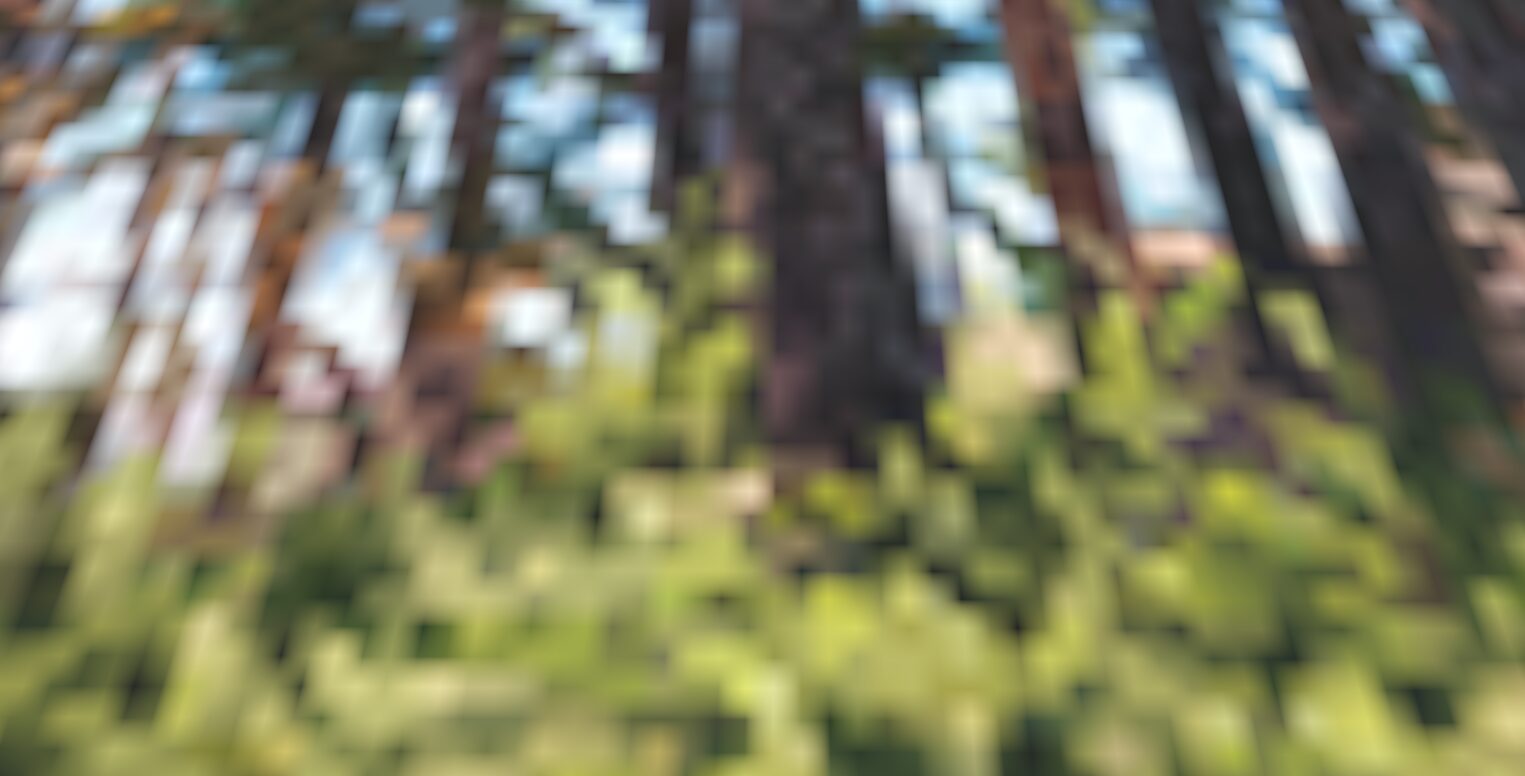

sub texel dithering for low res textures and pixel art

A stylised effect for improving standard bilinear sampling.

Shader code

shader_type spatial;

uniform sampler2D albedo : source_color, filter_linear_mipmap;

// 3-sample stochastic spiral sub-texel stylised dithered sampling,
// for low resolution textures where bilinear filter is very apparent.
vec4 texture_dither(sampler2D samp, vec2 uv) {
	float lod = textureQueryLod(samp, uv).r;
	vec2 t_size = vec2(textureSize(samp, int(lod)));
	vec2 step_len = 1.0 / (t_size * sqrt(3.0));
	vec2 step_down = step_len / 3.0;
	float step_ang = TAU / 3.0;
	// Sub-texel jitter
	float a = fract(sin(dot(round(uv * t_size * 8.0), vec2(12.9898, 78.233))) * (43758.5453)) * TAU;
	vec2 dir = vec2(cos(a), sin(a));
	mat2 rot = mat2(vec2(cos(step_ang), -sin(step_ang)), vec2(sin(step_ang),  cos(step_ang)));
	vec4 acc = vec4(0.0);
	// Spiral sampling loop
	for (int i = 0; i < 3; i++) {
		acc += textureLod(samp, uv + dir * step_len, floor(lod));
		dir *= rot;
		step_len -= step_down;
		step_down *= 0.5;
	}
	return acc / 3.0;
}

void fragment() {
	ALBEDO = texture_dither(albedo, UV).rgb;

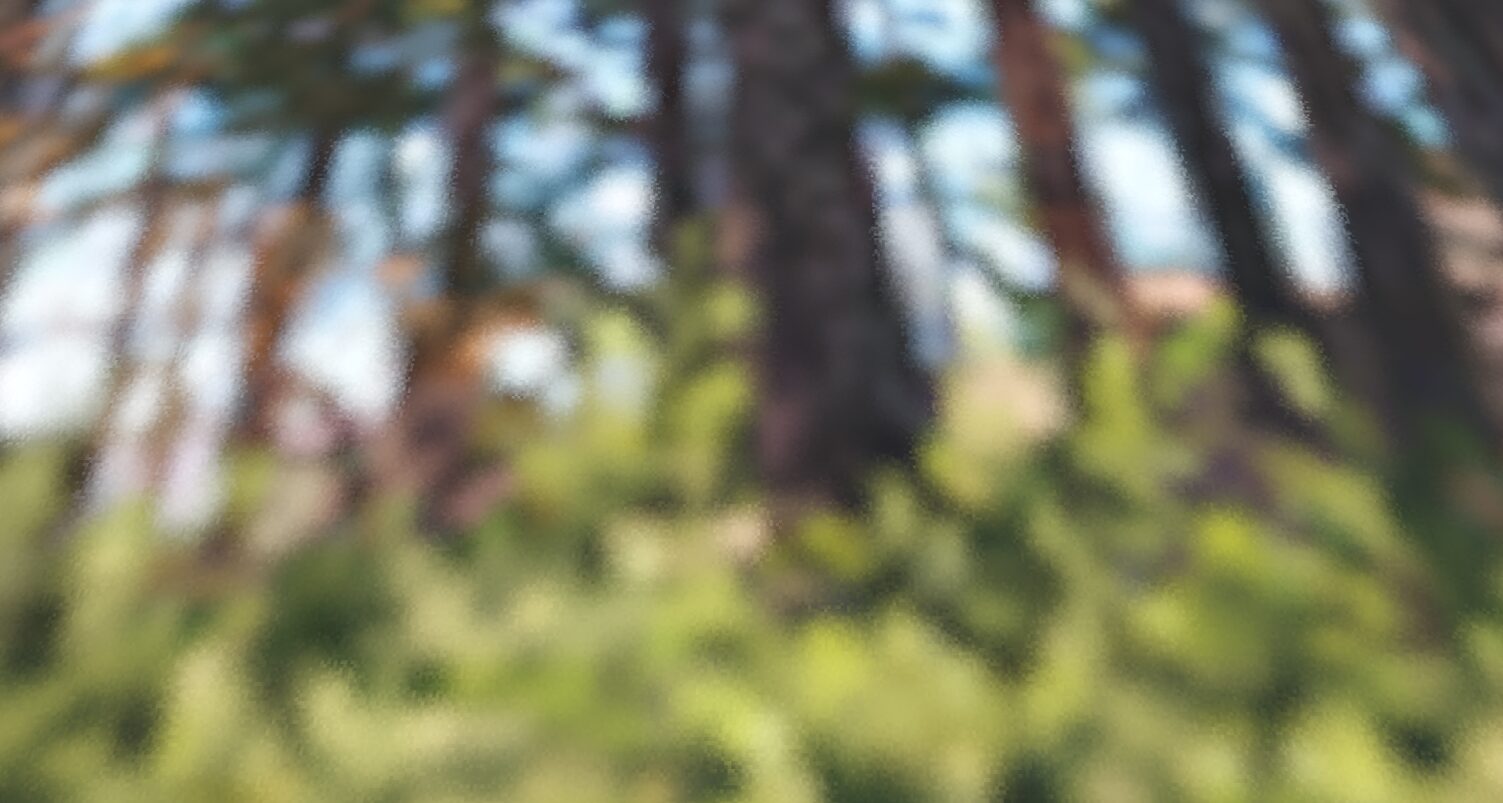

	// uncomment for comparison with standard bilinear.
	//ALBEDO = texture(albedo, UV).rgb;
}
