Dual texture blender

ninetailsrabbit

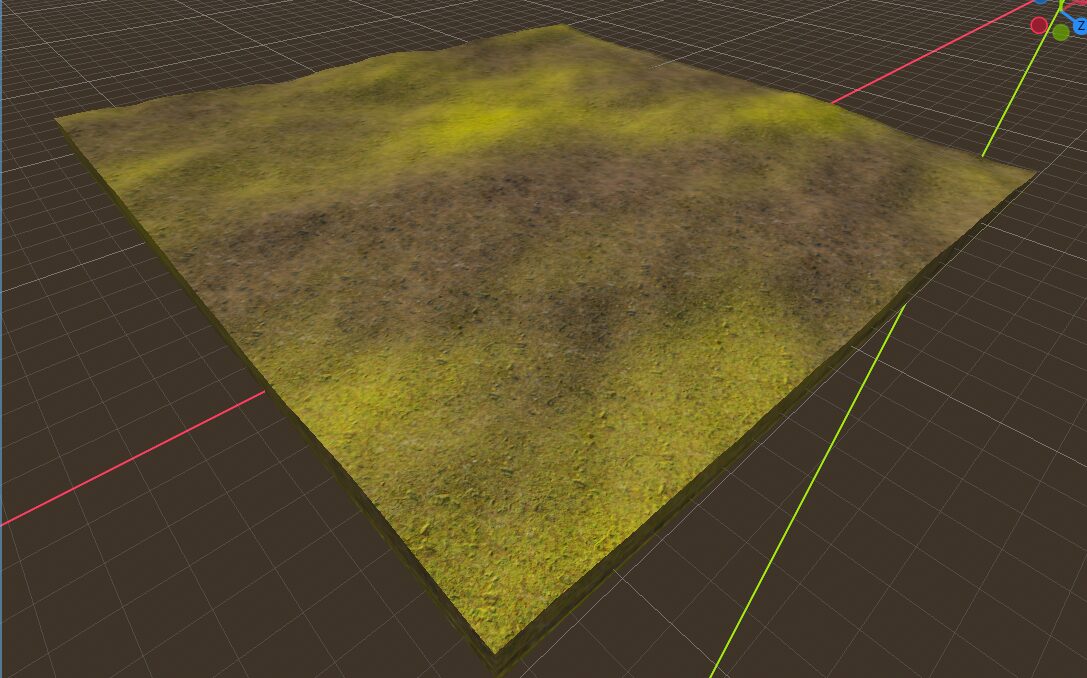

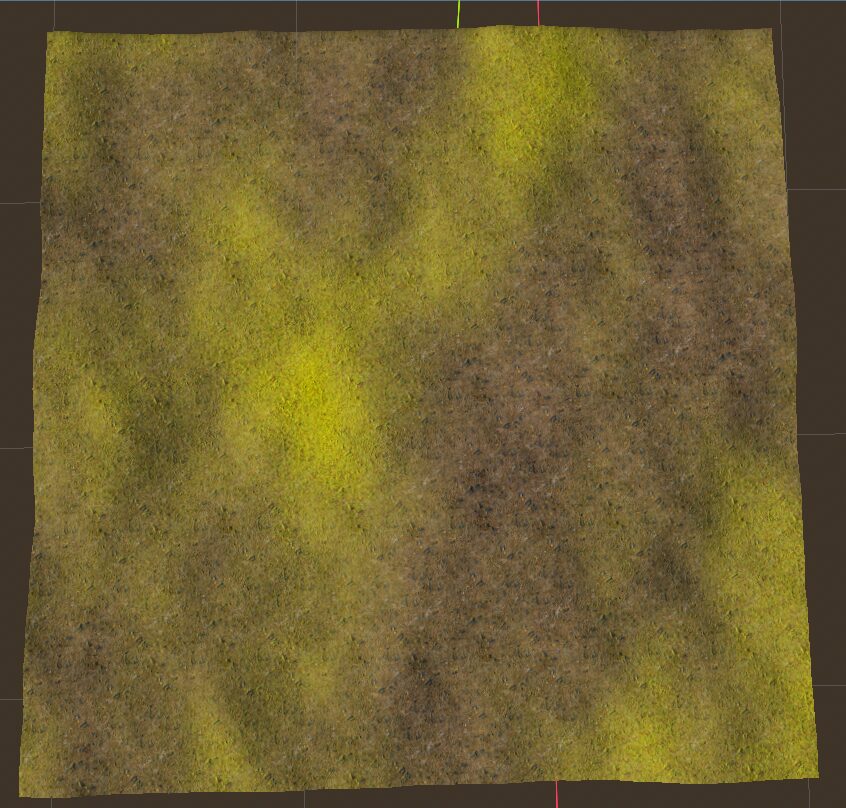

An improvised version combining the knowledge from this videos:

It includes multiple methods for the combination of normal maps in which some are more optimal in terms of performance and others have better results.

  • Unity blending (Provides the best visual results in most cases. but it is the most costly of the four methods)
  • Whiteout blending (often better than the simple method, especially to prevent detail from flattening)
  • UDN (Very similar to simple blending in cost, as it does not use the z component of the second normal map, which simplifies calculations)
  • Simple (the most performant, may produce unwanted visual effects (such as seams or hard edges)

By default this shader uses the Whiteout method.

Features

  • Optional UV triplanar option
  • Mixing of two textures using NoiseTexture2D as blend.
  • Normal map support
  • Change surface detail roughness, metallic, specular.

Setup

  • To set up this texture blending system, follow these steps:

    • Configure Blend Noise:

      • Assign a new NoiseTexture2D to the blend_noise parameter.
      • Within the NoiseTexture2D, create a new Color Ramp and a FastNoiseLite.
      • Adjust the parameters of the noise to control how the secondary texture blends. The Color Ramp determines the blending amount of the secondary texture based on the distance between its points.

    • Select Main Texture:

      • Choose a primary texture for your material.
      • You can adjust its UV scale, offset, and blend sharpness.
      • Consider using the triplanar UV option for better results if you notice significant texture tiling.

    • Select Secondary Texture:

      • Choose a secondary texture for your material.
      • Apply the same parameter adjustments as you did for the main texture.

    • Attach Normal Maps:

      • If available, attach the respective normal maps for both the main and secondary textures in their designated sections.

    • Modify Surface Details (Optional):

      • You can optionally adjust the surface details such as roughness, metallic, and specular values as well the normal scale to achieve the desired visual effect.
Shader code
shader_type spatial;
render_mode  blend_mix, depth_draw_opaque, cull_back, diffuse_burley, specular_schlick_ggx;

uniform sampler2D blend_noise : source_color;

group_uniforms Surface_detail;
uniform float normal_scale : hint_range(-16.0, 16.0) = 1.0;
uniform float specular : hint_range(0.0, 1.0, 0.01);
uniform float metallic : hint_range(0.0, 1.0, 0.01);
uniform float roughness : hint_range(0.0, 1.0);

group_uniforms MainTexture;
uniform sampler2D main_texture : source_color, repeat_enable, filter_linear_mipmap;
uniform vec4 main_texture_color : source_color = vec4(1.0);

uniform float main_uv_scale = 1.0;
uniform vec3 main_uv_offset;
uniform bool main_uv_triplanar = false;
uniform float main_uv_blend_sharpness: hint_range(0.0, 150.0, 0.001) = 1.0;
uniform sampler2D main_normal: hint_roughness_normal, filter_linear_mipmap, repeat_enable;

group_uniforms SecondaryTexture;
uniform sampler2D secondary_texture : source_color, repeat_enable, filter_linear_mipmap;
uniform vec4 secondary_texture_color : source_color = vec4(1.0);
uniform float secondary_uv_scale = 1.0;
uniform vec3 secondary_uv_offset;
uniform bool secondary_uv_triplanar = false;
uniform float secondary_uv_blend_sharpness : hint_range(0.0, 150.0, 0.001) = 1.0;
uniform sampler2D secondary_normal: hint_roughness_normal, filter_linear_mipmap, repeat_enable;

varying vec3 main_uv_power_normal;
varying vec3 main_uv_triplanar_pos;
varying vec3 secondary_uv_power_normal;
varying vec3 secondary_uv_triplanar_pos;

varying vec3 world_position;


vec4 triplanar_texture(sampler2D p_sampler, vec3 p_weights, vec3 p_triplanar_pos) {
	vec4 sampler = vec4(0.0);

	sampler += texture(p_sampler, p_triplanar_pos.xy) * p_weights.z;
	sampler += texture(p_sampler, p_triplanar_pos.xz) * p_weights.y;
	sampler += texture(p_sampler, p_triplanar_pos.zy * vec2(-1.0, 1.0)) * p_weights.x;

	return sampler;
}

// Cheapest method, better performance and good results.
vec3 simple_blending(vec3 a, vec3 b) {
	a = a * 2.0 - 1.0;
	b = b * 2.0 - 1.0;

	vec3 result = vec3(a.xy + b.xy, 1.0);

	return result * 0.5 + 0.5;
}

// Better results but more performant cost
vec3 unity_blending(vec3 a, vec3 b) {
	a = a * 2.0 - 1.0;
	b = b * 2.0 - 1.0;

	mat3 basis = mat3(
		vec3(a.z, a.y, -a.x),
		vec3(a.x, a.z, -a.y),
		a
	);

	vec3 result = normalize(basis * b);

	return result * 0.5 + 0.5;
}

// Performance friendly, good results
vec3 whiteout_blending(vec3 a, vec3 b) {
	a = a * 2.0 - 1.0;
	b = b * 2.0 - 1.0;

	vec3 result = normalize(vec3(a.xy + b.xy, a.z * b.z));

	return result * 0.5 + 0.5;
}

vec3 udm_blending(vec3 a, vec3 b) {
	a = a * 2.0 - 1.0;
	b = b * 2.0 - 1.0;

	vec3 result = normalize(vec3(a.xy + b.xy, a.z));

	return result * 0.5 + 0.5;
}


void vertex() {
	world_position = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;
	vec3 normal = NORMAL;

	TANGENT = vec3(0.0, 0.0, -1.0) * abs(normal.x);
	TANGENT += vec3(1.0, 0.0, 0.0) * abs(normal.y);
	TANGENT += vec3(1.0, 0.0, 0.0) * abs(normal.z);
	TANGENT = normalize(TANGENT);

	BINORMAL = vec3(0.0, 1.0, 0.0) * abs(normal.x);
	BINORMAL += vec3(0.0, 0.0, -1.0) * abs(normal.y);
	BINORMAL += vec3(0.0, 1.0, 0.0) * abs(normal.z);
	BINORMAL = normalize(BINORMAL);

	// Main UV Triplanar: Enabled
	if (main_uv_triplanar) {
		main_uv_power_normal = pow(abs(NORMAL), vec3(main_uv_blend_sharpness));
		main_uv_triplanar_pos = VERTEX * main_uv_scale + main_uv_offset;
		main_uv_power_normal /= dot(main_uv_power_normal, vec3(1.0));
		main_uv_triplanar_pos *= vec3(1.0, -1.0, 1.0);
	}
	// Secondary UV Triplanar: Enabled
	if (secondary_uv_triplanar) {
		secondary_uv_power_normal = pow(abs(NORMAL), vec3(secondary_uv_blend_sharpness));
		secondary_uv_triplanar_pos = VERTEX * secondary_uv_scale + secondary_uv_offset;
		secondary_uv_power_normal /= dot(secondary_uv_power_normal, vec3(1.0));
		secondary_uv_triplanar_pos *= vec3(1.0, -1.0, 1.0);
	}

}

void fragment() {
	vec4 main_albedo;
	vec4 m_normal;
	vec4 s_normal;

	if (main_uv_triplanar) {
		main_albedo = triplanar_texture(main_texture, main_uv_power_normal, main_uv_triplanar_pos);
		m_normal = triplanar_texture(main_normal, main_uv_power_normal, main_uv_triplanar_pos);

	} else {
		main_albedo = texture(main_texture, UV * vec2(main_uv_scale));
		m_normal = texture(main_normal, UV * vec2(main_uv_scale));
	}

	main_albedo *= main_texture_color;

	vec4 secondary_albedo;

	if (secondary_uv_triplanar) {
		secondary_albedo = triplanar_texture(secondary_texture, secondary_uv_power_normal, secondary_uv_triplanar_pos);
		s_normal = triplanar_texture(secondary_normal, secondary_uv_power_normal, secondary_uv_triplanar_pos);
	} else {
		secondary_albedo = texture(secondary_texture, UV * vec2(secondary_uv_scale));
		s_normal = texture(secondary_normal, UV * vec2(secondary_uv_scale));
	}

	secondary_albedo *= secondary_texture_color;

	vec4 blend_noise_texture = texture(blend_noise, UV);
	vec3 blended_albedo = mix(vec3(main_albedo.xyz), vec3(secondary_albedo.xyz), vec3(blend_noise_texture.xyz));

	vec3 combined_normal = whiteout_blending(m_normal.rgb, s_normal.rgb);

	// Makes the final texture uniform decomposing & composing the rgb channels
	vec3 albedo_rgb_to_hsv;

	{
		vec3 c = blended_albedo;
		vec4 K = vec4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
		vec4 p = mix(vec4(c.bg, K.wz), vec4(c.gb, K.xy), step(c.b, c.g));
		vec4 q = mix(vec4(p.xyw, c.r), vec4(c.r, p.yzx), step(p.x, c.r));
		float d = q.x - min(q.w, q.y);
		float e = 1.0e-10;

		albedo_rgb_to_hsv = vec3(abs(q.z + (q.w - q.y) / (6.0 * d + e)), d / (q.x + e), q.x);
	}

	// VectorDecompose
	float rgb_x = albedo_rgb_to_hsv.x;
	float rgb_y = albedo_rgb_to_hsv.y;
	float rgb_z = albedo_rgb_to_hsv.z;

	// VectorCompose:
	vec3 rgb_composed = vec3(rgb_x, rgb_y, rgb_z);

	vec3 final_rgb_albedo;
	{
		vec3 c = rgb_composed;
		vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
		vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
		final_rgb_albedo = c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
	}

	ALBEDO = final_rgb_albedo;
	NORMAL_MAP = combined_normal;
	NORMAL_MAP_DEPTH = normal_scale;
	ROUGHNESS = roughness;
	METALLIC = metallic;
	SPECULAR = specular;
}
Tags
3d, blending, noise, terrain, texture, texture_blending
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
