Vertex Color RGB Material Blender
A fork of @ORM vertex color blender.

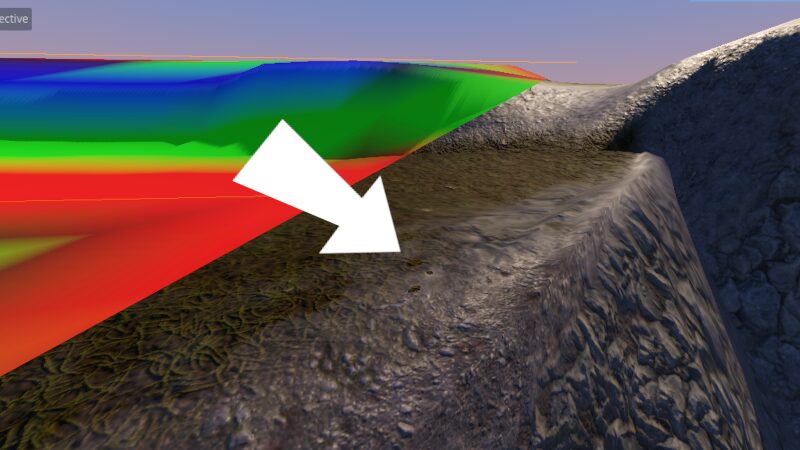

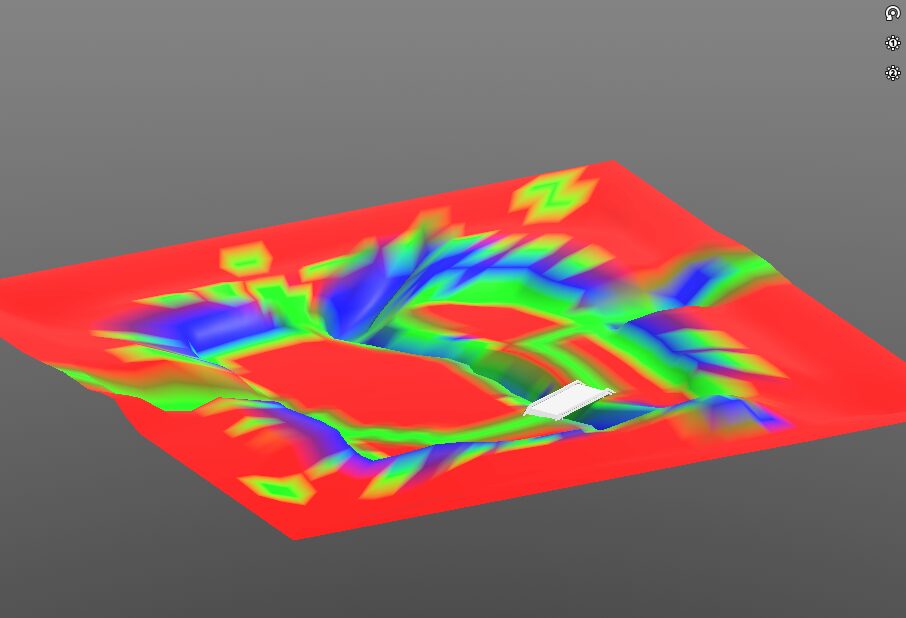

Using a mesh that has been painted with vertex colors, the red, greens and blues will be repalced with ORM materials you assign. Blending can be adjsuted in several ways. This fork isn’t far from the original, I’ve only added another color channel/material and added a few more sliders sliders let you adjust the ORM AO, Roughness, and Metallic levels after the fact as well.
I wanted a shader that didn’t use triplaner so that it could be used on other models as well. For example, a vehicle you model and texture, could then be vertex colored R, G, or B in differentt places. This shader could use those same textures for all three material types, but have different settings for each, on with less roughness so it looks wet on the tires and buttom but not on the top, or have a separete muddy/damaged vehicle version that can be revealted using vertex painting.
If Godot added real-time vertex painting, like old-school Golden eye, blasts of color could revear a gore texture, or burn texture blending with the usual textures. Etc.
Shader code
shader_type spatial;
render_mode blend_mix, depth_draw_opaque, cull_back, diffuse_burley, specular_schlick_ggx;
// Textures for material A, B, C, and the transition noise
group_uniforms textures;
uniform sampler2D texture_albedo_a : source_color, filter_linear_mipmap, repeat_enable;
uniform sampler2D texture_normal_a : hint_roughness_normal, filter_linear_mipmap, repeat_enable;
uniform sampler2D texture_orm_a : hint_roughness_g, filter_linear_mipmap, repeat_enable;
uniform float roughness_a : hint_range(0, 2) = 1.0;
uniform sampler2D texture_albedo_b : source_color, filter_linear_mipmap, repeat_enable;
uniform sampler2D texture_normal_b : hint_roughness_normal, filter_linear_mipmap, repeat_enable;
uniform sampler2D texture_orm_b : hint_roughness_g, filter_linear_mipmap, repeat_enable;
uniform float roughness_b : hint_range(0, 2) = 1.0;
uniform sampler2D texture_albedo_c : source_color, filter_linear_mipmap, repeat_enable;
uniform sampler2D texture_normal_c : hint_roughness_normal, filter_linear_mipmap, repeat_enable;
uniform sampler2D texture_orm_c : hint_roughness_g, filter_linear_mipmap, repeat_enable;
uniform float roughness_c : hint_range(0, 2) = 1.0;
uniform sampler2D texture_noise : source_color, filter_linear_mipmap, repeat_enable;
group_uniforms main_settings;
uniform vec4 albedo_a : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform vec4 albedo_b : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform vec4 albedo_c : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform float normal_scale : hint_range(-16, 16) = 1.0;
uniform float ao_light_affect = 1.0;
uniform float roughness_control : hint_range(0, 2) = 1.0;
uniform float metallic_control : hint_range(0, 2) = 1.0;
uniform vec3 uv1_scale = vec3(1.0, 1.0, 1.0);
uniform vec3 uv1_offset;
group_uniforms blend_settings;
uniform float blend_threshold = 0.5;
uniform float blend_noise_intensity = 0.5;
uniform float blend_noise_scale = 2.0;
uniform float blend_softness = 0.5;
uniform vec4 blend_transition_color : source_color = vec4(0.0, 0.0, 0.0, 0.25);
varying vec2 noise_uv;
void vertex() {
UV = UV * uv1_scale.xy + uv1_offset.xy;
// Pre-calculate noise UV in vertex shader
noise_uv = UV * blend_noise_scale;
}
void fragment() {
vec2 base_uv = UV;
// Get blend masks from vertex colors
vec3 masks = COLOR.rgb;
// Sample noise texture once
float noise = texture(texture_noise, noise_uv).r * blend_noise_intensity;
float threshold = clamp(blend_threshold + noise, 0.0, 1.0);
// Calculate blend weights with early exit optimization
float softness_range = blend_softness * 2.0;
vec3 blend_weights = smoothstep(vec3(threshold - blend_softness),
vec3(threshold + blend_softness),
masks);
// Normalize blend weights
float total_blend = dot(blend_weights, vec3(1.0));
blend_weights = (total_blend > 0.0) ? blend_weights / total_blend : vec3(1.0, 0.0, 0.0);
// Sample all textures once and store
vec4 albedo_tex_a = texture(texture_albedo_a, base_uv) * albedo_a;
vec4 albedo_tex_b = texture(texture_albedo_b, base_uv) * albedo_b;
vec4 albedo_tex_c = texture(texture_albedo_c, base_uv) * albedo_c;
vec4 orm_tex_a = texture(texture_orm_a, base_uv);
vec4 orm_tex_b = texture(texture_orm_b, base_uv);
vec4 orm_tex_c = texture(texture_orm_c, base_uv);
vec3 normal_tex_a = texture(texture_normal_a, base_uv).rgb;
vec3 normal_tex_b = texture(texture_normal_b, base_uv).rgb;
vec3 normal_tex_c = texture(texture_normal_c, base_uv).rgb;
// Blend albedo
vec3 albedo_mixed = albedo_tex_a.rgb * blend_weights.x +
albedo_tex_b.rgb * blend_weights.y +
albedo_tex_c.rgb * blend_weights.z;
// Transition effect (simplified calculation)
float transition_factor = 1.0 - smoothstep(blend_softness * 0.5,
blend_softness * 1.5,
abs(masks.r - threshold));
transition_factor = clamp(transition_factor, 0.0, 1.0);
ALBEDO = mix(albedo_mixed,
blend_transition_color.rgb,
transition_factor * min(blend_transition_color.a, 0.5));
// Blend material properties using dot products for efficiency
vec3 roughness_values = vec3(orm_tex_a.g * roughness_a,
orm_tex_b.g * roughness_b,
orm_tex_c.g * roughness_c);
ROUGHNESS = dot(roughness_values, blend_weights) * roughness_control;
METALLIC = dot(vec3(orm_tex_a.b, orm_tex_b.b, orm_tex_c.b), blend_weights) * metallic_control;
// Blend normals
NORMAL_MAP = normal_tex_a * blend_weights.x +
normal_tex_b * blend_weights.y +
normal_tex_c * blend_weights.z;
NORMAL_MAP_DEPTH = normal_scale;
// Blend AO
AO = dot(vec3(orm_tex_a.r, orm_tex_b.r, orm_tex_c.r), blend_weights);
AO_LIGHT_AFFECT = ao_light_affect;
}
