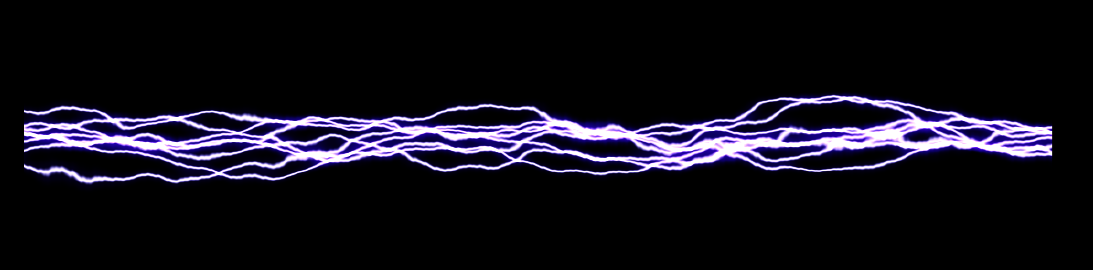

Transparent Lightning

The original of this was taken from reddit,

Lightning Shader with transparent background
byu/behithop ingodot

I then combined it with the random / noise functions of this shader to avoid artifacts,

Lightning

I also added a few parameters so you can adjust the shader better

To use the shader simply put it on a ColorRect or some other canvas item.

Shader code
shader_type canvas_item;

uniform int lightning_number = 5;
uniform vec2 amplitude = vec2(2.0,1.0);
uniform float offset = 0.45;
uniform float thickness = 0.02;
uniform float speed = 3.0;
uniform vec4 base_color : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform float glow_thickness = 0.08;
uniform vec4 glow_color : source_color = vec4(0.2, 0, 0.8, 0.0);
uniform float alpha : hint_range(0, 1) = 1.0;

// plot function
float plot(vec2 st, float pct, float half_width){
  return  smoothstep( pct-half_width, pct, st.y) -
          smoothstep( pct, pct+half_width, st.y);
}

vec2 hash22(vec2 uv) {
    uv = vec2(dot(uv, vec2(127.1,311.7)),
              dot(uv, vec2(269.5,183.3)));
    return 2.0 * fract(sin(uv) * 43758.5453123) - 1.0;
}

float noise(vec2 uv) {
    vec2 iuv = floor(uv);
    vec2 fuv = fract(uv);
    vec2 blur = smoothstep(0.0, 1.0, fuv);
    return mix(mix(dot(hash22(iuv + vec2(0.0,0.0)), fuv - vec2(0.0,0.0)),
                   dot(hash22(iuv + vec2(1.0,0.0)), fuv - vec2(1.0,0.0)), blur.x),
               mix(dot(hash22(iuv + vec2(0.0,1.0)), fuv - vec2(0.0,1.0)),
                   dot(hash22(iuv + vec2(1.0,1.0)), fuv - vec2(1.0,1.0)), blur.x), blur.y) + 0.5;
}

float fbm(vec2 n) {
    float total = 0.0, amp = 1.0;
    for (int i = 0; i < 7; i++) {
        total += noise(n) * amp;
        n += n;
        amp *= 0.5;
    }
    return total;
}


void fragment(){
	vec2 uv = UV;
	vec4 color = vec4(0.0, 0.0, 0.0, 0.0);

	vec2 t ;
	float y ;
	float pct ;
	float buffer;
	// add more lightning
	for ( int i = 0; i < lightning_number; i++){
		t = uv * amplitude + vec2(float(i), -float(i)) - TIME*speed;
		y = fbm(t)*offset;
		pct = plot(uv, y, thickness);
		buffer = plot(uv, y, glow_thickness);
		color += pct*base_color;
		color += buffer*glow_color;
	}

	color.a *= alpha;
	COLOR = color;
}
Tags
godot 4, lightning, Transparent
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
