Universal Planet Shader (Ring Version)
While this is mostly just an updated version of the universal planet shader, it changes sizes slightly so isn’t a direct drop-in replacement. For that reason, though mostly the same, the Ring version is it’s own shader.
Shader code
/*
=====================================================================
UNIVERSAL PLANET - Billboard Edition (Godot 4.x, 2D)
Jon Berg (Recurrent Neural Nitwit) 2026
License: CC0 1.0 - public domain. Use it, change it, sell it.
=====================================================================

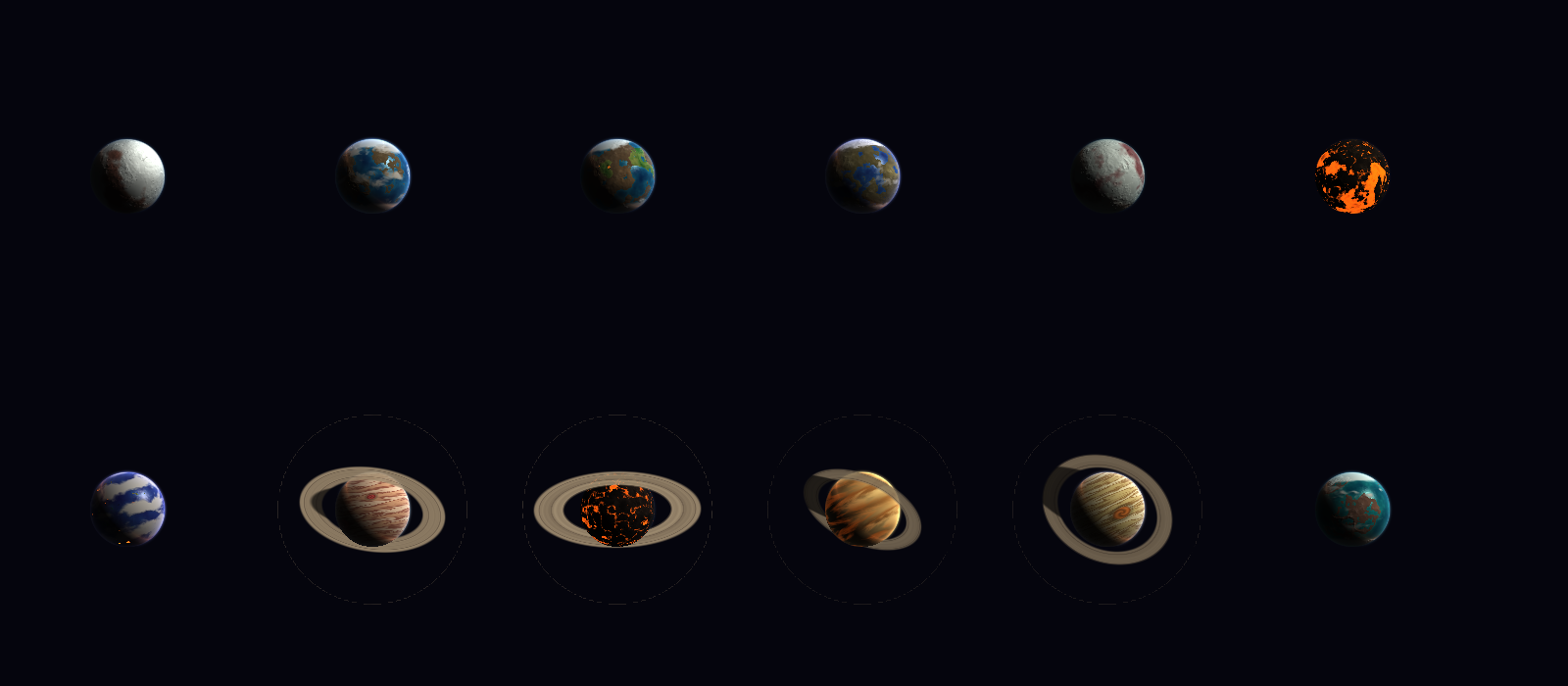

One shader, many worlds. Draws a fully shaded sphere on a flat quad
(an "impostor"), so a planet costs one quad instead of a mesh.
Planet types (planet_type / instance data .y):
0 Terran earthlike / rocky, oceans, biomes, life
1 Gas Giant sheared cloud bands, storm spots
2 Ocean World almost no land
3 Ice / Plutoid ice, tholin patches, bright plains, cracks
4 Barren Rock airless, cratered
5 Runaway Greenhouse thick opaque cloud, hot glow
6 Lava World crust, glowing cracks and lava seas
7 Ice Giant pale cyan banded giant
8 Random type picked from the seed
Features: pixelation + "sensor level" clarity (features fade in as
sensor_level rises), atmosphere rim + halo, moving clouds, hurricanes,
lightning, city lights (with grid look at high tech), daytime city
patches, wildfires, drifting "life" herds, moving water glints,
optional rings (correctly tucked behind the planet on the far side and
drawn over it on the near side), auto level-of-detail from on-screen size.
---------------------------------------------------------------------

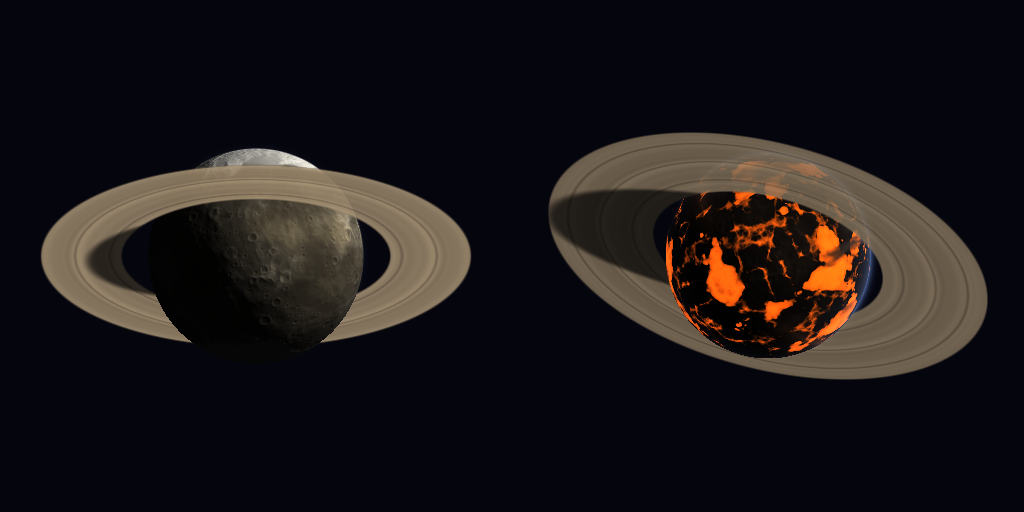

RINGS - the one thing you must get right
---------------------------------------------------------------------
Rings reach well outside the planet's own disc, but the node's UV
only covers its own rectangle - so the node/mesh has to be bigger
than the planet, with the planet small in the middle, or the ring
gets clipped into a square. Flat billboard, so there's no way around
this; any 2D ring impostor needs the same headroom.
Rule of thumb: keep planet_radius <= 1 / ring_outer_radius.
With the default ring_outer_radius (2.1), that means planet_radius
around 0.4-0.45 instead of the ringless default of 0.8 - i.e. the
planet should only fill the middle ~40% of the node, leaving open
space around it for the ring to occupy.
* Single planet: just make the ColorRect/Sprite2D bigger than the
planet looks, and lower planet_radius to match.
* MultiMesh2D + randomize_params: ring size varies per seed (up to
~2.45x planet radius), so size the quad for the worst case -
planet_radius around 0.35-0.4 is safe.
Turning rings_enabled off needs none of this; planet_radius 0.8 is
fine without rings.
---------------------------------------------------------------------
QUICK START (single planet)
---------------------------------------------------------------------
ColorRect (or Sprite2D) of any square size -> Material -> this shader.
Leave use_instance_data OFF and tweak the uniforms.
---------------------------------------------------------------------
MULTIMESH2D (thousands of planets, one draw call)
---------------------------------------------------------------------
Turn use_instance_data ON. Per instance you send 8 numbers:
instance COLOR (r,g,b,a) = temperature, ocean, atmosphere, life
each 0..1
custom data (r,g,b,a) = seed, planet_type, sensor_level,
light_angle_degrees
seed: whole number 0..2000
type: 0..8 (8 = random from seed)
sensor: 0..1
light angle: 0..360, 0 = sunlight from
the right, 90 = from above
life: 0 = dead. 0..0.5 = biosphere. 0.5..1 = rising civilization.
GDScript:
var mm := MultiMesh.new()
mm.transform_format = MultiMesh.TRANSFORM_2D
mm.use_colors = true
mm.use_custom_data = true
var quad := QuadMesh.new()
quad.size = Vector2(256, 256)
mm.mesh = quad
mm.instance_count = 200
for i in mm.instance_count:
mm.set_instance_transform_2d(i, Transform2D(0.0, pos[i]))
mm.set_instance_color(i, Color(temp, ocean, atmo, life))
mm.set_instance_custom_data(i, Color(seed, ptype, sensor, sun_deg))
$MultiMeshInstance2D.multimesh = mm
Notes:
* QuadMesh is vertically flipped in 2D: turn flip_uv_y ON for it.
* Keep the node's modulate white when using instance data.
* Seeds above ~2000 lose precision (half-float storage).
* With randomize_params ON, only the seed is needed: type (if 8),
climate, atmosphere, life, tilt and spin all come from it.
* align_light_to_world keeps sunlight fixed even if the instance
(or node) is rotated.
PERFORMANCE: cost scales with on-screen size. auto_lod cuts noise
octaves and skips fine features for small planets. Hero planet at
512px is fine; a galaxy map with hundreds of 30-60px planets is fine.
=====================================================================
*/
shader_type canvas_item;
render_mode unshaded;
// ---------------------------------------------------------------- UNIFORMS
group_uniforms Instance_Data;
uniform bool use_instance_data = false;
uniform bool flip_uv_y = false;
uniform bool align_light_to_world = true;
group_uniforms Planet;
uniform int planet_type : hint_enum("Terran", "Gas Giant", "Ocean World", "Ice / Plutoid", "Barren Rock", "Runaway Greenhouse", "Lava World", "Ice Giant", "Random (from seed)") = 0;
uniform float planet_seed : hint_range(0.0, 2000.0, 1.0) = 7.0;
uniform bool randomize_params = false;
uniform bool enforce_type_rules = true;
uniform float temperature : hint_range(0.0, 1.0, 0.01) = 0.5;
uniform float ocean_coverage : hint_range(0.0, 1.0, 0.01) = 0.55;
uniform float atmosphere_density : hint_range(0.0, 1.0, 0.01) = 0.6;
uniform float life_level : hint_range(0.0, 1.0, 0.01) = 0.6;
uniform float planet_radius : hint_range(0.3, 1.0, 0.01) = 0.8;
uniform float hue_variation : hint_range(0.0, 1.0, 0.01) = 0.12;
group_uniforms Light;
uniform float sensor_level : hint_range(0.0, 1.0, 0.01) = 1.0;
uniform float light_angle_deg : hint_range(0.0, 360.0, 0.1) = 35.0;
uniform float light_facing : hint_range(-0.9, 0.95, 0.01) = 0.35;
uniform vec4 sun_color : source_color = vec4(1.0, 0.96, 0.88, 1.0);
uniform float ambient_light : hint_range(0.0, 0.3, 0.005) = 0.025;
uniform float exposure : hint_range(0.2, 2.5, 0.01) = 1.0;
group_uniforms Motion;
uniform float time_scale : hint_range(0.0, 8.0, 0.01) = 1.0;
uniform float rotation_speed : hint_range(-1.0, 1.0, 0.001) = 0.06;
uniform float axial_tilt_deg : hint_range(-60.0, 60.0, 0.5) = 12.0;
uniform float tilt_variation_deg : hint_range(0.0, 90.0, 0.5) = 30.0;
uniform float cloud_wind : hint_range(-0.5, 0.5, 0.001) = 0.02;
uniform float hurricane_spin : hint_range(-3.0, 3.0, 0.01) = 0.6;
uniform float gas_flow_speed : hint_range(0.0, 2.0, 0.01) = 0.6;
group_uniforms Terrain;
uniform float terrain_scale : hint_range(0.5, 8.0, 0.05) = 2.2;
uniform int terrain_octaves : hint_range(1, 8) = 5;
uniform float mountain_amount : hint_range(0.0, 1.0, 0.01) = 0.6;
uniform float relief : hint_range(0.0, 3.0, 0.01) = 1.0;
uniform float crater_amount : hint_range(0.0, 1.0, 0.01) = 0.6;
uniform float lat_gradient : hint_range(0.0, 1.5, 0.01) = 0.75;
uniform float water_glint : hint_range(0.0, 2.0, 0.01) = 0.8;
group_uniforms Gas_Giant;
uniform float gas_band_count : hint_range(2.0, 14.0, 0.1) = 6.0;
uniform float gas_turbulence : hint_range(0.0, 2.0, 0.01) = 1.0;
group_uniforms Clouds_And_Storms;
uniform float cloud_coverage : hint_range(0.0, 1.0, 0.01) = 0.55;
uniform float cloud_opacity : hint_range(0.0, 1.0, 0.01) = 0.9;
uniform float cloud_scale : hint_range(0.5, 8.0, 0.05) = 2.6;
uniform int cloud_octaves : hint_range(1, 8) = 5;
uniform float cloud_shadows : hint_range(0.0, 1.0, 0.01) = 0.5;
uniform float storm_activity : hint_range(0.0, 1.0, 0.01) = 0.45;
uniform float lightning_activity : hint_range(0.0, 1.0, 0.01) = 0.5;
group_uniforms Atmosphere;
uniform float atmo_halo_size : hint_range(0.0, 0.5, 0.005) = 0.12;
uniform float atmo_halo_strength : hint_range(0.0, 3.0, 0.01) = 1.0;
uniform float atmo_rim_strength : hint_range(0.0, 3.0, 0.01) = 1.0;
uniform float atmo_rim_power : hint_range(0.5, 8.0, 0.05) = 3.0;
group_uniforms Rings;
uniform bool rings_enabled = false;
uniform float ring_inner_radius : hint_range(1.02, 3.0, 0.01) = 1.3;
uniform float ring_outer_radius : hint_range(1.05, 4.0, 0.01) = 2.1;
uniform float ring_pitch_deg : hint_range(2.0, 90.0, 0.5) = 55.0;
uniform float ring_opacity : hint_range(0.0, 1.0, 0.01) = 0.85;
uniform float ring_band_contrast : hint_range(0.0, 1.0, 0.01) = 0.6;
uniform float ring_shadow_strength : hint_range(0.0, 1.0, 0.01) = 0.7;
uniform vec4 ring_color_light : source_color = vec4(0.82, 0.76, 0.66, 1.0);
uniform vec4 ring_color_dark : source_color = vec4(0.42, 0.37, 0.32, 1.0);
group_uniforms Civilization;
uniform float city_density : hint_range(0.0, 1.0, 0.01) = 0.5;
uniform float tech_level : hint_range(0.0, 1.0, 0.01) = 0.5;
uniform float city_scale : hint_range(1.0, 10.0, 0.1) = 3.5;
uniform float city_detail : hint_range(10.0, 120.0, 1.0) = 48.0;
uniform float city_grid_lines : hint_range(20.0, 240.0, 1.0) = 90.0;
uniform float city_glow : hint_range(0.0, 4.0, 0.01) = 1.6;
uniform float city_outline : hint_range(0.0, 2.0, 0.01) = 0.6;
uniform float city_daytime_visibility : hint_range(0.0, 1.0, 0.01) = 0.35;
group_uniforms Wildfire_And_Life;
uniform float wildfire_activity : hint_range(0.0, 1.0, 0.01) = 0.25;
uniform float fire_scale : hint_range(1.0, 12.0, 0.1) = 5.0;
uniform float life_grid : hint_range(20.0, 160.0, 1.0) = 70.0;
uniform float life_dot_size : hint_range(0.05, 0.5, 0.01) = 0.22;
uniform float life_dot_opacity : hint_range(0.0, 1.0, 0.01) = 0.7;
uniform float life_speed : hint_range(0.0, 4.0, 0.01) = 0.8;
uniform float life_generation_rate : hint_range(0.0, 2.0, 0.01) = 0.25;
group_uniforms Sensor_And_Pixelation;
uniform bool sensor_gating = true;
uniform int pixelate_mode : hint_enum("Off", "Sensor driven", "Fixed") = 1;
uniform float pixels_min : hint_range(6.0, 64.0, 1.0) = 12.0;
uniform float pixels_max : hint_range(32.0, 512.0, 1.0) = 140.0;
uniform float sensor_curve : hint_range(0.3, 3.0, 0.05) = 1.0;
uniform float fixed_pixels : hint_range(8.0, 512.0, 1.0) = 64.0;
uniform bool sensor_posterize = true;
uniform float sensor_noise : hint_range(0.0, 1.0, 0.01) = 0.5;
uniform float sensor_scanlines : hint_range(0.0, 1.0, 0.01) = 0.4;
uniform vec4 unknown_color : source_color = vec4(0.35, 0.47, 0.6, 1.0);
group_uniforms Performance;
uniform bool auto_lod = true;
uniform float lod_min_pixels : hint_range(4.0, 64.0, 1.0) = 10.0;
uniform float lod_full_pixels : hint_range(64.0, 1024.0, 1.0) = 180.0;
group_uniforms Palette_Rocky;
uniform vec4 ocean_shallow : source_color = vec4(0.12, 0.45, 0.62, 1.0);
uniform vec4 ocean_deep : source_color = vec4(0.02, 0.10, 0.30, 1.0);
uniform vec4 land_low : source_color = vec4(0.36, 0.30, 0.22, 1.0);
uniform vec4 land_high : source_color = vec4(0.62, 0.56, 0.48, 1.0);
uniform vec4 desert_color : source_color = vec4(0.78, 0.62, 0.38, 1.0);
uniform vec4 vegetation_color : source_color = vec4(0.12, 0.38, 0.14, 1.0);
uniform vec4 ice_color : source_color = vec4(0.90, 0.95, 1.0, 1.0);
uniform vec4 lava_color : source_color = vec4(1.0, 0.35, 0.05, 1.0);
group_uniforms Palette_Gas;
uniform vec4 gas_color_a : source_color = vec4(0.86, 0.72, 0.52, 1.0);
uniform vec4 gas_color_b : source_color = vec4(0.62, 0.42, 0.28, 1.0);
uniform vec4 gas_color_c : source_color = vec4(0.94, 0.86, 0.72, 1.0);
uniform vec4 gas_spot_color : source_color = vec4(0.75, 0.32, 0.20, 1.0);
uniform vec4 greenhouse_light : source_color = vec4(0.95, 0.82, 0.55, 1.0);
uniform vec4 greenhouse_dark : source_color = vec4(0.65, 0.42, 0.22, 1.0);
group_uniforms Palette_Effects;
uniform vec4 atmosphere_color : source_color = vec4(0.45, 0.68, 1.0, 1.0);
uniform vec4 twilight_color : source_color = vec4(1.0, 0.5, 0.25, 1.0);
uniform vec4 cloud_color : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform vec4 city_color : source_color = vec4(1.0, 0.82, 0.5, 1.0);
uniform vec4 city_day_color : source_color = vec4(0.55, 0.55, 0.58, 1.0);
uniform vec4 fire_color : source_color = vec4(1.0, 0.4, 0.08, 1.0);
uniform vec4 lightning_color : source_color = vec4(0.75, 0.85, 1.0, 1.0);
uniform vec4 life_dot_color : source_color = vec4(0.12, 0.08, 0.05, 1.0);
group_uniforms;
// ---------------------------------------------------------------- VARYINGS
varying flat vec4 v_custom;
varying flat vec4 v_inst_color;
varying flat float v_rot;
void vertex() {
v_custom = INSTANCE_CUSTOM;
v_inst_color = COLOR;
v_rot = atan(MODEL_MATRIX[0].y, MODEL_MATRIX[0].x);
}
// ---------------------------------------------------------------- HASH / NOISE
float hash11(float p) {
p = fract(p * 0.1031);
p *= p + 33.33;
p *= p + p;
return fract(p);
}
float hash13(vec3 p3) {
p3 = fract(p3 * 0.1031);
p3 += dot(p3, p3.zyx + 31.32);
return fract((p3.x + p3.y) * p3.z);
}
vec3 hash31(float p) {
vec3 p3 = fract(vec3(p) * vec3(0.1031, 0.1030, 0.0973));
p3 += dot(p3, p3.yzx + 33.33);
return fract((p3.xxy + p3.yzz) * p3.zyx);
}
vec3 hash33(vec3 p3) {
p3 = fract(p3 * vec3(0.1031, 0.1030, 0.0973));
p3 += dot(p3, p3.yxz + 33.33);
return fract((p3.xxy + p3.yxx) * p3.zyx);
}
float vnoise(vec3 p) {
vec3 i = floor(p);
vec3 f = fract(p);
f = f * f * f * (f * (f * 6.0 - 15.0) + 10.0);
float a = hash13(i);
float b = hash13(i + vec3(1.0, 0.0, 0.0));
float c = hash13(i + vec3(0.0, 1.0, 0.0));
float d = hash13(i + vec3(1.0, 1.0, 0.0));
float e = hash13(i + vec3(0.0, 0.0, 1.0));
float g = hash13(i + vec3(1.0, 0.0, 1.0));
float h = hash13(i + vec3(0.0, 1.0, 1.0));
float k = hash13(i + vec3(1.0, 1.0, 1.0));
return mix(mix(mix(a, b, f.x), mix(c, d, f.x), f.y),
mix(mix(e, g, f.x), mix(h, k, f.x), f.y), f.z);
}
const mat3 OCT_ROT = mat3(vec3(0.00, 0.80, 0.60), vec3(-0.80, 0.36, -0.48), vec3(-0.60, -0.48, 0.64));
float fbm(vec3 p, int oct) {
float a = 0.5;
float s = 0.0;
float n = 0.0;
for (int i = 0; i < 8; i++) {
if (i >= oct) {
break;
}
s += a * vnoise(p);
n += a;
p = OCT_ROT * p * 2.03 + vec3(1.7, 9.2, 4.1);
a *= 0.5;
}
return s / max(n, 0.0001);
}
float ridged(vec3 p, int oct) {
float a = 0.5;
float s = 0.0;
float n = 0.0;
for (int i = 0; i < 8; i++) {
if (i >= oct) {
break;
}
float v = 1.0 - abs(2.0 * vnoise(p) - 1.0);
s += a * v * v;
n += a;
p = OCT_ROT * p * 2.03 + vec3(5.3, 1.1, 7.7);
a *= 0.5;
}
return s / max(n, 0.0001);
}
// ---------------------------------------------------------------- MISC MATH
vec3 rotY(vec3 v, float a) {
float c = cos(a);
float s = sin(a);
return vec3(c * v.x + s * v.z, v.y, -s * v.x + c * v.z);
}
vec3 rotZ(vec3 v, float a) {
float c = cos(a);
float s = sin(a);
return vec3(c * v.x - s * v.y, s * v.x + c * v.y, v.z);
}
vec3 hue_rot(vec3 c, float a) {
vec3 k = vec3(0.57735026);
float ca = cos(a);
return c * ca + cross(k, c) * sin(a) + k * dot(k, c) * (1.0 - ca);
}
float gate(float s, float a, float b) {
return sensor_gating ? smoothstep(a, b, s) : 1.0;
}
// ---------------------------------------------------------------- TYPE LOGIC
int pick_type(float seed) {
float r = hash11(seed * 0.731 + 5.17);
if (r < 0.16) { return 1; }
if (r < 0.24) { return 7; }
if (r < 0.46) { return 0; }
if (r < 0.56) { return 2; }
if (r < 0.68) { return 3; }
if (r < 0.82) { return 4; }
if (r < 0.90) { return 5; }
return 6;
}
// returns (temperature, ocean, atmosphere, life)
vec4 random_env(int ty, float seed) {
vec3 h = hash31(seed * 1.37 + 0.5);
float w = hash11(seed * 2.91 + 7.0);
float temp = mix(0.3, 0.75, h.x);
float water = mix(0.15, 0.85, h.y);
float atmo = mix(0.4, 0.85, h.z);
float life = (w < 0.45) ? 0.0 : mix(0.1, 1.0, fract(w * 7.7));
if (ty == 1) {
temp = h.x * 0.7; water = 0.0; atmo = mix(0.7, 1.0, h.z); life = 0.0;
} else if (ty == 7) {
temp = h.x * 0.3; water = 0.0; atmo = mix(0.8, 1.0, h.z); life = 0.0;
} else if (ty == 2) {
water = mix(0.92, 1.0, h.y);
life = (w < 0.6) ? 0.0 : mix(0.1, 0.5, fract(w * 7.7));
} else if (ty == 3) {
temp = h.x * 0.18; water = h.y * 0.4; atmo = h.z * 0.3; life = 0.0;
} else if (ty == 4) {
temp = h.x; water = 0.0; atmo = h.z * 0.03; life = 0.0;
} else if (ty == 5) {
temp = 1.0; water = 0.0; atmo = 1.0; life = 0.0;
} else if (ty == 6) {
temp = 1.0; water = h.y * 0.6; atmo = h.z * 0.4; life = 0.0;
}
return vec4(temp, water, atmo, life);
}
vec4 apply_rules(int ty, vec4 e) {
vec4 r = e;
if (ty == 1 || ty == 7) {
r.y = 0.0; r.w = 0.0; r.z = max(r.z, 0.5);
} else if (ty == 2) {
r.y = max(r.y, 0.93);
} else if (ty == 3) {
r.x = min(r.x, 0.2); r.z = min(r.z, 0.35); r.w = 0.0;
} else if (ty == 4) {
r.y = 0.0; r.z = min(r.z, 0.04); r.w = 0.0;
} else if (ty == 5) {
r.x = max(r.x, 0.9); r.y = 0.0; r.z = max(r.z, 0.9); r.w = 0.0;
} else if (ty == 6) {
r.x = max(r.x, 0.95); r.z = min(r.z, 0.5); r.w = 0.0;
}
return r;
}
// ---------------------------------------------------------------- TERRAIN
// Bowl + rim craters from two jittered 3D cell grids (cheap, no neighbor search).
float craters(vec3 sp, float seed) {
float total = 0.0;
vec3 so = hash31(seed + 41.0) * 30.0;
for (int k = 0; k < 2; k++) {
float freq = (k == 0) ? 5.0 : 13.0;
float amp = (k == 0) ? 1.0 : 0.5;
vec3 p = sp * freq + so + float(k) * 11.0;
vec3 cell = floor(p);
vec3 h = hash33(cell);
float present = step(0.35, h.x);
vec3 c = cell + 0.3 + 0.4 * h;
float rad = 0.16 + 0.16 * h.y;
float d = length(p - c) / rad;
float bowl = -max(1.0 - d * d, 0.0) * 0.6;
float rd = (d - 1.0) * 3.5;
float rim = exp(-rd * rd) * 0.3;
total += present * amp * (bowl + rim);
}
return total;
}
float terrain_height(vec3 sp, float seed, int ptype, float atmo, int oct) {
vec3 so = hash31(seed) * 90.0;
vec3 pp = sp * terrain_scale + so;
float h = fbm(pp, oct);
if (mountain_amount > 0.001) {
float m = ridged(pp * 1.7 + 3.1, max(oct - 1, 1));
h = mix(h, m * 0.85, mountain_amount * smoothstep(0.5, 0.75, h));
}
if (crater_amount > 0.001 && (ptype == 4 || ptype == 3 || ptype == 6 || (ptype == 0 && atmo < 0.12))) {
h += craters(sp, seed) * 0.22 * crater_amount * (1.0 - atmo * 0.8);
}
return h;
}
void rocky_surface(vec3 sp, vec3 Lo, float seed, int ptype, vec4 env, int oct, float relief_gate, float t,
out vec3 albedo, out vec3 emis, out float ocean, out float veg, out float ice, out float hab, out float bump) {
float temp = env.x;
float water = env.y;
float atmo = env.z;
float life = env.w;
vec3 so = hash31(seed) * 90.0;
vec3 pp = sp * terrain_scale + so;
float h = terrain_height(sp, seed, ptype, atmo, oct);
float sea = (water <= 0.001) ? -1.0 : mix(0.32, 0.70, water);
float sref = (sea < 0.0) ? 0.32 : sea;
// Relief: one extra height sample a step toward the sun -> cheap directional bump shading.
bump = 0.0;
if (relief_gate > 0.01 && relief > 0.001) {
vec3 tl = Lo - sp * dot(Lo, sp);
float tlen = length(tl);
if (tlen > 0.0001) {
vec3 sp2 = normalize(sp + (tl / tlen) * 0.02);
float h2 = terrain_height(sp2, seed, ptype, atmo, oct);
bump = clamp((max(h, sref) - max(h2, sref)) / 0.02, -4.0, 4.0) * relief * relief_gate;
}
}
float lat = abs(sp.y);
float moist = fbm(pp * 0.8 + vec3(7.7, 1.3, 3.9), min(oct, 4));
float alt = clamp((h - sref) / max(1.0 - sref, 0.05), 0.0, 1.0);
float local_t = temp + 0.25 - lat_gradient * lat * lat;
float local_ta = local_t - alt * 0.3;
ice = 1.0 - smoothstep(0.14, 0.24, local_ta + (moist - 0.5) * 0.18);
vec3 rock = mix(land_low.rgb, land_high.rgb, smoothstep(0.05, 0.9, alt + (h - 0.5) * 0.4));
float desert = smoothstep(0.55, 0.85, local_t) * (1.0 - smoothstep(0.30, 0.55, moist));
rock = mix(rock, desert_color.rgb, desert * 0.75);
float vp = smoothstep(0.22, 0.42, local_ta) * (1.0 - smoothstep(0.85, 1.05, local_t))
* smoothstep(0.34, 0.58, moist) * (1.0 - smoothstep(0.5, 0.9, alt));
float vthr = (1.0 - life) * 0.8;
veg = (life > 0.001) ? smoothstep(vthr, vthr + 0.2, vp) : 0.0;
vec3 vcol = mix(desert_color.rgb * 0.7 + vegetation_color.rgb * 0.5, vegetation_color.rgb, smoothstep(0.4, 0.75, moist));
vec3 land = mix(rock, vcol * (0.85 + 0.3 * h), veg);
land = mix(land, ice_color.rgb, ice);
ocean = (sea < 0.0) ? 0.0 : 1.0 - smoothstep(sea - 0.008, sea + 0.008, h);
float depth = clamp((sea - h) / max(sea, 0.05), 0.0, 1.0);
vec3 ocean_col = mix(ocean_shallow.rgb, ocean_deep.rgb, sqrt(depth));
ocean_col = mix(ocean_col, ice_color.rgb, ice * 0.95);
albedo = mix(land, ocean_col, ocean);
hab = (1.0 - ocean) * (1.0 - ice) * (1.0 - smoothstep(0.45, 0.85, alt));
emis = vec3(0.0);
if (ptype == 4) { // barren: desaturated regolith
float g = dot(albedo, vec3(0.333));
albedo = mix(vec3(g), albedo, 0.45) * (0.75 + 0.5 * h);
} else if (ptype == 3) { // plutoid: tholin, bright plain, cracks
float tho = smoothstep(0.52, 0.72, fbm(pp * 0.7 + vec3(3.3, 8.8, 1.1), min(oct, 4)));
vec3 base = mix(ice_color.rgb * 0.85, vec3(0.42, 0.24, 0.17), tho * 0.85);
vec3 hp = normalize(hash31(seed * 3.17 + 1.0) * 2.0 - 1.0 + vec3(0.001));
float heart = 1.0 - smoothstep(0.35, 0.85, distance(sp, hp));
base = mix(base, ice_color.rgb * 1.15, heart);
float cr = ridged(pp * 1.3 + 9.0, min(oct, 4));
base *= 1.0 - 0.3 * smoothstep(0.80, 0.95, cr);
albedo = base * (0.85 + 0.3 * h);
ocean = 0.0; hab = 0.0; veg = 0.0; ice = 1.0;
} else if (ptype == 6) { // lava world
float crack = smoothstep(0.62, 0.90, ridged(pp * 2.2 + 5.0, min(oct, 4)));
float pool = (sea < 0.0) ? 0.0 : 1.0 - smoothstep(sea - 0.13, sea - 0.10, h);
vec3 crust = mix(vec3(0.05, 0.04, 0.04), vec3(0.16, 0.12, 0.10), smoothstep(0.3, 0.8, h));
float glow = clamp(max(crack * 0.9, pool), 0.0, 1.0);
albedo = mix(crust, lava_color.rgb * 0.5, glow * 0.6);
emis = lava_color.rgb * glow * (0.9 + 0.3 * sin(t * 1.3 + h * 20.0));
ocean = 0.0; hab = 0.0; veg = 0.0; ice = 0.0;
}
}
// ---------------------------------------------------------------- GAS GIANTS
// mode 0 = gas giant, 1 = runaway greenhouse, 2 = ice giant
void gas_surface(vec3 sp, float seed, int mode, float storm, int oct, float t,
out vec3 albedo, out float density) {
vec3 so = hash31(seed + 5.0) * 60.0;
vec3 cA;
vec3 cB;
vec3 cC;
float bfreq;
float contrast;
float stretch;
if (mode == 0) {
cA = gas_color_a.rgb; cB = gas_color_b.rgb; cC = gas_color_c.rgb;
bfreq = gas_band_count * (0.75 + 0.5 * hash11(seed + 1.7));
contrast = 1.0; stretch = 5.0;
} else if (mode == 1) {
cA = greenhouse_light.rgb; cB = greenhouse_dark.rgb;
cC = mix(greenhouse_light.rgb, greenhouse_dark.rgb, 0.5) * 1.1;
bfreq = 2.5; contrast = 0.7; stretch = 3.0;
} else {
cA = vec3(0.55, 0.82, 0.90); cB = vec3(0.35, 0.62, 0.85); cC = vec3(0.62, 0.88, 0.92);
bfreq = 3.0; contrast = 0.45; stretch = 3.5;
}
// Differential rotation: each latitude drifts at its own speed. Two phases,
// cross-faded, so the shear resets invisibly instead of stretching forever.
float flow_t = t * gas_flow_speed;
float f1 = fract(flow_t / 20.0);
float f2 = fract(flow_t / 20.0 + 0.5);
float wA = 1.0 - abs(2.0 * f1 - 1.0);
float jet = sin(sp.y * bfreq * PI) + 0.4 * sin(sp.y * bfreq * 2.3 * PI + 1.3);
float turb = 0.0;
for (int k = 0; k < 2; k++) {
float fk = (k == 0) ? f1 : f2;
float wk = (k == 0) ? wA : (1.0 - wA);
vec3 r = rotY(sp, jet * fk * 0.6);
float tn = fbm(vec3(r.x, r.y * stretch, r.z) * 2.2 + so, oct);
turb += wk * tn;
}
float lat_w = sp.y + (turb - 0.5) * 0.30 * gas_turbulence;
float bv = 0.5 + 0.5 * sin(lat_w * bfreq * PI + hash11(seed) * 6.0);
bv = clamp(mix(0.5, bv, contrast) + (turb - 0.5) * 0.35 * gas_turbulence, 0.0, 1.0);
albedo = mix(mix(cA, cB, smoothstep(0.0, 0.5, bv)), cC, smoothstep(0.5, 1.0, bv));
density = turb;
if (mode != 1 && storm > 0.03) {
vec3 spot_col = (mode == 2) ? vec3(0.08, 0.18, 0.4) : gas_spot_color.rgb;
for (int i = 0; i < 2; i++) {
vec3 h = hash31(seed * 1.7 + float(i) * 13.0 + 2.0);
float lat0 = ((i == 0) ? -1.0 : 1.0) * (0.18 + 0.32 * h.x);
float lon0 = h.y * TAU;
vec3 c = vec3(cos(lat0) * cos(lon0), sin(lat0), cos(lat0) * sin(lon0));
vec3 te = normalize(cross(vec3(0.0, 1.0, 0.0), c));
vec3 tn2 = cross(c, te);
float x = dot(sp, te);
float y = dot(sp, tn2);
float sz = (i == 0) ? (0.10 + 0.20 * storm) : (0.05 + 0.06 * storm);
float e = length(vec2(x / (sz * 1.9), y / sz));
float front = step(0.0, dot(sp, c));
float m = (1.0 - smoothstep(0.75, 1.0, e)) * front;
float collar = ((1.0 - smoothstep(1.0, 1.5, e)) - (1.0 - smoothstep(0.75, 1.0, e))) * front;
float dirn = (i == 0) ? 1.0 : -1.0;
float sw = 0.5 + 0.5 * sin(atan(y, x) * 2.0 - e * 10.0 + t * 0.6 * dirn);
vec3 sc = mix(spot_col * 0.7, spot_col * 1.15, sw);
albedo = mix(albedo, sc, m * 0.9);
albedo *= 1.0 - collar * 0.25;
density = mix(density, 0.9, m);
}
}
}
// ---------------------------------------------------------------- CLOUDS
// Returns cloud density 0..1. 'stormy' (0..1) marks hurricane / storm areas.
float cloud_density(vec3 spc, float seed, float cover, float storm, int oct, float t, out float stormy) {
vec3 so = hash31(seed + 11.0) * 70.0;
vec3 w = vec3(spc.x, spc.y * 1.6, spc.z) * cloud_scale + so;
float warp = fbm(w * 0.5 + vec3(5.0, 2.0, 8.0), 2);
float n = fbm(w + warp * 1.3, oct);
float weather = 0.85 + 0.3 * sin(abs(spc.y) * 9.0 + seed);
float cv = clamp(cover * weather, 0.0, 1.0);
float d = smoothstep(1.0 - cv - 0.02, 1.0 - cv + 0.28, n);
stormy = 0.0;
if (storm > 0.02) {
for (int i = 0; i < 3; i++) {
vec3 h = hash31(seed * 1.31 + float(i) * 7.7 + 0.3);
float on = step(h.z, storm * 1.3 - float(i) * 0.25);
if (on > 0.5) {
float sgn = (h.y > 0.5) ? 1.0 : -1.0;
float lat0 = sgn * (0.2 + 0.4 * h.x);
float lon0 = fract(h.y * 13.7) * TAU;
vec3 c = vec3(cos(lat0) * cos(lon0), sin(lat0), cos(lat0) * sin(lon0));
float rad = 0.16 + 0.12 * fract(h.x * 7.3) + 0.08 * storm;
float dd = length(spc - c) / rad;
if (dd < 1.6) {
vec3 t1 = normalize(cross(c, vec3(0.0, 1.0, 0.0)));
vec3 t2 = cross(c, t1);
float ang = atan(dot(spc, t2), dot(spc, t1));
float arm = 0.5 + 0.5 * sin(ang * 2.0 * sgn + dd * 8.0 - t * hurricane_spin);
float eye = smoothstep(0.07, 0.16, dd);
float spiral = clamp(arm * 0.85 + 0.25 * n + 0.2, 0.0, 1.0) * eye;
float m = 1.0 - smoothstep(0.55, 1.5, dd);
d = mix(d, max(spiral, d * 0.5), m);
stormy = max(stormy, m * eye);
}
}
}
}
stormy = max(stormy, d * storm * 0.6);
return d;
}
float lightning_flash(vec3 p, float seed, float t, float amount) {
vec3 g = p * 14.0;
vec3 c = floor(g);
vec3 h = hash33(c + seed * 0.37);
vec3 f = fract(g);
float d = length(f - (0.25 + 0.5 * h));
float period = 2.5 + 7.0 * h.z;
float ph = fract((t + h.x * 40.0) / period);
float flash = exp(-ph * 22.0) * (0.55 + 0.45 * sin(ph * 140.0));
float on = step(h.y, amount);
return clamp(flash, 0.0, 1.0) * on * (1.0 - smoothstep(0.05, 0.38, d));
}
// ---------------------------------------------------------------- CIVILIZATION / LIFE
void city_masks(vec3 sp, float seed, float civ, out float fill, out float outline, out float lights) {
vec3 co = hash31(seed + 21.0) * 80.0;
float f = fbm(sp * city_scale + co, 3);
float amt = clamp(civ * (0.4 + 1.2 * city_density), 0.0, 1.0);
float thr = mix(0.86, 0.42, amt);
fill = smoothstep(thr, thr + 0.05, f);
outline = smoothstep(thr - 0.005, thr + 0.02, f) * (1.0 - smoothstep(thr + 0.03, thr + 0.07, f));
float dots = smoothstep(0.55, 0.78, vnoise(sp * city_detail + co.yzx));
dots = max(dots, smoothstep(0.60, 0.85, vnoise(sp * city_detail * 2.3 + co.zxy)) * 0.7);
float nl = max(floor(city_grid_lines + 0.5), 1.0);
float u = atan(sp.z, sp.x) / TAU * nl;
float v = asin(clamp(sp.y, -1.0, 1.0)) / PI * nl;
float gl = max(smoothstep(0.82, 1.0, abs(fract(u) * 2.0 - 1.0)), smoothstep(0.82, 1.0, abs(fract(v) * 2.0 - 1.0)));
gl *= 1.0 - smoothstep(0.7, 0.95, abs(sp.y));
lights = mix(dots, max(dots * 0.4, gl * 0.9), tech_level);
}
// Drifting herds + Conway-ish generations of little moving specks.
float life_dots(vec3 sp, float seed, float presence, float t) {
vec3 hs = hash31(seed + 31.0) * 40.0;
vec3 wander = vec3(sin(t * 0.07), cos(t * 0.05), sin(t * 0.031 + 1.0)) * 0.9;
float herd = fbm(sp * 3.0 + hs + wander, 2);
float pres = presence * smoothstep(0.50, 0.68, herd);
vec3 g = sp * life_grid;
vec3 cell = floor(g);
vec3 f = fract(g);
vec3 h3 = hash33(cell);
float st = t * life_speed;
vec3 mv = 0.5 + 0.27 * vec3(
sin(st * (0.6 + h3.x) + h3.y * 6.283),
sin(st * (0.6 + h3.y) + h3.z * 6.283),
sin(st * (0.6 + h3.z) + h3.x * 6.283));
float d = length(f - mv);
float gt = t * life_generation_rate;
float g0 = floor(gt);
float a0 = step(hash13(cell + g0 * 1.37), pres);
float a1 = step(hash13(cell + (g0 + 1.0) * 1.37), pres);
float alive = mix(a0, a1, smoothstep(0.75, 1.0, fract(gt)));
return alive * (1.0 - smoothstep(life_dot_size * 0.5, life_dot_size, d));
}
// ---------------------------------------------------------------- RINGS
// q is the orthographic screen position in sphere-radius units (same space
// the sphere itself is built in). Returns straight (non-premultiplied)
// rgb + alpha for whatever ring material sits at this pixel, already
// clipped against the planet's silhouette and the planet's cast shadow.
vec4 ring_layer(vec2 q, vec3 L, float tilt, float seed, int ptype, bool gas, float sensor) {
float r_inner = ring_inner_radius;
float r_outer = ring_outer_radius;
float r_pitch = ring_pitch_deg;
bool show = true;
if (randomize_params) {
vec3 rh = hash31(seed * 3.71 + 2.2);
float chance = gas ? 0.6 : ((ptype == 0 || ptype == 2) ? 0.08 : 0.2);
show = rh.x < chance;
r_inner = mix(1.25, 1.55, rh.y);
r_outer = r_inner + mix(0.3, 0.9, rh.z);
r_pitch = mix(22.0, 82.0, hash11(seed * 5.2 + 1.0));
}
if (!show) {
return vec4(0.0);
}
float rp = radians(clamp(r_pitch, 2.0, 90.0));
// Ring normal in view space: same "roll" (tilt) the surface bands use,
// opened up toward the camera by r_pitch (90 = face-on circle, low = edge-on sliver).
vec3 ringN = rotZ(vec3(0.0, cos(rp), sin(rp)), tilt);
if (abs(ringN.z) < 0.0008) {
return vec4(0.0);
}
float s = -(q.x * ringN.x + q.y * ringN.y) / ringN.z;
vec3 Q = vec3(q.x, q.y, s);
float radial = length(Q);
float rxy2 = dot(q, q);
if (rxy2 < 1.0 && s <= sqrt(1.0 - rxy2)) {
return vec4(0.0); // planet's own sphere is in front of the ring here
}
float aa = fwidth(radial) + 0.0006;
float mask = smoothstep(r_inner - aa, r_inner + aa, radial) * (1.0 - smoothstep(r_outer - aa, r_outer + aa, radial));
if (mask < 0.001) {
return vec4(0.0);
}
vec3 rso = hash31(seed + 61.0) * 50.0;
float bn = fbm(vec3(radial * 9.0, rso.x, rso.y), 3);
float gap = smoothstep(0.42, 0.5, fract(radial * 3.1 + rso.z)) * smoothstep(0.58, 0.5, fract(radial * 3.1 + rso.z));
float band = clamp(bn - gap * ring_band_contrast, 0.0, 1.0);
vec3 rcol = mix(ring_color_dark.rgb, ring_color_light.rgb, mix(0.5, band, ring_band_contrast));
float ndl_ring = dot(ringN, L);
float lit = clamp(abs(ndl_ring) * 1.4 + 0.15, 0.0, 1.0);
rcol *= sun_color.rgb * lit + vec3(ambient_light);
if (ring_shadow_strength > 0.001) {
float tca = -dot(Q, L);
if (tca > 0.0) {
vec3 closest = Q + L * tca;
float d2 = dot(closest, closest);
float sh = 1.0 - smoothstep(0.92, 1.08, d2);
rcol *= 1.0 - sh * ring_shadow_strength;
}
}
float a = mask * ring_opacity;
if (sensor_gating) {
a *= gate(sensor, 0.10, 0.30);
float unk = 1.0 - smoothstep(0.0, 0.25, sensor);
rcol = mix(rcol, unknown_color.rgb * 0.8, unk);
}
return vec4(rcol, clamp(a, 0.0, 1.0));
}
// ---------------------------------------------------------------- FRAGMENT
void fragment() {
// Derivatives first (must run in uniform control flow).
vec2 uv = flip_uv_y ? vec2(UV.x, 1.0 - UV.y) : UV;
float fw_uv = max(fwidth(UV.x), 0.00001);
vec2 praw = (uv - 0.5) * 2.0;
float rraw = length(praw) / planet_radius;
float fw_r = max(fwidth(rraw), 0.00001);
float t = TIME * time_scale;
// ---- 1. planet descriptor
int ptype;
float seed;
float sensor;
float lang;
vec4 env;
if (use_instance_data) {
seed = v_custom.x;
ptype = int(floor(v_custom.y + 0.5));
sensor = clamp(v_custom.z, 0.0, 1.0);
lang = v_custom.w;
env = clamp(v_inst_color, vec4(0.0), vec4(1.0));
} else {
seed = planet_seed;
ptype = planet_type;
sensor = sensor_level;
lang = light_angle_deg;
env = vec4(temperature, ocean_coverage, atmosphere_density, life_level);
}
if (align_light_to_world) {
lang += degrees(v_rot);
}
if (ptype > 7) {
ptype = pick_type(seed);
}
if (randomize_params) {
env = random_env(ptype, seed);
}
if (enforce_type_rules) {
env = apply_rules(ptype, env);
}
float temp = env.x;
float water = env.y;
float atmo = env.z;
float life = env.w;
bool is_gas = (ptype == 1 || ptype == 5 || ptype == 7);
// ---- 2. per-planet variation
vec3 hv = hash31(seed * 0.913 + 3.3);
float hue = (hv.x - 0.5) * TAU * hue_variation;
float tilt = radians(axial_tilt_deg + (hv.y - 0.5) * tilt_variation_deg);
float spin = t * rotation_speed * (0.6 + 0.8 * hv.z) + hash11(seed * 4.7 + 1.9) * TAU;
float storm = storm_activity * smoothstep(0.05, 0.5, atmo) * mix(1.0, 0.4 + 1.2 * hash11(seed * 1.9 + 0.7), float(randomize_params));
// ---- 3. quad -> sphere (with optional pixelation)
float pix = 0.0;
if (pixelate_mode == 1) {
float k = pow(sensor, sensor_curve);
if (k < 0.995) {
pix = mix(pixels_min, pixels_max, k);
}
} else if (pixelate_mode == 2) {
pix = fixed_pixels;
}
vec2 puv = uv;
if (pix > 0.0) {
float g = pix / planet_radius;
puv = (floor(uv * g) + 0.5) / g;
}
vec2 q = ((puv - 0.5) * 2.0) / planet_radius;
float r = length(q);
float halo_reach = max(min(atmo_halo_size, 1.0 / planet_radius - 1.0), 0.0);
float ring_extent = rings_enabled ? max(ring_outer_radius + 0.1, 2.5) : 0.0;
if (r > max(1.0 + halo_reach, ring_extent) + 0.05) {
discard;
}
float edge = (pix > 0.0) ? step(r, 1.0) : clamp((1.0 - rraw) / fw_r + 0.5, 0.0, 1.0);
vec2 qd = (r > 1.0) ? q / r : q;
vec3 n = vec3(qd.x, -qd.y, sqrt(max(1.0 - dot(qd, qd), 0.0)));
float la = radians(lang);
float lxy = sqrt(max(1.0 - light_facing * light_facing, 0.0));
vec3 L = vec3(cos(la) * lxy, sin(la) * lxy, light_facing);
float ndl = dot(n, L);
vec3 sp = rotY(rotZ(n, -tilt), -spin);
vec3 Lo = rotY(rotZ(L, -tilt), -spin);
// ---- 4. level of detail
float planet_px = planet_radius / fw_uv;
float detail = auto_lod ? clamp((log2(planet_px) - log2(lod_min_pixels)) / max(log2(lod_full_pixels) - log2(lod_min_pixels), 0.01), 0.0, 1.0) : 1.0;
float qf = detail * (sensor_gating ? mix(0.35, 1.0, sensor) : 1.0);
int oct_t = int(mix(2.0, float(terrain_octaves), qf) + 0.5);
int oct_c = int(mix(2.0, float(cloud_octaves), qf) + 0.5);
float g_relief = gate(sensor, 0.35, 0.60);
float g_city = gate(sensor, 0.60, 0.80);
float g_fire = gate(sensor, 0.75, 0.90);
float g_life = gate(sensor, 0.85, 1.00) * smoothstep(0.5, 0.9, detail);
float g_storm = gate(sensor, 0.50, 0.75);
float g_light = gate(sensor, 0.65, 0.85);
float g_cloud = gate(sensor, 0.30, 0.50);
storm *= g_storm;
// ---- atmosphere colour + halo
vec3 atmo_col = atmosphere_color.rgb;
if (ptype == 1) {
atmo_col = mix(atmo_col, mix(gas_color_a.rgb, gas_color_b.rgb, 0.5), 0.5);
} else if (ptype == 5) {
atmo_col = greenhouse_light.rgb;
} else if (ptype == 7) {
atmo_col = vec3(0.45, 0.75, 0.95);
}
atmo_col = hue_rot(atmo_col, hue);
float halo_a = 0.0;
if (halo_reach > 0.001 && atmo > 0.02) {
float hr = max(r - 1.0, 0.0);
vec2 dirq = normalize(vec2(q.x, -q.y) + vec2(0.00001));
float limb_lit = clamp(dot(dirq, L.xy) + 0.30 + 0.45 * max(L.z, 0.0), 0.0, 1.0);
float prof = exp(-hr / (halo_reach * 0.28)) * (1.0 - smoothstep(0.0, halo_reach, hr));
halo_a = prof * atmo * atmo_halo_strength * limb_lit * gate(sensor, 0.15, 0.40);
}
vec3 disc = vec3(0.0);
if (edge > 0.0) {
// ---- 5. surface
vec3 albedo = vec3(0.5);
vec3 emis = vec3(0.0);
float ocean = 0.0;
float veg = 0.0;
float ice = 0.0;
float hab = 0.0;
float bump = 0.0;
float gas_density = 0.0;
if (is_gas) {
int mode = (ptype == 1) ? 0 : ((ptype == 5) ? 1 : 2);
gas_surface(sp, seed, mode, storm, oct_t, t, albedo, gas_density);
} else {
rocky_surface(sp, Lo, seed, ptype, env, oct_t, g_relief, t, albedo, emis, ocean, veg, ice, hab, bump);
}
albedo = hue_rot(albedo, hue);
// ---- 6. clouds (density first: they also veil city lights and fires)
float cloud_a = 0.0;
float stormy = 0.0;
float cang = t * cloud_wind;
vec3 spc = rotY(sp, cang);
float cover = clamp(cloud_coverage * (0.35 + 0.9 * atmo) * (0.6 + 0.6 * water), 0.0, 1.0);
if (!is_gas && atmo > 0.03 && cloud_opacity > 0.001 && g_cloud > 0.001) {
cloud_a = cloud_density(spc, seed, cover, storm, oct_c, t, stormy) * cloud_opacity * g_cloud;
}
// ---- 7. civilization, fire, life (modify albedo / collect emission)
float civ = smoothstep(0.55, 1.0, life);
float c_fill = 0.0;
float c_outline = 0.0;
float c_lights = 0.0;
if (!is_gas && civ > 0.01 && hab > 0.02 && g_city > 0.001) {
city_masks(sp, seed, civ, c_fill, c_outline, c_lights);
c_fill *= hab;
c_outline *= hab;
albedo = mix(albedo, city_day_color.rgb, c_fill * city_daytime_visibility * g_city);
}
float fire = 0.0;
if (!is_gas && wildfire_activity > 0.01 && veg > 0.05 && g_fire > 0.001) {
vec3 fo = hash31(seed + 51.0) * 60.0;
float fn = fbm(sp * fire_scale + fo + vec3(0.0, t * 0.01, t * 0.008), 3);
float ft = 0.80 - 0.22 * wildfire_activity;
fire = smoothstep(ft, ft + 0.05, fn) * veg * g_fire;
float scar = smoothstep(ft - 0.06, ft, fn) * veg * g_fire;
albedo *= 1.0 - 0.45 * scar;
fire *= 0.6 + 0.4 * vnoise(sp * 140.0 + vec3(t * 2.0, 0.0, 0.0));
}
if (!is_gas && life > 0.05 && veg > 0.3 && g_life > 0.001) {
float ld = life_dots(sp, seed, veg * clamp(life * 1.6, 0.0, 1.0) * (1.0 - civ * 0.5), t);
albedo = mix(albedo, life_dot_color.rgb, ld * life_dot_opacity * g_life);
}
// ---- 8. lighting
float wrap = 0.04 + 0.22 * atmo;
float diff = clamp((ndl + bump * 0.05 + wrap) / (1.0 + wrap), 0.0, 1.0);
float night = 1.0 - smoothstep(-0.10, 0.20, ndl);
vec3 col = albedo * (sun_color.rgb * diff + vec3(ambient_light));
// ocean glint with moving ripples
if (ocean > 0.01 && water_glint > 0.001 && ndl > 0.0) {
vec3 wp = sp * 28.0;
vec3 nw = normalize(n + (vec3(
vnoise(wp + vec3(0.0, t * 0.4, t * 0.3)),
vnoise(wp + vec3(t * 0.35, 5.2, 1.3)),
0.5) - 0.5) * 0.12 * detail);
vec3 H = normalize(L + vec3(0.0, 0.0, 1.0));
float spec = pow(max(dot(nw, H), 0.0), 70.0) * 0.8;
col += sun_color.rgb * spec * ocean * (1.0 - ice) * water_glint * (1.0 - cloud_a);
}
// cloud shadows on the ground
if (cloud_a > 0.01 && cloud_shadows > 0.001 && ndl > 0.0 && !is_gas) {
vec3 Lc = rotY(Lo, cang);
vec3 tl = Lc - spc * dot(Lc, spc);
float tlen = length(tl);
if (tlen > 0.0001) {
float dummy;
float sh = cloud_density(normalize(spc + tl / tlen * 0.05), seed, cover, 0.0, 3, t, dummy);
col *= 1.0 - sh * cloud_shadows * 0.55 * g_cloud;
}
}
// ---- 9. emissives (lava, greenhouse glow, cities, fires)
float veil = 1.0 - cloud_a * 0.85;
col += emis * veil;
if (ptype == 5) {
col += lava_color.rgb * 0.30 * (1.0 - smoothstep(0.35, 0.65, gas_density)) * (1.0 - diff);
}
if (c_fill > 0.001 || c_outline > 0.001) {
float lit = c_fill * c_lights * city_glow + c_outline * city_outline;
col += city_color.rgb * lit * night * g_city * veil;
}
if (fire > 0.001) {
col += fire_color.rgb * fire * 1.8 * (0.35 + 0.65 * night) * veil;
}
// ---- 10. cloud composite + lightning
if (cloud_a > 0.001) {
vec3 ccol = (ptype == 6) ? vec3(0.28, 0.22, 0.20) : cloud_color.rgb;
float cdiff = clamp((ndl + wrap) / (1.0 + wrap), 0.0, 1.0);
vec3 cloud_lit = ccol * (sun_color.rgb * cdiff + vec3(ambient_light)) * (1.0 - stormy * 0.35 - cloud_a * 0.08);
col = mix(col, cloud_lit, cloud_a);
if (lightning_activity > 0.01 && stormy > 0.05 && g_light > 0.001) {
float lf = lightning_flash(spc, seed, t, stormy * lightning_activity);
col += lightning_color.rgb * lf * cloud_a * (0.25 + 0.75 * night) * g_light * 2.0;
}
}
if (ptype == 1 && lightning_activity > 0.01 && g_light > 0.001) {
float gs = smoothstep(0.55, 0.75, gas_density) * storm;
if (gs > 0.02) {
col += lightning_color.rgb * lightning_flash(sp, seed, t, gs * lightning_activity) * night * g_light * 1.5;
}
}
// ---- 11. atmosphere rim + twilight
float rim = pow(1.0 - n.z, atmo_rim_power);
float sunf = smoothstep(-0.30, 0.55, ndl);
float ag = gate(sensor, 0.15, 0.40);
col += atmo_col * rim * atmo * atmo_rim_strength * (0.15 + 0.85 * sunf) * ag;
float tw = exp(-abs(ndl) * 9.0) * pow(1.0 - n.z, 1.5);
col += twilight_color.rgb * tw * atmo * 0.6 * ag;
// ---- 12. sensor look
if (sensor_gating) {
float unk = 1.0 - smoothstep(0.0, 0.22, sensor);
col = mix(col, unknown_color.rgb * (0.12 + 0.88 * diff), unk);
float lum = dot(col, vec3(0.299, 0.587, 0.114));
col = mix(vec3(lum), col, mix(0.4, 1.0, smoothstep(0.1, 0.6, sensor)));
}
float lo = 1.0 - sensor;
if (sensor_posterize && sensor < 0.98) {
float lv = mix(4.0, 48.0, sensor);
col = floor(col * lv + 0.5) / lv;
}
if (sensor_noise > 0.001 && lo > 0.001) {
float nz = hash13(vec3(floor(uv * 140.0), floor(TIME * 12.0))) - 0.5;
col += nz * sensor_noise * lo * lo * 0.35;
}
if (sensor_scanlines > 0.001 && lo > 0.001) {
col *= 1.0 - sensor_scanlines * lo * 0.4 * (0.5 + 0.5 * sin(praw.y * 160.0 + TIME * 3.0));
}
disc = col;
}
// ---- 13. composite disc + halo, then rings on top
float a = edge + halo_a * (1.0 - edge);
vec3 rgb = (disc * edge + atmo_col * halo_a * (1.0 - edge)) / max(a, 0.0001);
if (rings_enabled) {
vec4 ring = ring_layer(q, L, tilt, seed, ptype, is_gas, sensor);
float a2 = ring.a + a * (1.0 - ring.a);
rgb = (ring.rgb * ring.a + rgb * a * (1.0 - ring.a)) / max(a2, 0.0001);
a = a2;
}
COLOR = vec4(rgb * exposure, a);
}
Live Preview
