void background

inspired by Pink Void 🧼

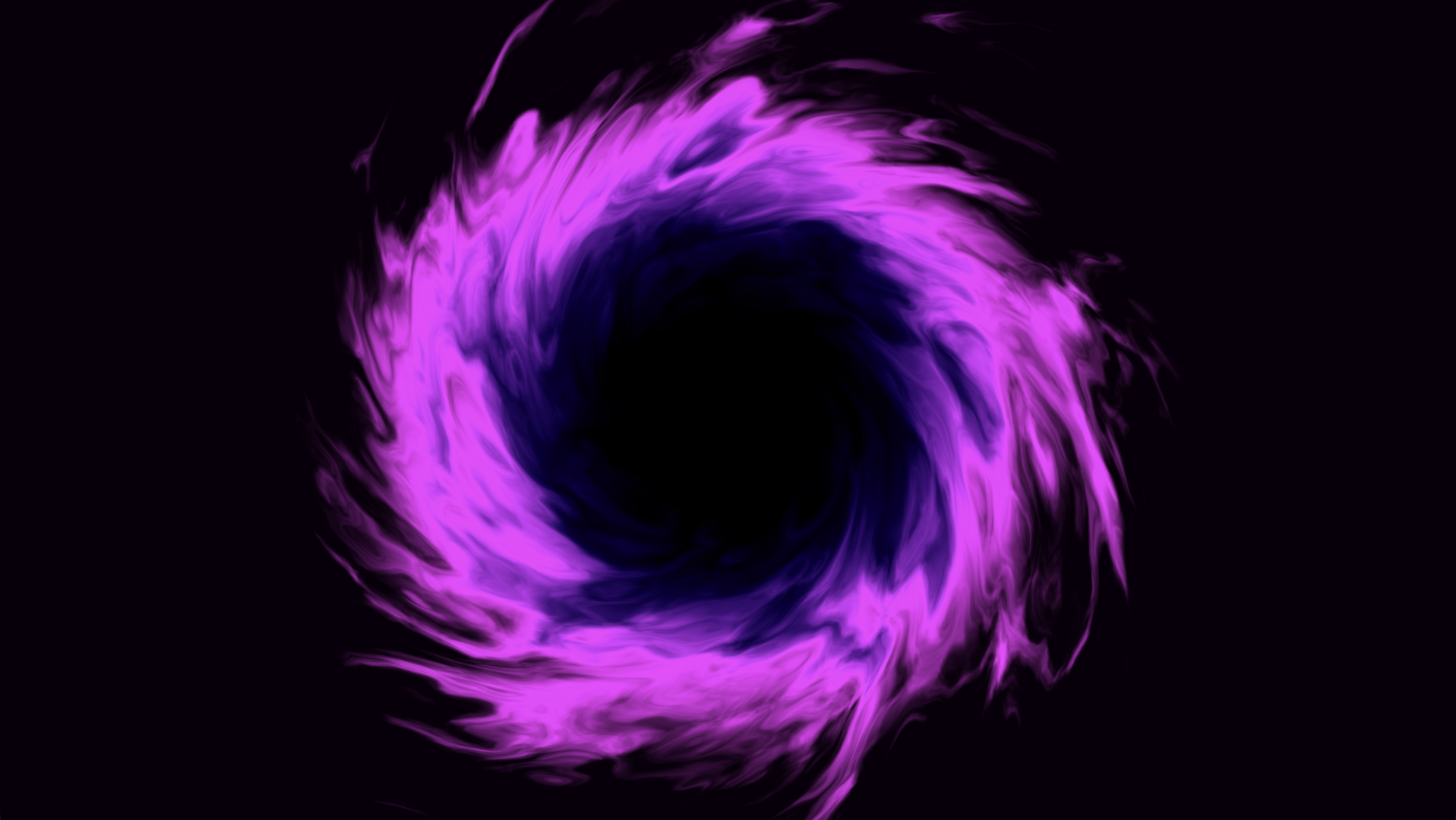

Main image shader use this parameters

and this noise

Shader code

shader_type canvas_item;

uniform vec2 center = vec2(0.5, 0.5);
uniform float speed : hint_range(0.0, 2.0, 0.01) = 0.2;
uniform float phase = 0.0;
uniform float size : hint_range(0.05, 5.0, 0.01) = 1.155;
uniform vec3 background_color : source_color = vec3(0.0, 0.0, 0.0);
uniform vec3 inner_color : source_color = vec3(0.0, 0.0, 1.0);
uniform vec3 mid_color : source_color = vec3(1.0, 0.0, 0.0);
uniform vec3 outer_color : source_color = vec3(0.0, 1.0, 0.0);
uniform float ring_shift : hint_range(-0.4, 0.4, 0.005) = 0.0;
uniform float ring_sharpness : hint_range(0.05, 3.0, 0.01) = 1.0;

uniform float FALLOFF : hint_range(-10.0, 10.0, 0.01) = 2.0;

const float TWIST = 1.4;
const float FIELD = 2.8;
const float WARP = 2.0;
const float BULGE = -0.4;

uniform sampler3D noise_tex : filter_linear, repeat_enable;

const float NOISE_PERIOD = 8.0;
uniform float noise_gain : hint_range(0.0, 2.0, 0.01) = 1.0;

float snoise(vec3 v) {
    return (texture(noise_tex, v * (1.0 / NOISE_PERIOD)).r * 2.0 - 1.0) * noise_gain;
}

float fbm3d(vec3 x, const in int it) {
    float v = 0.0;
    float a = 0.5;
    vec3 shift = vec3(100);


    for (int i = 0; i < 32; ++i) {
        if(i<it) {
            v += a * snoise(x);
            x = x * 2.0 + shift;
            a *= 0.5;
        }
    }
    return v;
}

vec2 rot(vec2 v, float a) {
	float c = cos(a);
	float s = sin(a);
	return mat2(vec2(c, s), vec2(-s, c)) * v;
}

void fragment()
{
	vec2 rect_px = 1.0 / fwidth(UV);
	float aspect = rect_px.x / rect_px.y;
	vec2 uv = ((UV - center) * vec2(aspect, 1.0)) / size;

	float rad = sqrt(dot(uv, uv) + 0.001);
	float lr = log(rad);
	vec2 p = rot(uv, -lr * TWIST) * FIELD;

	float x = fbm3d(
		vec3(
			p,
			lr * 0.3 + phase * .1
		),
		3
	);

	float y = fbm3d(
		vec3(
			p,
			lr * 0.5 + phase * .1
		),
		4
	);
	vec2 q = vec2(x, y);

	float r = fbm3d(
		vec3(
			p + q * WARP,
			lr * 0.4 + phase * .2
		),
		5
	);

	float rr = rad * (1.0 + r * BULGE);
	float c = 1.0 - exp(-rr * FALLOFF);

	vec3 band_mid = vec3(0.4, 0.5, 0.375) + ring_shift;
	vec3 band_half = vec3(0.1, 0.075, 0.175) * ring_sharpness;
	vec3 bands = smoothstep(band_mid - band_half, band_mid + band_half, vec3(c));
	vec3 swirl = bands.z * inner_color
			+ bands.x * mid_color
			+ bands.y * outer_color;

	float bg = min( bands.x, min( bands.y, bands.z ) );

	COLOR = vec4( mix( swirl, background_color, bg ), 1 );
}
