WorldPlanarProjection3D VisualShaderNode 4.4

For use with the WorldPosition node: https://godotshaders.com/shader/worldposition-visualshadernode-4-4/

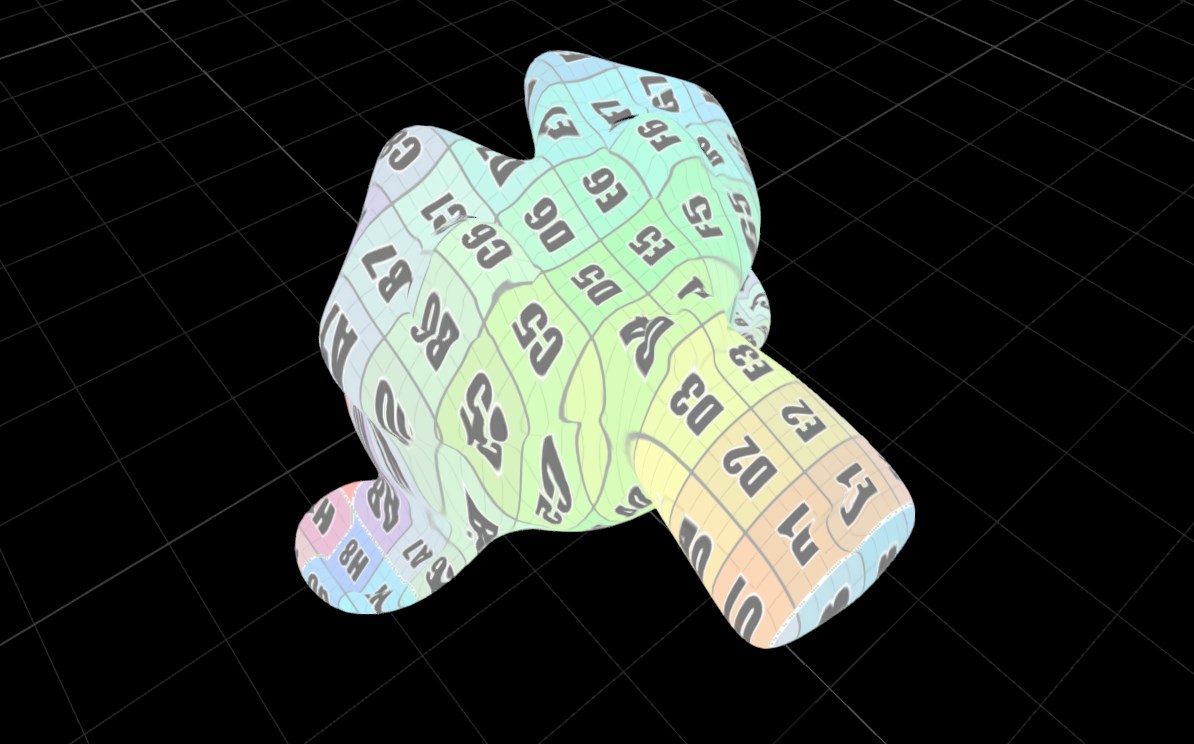

Gives a simple scaled / offsetted world space UV projection with the input vectors exposed so you can manipulate or replace them as you wish.

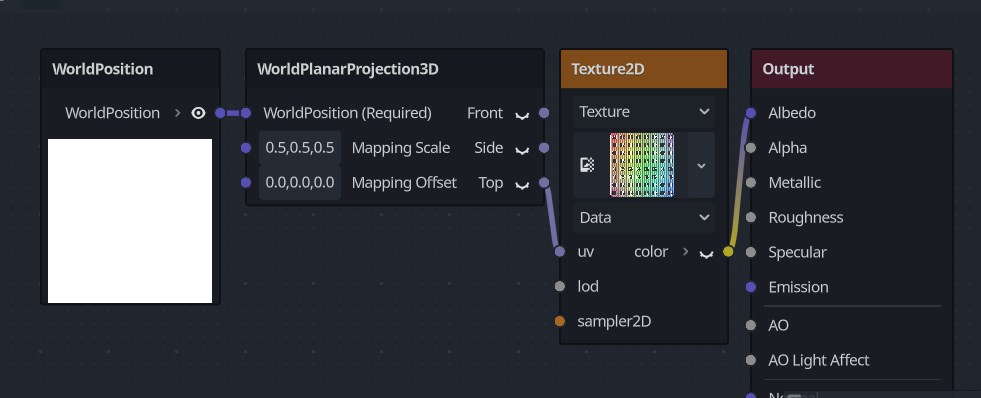

Copy this into a new .gd file. It will show up in the “Addons/UV” category in the RMB menu when adding a new shader node in the visual shader editor. Attached is an image of the default use case.

Shader code

@tool
extends VisualShaderNodeCustom
class_name VSNode_WorldPlanarProjection3D


func _get_name() -> String:
	return "WorldPlanarProjection3D"


func _get_category() -> String:
	return "UV"


func _get_description() -> String:
	return "Returns a planar projection based on input coordinates. Meant for use with the WorldPosition node."


func _get_return_icon_type() -> PortType:
	return PORT_TYPE_VECTOR_3D


func _get_input_port_count() -> int:
	return 3


func _get_input_port_name(port: int) -> String:
	match port:
		0: return "WorldPosition (Required)"
		1: return "Mapping Scale"
		2: return "Mapping Offset"
	return ""


func _get_input_port_default_value(port: int) -> Variant:
	match port:
		0: return Vector3(0, 0, 0)
		1: return Vector3(1, 1, 1)
		2: return Vector3(0, 0, 0)
	return Vector3(0, 0, 0)

func _get_input_port_type(port: int) -> PortType:
	return PORT_TYPE_VECTOR_3D


func _get_output_port_count() -> int:
	return 3

func _get_output_port_name(port: int) -> String:
	match port:
		0:
			return "Front"
		1:
			return "Side"
		2:
			return "Top"

	return "Result"

func _get_output_port_type(port: int) -> PortType:
	return PORT_TYPE_VECTOR_2D


func _get_code(input_vars: Array[String], output_vars: Array[String],
		mode: Shader.Mode, type: VisualShader.Type) -> String:
	return """
	vec3 world_pos = %s;
	//vec3 world_pos = fract((INV_VIEW_MATRIX * vec4(VERTEX, 1.0)).xyz);
	world_pos = fract(world_pos * %s + %s);
	%s = world_pos.xy;
	%s = world_pos.yz;
	%s = world_pos.xz;
	""" % [ input_vars[0], input_vars[1],input_vars[2], output_vars[0], output_vars[1],	output_vars[2]]
