Yet Another Liquid Glass Shader

Put it on a ColorRect 🙂

Shader code
shader_type canvas_item;
// shader by Pcniado
uniform sampler2D screen_texture : hint_screen_texture, filter_linear_mipmap;

uniform float u_roundness : hint_range(0.0, 1.0) = 1.0;

uniform float u_distortion_intensity = 1.0;
uniform float u_blur_intensity = 1.2;

float sdf_box(vec2 p, vec2 b, float r) {
    vec2 d = abs(p) - b + vec2(r);
    return min(max(d.x, d.y), 0.0) + length(max(d, 0.0)) - r;
}

vec3 get_blurred_color(sampler2D tex, vec2 screen_uv, vec2 pixel_size, float blur_radius) {
    vec3 color = vec3(0.0);
    float total_weight = 0.0;

    for (int x = -2; x <= 2; x++) {
        for (int y = -2; y <= 2; y++) {
            vec2 offset = vec2(float(x), float(y)) * blur_radius * pixel_size;
            float weight = exp(-0.5 * (float(x*x + y*y)) / 2.0);

            color += texture(tex, screen_uv + offset).rgb * weight;
            total_weight += weight;
        }
    }
    return color / total_weight;
}

void fragment() {
    vec2 pixel_scale = fwidth(UV);
    vec2 rect_size = 1.0 / pixel_scale;

    vec2 local_pos = (UV - 0.5) * rect_size;
    vec2 half_size = rect_size * 0.5;

    float max_radius = min(rect_size.x, rect_size.y) * 0.5;
    float current_radius = max_radius * u_roundness;

    float dist = sdf_box(local_pos, half_size, current_radius);

    if (dist > 0.0) {
        discard;
    }

    float min_side = min(rect_size.x, rect_size.y);
    float inversed_sdf = -dist / min_side;

    vec2 normalized_glass_coord = normalize(local_pos);
    float dist_from_center = 1.0 - clamp(inversed_sdf / 0.3, 0.0, 1.0);

    float distortion = 1.0 - sqrt(1.0 - pow(dist_from_center, 2.0));

    vec2 offset_pixels = distortion * normalized_glass_coord * half_size * u_distortion_intensity;
    vec2 screen_uv_offset = offset_pixels * SCREEN_PIXEL_SIZE;
    vec2 target_uv = SCREEN_UV - screen_uv_offset;
    float current_blur_radius = u_blur_intensity * (1.0 - dist_from_center * 0.5);

    float edge_factor = smoothstep(0.0, 0.02, inversed_sdf);
    vec2 chromatic_shift = normalized_glass_coord * edge_factor * 3.0 * SCREEN_PIXEL_SIZE;

    float r = get_blurred_color(screen_texture, target_uv - chromatic_shift, SCREEN_PIXEL_SIZE, current_blur_radius).r;
    float g = get_blurred_color(screen_texture, target_uv, SCREEN_PIXEL_SIZE, current_blur_radius).g;
    float b = get_blurred_color(screen_texture, target_uv + chromatic_shift, SCREEN_PIXEL_SIZE, current_blur_radius).b;

    vec3 glass_color = vec3(r, g, b);
    glass_color *= 0.9;

    COLOR = vec4(glass_color, 1.0);
}

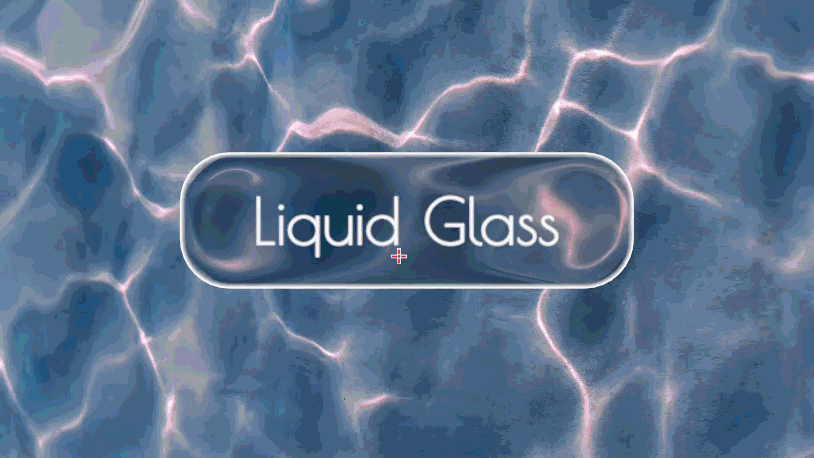

Live Preview
Tags
apple, glass, godot 4, liquid, Liquid Glass
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
