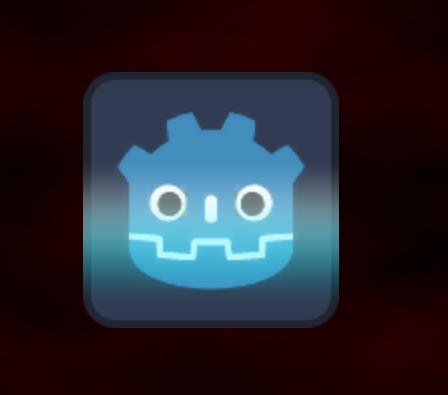

2D Highlight Effect

2D Shader that does an Highlight effect.

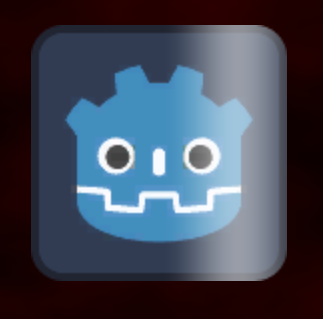

Can be Vertical or Horizontal
You can use a gradient to give the effect color. (Supports 2D gradients)
You can also use a gradient to make the effect disappear at certain points.



Shader code
shader_type canvas_item;

uniform sampler2D vertical_gradient; // used to set alpha values. So you can use this to make the effect dis-/re-appear at points
uniform sampler2D color_gradient; // sets the effect color, supports 2d gradients
uniform float size_effect: hint_range(-5.0, 5.0, 0.05) = 0.1; // size of the effect
uniform float speed = 1; // effect speed; Will reverse effect is set to negative
uniform float highlight_strength: hint_range(-4.0, 4.0, 0.05) = 0.5; // how strong the color overides the base color
uniform bool color_mode_toggle = false; // changes how the color gradient is applied. Default is on the entire texture, if set to true it is only applied to the effect
uniform bool is_horizontal = false; //changes direction from vertical to horizontal

void fragment() {
	// set up base parameters
	vec4 old_color = COLOR;
	float time = TIME * speed;
	float current_time = fract(-time);
	// sets time to fit better with the effect. (Barely detectable change)
	current_time = mix(0. - size_effect, 1. + size_effect, current_time);
	float effect_lower_bound = current_time - size_effect;
	float effect_upper_bound = current_time + size_effect;
	float position_value = (is_horizontal) ? UV.x : UV.y;
	// smoothes out the lower/upper bounds with the UV values to calculate how far from the middle point(the effect) the pixel is away
	float effect_distance = smoothstep(effect_lower_bound, current_time, position_value) - smoothstep(current_time, effect_upper_bound, position_value);
	// gets the position of the pixel within the effect for the inner_gradient color mode
	float inner_effect_position = smoothstep(effect_lower_bound, effect_upper_bound, position_value);
	vec2 color_position = (color_mode_toggle) ? vec2(UV.x, inner_effect_position) : vec2(current_time);
	// gets the new color from the gradient
	vec4 new_color = vec4(texture(color_gradient, color_position));
	// this step calculates the vertical gradient and alpha_values
	new_color = mix(old_color, new_color, vec4(texture(vertical_gradient, vec2(current_time))));
	// apply the color to the texture
	COLOR.rgb = mix(old_color.rgb, new_color.rgb, vec3(effect_distance * highlight_strength));
}
Tags
2d, highlight
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
