3D Glitch

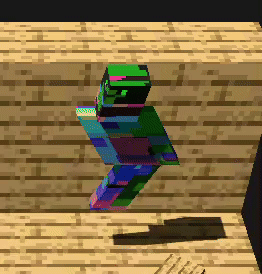

This shader randomly move vertices and shift texture colors



How to use:

Just apply shader as material on MeshInstance3D and set albedo texture in shader params. Enjoy!



Inspired by this shader

Shader code
shader_type spatial;

// Glitch intensity
uniform float shake_power = 0.5;

// Probability
uniform float shake_rate : hint_range(0.0, 1.0) = 0.5;

uniform float shake_speed = 5.0;

// Hard to describe, change it and monitor result
uniform float shake_block_size = 30.5;

uniform float shake_color_rate : hint_range(0.0, 1.0) = 0.5;

uniform sampler2D main_tex : filter_nearest, source_color;

varying float enable_shift;

float random(float seed) {
    return fract(sin(seed * 12345.678) * 43758.5453);
}

void vertex() {
	float adjusted_time = mod(TIME, 5.0);

    enable_shift = float(random(trunc(adjusted_time * shake_speed)) < shake_rate);

    float offset_x = (random((trunc(VERTEX.y * shake_block_size) / shake_block_size) + adjusted_time) - 0.5) * shake_power * enable_shift;
    VERTEX.x += offset_x;
}

void fragment() {
	float adjusted_time = mod(TIME, 5.0);
    vec2 fixed_uv = UV;
    fixed_uv.x += (
        random((trunc(UV.y * shake_block_size) / shake_block_size) + adjusted_time) - 0.5
    ) * shake_power * enable_shift;

    vec4 pixel_color = texture(main_tex, fixed_uv);

    pixel_color.r = mix(
        pixel_color.r,
        texture(main_tex, fixed_uv + vec2(shake_color_rate, 0.0)).r,
        enable_shift
    );
    pixel_color.b = mix(
        pixel_color.b,
        texture(main_tex, fixed_uv + vec2(-shake_color_rate, 0.0)).b,
        enable_shift
    );

    ALBEDO = pixel_color.rgb;
}
Tags
glitch
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
