3D HP Bar of 2 Blended Colors

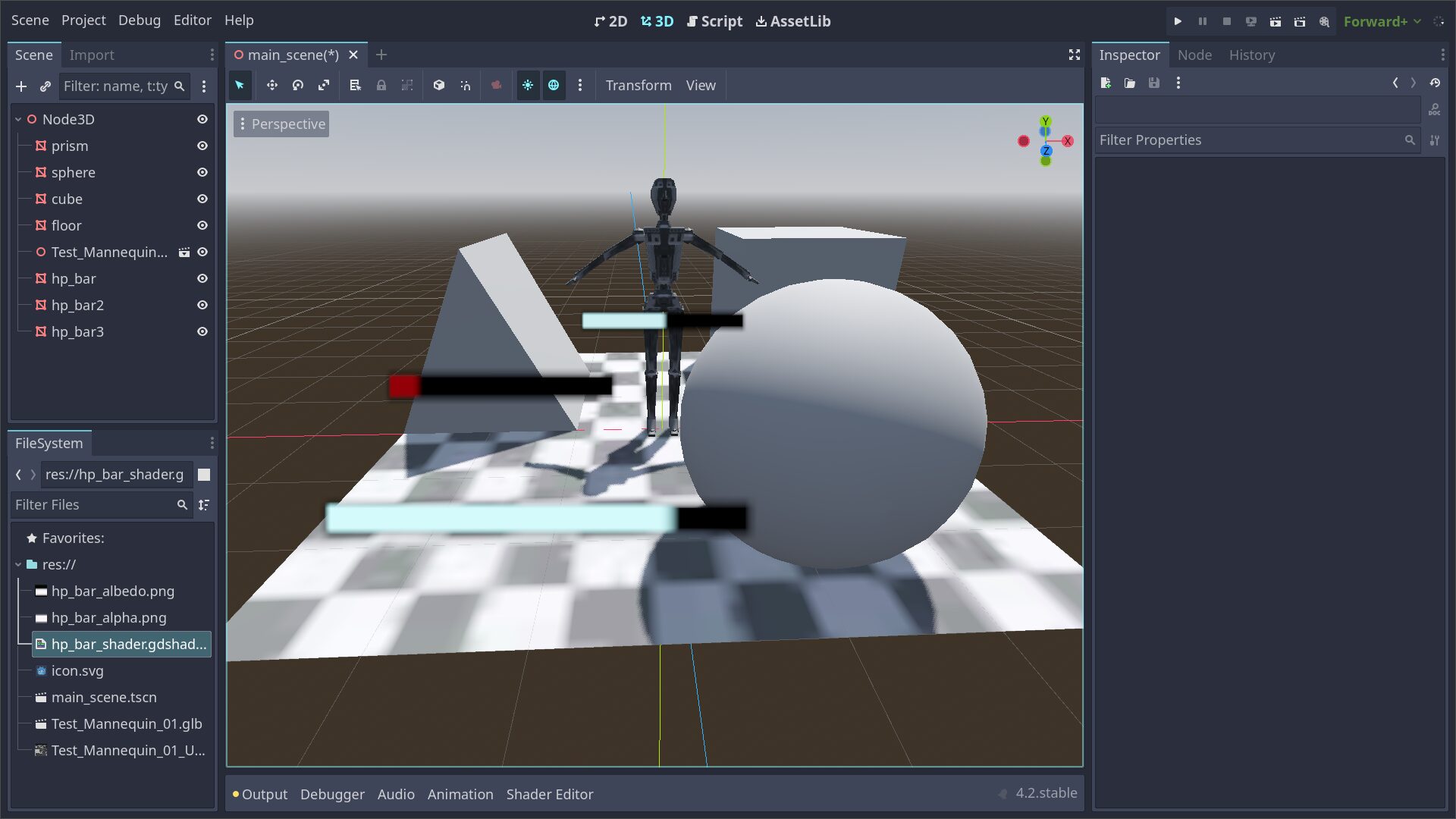

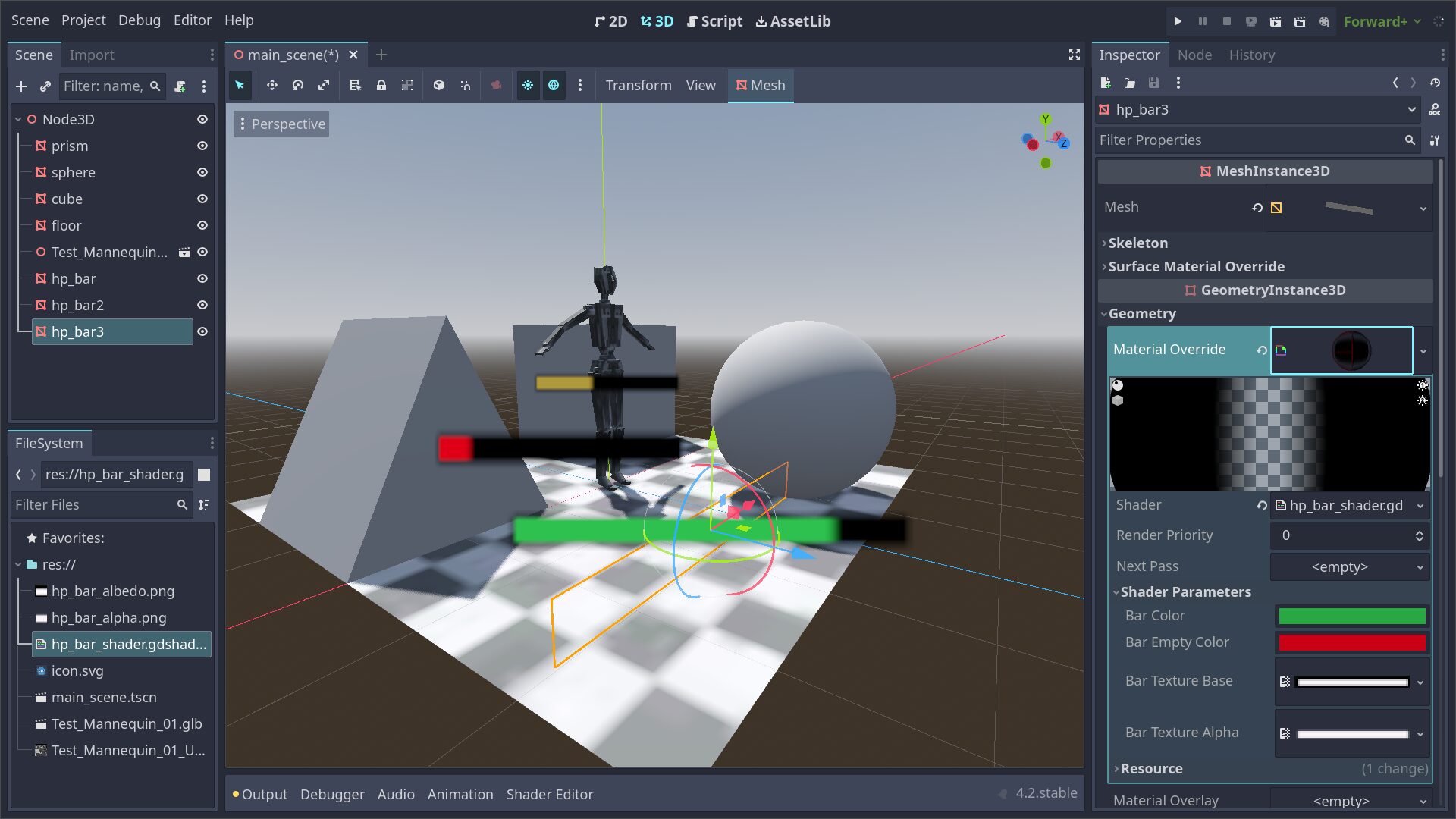

Here’s a shader that allows you to turn a quadmesh into a 3D bar for any attribute you like to display, with a float range slider from 0.0 to 1.0, two colors and two textures. You can set a texture to be the bar texture and one texture for it’s alpha, in case you are fancy and want to make things more interesting. The two colors allow you to set the main default bar color, and once the bar is being depleted the color will change to the second one, if you would like to see how it was made or how the shader works see the tutorial linked below,

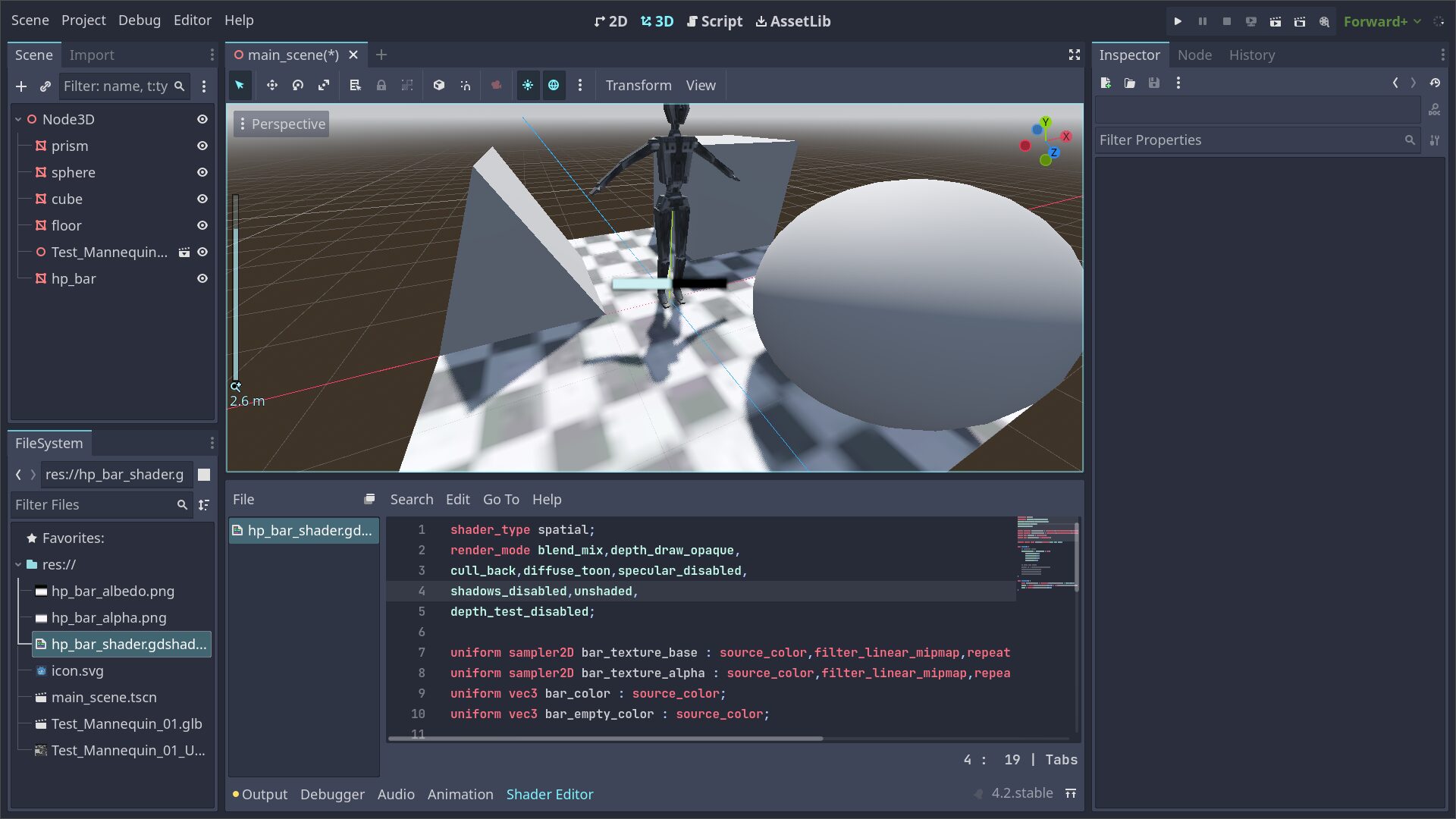

Shader code
shader_type spatial;
render_mode blend_mix,depth_draw_opaque,
cull_back,diffuse_toon,specular_disabled,
shadows_disabled,unshaded,
depth_test_disabled;

uniform sampler2D bar_texture_base : source_color,filter_linear_mipmap,repeat_disable;
uniform sampler2D bar_texture_alpha : source_color,filter_linear_mipmap,repeat_disable;
uniform vec3 bar_color : source_color;
uniform vec3 bar_empty_color : source_color;

instance uniform float progress:hint_range(0.0, 1.0, 0.01);

void vertex() {
	// Billboard Effect
	MODELVIEW_MATRIX = VIEW_MATRIX * mat4(
		INV_VIEW_MATRIX[0],
		INV_VIEW_MATRIX[1],
		INV_VIEW_MATRIX[2],
		MODEL_MATRIX[3]);

	// Fixed Size Effect
	//float sc = -(MODELVIEW_MATRIX)[3].z;
	//MODELVIEW_MATRIX[0]*=sc;
	//MODELVIEW_MATRIX[1]*=sc;
	//MODELVIEW_MATRIX[2]*=sc;
}

void fragment() {
	float progress_texture = smoothstep(-progress,-progress + 0.05,-UV.x);
	ALBEDO = texture(bar_texture_base,UV).rgb * mix(bar_color,bar_empty_color, clamp(1.5 + -progress * 2.5,0,1)) * progress_texture;
	ALPHA = texture(bar_texture_alpha,UV).a;
}
Tags
3D bar, 3D interface, bar, hp bar, interface, ui
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
