Mech Gunfire Effect – Smoke Shader

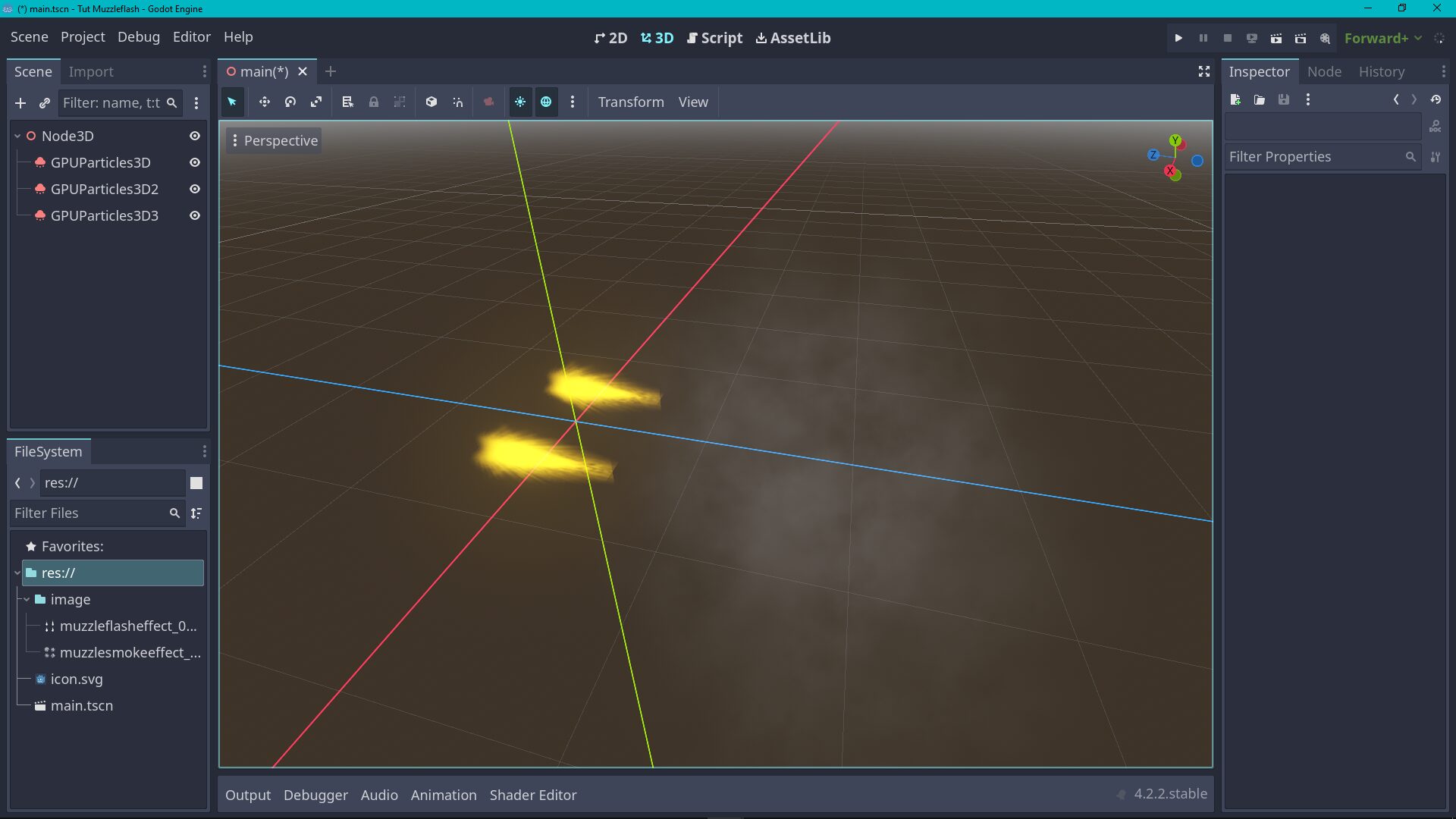

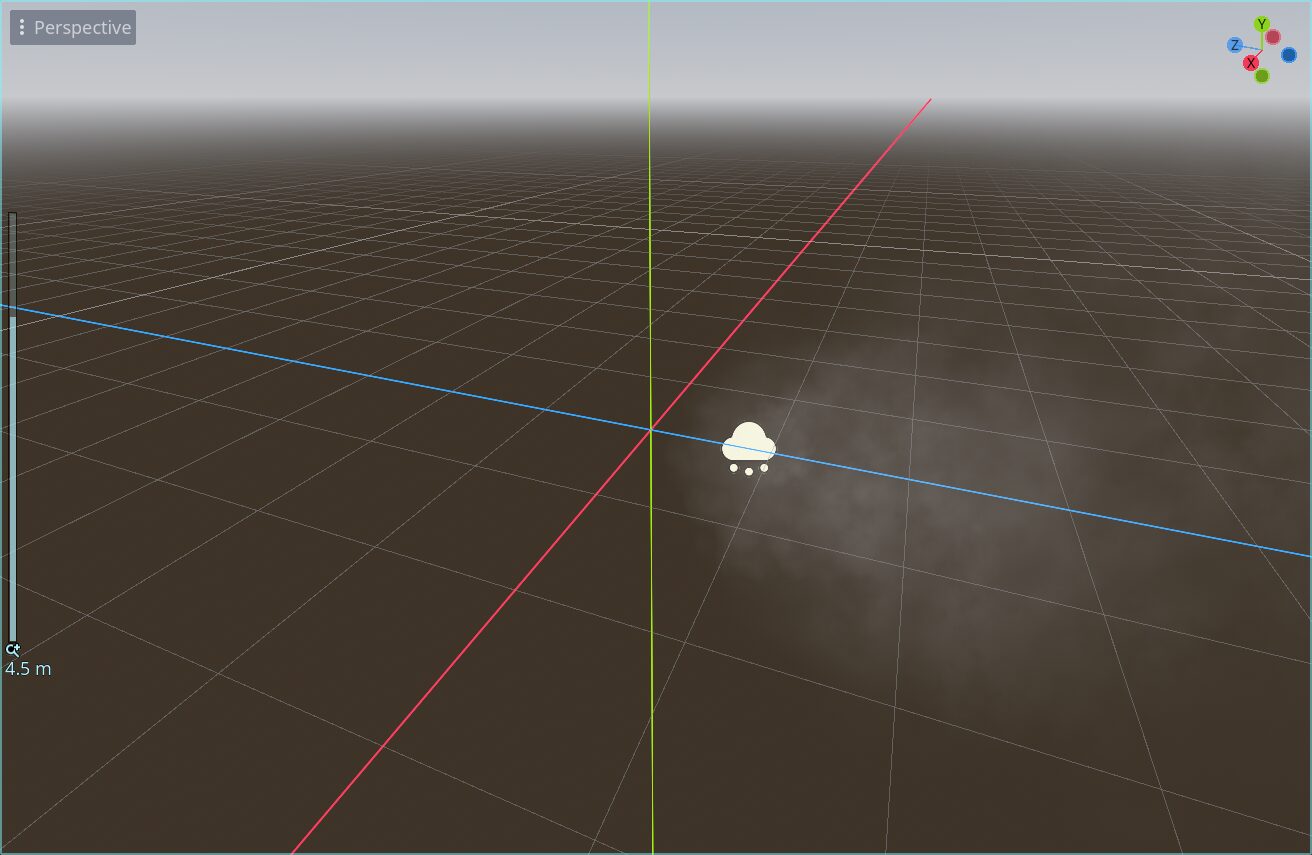

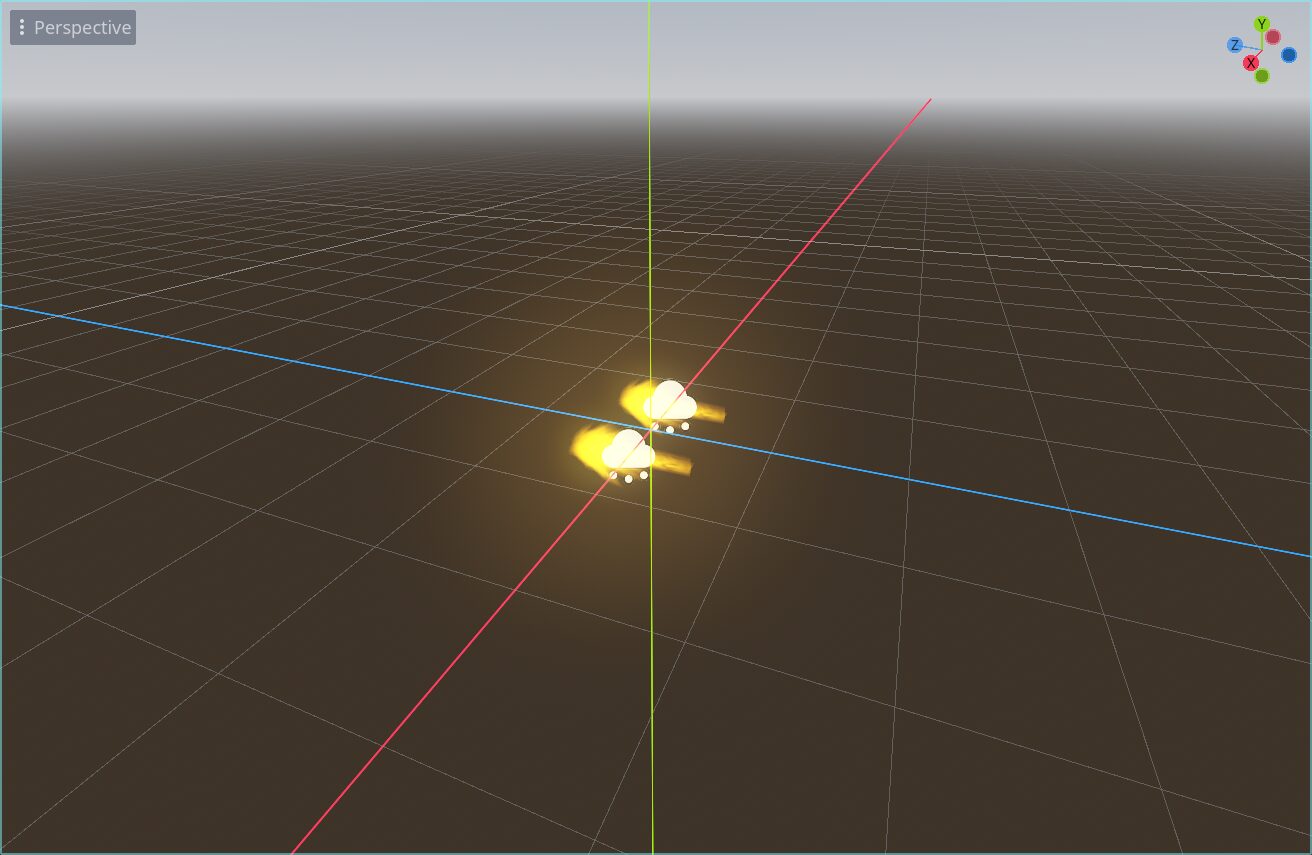

Gunfire smoke effect for your projects, this one is about the gunfire smoke, switched to use blend_add with alpha_scissor_threshold as a perfomance optmization instead of blend_mix. The muzzleflare effect: https://godotshaders.com/shader/mech-gunfire-effect-muzzleflash-shader/

Shader code
shader_type spatial;
render_mode blend_add,depth_draw_opaque,cull_disabled,
diffuse_toon,specular_disabled,unshaded,shadows_disabled,
ambient_light_disabled,fog_disabled;
uniform sampler2D texture_albedo : source_color,filter_linear_mipmap,repeat_enable;

uniform int particles_anim_h_frames;
uniform int particles_anim_v_frames;
//uniform bool particles_anim_loop;

void vertex() {
	mat4 mat_world = mat4(normalize(INV_VIEW_MATRIX[0]), normalize(INV_VIEW_MATRIX[1]) ,normalize(INV_VIEW_MATRIX[2]), MODEL_MATRIX[3]);
	mat_world = mat_world * mat4(vec4(cos(INSTANCE_CUSTOM.x), -sin(INSTANCE_CUSTOM.x), 0.0, 0.0), vec4(sin(INSTANCE_CUSTOM.x), cos(INSTANCE_CUSTOM.x), 0.0, 0.0), vec4(0.0, 0.0, 1.0, 0.0), vec4(0.0, 0.0, 0.0, 1.0));
	MODELVIEW_MATRIX = VIEW_MATRIX * mat_world;
	MODELVIEW_MATRIX = MODELVIEW_MATRIX * mat4(vec4(length(MODEL_MATRIX[0].xyz), 0.0, 0.0, 0.0),vec4(0.0, length(MODEL_MATRIX[1].xyz), 0.0, 0.0), vec4(0.0, 0.0, length(MODEL_MATRIX[2].xyz), 0.0), vec4(0.0, 0.0, 0.0, 1.0));
	MODELVIEW_NORMAL_MATRIX = mat3(MODELVIEW_MATRIX);

	float h_frames = float(particles_anim_h_frames);
	float v_frames = float(particles_anim_v_frames);
	float particle_total_frames = float(particles_anim_h_frames * particles_anim_v_frames);
	float particle_frame = floor(INSTANCE_CUSTOM.z * float(particle_total_frames));

	particle_frame = clamp(particle_frame, 0.0, particle_total_frames - 1.0);
	// We don't want to cycle for particle animation frames, only offset, so the condition is removed.
	//if (!particles_anim_loop) {
		//particle_frame = clamp(particle_frame, 0.0, particle_total_frames - 1.0);
	//} else {
		//particle_frame = mod(particle_frame, particle_total_frames);
	//}

	UV /= vec2(h_frames, v_frames);
	UV += vec2(mod(particle_frame, h_frames) / h_frames, floor((particle_frame + 0.5) / h_frames) / v_frames);
}

void fragment() {
	vec4 albedo_tex = texture(texture_albedo,UV);
	ALBEDO = albedo_tex.rgb * COLOR.rgb * albedo_tex.a;
	ALPHA = (albedo_tex.a * COLOR.a);
	ALPHA_SCISSOR_THRESHOLD = 0.001;
}
Tags
gun smoke fx, gunfire smoke, gunfire smoke effect, muzzlefire smoke, muzzlesmoke
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
