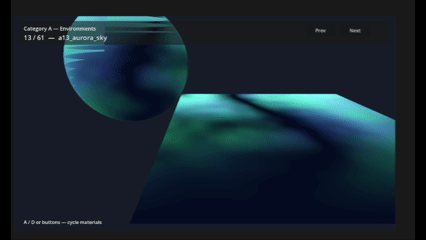

aurora borealis/northern lights shader
This is a beautiful northern lights shader, perfect for stunning night scenes or anything you can think of.
This shader is part of my shader pack on itch.io, this is a full demo of this shader but you can find more on my itch.io page.
Grab the full 50+ Shader Suite on itch.io here!
Shader code
/* ============================================================
* Name: Aurora Sky
* Category: A - 3D Stylized Environments
* Type: spatial
* Placement: Apply to MeshInstance3D (plane/terrain/props as noted in name).
* Description: Aurora Sky stylized environment effect with exposed uniforms.
* ============================================================ */
shader_type spatial;
render_mode blend_mix, depth_draw_opaque, cull_disabled, unshaded, shadows_disabled;
uniform vec4 sky_color : source_color = vec4(0.02, 0.04, 0.12, 1.0);
uniform vec4 aurora_a : source_color = vec4(0.2, 1.0, 0.55, 1.0);
uniform vec4 aurora_b : source_color = vec4(0.4, 0.3, 1.0, 1.0);
uniform float speed : hint_range(0.0, 5.0) = 0.4;
uniform float band_scale : hint_range(0.5, 20.0) = 3.0;
uniform float intensity : hint_range(0.0, 5.0) = 1.5;
uniform float vertical_falloff : hint_range(0.1, 8.0) = 2.0;
float hash11(float p) {
p = fract(p * 0.1031);
p *= p + 33.33;
p *= p + p;
return fract(p);
}
float hash21(vec2 p) {
vec3 p3 = fract(vec3(p.xyx) * 0.1031);
p3 += dot(p3, p3.yzx + 33.33);
return fract((p3.x + p3.y) * p3.z);
}
vec2 hash22(vec2 p) {
vec3 p3 = fract(vec3(p.xyx) * vec3(0.1031, 0.1030, 0.0973));
p3 += dot(p3, p3.yzx + 33.33);
return fract((p3.xx + p3.yz) * p3.zy);
}
float value_noise(vec2 p) {
vec2 i = floor(p);
vec2 f = fract(p);
float a = hash21(i);
float b = hash21(i + vec2(1.0, 0.0));
float c = hash21(i + vec2(0.0, 1.0));
float d = hash21(i + vec2(1.0, 1.0));
vec2 u = f * f * (3.0 - 2.0 * f);
return mix(mix(a, b, u.x), mix(c, d, u.x), u.y);
}
float fbm(vec2 p) {
float v = 0.0;
float a = 0.5;
for (int i = 0; i < 4; i++) {
v += a * value_noise(p);
p *= 2.0;
a *= 0.5;
}
return v;
}
float voronoi(vec2 p) {
vec2 n = floor(p);
vec2 f = fract(p);
float md = 8.0;
for (int j = -1; j <= 1; j++) {
for (int i = -1; i <= 1; i++) {
vec2 g = vec2(float(i), float(j));
vec2 o = hash22(n + g);
vec2 r = g + o - f;
md = min(md, dot(r, r));
}
}
return sqrt(md);
}
void fragment() {
float y = UV.y;
float wave = sin(UV.x * band_scale + TIME * speed + fbm(UV * 2.0) * 3.0);
wave = abs(wave);
float curtain = pow(wave, 2.0) * pow(1.0 - y, vertical_falloff);
vec3 aur = mix(aurora_a.rgb, aurora_b.rgb, fbm(UV * 3.0 + TIME * speed * 0.2));
vec3 col = mix(sky_color.rgb, aur, curtain * intensity);
ALBEDO = col;
EMISSION = aur * curtain * intensity;
ALPHA = 1.0;
}
