Creative Cinema / Film Framing
EDIT: In my haste to upload, and tiredness. I just realised I uploaded “Master_Film_v5” and not “Master_Film_v7”. These are somewhat night and day versions of the same shader.
This is the second of my five / six plugins . . . . .
I don’t know how technically accurate the dimensions are, and as I only have a laptop at hand, I don’t know how this scales across different screen sizes and ratios.
This brings a bit of cinematic/small-screen magic to our Godot projects. I hope it helps and inspires others.
Things I might add if I get back around to it . . . . dynamic light leaks, dust, scratches, the usual jazz.
As well as the obvious film inspired ratios there’s also some neat creative framing oppertunities in the manual controls.
Shader code
shader_type canvas_item;
uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_nearest;
group_uniforms Preset_Framing;
uniform int ratio_preset : hint_enum(
"Manual",
"Square ( 1 | 1 )",
"Lighthouse ( 1.19 | 1 )",
"Flicker ( 1.33 | 1 )",
"Academy ( 1.37 | 1 )",
"Euro ( 1.66 | 1 )",
"US ( 1.85 | 1 )",
"CinemaScope ( 2.35 | 1 )",
"Panavision ( 2.39 | 1 )",
"Polyvision ( 4.0 | 1 )"
) = 0;
/** Preset index that selects a target aspect ratio (or Manual) to automatically calculate letterbox/pillarbox framing. */
group_uniforms Manual_Adjustments;
/** Toggles visibility of the framing bars (letterboxing/pillarboxing). */
uniform bool frame_visible = true;
/** Solid color used for the framing bars when they are visible. */
uniform vec4 frame_color : source_color = vec4(0.0, 0.0, 0.0, 1.0);
/** Manual fractional height of the top framing bar (used directly when ratio_preset is Manual). */
uniform float top_bar : hint_range(0.0, 0.5, 0.001) = 0.0;
/** Manual fractional height of the bottom framing bar (used directly when ratio_preset is Manual). */
uniform float bottom_bar : hint_range(0.0, 0.5, 0.001) = 0.0;
/** Manual fractional width of the left framing bar (used directly when ratio_preset is Manual). */
uniform float left_bar : hint_range(0.0, 0.5, 0.001) = 0.0;
/** Manual fractional width of the right framing bar (used directly when ratio_preset is Manual). */
uniform float right_bar : hint_range(0.0, 0.5, 0.001) = 0.0;
group_uniforms Vignette;
/** Toggles the vignette darkening effect applied to the image. */
uniform bool vignette_on = true;
/** When true the vignette automatically adapts to the framed image area (recommended).
When false it uses the old full-screen behaviour. */
uniform bool adaptive_vignette = true;
/** Controls how far the vignette extends from the edges toward the center. */
uniform float vignette_intensity : hint_range(0.0, 1.0, 0.001) = 0.5;
/** Controls the overall strength of the vignette color blend. */
uniform float vignette_opacity : hint_range(0.0, 1.0, 0.001) = 0.5;
/** Color overlaid by the vignette effect (typically black). */
uniform vec4 vignette_color : source_color = vec4(0.0, 0.0, 0.0, 1.0);
/** Normalized coordinates of the vignette center *relative to the framed image area* (0.5, 0.5 = center of the visible picture). */
uniform vec2 vignette_center = vec2(0.5, 0.5);
group_uniforms Dynamic_Camera;
/** Toggles dynamic camera simulation (gate weave + handheld shake) applied only to the image UV. */
uniform bool dynamic_on = false;
/** Gate weave style: A = Simplified wave (original), B = discrete random pulse per film frame. */
uniform int gate_weave_style : hint_enum("A - Simplified", "B - Developed") = 0;
/** Frequency of the gate weave oscillation (only used when A - Simplified is selected). */
uniform float gate_weave_speed : hint_range(0.0, 50.0, 0.1) = 15.0;
/** Intensity of the vertical film-gate weave jitter (UV offset, works in both styles). */
uniform float gate_weave_amount : hint_range(0.0, 0.05, 0.0001) = 0.002;
/** Simulated film frame rate used only when B - Developed is selected. */
uniform float film_fps : hint_range(1.0, 120.0, 0.1) = 24.0;
/** Additional intensity modulation for the discrete gate weave pulse (makes option B feel more mechanical). */
uniform float pulse_intensity : hint_range(0.0, 2.0, 0.01) = 0.22;
/** Rate at which the gate-weave pulse intensity changes (multiplier of film_fps). Randomised via hash. */
uniform float pulse_rate : hint_range(0.2, 1.0, 0.05) = 0.5;
/** Brightness flicker intensity for the old projector lamp effect (only in style B). */
uniform float projector_flicker_intensity : hint_range(0.0, 0.3, 0.001) = 0.08;
/** Rate at which the projector lamp brightness pulses (multiplier of film_fps). Fully randomised. */
uniform float projector_flicker_rate : hint_range(0.2, 2.0, 0.05) = 1.0;
/** Frequency of the handheld camera shake motion. */
uniform float handheld_shake_speed : hint_range(0.0, 5.0, 0.1) = 1.0;
/** Intensity of the handheld camera shake motion. */
uniform float handheld_shake_amount : hint_range(0.0, 0.1, 0.001) = 0.005;
float hash(float n) { return fract(sin(n) * 43758.5453123); }
void fragment() {
// Fixed UV for bars + vignette
vec2 uv_mask = SCREEN_UV;
// Drifting UV for the image
vec2 uv_image = SCREEN_UV;
// --- Dynamic Camera (image only) ---
if (dynamic_on) {
float jitter;
if (gate_weave_style == 0) { // A - Simplified
jitter = sin(TIME * gate_weave_speed)
* gate_weave_amount
* hash(floor(TIME * 20.0));
} else { // B - Developed (gate weave + mechanical pulse)
float frame_index = floor(TIME * film_fps);
float base_jitter = (hash(frame_index) * 2.0 - 1.0) * gate_weave_amount;
// Gate-weave strength pulse
float pulse_index = floor(TIME * film_fps * pulse_rate);
float pulse = 1.0 + (hash(pulse_index) * 2.0 - 1.0) * pulse_intensity;
jitter = base_jitter * pulse;
}
vec2 sway = vec2(
sin(TIME * handheld_shake_speed * 0.7),
cos(TIME * handheld_shake_speed * 1.3)
) * handheld_shake_amount;
uv_image += vec2(sway.x, jitter + sway.y);
}
uv_image = clamp(uv_image, 0.0, 1.0);
// --- Aspect Ratio / Framing (uses uv_mask) ---
vec2 screen_res = 1.0 / SCREEN_PIXEL_SIZE;
float screen_aspect = screen_res.x / screen_res.y;
float target_ratio = 0.0;
if (ratio_preset == 1) target_ratio = 1.0;
else if (ratio_preset == 2) target_ratio = 1.19;
else if (ratio_preset == 3) target_ratio = 1.33;
else if (ratio_preset == 4) target_ratio = 1.37;
else if (ratio_preset == 5) target_ratio = 1.66;
else if (ratio_preset == 6) target_ratio = 1.85;
else if (ratio_preset == 7) target_ratio = 2.35;
else if (ratio_preset == 8) target_ratio = 2.39;
else if (ratio_preset == 9) target_ratio = 4.00;
float f_top = top_bar;
float f_bot = bottom_bar;
float f_l = left_bar;
float f_r = right_bar;
if (target_ratio > 0.0) {
if (screen_aspect > target_ratio) {
float inset = (1.0 - (target_ratio / screen_aspect)) * 0.5;
f_l = inset; f_r = inset;
} else {
float inset = (1.0 - (screen_aspect / target_ratio)) * 0.5;
f_top = inset; f_bot = inset;
}
}
bool is_framed =
(uv_mask.y < f_top) || (uv_mask.y > 1.0 - f_bot) ||
(uv_mask.x < f_l) || (uv_mask.x > 1.0 - f_r);
// --- Sample drifting image ---
vec4 tex = texture(screen_texture, uv_image);
vec3 final_rgb = tex.rgb;
// --- Vignette (adapts to framed area when adaptive_vignette is true) ---
if (vignette_on) {
if (adaptive_vignette && !is_framed) {
// Adaptive vignette (bias-free, equal on all sides)
float visible_w = 1.0 - f_l - f_r + 0.000001;
float visible_h = 1.0 - f_top - f_bot + 0.000001;
vec2 image_uv = vec2(
(uv_mask.x - f_l) / visible_w,
(uv_mask.y - f_top) / visible_h
);
vec2 vignette_uv = image_uv - vignette_center;
float image_aspect = screen_aspect * visible_w / visible_h;
float max_dist = 0.5 * sqrt(image_aspect * image_aspect + 1.0);
vec2 aspect_uv = (vignette_uv * vec2(image_aspect, 1.0)) / max_dist;
float dist = length(aspect_uv);
float v_grad = smoothstep(0.8 - vignette_intensity, 1.0, dist);
final_rgb = mix(final_rgb, vignette_color.rgb, v_grad * vignette_opacity);
}
else {
// Old full-screen vignette (fallback)
vec2 aspect_uv = (uv_mask - vignette_center) * vec2(screen_aspect, 1.0);
float dist = length(aspect_uv);
float v_grad = smoothstep(0.8 - vignette_intensity, 1.0, dist);
final_rgb = mix(final_rgb, vignette_color.rgb, v_grad * vignette_opacity);
}
}
// === Projector lamp brightness flicker (only in style B) ===
if (dynamic_on && gate_weave_style == 1) {
float flicker_index = floor(TIME * film_fps * projector_flicker_rate);
float flicker = 1.0 + (hash(flicker_index) * 2.0 - 1.0) * projector_flicker_intensity;
final_rgb *= flicker;
}
// --- Output with bar visibility toggle ---
if (frame_visible && is_framed) {
COLOR = frame_color;
} else {
COLOR = vec4(final_rgb, tex.a);
}

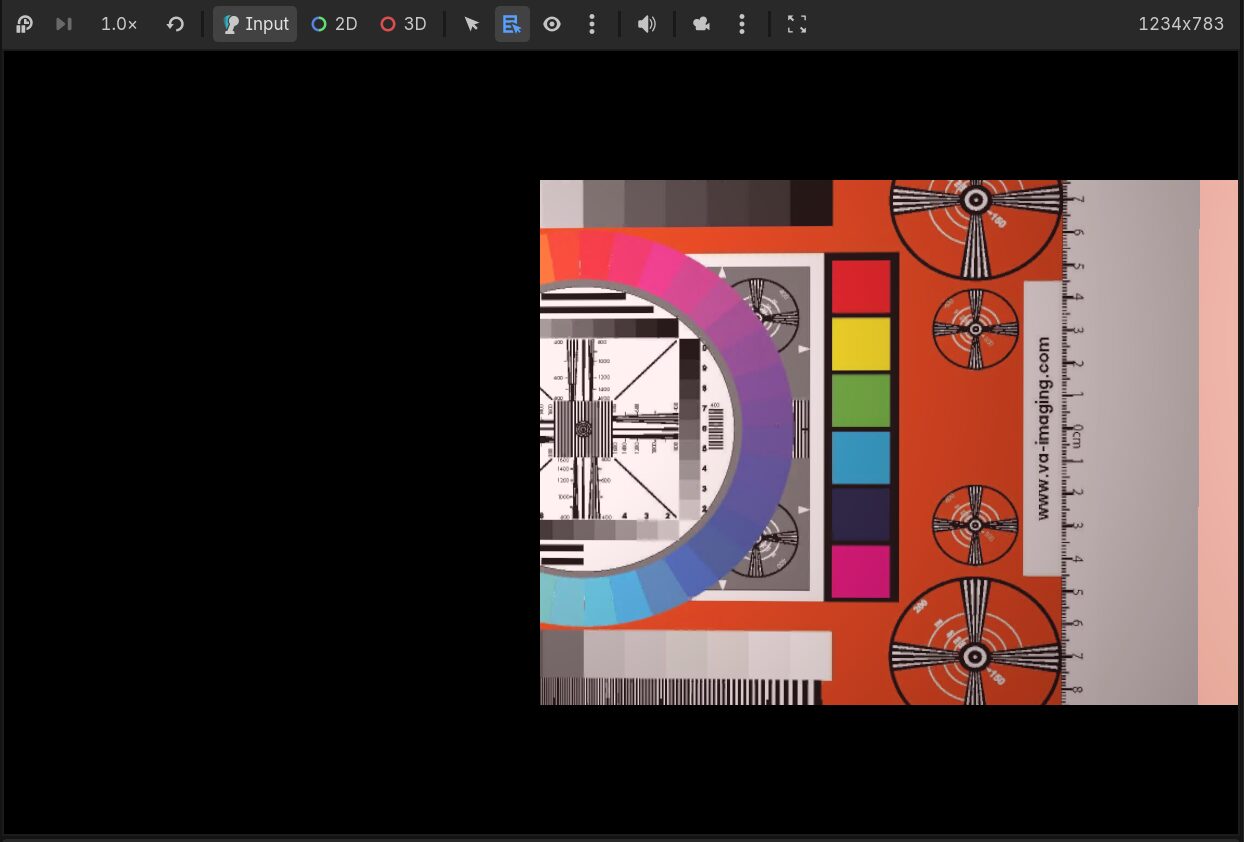

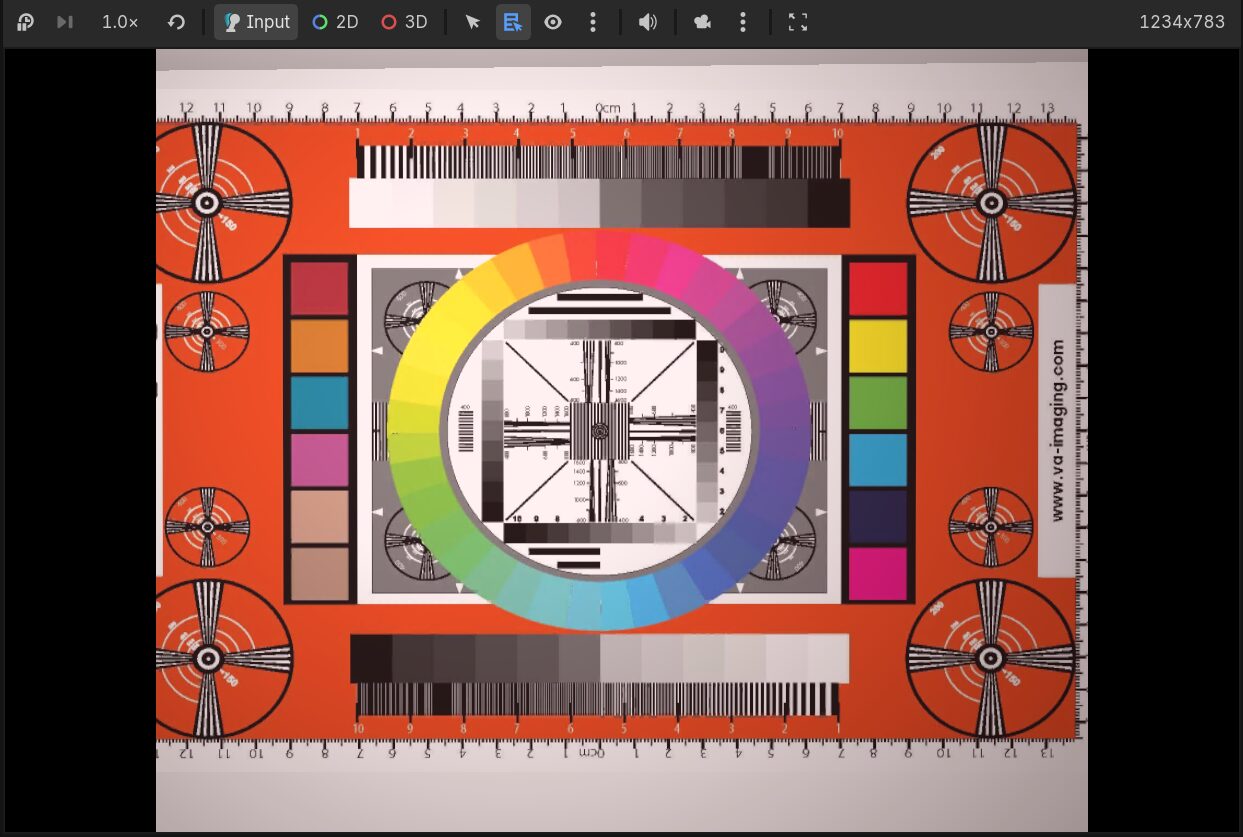

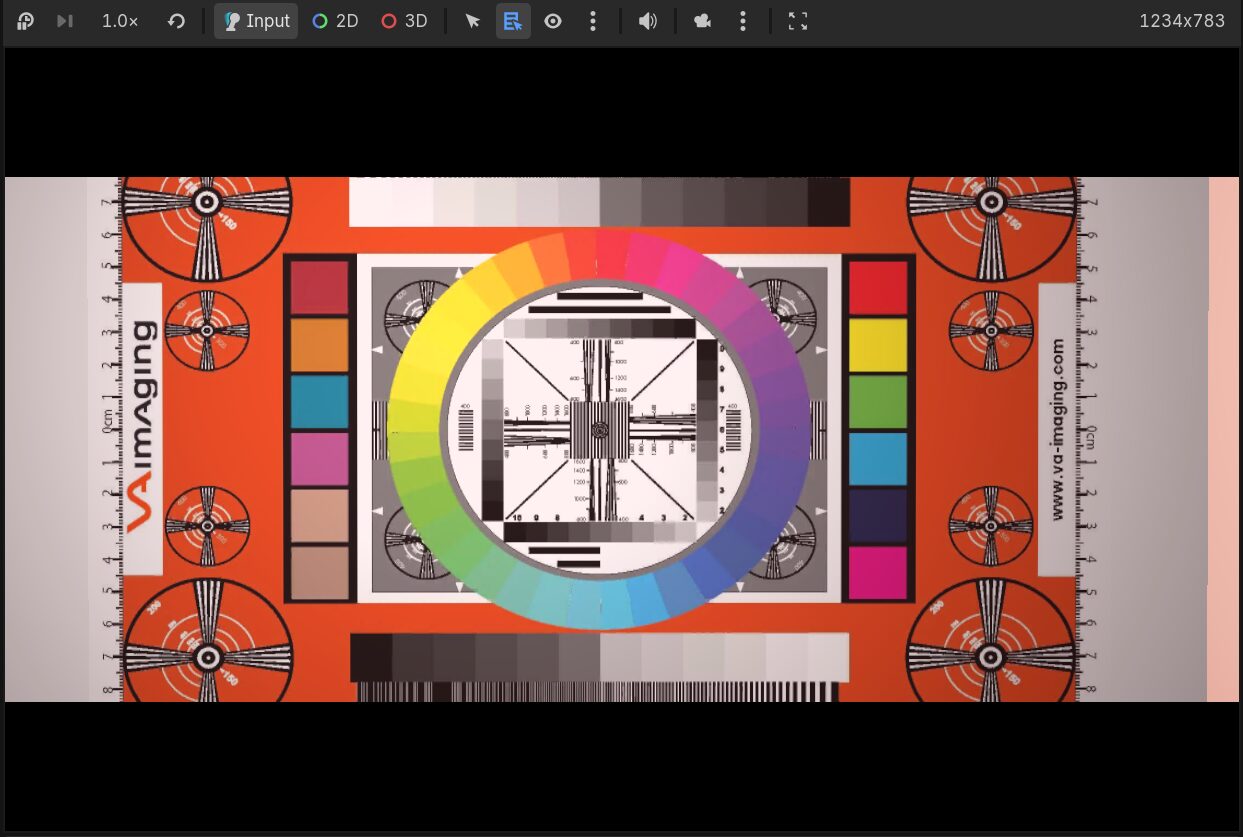

}Live Preview
