Distortion bubble

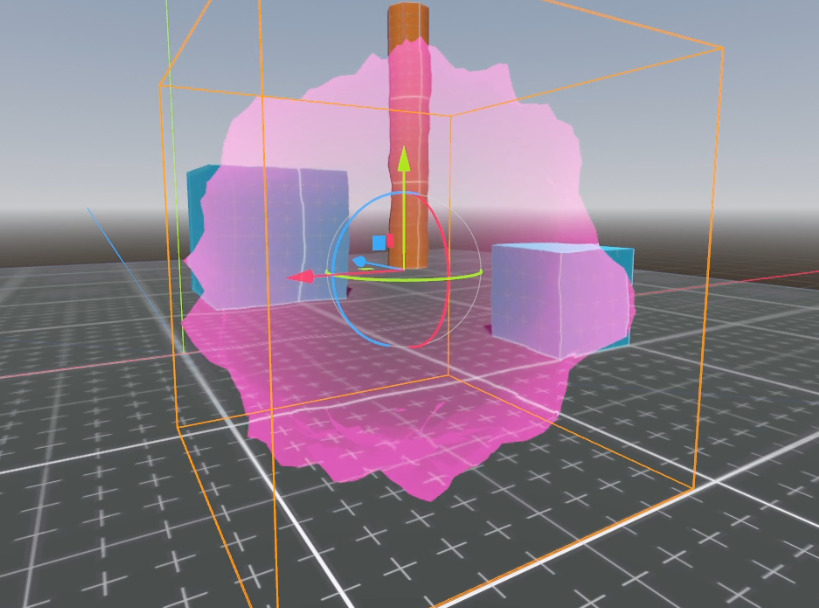

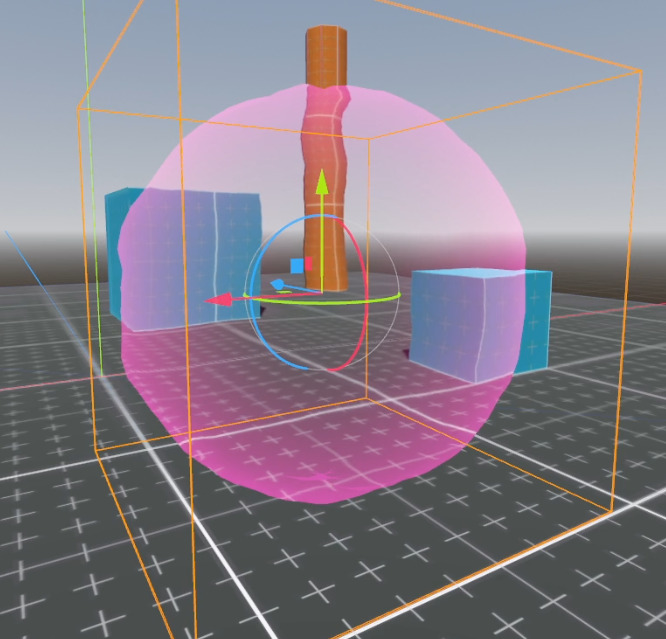

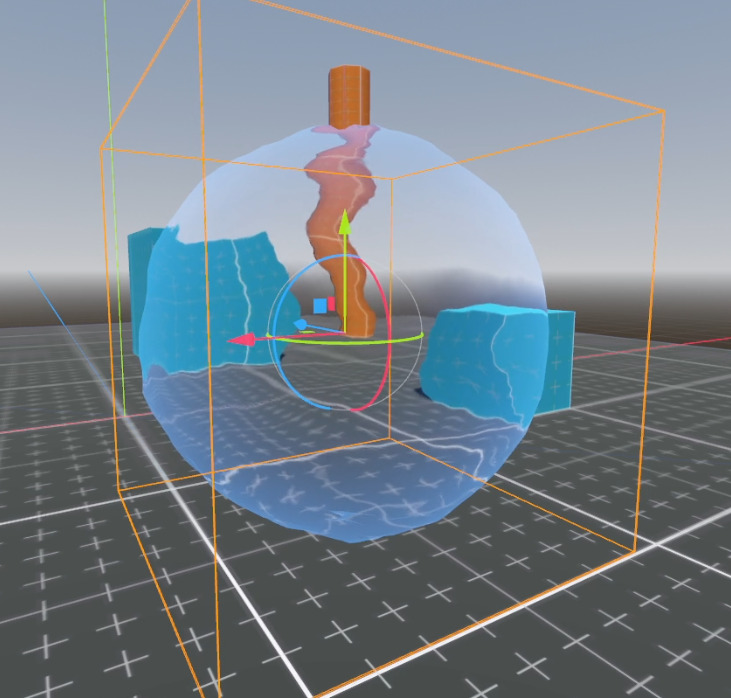

A shader to be applied to a sphere which can be used to make it look like a bubble which distorts the view of objects behind it.

Paramters which can be changed are:

  • Strength of the view distortion
  • Rate of change of view distortion
  • Tint color
  • Strength of the fresnel effect
  • Strength of the vertex distortion
  • Rate of change of verted distortion
Shader code
// Available at: https://godotshaders.com/shader/distortion-bubble/

shader_type spatial;

render_mode unshaded;

// fragment uniforms
uniform float distortionView : hint_range(0.0, 0.3, 0.005) = 0.03;
uniform float speedView : hint_range(0.0, 1.0, 0.005) = 0.5;
uniform sampler2D noiseViewX;
uniform sampler2D noiseViewY;
uniform sampler2D screenTexture : hint_screen_texture;
uniform vec3 tintColor : source_color;
uniform float fesnelAmount : hint_range(0.0, 5.0, 0.1);

// vertex uniforms
uniform float distortionVertex : hint_range(0.0, 0.3, 0.005) = 0.03;
uniform float speedVertex : hint_range(0.0, 1.0, 0.005) = 0.1;
uniform sampler2D noiseVertex;


float fresnel(float amount, vec3 normal, vec3 view)
{
	return pow((1.0 - clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0 )), amount);
}

void vertex()
{
	float noiseVal = (texture(noiseVertex, UV + (TIME * speedVertex)).r * 2.0) - 1.0; // Range: -1.0 to 1.0
	vec3 displacement = NORMAL * noiseVal * distortionVertex;
	VERTEX = VERTEX + displacement;
}

void fragment()
{
	float noiseValueX  = (texture(noiseViewX, UV + (TIME * speedView)).r * 2.0) - 1.0; // Range: -1.0 to 1.0
	float noiseValueY  = (texture(noiseViewY, UV + (TIME * speedView)).r * 2.0) - 1.0; // Range: -1.0 to 1.0
	vec2 noiseDistort = vec2(noiseValueX, noiseValueY) * distortionView;
	vec3 distortedScreenTexture = vec3(texture(screenTexture, SCREEN_UV + noiseDistort).rgb);
	vec3 fesnelTint = (tintColor * fresnel(fesnelAmount, NORMAL, VIEW));

	ALBEDO = distortedScreenTexture + fesnelTint;
}
Tags
3d, bubble, distortion, fresnel
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
