Dynamic Progress Bar with Waves and Particles

A versatile Canvas Item shader for creating an animated progress bar with wave effects and particle systems. Features include:
customizable colors
gradient textures
wave animation
a dynamic particle system with scale and alpha controls

Shader code
shader_type canvas_item;

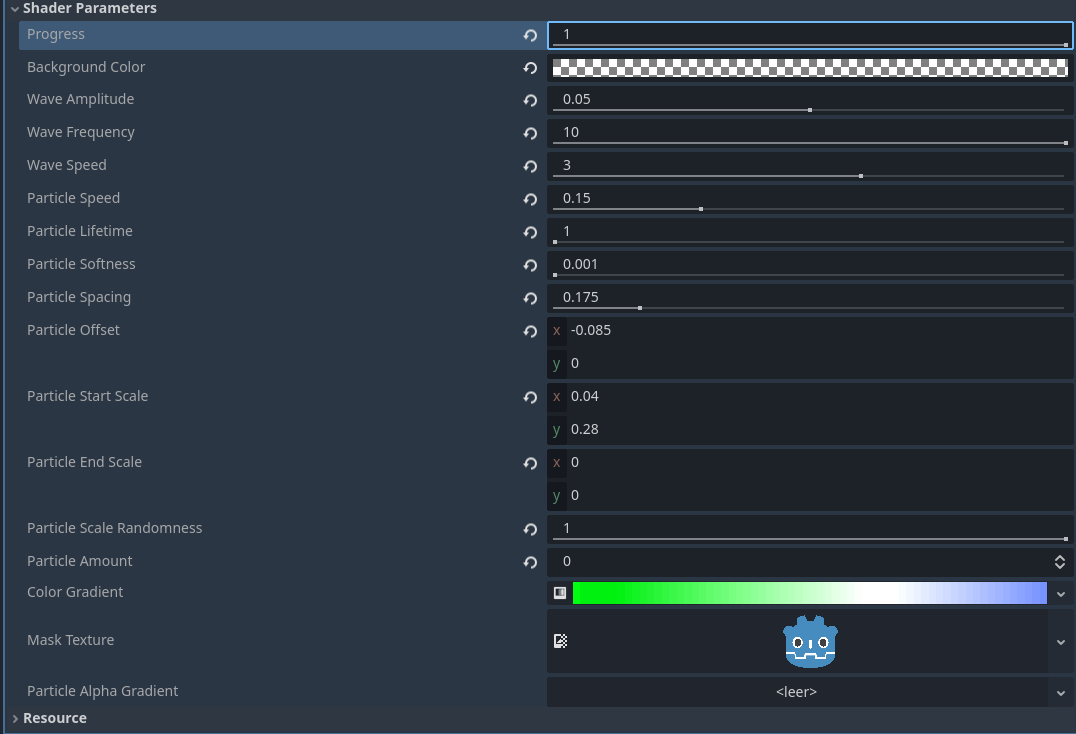

uniform float progress : hint_range(0.0, 1.0) = 0.5;
uniform vec4 background_color : source_color = vec4(0.5, 0.5, 0.5, 1.0);
uniform sampler2D color_gradient : source_color;
uniform sampler2D mask_texture : hint_default_white;

// Wave effect parameters
uniform float wave_amplitude : hint_range(0.0, 0.1) = 0.02;
uniform float wave_frequency : hint_range(0.0, 10.0) = 3.0;
uniform float wave_speed : hint_range(0.0, 5.0) = 1.5;

// Particle effect parameters
uniform float particle_speed : hint_range(0.01, 0.5) = 0.05;
uniform float particle_lifetime : hint_range(1.0, 10.0) = 3.0;
uniform float particle_softness : hint_range(0.001, 1.0) = 0.01;
uniform float particle_spacing : hint_range(0.01, 1.0) = 0.1;
uniform vec2 particle_offset = vec2(0.0, 0.0);
uniform vec2 particle_start_scale = vec2(0.02, 0.02);
uniform vec2 particle_end_scale = vec2(0.01, 0.01);
uniform float particle_scale_randomness : hint_range(0.0, 1.0) = 0.5;
uniform sampler2D particle_alpha_gradient : source_color;
uniform int particle_amount : hint_range(0, 50) = 20;

// Pseudo-random function
float rand(vec2 co) {
    return fract(sin(dot(co.xy ,vec2(12.9898,78.233))) * 43758.5453);
}

// Function to generate a single particle
float particle(vec2 uv, float particle_id, float time, float mask_value) {
    float random_offset = rand(vec2(particle_id, 0.0));
    float spawn_time = particle_id * particle_spacing;
    float life = mod(time - spawn_time, particle_lifetime) / particle_lifetime;

    if (life < 0.0 || life >= 1.0) return 0.0;

    float vertical_pos = rand(vec2(particle_id, 1.0));
    float horizontal_pos = progress + life * particle_speed;

    vec2 particle_pos = vec2(horizontal_pos, vertical_pos) + particle_offset;

    // Calculate scale with randomness
    float scale_random = rand(vec2(particle_id, 2.0)) * particle_scale_randomness;
    vec2 start_scale = particle_start_scale * (1.0 - scale_random);
    vec2 end_scale = particle_end_scale * (1.0 - scale_random);
    vec2 current_scale = mix(start_scale, end_scale, life);

    vec2 scaled_uv = (uv - particle_pos) / current_scale;
    float dist = length(scaled_uv);

    float alpha = texture(particle_alpha_gradient, vec2(life, 0.5)).a;

    return smoothstep(1.0 + particle_softness, 1.0, dist) * alpha * mask_value;
}

void fragment() {
    vec2 uv = UV;

    // Sample the mask texture or use default (fully visible) if not provided
    float mask = texture(mask_texture, uv).r;

    // Calculate wave offset
    float wave_offset = wave_amplitude * sin(wave_frequency * uv.y + TIME * wave_speed);

    // Apply wave offset to progress
    float wave_progress = progress + wave_offset;

    // Sample the color from the gradient texture based on progress
    vec4 gradient_color = texture(color_gradient, vec2(progress, 0.5));

    // Start with the background color
    vec4 final_color = background_color;

    // Apply the progress bar with mask
    if (uv.x < wave_progress) {
        final_color = mix(background_color, gradient_color, mask);
    }

    // Generate particles
    float particles = 0.0;
    for (float i = 0.0; i < float(particle_amount); i++) {
        particles += particle(uv, i, TIME, mask);
    }
    particles = clamp(particles, 0.0, 1.0);

    // Add particles to the final color
    final_color = mix(final_color, gradient_color, particles * step(uv.x, 1.0));

    COLOR = final_color;
}
Tags
progress bar, ui
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

More from StealthixDev

Moving Decal

Related shaders

Procedural Segmented Progress Bar

Procedural Circular Progress Bar

Liquid progress bar

Subscribe
Notify of
guest

2 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Beider
14 days ago

So one improvment to this shader would be to adjust the particle relative to the aspect size of your image. For instance if you put this on a color rect and make it have a uneven aspect ration the bubbles will appear very stretched.

To fix this I added the following code,

uniform vec2 image_dimension = vec2(128, 128);
vec2 normPixelSize = normalize(image_dimension);
  for (float i = 0.0; i < float(particle_amount); i++) {
    particles += particle(uv, i, TIME, mask, normPixelSize);
  }
float particle(vec2 uv, float particle_id, float time, float mask_value, vec2 pixelSize) {
float dist = length(scaled_uv*pixelSize);

This will make sure the bubbles are round no matter the aspect ratio, there might be a way to do this with TEXTURE_PIXEL_SIZE so you don’t have to pass in teh aspect, but I didn’t get it to work.
