Enchanced Team Fortress 2 Shader

This shader is Enchanced TF2 Shader by DrDeerface, credit to him for making this shader!

The Enchanced version of this shader adds:

Rim Lighting toggle, Full & Part coloring of Model

Part Coloring of model works by changing color of model where alpha of texture is 0, there is also threshold to configure how much the coloring of parts spreads

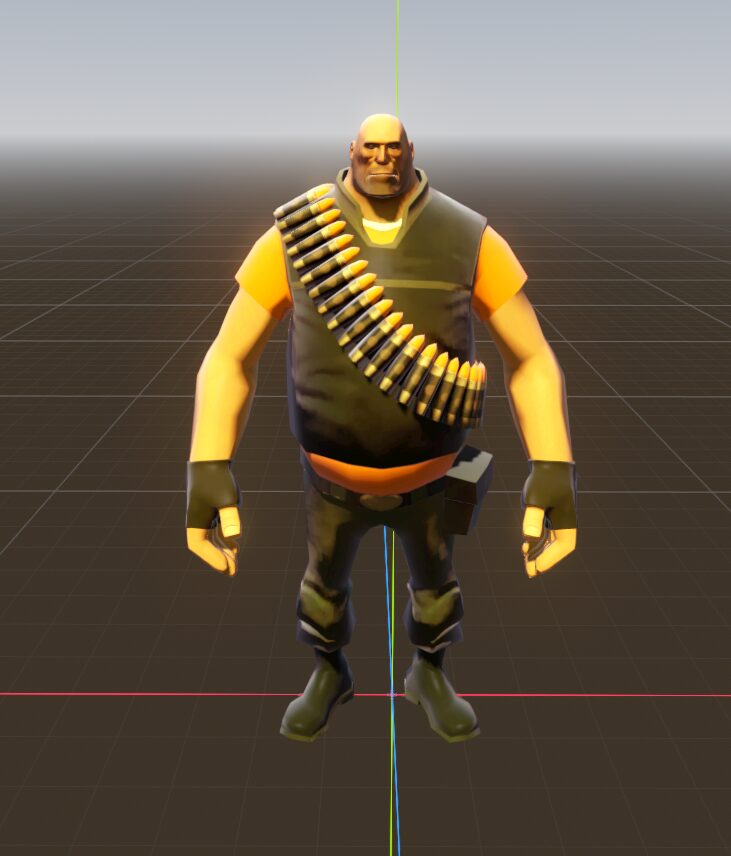

Full Coloring of model is intended for Jarate effect, but I couldn’t make blend modes work with “overlay_color value” & I don’t know how Jarate effect works in TF2, it doesn’t work as screen or overlay or what TF2 uses, instead it’s multiply

Shader code

shader_type spatial;

group_uniforms Diffuse;
uniform sampler2D diffuse_texture : source_color, filter_linear_mipmap;
uniform bool enable_part_color;
uniform float part_color_threshold : hint_range(0.0, 1.0) = 0.5;
uniform vec3 part_color : source_color = vec3(1.0, 1.0, 1.0);
uniform vec3 overlay_color : source_color = vec3(1.0, 1.0, 1.0);
uniform sampler2D lightwarp : source_color, filter_linear, repeat_disable;

group_uniforms Normal;
uniform sampler2D normal_texture : hint_normal, filter_linear_mipmap;
uniform float normal_strength : hint_range(0.0, 16.0) = 1.0;

group_uniforms Phong;
uniform sampler2D phong_texture : source_color, filter_linear_mipmap;
uniform sampler2D phong_exponent_texture : source_color, filter_linear_mipmap;
uniform float phong : hint_range(0.0, 1.0) = .25;
uniform float phong_exponent : hint_range(0.0, 1.0) = .25;

group_uniforms Rim;
uniform bool enable_rim_lighting=true;
uniform float rim_strength : hint_range(0.0, 1.0) = .5;
uniform float rim_spread : hint_range(1.0, 8.0) = 6.0;


float fresnel(float amount, vec3 normal, vec3 view)
{
	return pow((1.0-clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0 )), amount);
}


void fragment() {
	switch (int(enable_part_color)) {
		case 1:
			if (texture(diffuse_texture, UV).a > part_color_threshold) {
				ALBEDO = texture(diffuse_texture, UV).rgb * overlay_color;
			}
			else{
				ALBEDO = (texture(diffuse_texture, UV).rgb * part_color)*overlay_color;
			}
			break;

		case 0:
			ALBEDO = ALBEDO = texture(diffuse_texture, UV).rgb * overlay_color;;
			break;

	}

	ROUGHNESS = 0.5;
	SPECULAR = 0.0;
	METALLIC = 0.0;
	switch (int(enable_rim_lighting)){
		case 1:
			ALBEDO += fresnel(rim_spread, VIEW, NORMAL) * rim_strength;
		case 0:
			break;
	}

	NORMAL_MAP = texture(normal_texture, UV).rgb;
	NORMAL_MAP_DEPTH = normal_strength;
}


void light() {
	float wrap = 0.5;

	// DIFFUSE
	float NdotL = clamp( dot(NORMAL, LIGHT), 0.0, 1.0);
	float wrapped = pow(NdotL * wrap + (1.0-wrap), 2.0);
	vec4 lw = texture(lightwarp, vec2(wrapped, 0.0));
	DIFFUSE_LIGHT += lw.rgb *  LIGHT_COLOR * ATTENUATION;


	// PHONG
	if (phong_exponent > 0.0) {
		float _phong_mask_tex = texture(phong_texture, UV).w;
		float _phong_exponent_tex = texture(phong_exponent_texture, UV).w;
		float _phong_strength = (_phong_mask_tex * phong);
		float _phong_exponent = (phong_exponent * _phong_exponent_tex);

		vec3 halfdir = normalize(VIEW+LIGHT);
		float NdotV = clamp( dot(NORMAL, halfdir), 0.0, 1.0);
		float _p = pow(NdotV, 256.0 * _phong_exponent) * _phong_exponent * _phong_strength * 0.1;
		SPECULAR_LIGHT += (_p * LIGHT_COLOR * ATTENUATION);
	}
}
