Fake Godrays (Godot 4.x)

Okay, I need GodRays for my game, but I don’t like setting up volumetric fog. Here’s my setup.

I saw this video https://www.youtube.com/watch?v=hZI2pqcp8ig&ab_channel=LaneWallace.

A beautiful and more old-fashioned way. Here is my setup for Godot.

HOW TO USE:
I used CSGCylinder3d – in cone mode, to create the shape on which the shader is placed.
I also added SpotLight3d to it to create an actual light.

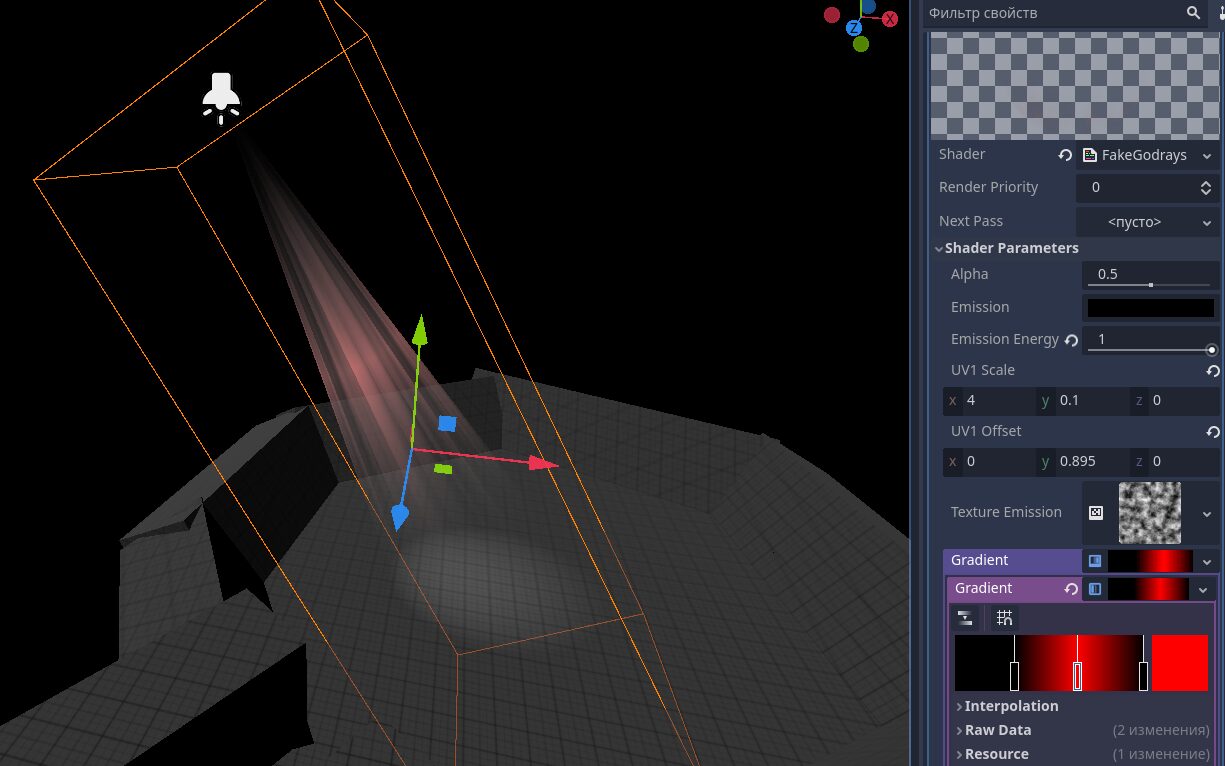

Take a look at the screenshot, in addition to the starting parameters, you need to add a NoiseTexture and a transparency gradient.
For alpha, 1D gradient is used.
For the “dust” the standard Godot noise texture is used.

UPD:
Fresnel fade added.

Shader code
shader_type spatial;
render_mode  blend_add, depth_draw_opaque, cull_back, diffuse_burley, shadows_disabled;

uniform float alpha : hint_range(0.0, 1.0) = 0.5;
uniform float rim_power : hint_range(0.0, 5.0) = 1.0;

uniform sampler2D texture_emission : source_color, hint_default_black,filter_linear_mipmap,repeat_enable;
uniform sampler2D gradient : source_color, hint_default_black,filter_linear_mipmap,repeat_enable;

uniform vec4 emission : source_color;
uniform float emission_energy : hint_range(0.0, 1.0) = 0.5;
uniform vec3 uv1_scale = vec3(5.0, 0.0, 0.0);
uniform vec3 uv1_offset = vec3(0.0, 1.0, 0.0); //change y to whooooosh effect

varying vec2 base_uv;

// rotate on 90 degrees
vec2 rotateUV(vec2 uv) {
	return vec2(1.0 * (uv.y - 0.5) + 0.5, -1.0 * (uv.y - 0.5) + 0.5);
}

void vertex() {
	base_uv = rotateUV(UV);
	UV = UV * uv1_scale.xy + uv1_offset.xy;
	// UV.y += TIME * 0.02; // If you need animation, this needs some work.
}

void fragment() {
	vec3 fallof = texture(gradient, base_uv).rgb;

	float fresnel = pow(1.0 - dot(normalize(NORMAL), normalize(VIEW)), rim_power);
	float fade = mix(1.0, -1.0, fresnel);

	ROUGHNESS = 0.0;
	SPECULAR = 0.0;

	vec3 emission_tex = texture(texture_emission, UV).rgb;
	EMISSION = (emission.rgb + emission_tex) * emission_energy * fallof;

	ALPHA = clamp(fade, 0.0, 1.0) * EMISSION.r * alpha;
}
Tags
god-rays. old-fashion.
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
