Grass shader with atlas texture, wind sway, trampling effect.

Grass shader that selects texture from atlas based on vertex color, adds a simple wind sway effect and “tramples” the vertices when the camera gets close.

This shader is inteded for use with MultimeshInstance3D that allows to set vertex colors for meshes randomly or procedurally. If atlas feature is not needed, the texture_count parameter can be set to (1,1).

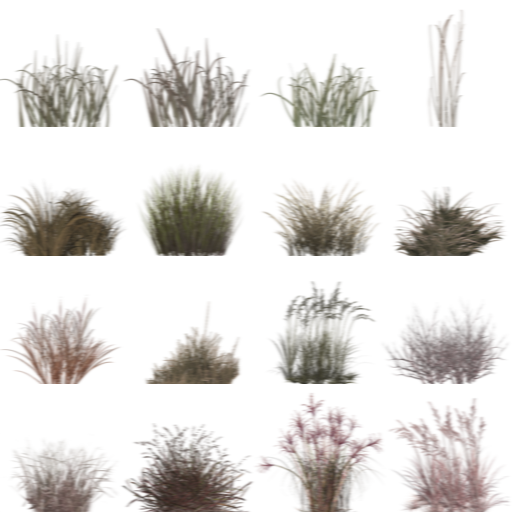

Example atlas is included in screenshots.

Shader code

//
// Atlas grass shader.
//
// Intended for use with MultimeshInstance3D.
//
// Selects UV position from atlas based on vertex red and green colors.
// Selected UV position is rounded to the nearest atlas sector.
// Atlas texture count is set with "texture_count" parameter.
//
// Includes wind sway and trampling effect.
//
// Uses distance to camera for trampling effect, so it will only work for first person game.
// Code can be modified to use arbitrary position as player character position.
//

shader_type spatial;
render_mode blend_mix, depth_draw_opaque, cull_back, diffuse_lambert_wrap, specular_disabled, depth_prepass_alpha;

uniform float character_height = 1.85; // Height of the camera above the ground
uniform vec2 texture_count = vec2(4.000000, 4.000000); // Column and row count of textures in atlas
uniform sampler2D main_texture : hint_default_transparent, filter_nearest_mipmap; // Atlas texture

void vertex() {
	float time_offset = sin(fma(TIME + COLOR.r, 2.0, COLOR.g));

	float distance_to_origin = distance(MODELVIEW_MATRIX[3].xyz, vec3(0.0, 0.0, 0.0));
	float character_distance = character_height - distance_to_origin;
	float clamped_character_distance = clamp(character_distance, 0.0, 0.5);

	float wind_modifier = 0.1 - clamped_character_distance;
	float clamped_wind_modifier = clamp(wind_modifier, 0.0, 1.0);
	float wind_offset = time_offset * clamped_wind_modifier;

	vec3 trampled_vertex_modifier = vec3(VERTEX.x, VERTEX.y * -1.0, VERTEX.z);
	float height_based_character_distance = clamped_character_distance * VERTEX.y;

	vec3 trampled_offset = trampled_vertex_modifier * vec3(height_based_character_distance);

	float height_based_wind_offset = VERTEX.y * wind_offset;
	float new_vertex_x = VERTEX.x + height_based_wind_offset;
	float new_vertex_z = VERTEX.z + height_based_wind_offset;
	vec3 new_vertex = vec3(new_vertex_x, VERTEX.y, new_vertex_z);

	VERTEX = new_vertex + trampled_offset;
}

void fragment() {
	vec2 texture_offset = vec2(1.0, 1.0) / texture_count;
	vec2 offset = vec2(
		COLOR.r * texture_count.x,
		COLOR.g * texture_count.y
	);

	vec2 rounded_offset = round(offset);
	vec2 final_offset = rounded_offset * texture_offset;

	vec2 uv_offset = UV * texture_offset;
	vec2 modified_uv = uv_offset + final_offset;

	vec4 color = texture(main_texture, modified_uv);

	ALBEDO = vec3(color.rgb);
	ALPHA = color.a;
}
