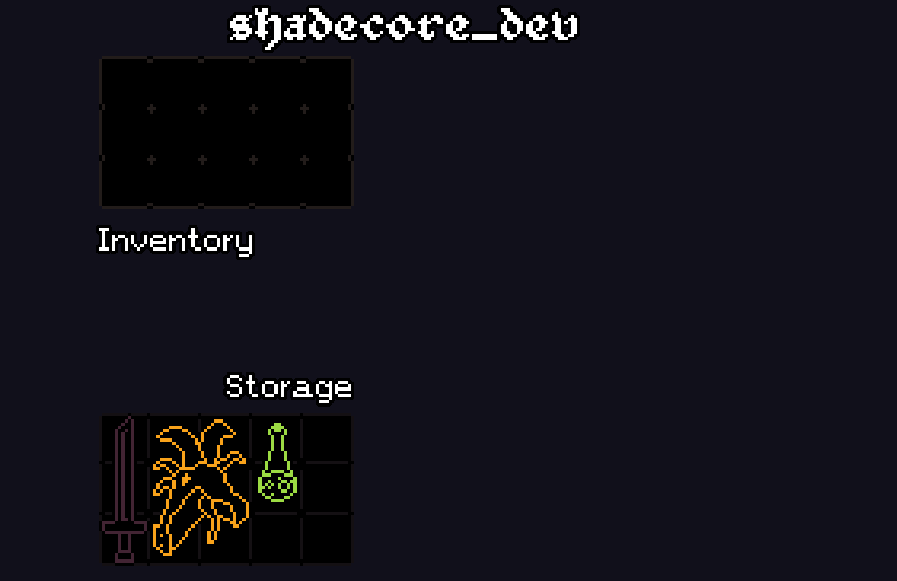

Pixel dotted silhouette

Technique:

Texture is sampled multiple times to check neighbouring pixels and form an outline.
Stripes coming from center are checked for overlap with that outline.
The resulting overlap is drawn to user as chosen color.

It’s not perfect. The effect doesn’t follow the real outline, only mimics it. Long sprites with non-uniform UVs, areas close to center and complex outline sprites produce artifacts.

It does the job for me so I decided to share it.

Shader code

// CC0, shadecore_dev

shader_type canvas_item;

/* Speed of the rotation. */
uniform float rotation_speed : hint_range(-4.0, 4.0) = 0.3;

/* Stripe count, can be interpreted as dot count for dotted outline. */
uniform float stripes : hint_range(1.0, 32.0, 1.0) = 16.0;

/* The proportion of the stripe covered by the outline color. */
uniform float stripe_width : hint_range(0.0, 1.0) = 0.5;

/* Color for the outline. */
uniform vec4 outline_color : source_color = vec4(1.0);

void fragment() {
	vec2 pixel_size = TEXTURE_PIXEL_SIZE;
	bool within = texture(TEXTURE, UV + pixel_size * vec2(1.0, 0.0)).a > 0.0;
	within = within || texture(TEXTURE, UV + pixel_size * vec2(0.0, -1.0)).a > 0.0;
	within = within || texture(TEXTURE, UV + pixel_size * vec2(0.0, 1.0)).a > 0.0;
	within = within || texture(TEXTURE, UV + pixel_size * vec2(-1.0, 0.0)).a > 0.0;

	bool outline = within && (texture(TEXTURE, UV).a == 0.0);

	float rotation = TIME * rotation_speed;

	float fill = (
				mod(
					(
						atan(
							floor((UV.x - 0.5) / pixel_size.x) * cos(rotation) + floor((UV.y - 0.5) / pixel_size.y) * sin(rotation),
							floor((UV.y - 0.5) / pixel_size.y) * cos(rotation) - floor((UV.x - 0.5) / pixel_size.x) * sin(rotation)
						) - PI
					) / -TAU
				,
				1.0/stripes) < stripe_width/stripes ? 1.0 : 0.0
			);

	COLOR = outline ? outline_color * fill : vec4(0.0);
}
