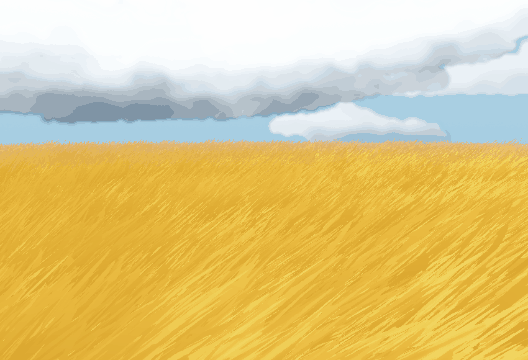

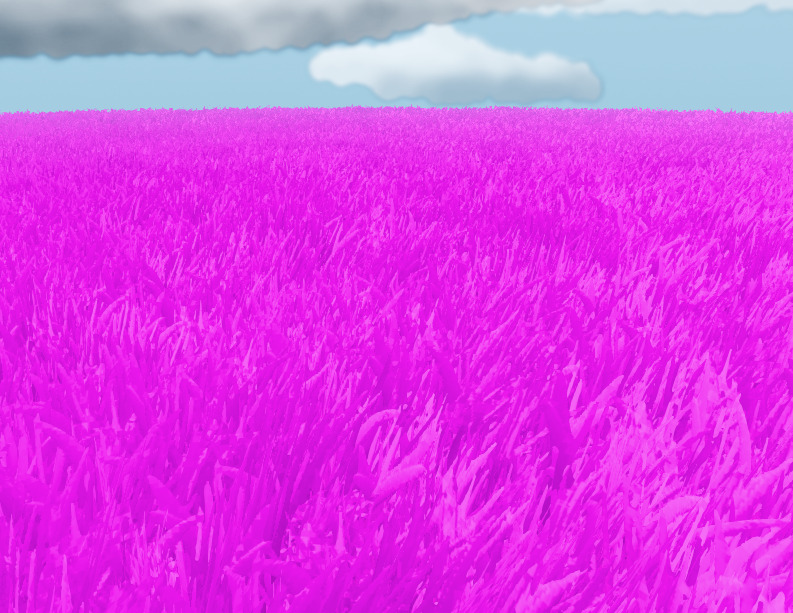

Grass with Screen-Space Displacement

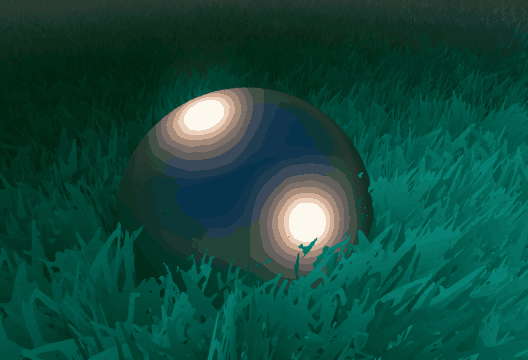

This shader is a custom grass shader that allows for configurable wind, grass material properties, grass physical properties, grass-object interaction (in screen space using UV displacement).

To use properly, take not of the following:

  •  Because of the UV displacement technique, ensure that the grass quad/mesh is twice as wide as it usually is. With a quad for example, it would have width of 2 and height of 1. It is also recommended to edit the grass texture import to not repeat.
  • It is recommended to use this shader with a multimesh or a GPU particle. For the best bending of the grass, use a mesh with several horizontal cuts for an eased bend.
  • Add a noise texture for the wind to make convincing patterns across the grass.
  • Increasing the flatness parameter is recommended to make the grass cover up the ground texture underneath if desired.
  • With Y-billboarding, it is recommended to keep the camera at a convincing angle as to not break immersion when the grass card origins are very visible. This is not advisable for games with free camera movement.
  • Modify the transmission parameter to allow more light to “bleed” through grass.
Shader code
/** A grass shader by Toadile for Godot 3.x
 * Copies, modififications, and redistrubitions are allowed and encouranged.
 * For best effect, make sure that the quad/geometry is twice the width that is
 * normal. In most cases, a quad that is 2 by 1 will be sufficient for the grass
 * -object interaction effect to be convincing.
 *
 * Since the grass bending uses screen space, to use SSAO and other post
 * processing on it, the displacement portion would have to be commented out in
 * the fragment function to enable SSAO
 */

shader_type spatial;
render_mode blend_mix, cull_disabled, depth_draw_opaque;

// general parameters
uniform float y_offset = 0.5;
uniform vec4 base_color : hint_color = vec4(1.0);
uniform vec4 end_color : hint_color = vec4(1.0);
uniform float specular: hint_range(0,1) = 0.1;
uniform float metallic: hint_range(0,1) = 0.0;
uniform float roughness : hint_range(0,1) = 1.0;
uniform float rim: hint_range(0,1) = 0.01;
uniform float transmission: hint_range(0,1) = 0.5;
uniform sampler2D texture_albedo : hint_albedo;
uniform sampler2D texture_normal : hint_normal;
uniform sampler2D texture_wind_noise : hint_albedo;
uniform vec2 uv_scale = vec2(1.0,1.0);
uniform vec2 uv_offset = vec2(0.0,0.0);

// wind parameters
uniform float wind_noise_scale = 2.0;
uniform vec2 wind_direction = vec2(0.0, 1.0);
uniform float wind_speed : hint_range(0,10) = 1.0;
uniform float wind_strength : hint_range(0,10) = 1.0;

// grass properties
uniform float color_variatiion : hint_range(0, 2) = 0.5;
uniform float height : hint_range(0, 10) = 1.0;
uniform float height_variation : hint_range(0, 2) = 0.3;
uniform float flatness : hint_range(0,2) = 0.2;

// rendering settings
uniform float fade_out_distance = 30.0;
uniform float fade_out_transition = 20.0;
uniform bool y_billboard = false;
uniform float displace_intensity : hint_range(0, 2) = 1.0;
uniform float proximity_distance : hint_range(0, 2) = 1.0;
uniform bool displace = true;
uniform float alpha_scissors : hint_range(0, 1) = 0.9;
uniform bool use_normal_map_alpha = false;

// variables
varying float bend_uv_direction;
varying vec3 instance_offset;
varying float fade;

void vertex() {
	// set up grass
	VERTEX.y *= height;
	VERTEX.y += y_offset*height;
	float inverse_uv_y = 1.0-UV.y;
	COLOR = base_color*vec4(UV.y) + end_color*vec4(inverse_uv_y);

	// "h" means height
	float h_variation = float(INSTANCE_ID % 3)*height_variation*0.5;
	float inv_h_stiff = (h_variation + height+1.0) * 2.0;
	float h_stiff = 1.0/inv_h_stiff;

	// wind noise animation
	vec2 world_xy = (WORLD_MATRIX * vec4(VERTEX, 1.0)).xz*0.2*wind_noise_scale + wind_direction*TIME*wind_speed*0.51*h_stiff;
	vec4 noise_tex = texture(texture_wind_noise, world_xy);

	// y billboard adjustment
	if (y_billboard)
	{
		MODELVIEW_MATRIX = INV_CAMERA_MATRIX * mat4(
			vec4(normalize(cross(vec3(0.0, 1.0, 0.0), CAMERA_MATRIX[2].xyz)),0.0),
			vec4(0.0, 1.0, 0.0, 0.0),
			vec4(normalize(cross(CAMERA_MATRIX[0].xyz, vec3(0.0, 1.0, 0.0))),0.0),
			WORLD_MATRIX[3]);
	}

	// animate the grass
	vec4 local_wind_direction;
	if (y_billboard)
	{
		local_wind_direction = vec4(wind_direction.x, 1.0, wind_direction.y, 0.0)*CAMERA_MATRIX;
	} else
	{
		local_wind_direction = vec4(wind_direction.x, 1.0, wind_direction.y, 0.0)*WORLD_MATRIX;
	}
	float flat_x = sin(MODELVIEW_MATRIX[2].x)*flatness*h_stiff;
	float flat_y = cos(MODELVIEW_MATRIX[2].z)*flatness*h_stiff;
	float bend = pow(inverse_uv_y, 2);
	float n = (noise_tex.r-0.5*2.0)*bend*wind_strength;
	VERTEX.x += n*flat_x + sin(TIME*0.01*h_stiff+float(INSTANCE_ID))*n*0.1*inv_h_stiff + local_wind_direction.x*wind_strength*bend*height;
	VERTEX.z += n*flat_y + cos(TIME*0.01*h_stiff+float(INSTANCE_ID))*n*0.1*inv_h_stiff + local_wind_direction.z*wind_strength*bend*height;
	VERTEX.y += h_variation*inverse_uv_y;
	VERTEX.y -= inverse_uv_y * flatness * 0.15;

	// introduce variation per grass instance
	if (INSTANCE_ID % 2 == 0) bend_uv_direction = 1.0; else bend_uv_direction = -1.0;

	if (INSTANCE_ID % 2 == 0) instance_offset = vec3(color_variatiion*0.1);
	else instance_offset = vec3(-color_variatiion*0.1);

	// fade out grass by shrinking it
	float view_distance = length(VERTEX - vec3(MODELVIEW_MATRIX[3].x, MODELVIEW_MATRIX[3].y, MODELVIEW_MATRIX[3].z));
	if (view_distance > fade_out_distance + fade_out_transition) fade = 1.0f; else fade = 0.0f;
	if (view_distance > fade_out_distance)
	{
		float offset = (fade_out_distance + fade_out_transition - view_distance) / fade_out_transition;
		VERTEX.y *= offset;
	}
}

render_mode depth_draw_always; // comment out this if not wanting to use displacement and wanting SSAO

void fragment() {
	if (fade >= 0.5f) discard;
	vec2 base_uv = UV;
	base_uv.x *= 2.0;
	base_uv.x -= 0.5;
	base_uv *= uv_scale;
	base_uv += uv_offset;
	float prox = 1.0;

	// comment out this if-block if not wanting to use displacement and wanting SSAO
	if (displace)
	{
		float depth_tex = textureLod(DEPTH_TEXTURE,SCREEN_UV,0.0).r;
		vec4 world_pos = INV_PROJECTION_MATRIX * vec4(SCREEN_UV*2.0-1.0,depth_tex*2.0-1.0,1.0);
		world_pos.xyz/=world_pos.w;
		float stuff = clamp(1.0-smoothstep(world_pos.z+0.5,world_pos.z,VERTEX.z), 0.3, 1.1);
		prox = clamp(1.0-smoothstep(world_pos.z+proximity_distance,world_pos.z,VERTEX.z) + UV.y*proximity_distance,0.0,1.0);
		base_uv.x += (1.0-prox)*0.2*displace_intensity * bend_uv_direction;
		base_uv.y -= (1.0-prox)*0.5*displace_intensity;
	}
	vec4 albedo_tex = texture(texture_albedo,vec2(base_uv.x, base_uv.y));
	vec4 normal_tex = texture(texture_normal,vec2(base_uv.x, base_uv.y));

	// discard distant grass
	if (!use_normal_map_alpha && albedo_tex.a < alpha_scissors)
	{
		discard;
		return;
	} else if (use_normal_map_alpha && normal_tex.a < alpha_scissors)
	{
		discard;
		return;
	}

	ALBEDO = COLOR.rgb * albedo_tex.rgb * (1.0 + instance_offset) * prox;
	METALLIC = metallic;
	ROUGHNESS = roughness;
	SPECULAR = specular;
	RIM = rim;
	TRANSMISSION = vec3(transmission);
	NORMALMAP = normal_tex.rgb;
}
Tags
displacement, grass, wind
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
