Grey threshold

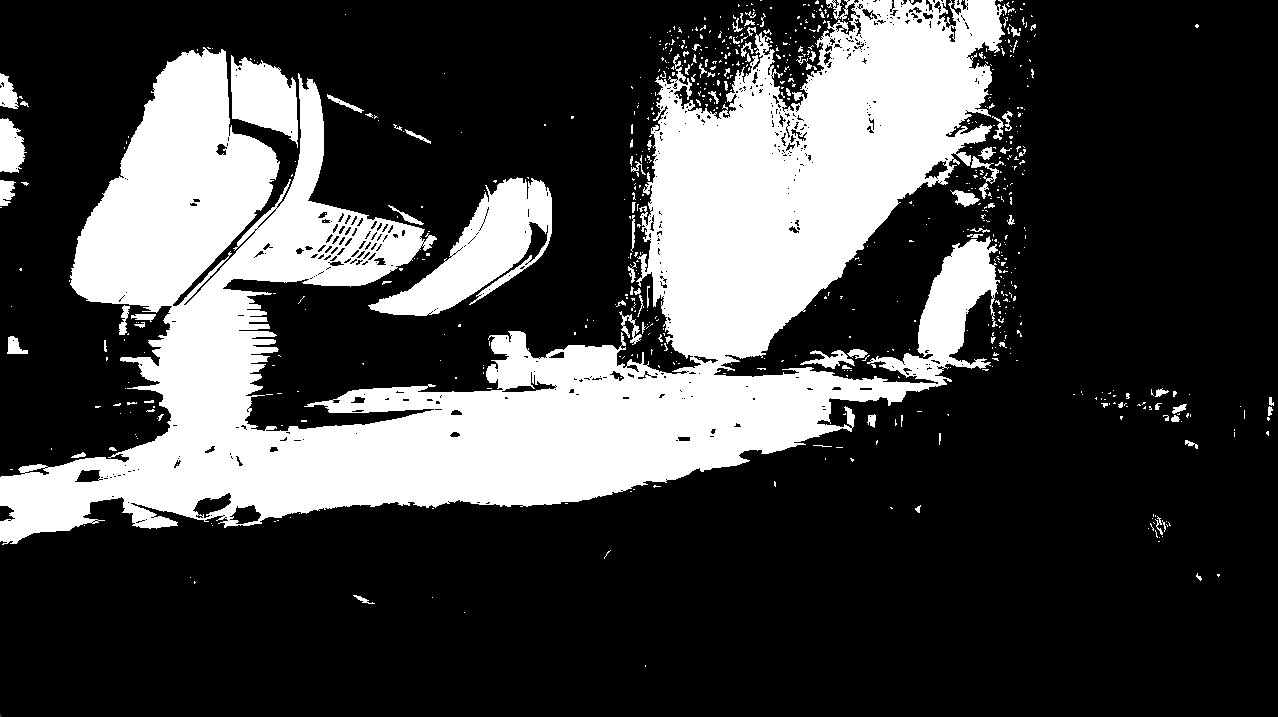

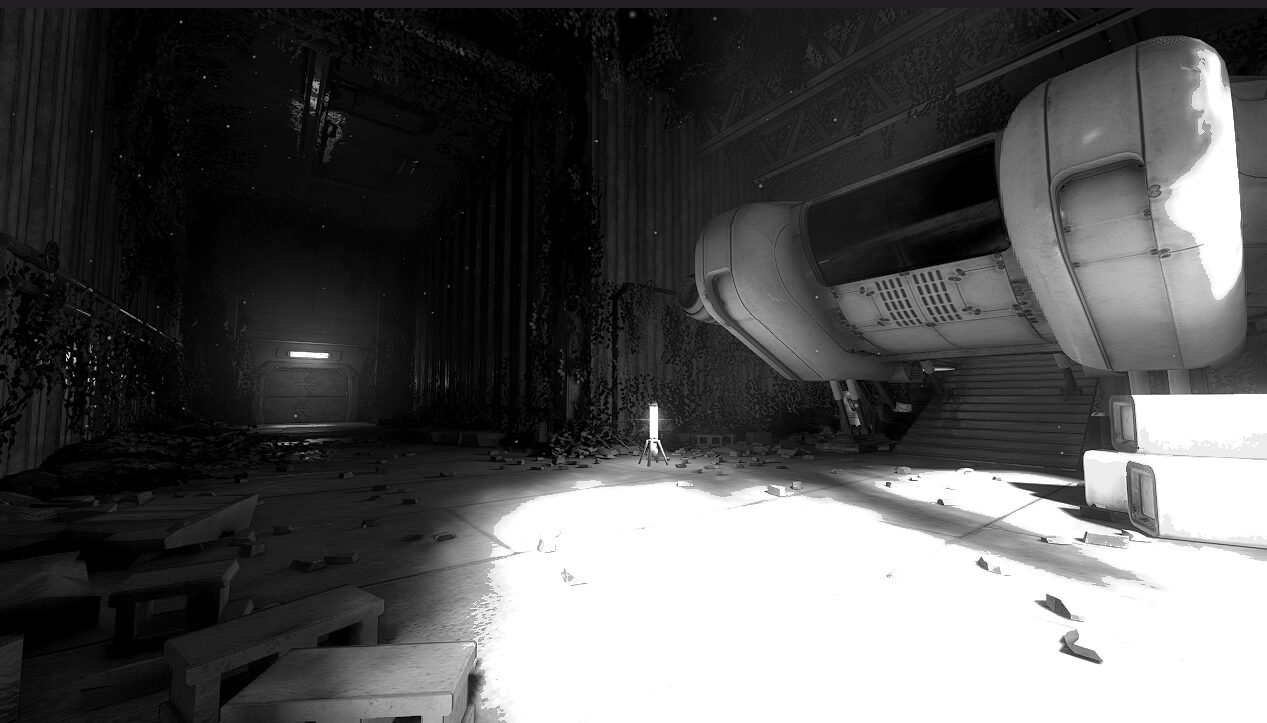

A simple shader that compares average pixel color with threshold and outputs shifted color in different directions depending on the delta parameter

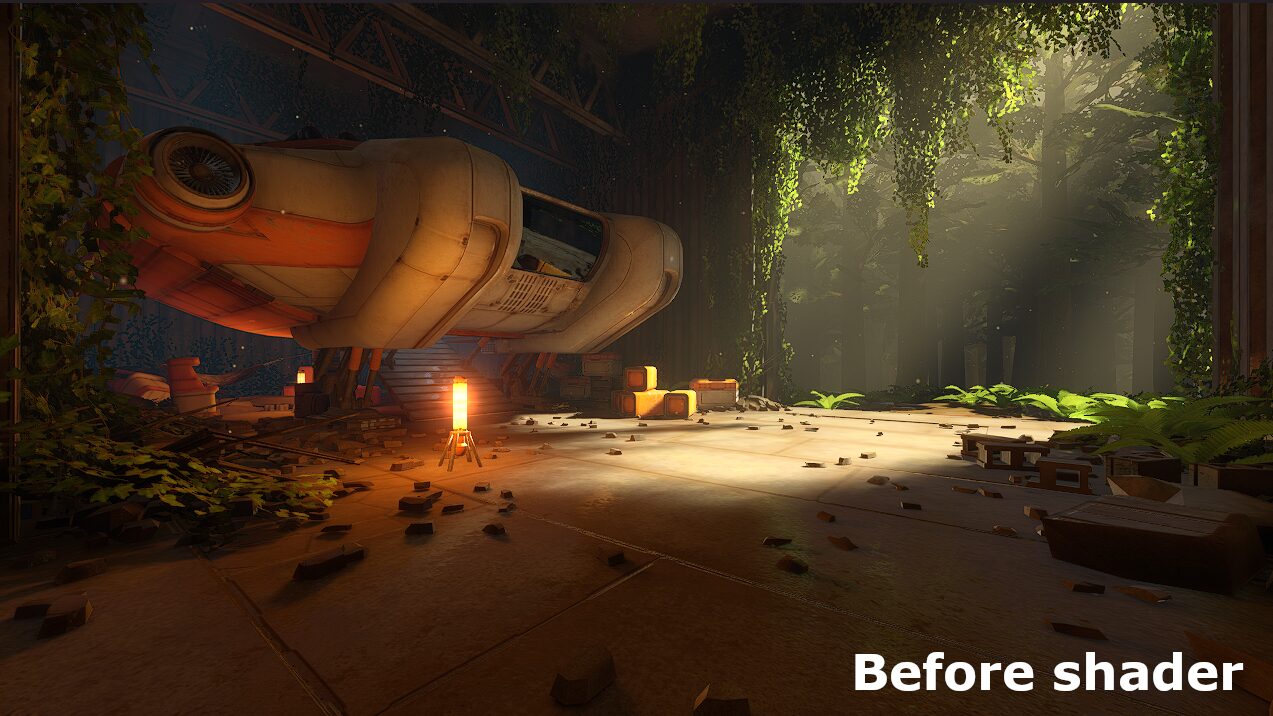

The demo scene is provided by awesome Jaanus Jaggo (Perfoon).

Shader code
shader_type canvas_item;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;

uniform float threshold: hint_range(0.0,1.0) = 0.5;
uniform float delta: hint_range(0.0,1.0) = 0.2;

void fragment(){
	vec4 screen_color = texture(SCREEN_TEXTURE, SCREEN_UV); // Get the color from the screen texture

	float avg = (screen_color.r + screen_color.g + screen_color.b) / 3.0;

	if (avg< threshold){
		COLOR.rgb = vec3(screen_color.r - delta, screen_color.r - delta, screen_color.r - delta);
	}else{
		COLOR.rgb = vec3(screen_color.r + delta, screen_color.r + delta, screen_color.r + delta);
	}
}
Tags
canvas item, grey filtering
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
