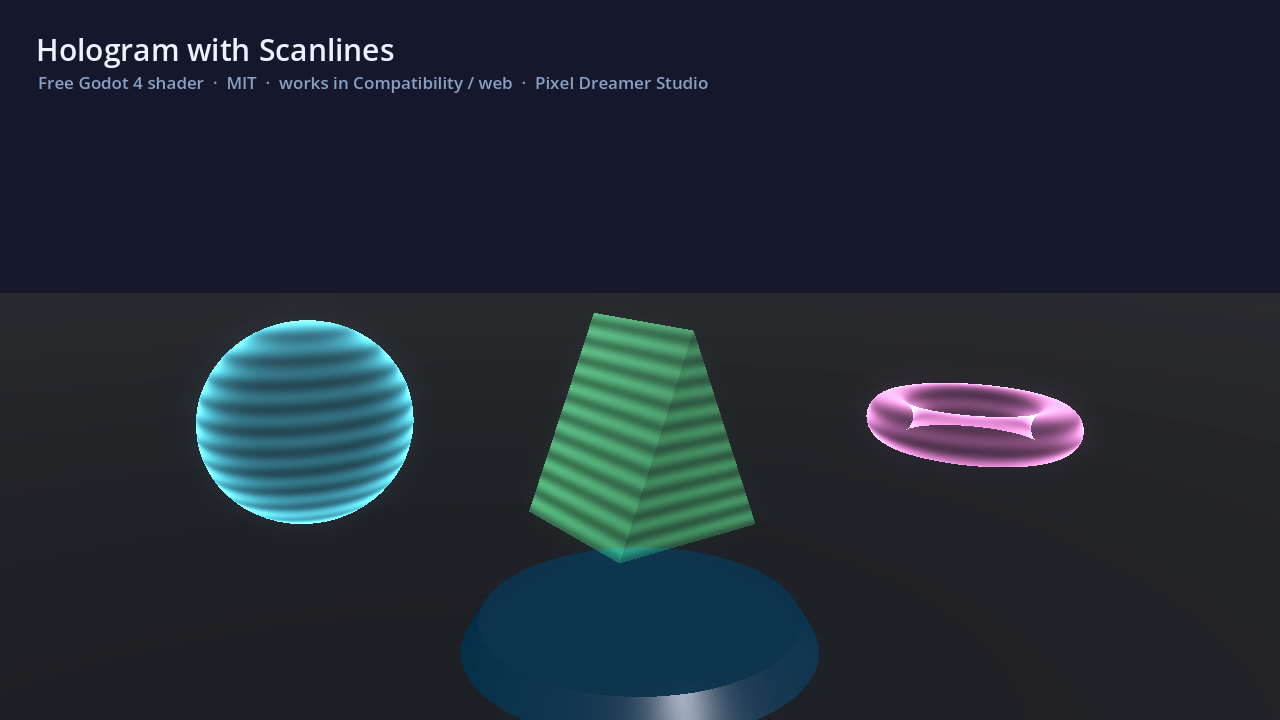

Hologram with Scanlines
A sci-fi hologram shader for any 3D mesh: fresnel rim, moving scanlines, a bright scan band, random flicker and glitch slices that jump sideways.
- holo_color, energy
- fresnel_power, base_alpha
- line_density (lines per world unit), line_speed, line_strength
- flicker, glitch
Additive and unshaded, so it never needs lights. Scanlines are in world space, so they line up across several objects.
Tested in Godot 4.7 with the Compatibility renderer, so it also works in web exports.
Code written with AI assistance, tested by hand in Godot 4.7.
More Godot 4 packs: https://pixeldreamerstudio.itch.io/
Shader code
// Pixel Dreamer — Hologram with Scanlines (Godot 4 · spatial · Forward+/Mobile/Compatibility)
// MIT License · https://pixeldreamerstudio.itch.io/
// Fresnel rim + moving scanlines + flicker + glitch slices. Works on any mesh.
shader_type spatial;
render_mode blend_add, unshaded, cull_back, depth_draw_never;
uniform vec4 holo_color : source_color = vec4(0.25, 0.85, 1.0, 1.0);
uniform float energy : hint_range(0.0, 8.0) = 1.6;
uniform float fresnel_power : hint_range(0.5, 8.0) = 2.5;
uniform float base_alpha : hint_range(0.0, 1.0) = 0.15;
uniform float line_density = 60.0; // scanlines per world unit
uniform float line_speed = 1.2;
uniform float line_strength : hint_range(0.0, 1.0) = 0.5;
uniform float flicker : hint_range(0.0, 1.0) = 0.15;
uniform float glitch : hint_range(0.0, 0.2) = 0.03; // sideways jump of random slices
varying float world_y;
float h1(float n) {
return fract(sin(n * 127.1) * 43758.5453);
}
void vertex() {
vec3 wp = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;
float slice = floor(wp.y * 12.0 + floor(TIME * 8.0) * 3.7);
float g = step(0.93, h1(slice + floor(TIME * 8.0))) * (h1(slice * 3.1) - 0.5) * 2.0;
VERTEX.x += g * glitch;
world_y = wp.y;
}
void fragment() {
float fres = pow(1.0 - clamp(dot(NORMAL, VIEW), 0.0, 1.0), fresnel_power);
float lines = 0.5 + 0.5 * sin((world_y * line_density - TIME * line_speed * 10.0));
lines = mix(1.0, lines, line_strength);
float band = smoothstep(0.0, 0.08, abs(fract(world_y * 0.6 - TIME * 0.35) - 0.5)) ;
band = mix(1.6, 1.0, band);
float fl = 1.0 - flicker * step(0.92, h1(floor(TIME * 20.0)));
float a = (base_alpha + fres) * lines * band * fl;
ALBEDO = holo_color.rgb * a * energy;
}
