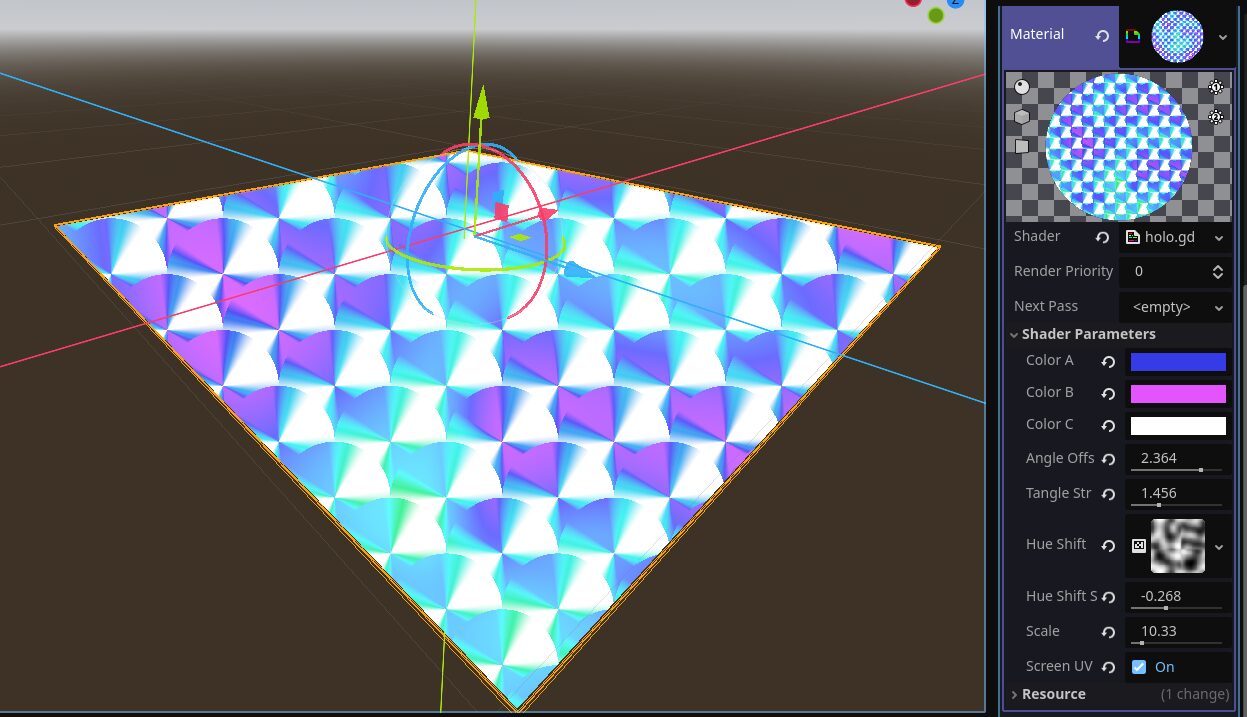

Holographic Disc Pattern
I’ve been rewatching Mob Psycho 100 recently, and the effect used for Mob’s psychic power was calling to me. So I decided to recreate it.
I used a snippet of code from this HSV adjustment shader to do some color adjustment to the whole thing via noise texture.
It might be nice to implement this shader with an outline shader to pull off a cool psychic effect. I may go about that eventually.
Shader code
shader_type spatial;
render_mode unshaded;
uniform float scale = 1.0;
uniform float gradient_power = 10.;
uniform vec3 color_base:source_color;
uniform vec3 color_shine_a:source_color;
uniform vec3 color_shine_b:source_color;
uniform float gradient_rotation:hint_range(0, 3.141592654);
uniform sampler2D hue_shift_map:hint_default_black;
uniform float hue_shift_strength:hint_range(-1.,1.);
uniform bool screen_uv = false;
const vec2 POSITIONS[] = {
vec2(0, .5),
vec2(.5,0),
vec2(-.5,0),
vec2(0, -.5)
};
vec3 rgb2hsv(vec3 c) {
vec4 K = vec4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
vec4 p = mix(vec4(c.bg, K.wz), vec4(c.gb, K.xy), step(c.b, c.g));
vec4 q = mix(vec4(p.xyw, c.r), vec4(c.r, p.yzx), step(p.x, c.r));
float d = q.x - min(q.w, q.y);
float e = 1.0e-10;
return vec3(abs(q.z + (q.w - q.y) / (6.0 * d + e)), d / (q.x + e), q.x);
}
vec3 hsv2rgb(vec3 c) {
vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}
float circle(vec2 uv) {
return 1.0 - step(.5, distance(uv, vec2(.5)));
}
float radial_gradient(vec2 uv, float target_angle) {
float angle_to_center = atan(.5 - uv.y, .5 - uv.x);
target_angle += gradient_rotation;
float distance_to_angle = max(
sin(angle_to_center + target_angle),
sin(angle_to_center + target_angle + PI)
);
distance_to_angle = pow(distance_to_angle, gradient_power);
return distance_to_angle;
}
void fragment() {
vec2 base_uv = UV;
if (screen_uv) {
float aspect = VIEWPORT_SIZE.y/VIEWPORT_SIZE.x;
base_uv = vec2(SCREEN_UV.x, SCREEN_UV.y*aspect);
}
vec2 uv = base_uv * scale;
uv = fract(uv);
vec3 color;
for (int i = 0; i < POSITIONS.length(); i++) {
vec2 offset_uv = uv + POSITIONS[i];
vec3 circle_color = color_base;
circle_color = mix(circle_color, color_shine_a, radial_gradient(offset_uv, 0.0));
circle_color = mix(circle_color, color_shine_b, radial_gradient(offset_uv, PI/2.));
color = mix(color, circle_color, circle(offset_uv));
}
float shift = texture(hue_shift_map, base_uv).r;
vec3 hsv = rgb2hsv(color);
hsv.r += shift * hue_shift_strength;
color = hsv2rgb(hsv);
ALBEDO = color;
}
