Watercolor Light Shader

This shader was made to replicate the look of Ken Sugimori’s watercolor art of Pokemon! There are a lot of parameters in this shader, and all of them should be documented in the code itself.

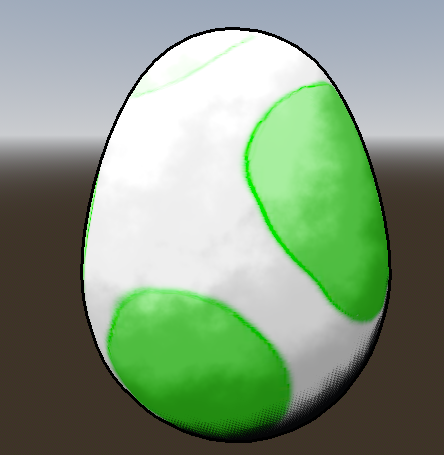

This shader does not include the outlines found in the screenshots, see the list of references below!

Of course, I don’t require any credit if you happen to use this shader, but if you do, I’d love to see it!

You can see an early version of this shader in action here!

Key Features

• Multiple Light Support
  • Does not support ambient light. though, you can use the light_offset value to fake that.
• Configurable Light banding
  • You can disable this effect entirely, I find a value of 2-5 feels proper for the Sugimori-like style.

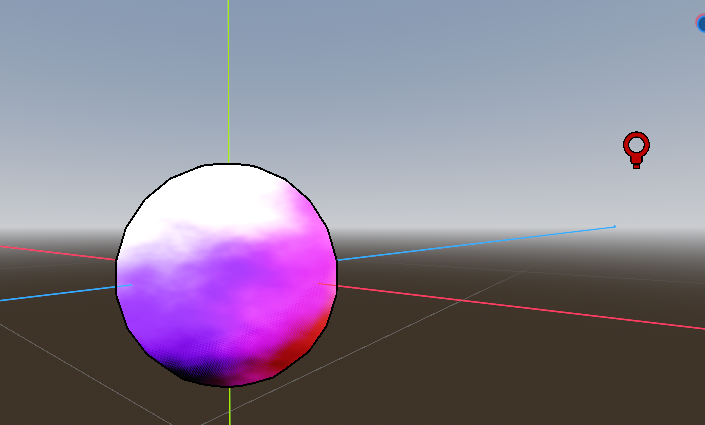

• Light Color Blending
  • Will color blend between colored lights, keeping the watercolor aesthetic
• Very, very, very configurable.
  • There’s lot of parameters. You don’t technically need to shoot for watercolor with it, you can use it for cel shading alone.
  • You might be able to get some interesting effects plugging in different types of noise, or hand painted noise on the light_noise texture.

References

• Pixel Perfect Outline
  • Used for screenshots, it was a big part of getting the “inked watercolor” look I’m going for, but it’s not a part of this particular shader. To use it, you can either set a second pass shader with that applied, or use a material overlay with that shader.
• HSV Adjusment Shader
  • This shader’s hsv2rgb and rgb2hsv functions are included in this shader. They’re super duper handy.
• Edge Detection Shader
  • I utilized the sobel code from this shader, but not the gaussian blur. One could argue the guassian blur would make this even nicer looking, but I would argue I’m too lazy, and performance, or something.

Shader code

shader_type spatial;
group_uniforms Light;
/**
 * A noise texture to warp the lighting.
 * SCREEN_UVs are used to apply this, adjust your scale as needed.
 */
uniform sampler2D light_noise;
/**
 * The scale of SCREEN_UV to apply. (this is already aspect-ratio corrected)
 */
uniform vec2 light_noise_scale = vec2(1.0);
/**
 * The strength of the noise's warping effect on the light.
 */
uniform float light_noise_strength;
/**
 * Amopunt of light bands you want to have.
 */
uniform int light_steps:hint_range(1, 100, 1) = 5;
/**
 * Higher values makes the bands more visible, can be good for cel shading.
 */
uniform float light_step_power = 2.;
/**
 * Offset of light value. You may want to adjust this before the light multiplier.
 * Usually, you'd adjust this so that the black is removed from your model with a single light source
 * Then, you can adjust the light multiplier to adjust the amount of light hitting your model.
 */
uniform float light_offset:hint_range(-2,2) = 0;
/**
 * Multiplies the post-offset light value by this amount.
 * See: light_offset
 */
uniform float light_multiplier = 1;

group_uniforms Color;
/**
 * The input color texture.
 * To get the best result, use a limited palette of very saturated colors.
 */
uniform sampler2D albedo;
/**
 * A noise texture to slightly warp the input texture.
 * Optional.
 */
uniform sampler2D albedo_noise_texture;
/**
 * The strength of the offset applied to the texture from the noise.
 * Optional.
 */
uniform vec2 albedo_noise_strength;
/**
 * The scale of the UV to apply to the noise texture.
 * Optional.
 */
uniform vec2 albedo_noise_scale = vec2(1.0);
/**
 * The amount to multiply the saturation of the albedo by (before light shading)
 * This is handy if you find your inpute texture is getting washed way.
 */
uniform float saturation_multiplier = 1.;
/**
 * The power applied to desaturation effect in bright lights.
 */
uniform float desaturation_power = 10;

group_uniforms Other;
/**
 * scales the light noise by the depth value.
 * This can be great for perspective cameras, so that objects at a distance don't look too noisy.
 * However, with a perspective camera, it makes things hard to tune.
 */
uniform bool enable_depth_scaling = true;
/**
 * The amount depth scaling will be strengthened.
 */
uniform float depth_strength = 2;
/**
 * Multiply edge detection by this amount, higher values leads to more defined edges.
 */
uniform float edge_strength = 1;

void fragment() {
	ALBEDO = vec3(0);
}

vec3 rgb2hsv(vec3 c) {
    vec4 K = vec4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
    vec4 p = mix(vec4(c.bg, K.wz), vec4(c.gb, K.xy), step(c.b, c.g));
    vec4 q = mix(vec4(p.xyw, c.r), vec4(c.r, p.yzx), step(p.x, c.r));

    float d = q.x - min(q.w, q.y);
    float e = 1.0e-10;
    return vec3(abs(q.z + (q.w - q.y) / (6.0 * d + e)), d / (q.x + e), q.x);
}

vec3 hsv2rgb(vec3 c) {
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

float stepped(int steps_int, float edge_length, float value) {
	float steps = float(steps_int);
	float stepped = smoothstep(floor(value*steps),ceil(value*steps), value*steps);
	stepped = pow(stepped, light_step_power);
	return (floor(value*steps)+stepped)/steps;
}
// returns 0-1, strength of the light.
float get_light_strength(vec3 normal, vec3 light, vec2 uv, float attenuation, float aspect_ratio, float depth) {
	// Basic 0-1 for light strength
	float light_strength = dot(normal, light) /2. + .5;
	light_strength = light_strength * attenuation;
	// apply a noise for that watercolor-look
	vec2 lns = light_noise_scale;
	if (enable_depth_scaling) {
		lns *= (1.0-depth) * depth_strength;
	}
	float noise = texture(light_noise, uv * lns * vec2(aspect_ratio,1.)).r - .5;
	light_strength += noise * light_noise_strength;
	light_strength *= light_multiplier;
	light_strength += light_offset;
	light_strength = stepped(light_steps, .1, light_strength);
	return clamp(light_strength, 0, 1);
}
float get_edge(vec2 uv) {
	vec3 pixels[9];
	vec2 pixel_size = vec2(1./1024.);
	for (int row = 0; row < 3; row++) {
		for (int col = 0; col < 3; col++) {
			vec2 _uv = uv + vec2(float(col - 1), float(row - 1)) * pixel_size;
			pixels[row * 3 + col] = texture(albedo, _uv).rgb;
		}
	}
	vec3 gx = (
		pixels[0] * -1.0 + pixels[3] * -2.0 + pixels[6] * -1.0
		+ pixels[2] * 1.0 + pixels[5] * 2.0 + pixels[8] * 1.0
	);
	vec3 gy = (
		pixels[0] * -1.0 + pixels[1] * -2.0 + pixels[2] * -1.0
		+ pixels[6] * 1.0 + pixels[7] * 2.0 + pixels[8] * 1.0
	);
	vec3 sobel = sqrt(gx * gx + gy * gy);
	float is_edge = (sobel.r + sobel.g + sobel.b ) / 3.;
	is_edge *= edge_strength;
	return clamp(is_edge, 0, 1);
}

vec3 get_color(vec2 uv, float is_edge, float light_strength, vec3 light_color) {
	vec3 color = texture(albedo, uv).rgb;
	light_color = light_color/PI*light_strength;
	vec3 light_color_hsv = rgb2hsv(light_color);
	color = mix(color, light_color, light_color_hsv.y);
	color = rgb2hsv(color);
	color.y *= saturation_multiplier;
	vec3 desaturated_color = vec3(
		color.x,
		min(color.y, color.y*(1.0-pow(light_color_hsv.z, desaturation_power))),
		max(color.z * light_color_hsv.z, light_color_hsv.z*2. * (light_color_hsv.z ))
	);
	vec3 edge_color = vec3(
		color.x,
		color.y,
		max(color.z * light_color_hsv.z, light_color_hsv.z*2. * (light_color_hsv.z ))
	);
	color = mix(desaturated_color, edge_color, is_edge);
	return hsv2rgb(color);
}

void light() {
	// Get light strength from 0-1
	float light_strength = get_light_strength(NORMAL, LIGHT, SCREEN_UV, ATTENUATION, VIEWPORT_SIZE.x/VIEWPORT_SIZE.y, FRAGCOORD.z);

	// used to wobble the texture
	vec2 noise = texture(albedo_noise_texture, SCREEN_UV * albedo_noise_scale).rg - vec2(.5);
	noise *= albedo_noise_strength;

	vec2 uv = UV + noise;
	float is_edge = get_edge(uv);
	vec3 color = get_color(uv, is_edge, light_strength, LIGHT_COLOR);

    SPECULAR_LIGHT += color;
}
