Light Respecting Grain Filter

Was working on a project of mine and wrote this shader. It’s a light-level respecting, colored grain shader with the soft-light blend mode

my itch.io page

Shader code
shader_type canvas_item;

uniform sampler2D screen_texture : hint_screen_texture, filter_linear_mipmap, repeat_enable;
uniform float grain_intensity : hint_range(0.0, 1.0) = 0.1;
uniform float min_lum : hint_range(0.0, 1.0) = 0.0;
uniform float max_lum : hint_range(0.0, 1.0) = 1.0;
uniform float time_scale : hint_range(0.0, 1.0) = 0.5;

float noise(vec2 p) {
    return (fract(sin(dot(p, vec2(12.9898, 78.233))) * 43758.5453) - 0.5) * 2.0;
}

vec3 soft_light(vec3 A, vec3 B) {
    vec3 branch1 = 2.0 * A * B + A * A * (1.0 - 2.0 * B);
    vec3 branch2 = 2.0 * A * (1.0 - B) + sqrt(A) * (2.0 * B - 1.0);
    vec3 condition = step(0.5, B);
    return mix(branch1, branch2, condition);
}

void fragment() {
    vec2 uv = UV;
    vec3 original_color = texture(screen_texture, uv).rgb;

    float lum = dot(original_color, vec3(0.299, 0.587, 0.114));
    float factor = 1.0 - smoothstep(min_lum, max_lum, lum);

    vec2 offset = vec2(sin(TIME * time_scale), cos(TIME * time_scale)) * 20.0;
    vec2 noise_uv = uv + offset;

    float noise_r = noise(noise_uv);
    float noise_g = noise(noise_uv + vec2(0.1, 0.2));
    float noise_b = noise(noise_uv + vec2(0.3, 0.4));
    vec3 grain = vec3(noise_r, noise_g, noise_b) * grain_intensity * factor;

    vec3 grain_color = clamp(vec3(0.5) + grain, 0.0, 1.0);
    vec3 final_color = soft_light(original_color, grain_color);

    COLOR = vec4(final_color, 1.0);
}

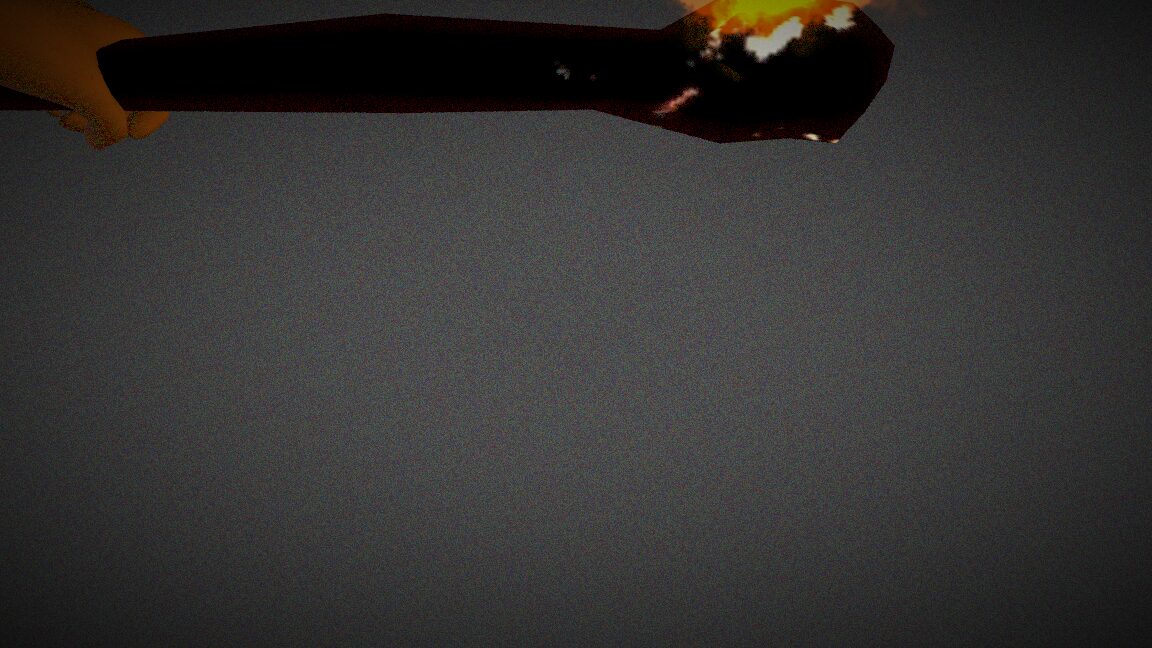

Live Preview
Tags
atmosphere, film grain, Grain, light
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
