Magical Mist

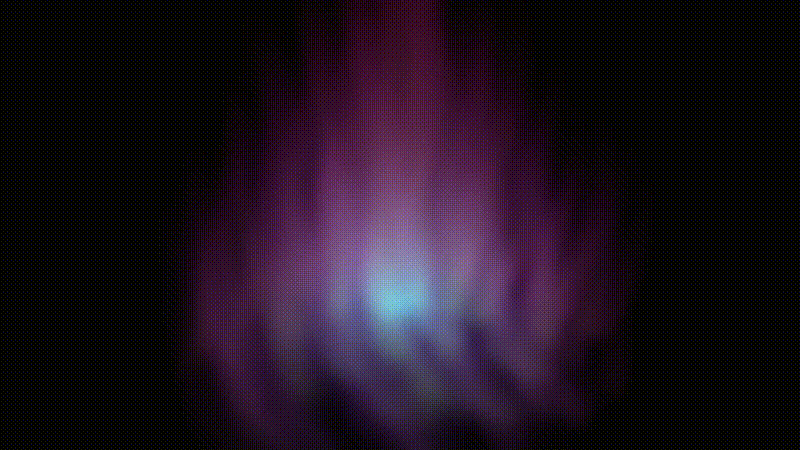

I wanted to play with fog shaders and achieved this nice looking magical mist effect.

You can find the full sample project on my github.

Link to my youtube video about fog shaders  (its in spanish).

Shader code

// Enable Volumetric Fog in WorldEnvironment
// Create a FogVolume and use this shader in its material
// For better results, place an omnilight on the base/center of the fogvolumen
// and in Project > Project Settings > Rendering > Environment increase
// Volume Size and Volume Depth to around 196 (be sure to enable Advanced
// Settings to be able to modify this setting)

shader_type fog;

uniform sampler2D noise_tex : repeat_enable; // use a noise texture
uniform float noise_scale = 1.0;
uniform sampler2D grad_tex; // use a gradient or curve texture
uniform float grad_scale = 1.0;

uniform float density_scale = 1.0;

uniform float rotation_speed = 0.25;
uniform float rotate_with_height = 1.0;
uniform vec2 rotation_pivot = vec2(0.5);

uniform vec3 albedo_color_a : source_color = vec3(0.0, 0.0, 1.0);
uniform vec3 albedo_color_b : source_color = vec3(0.0, 1.0, 0.0);
uniform vec3 emission_color : source_color = vec3(1.0, 0.0, 0.0);

// this function was taken from godotshaders.com :)
vec2 rotate(vec2 uv, vec2 pivot, float angle)
{
	mat2 rotation = mat2(vec2(sin(angle), -cos(angle)),
						vec2(cos(angle), sin(angle)));

	uv -= pivot;
	uv = uv * rotation;
	uv += pivot;
	return uv;
}

void fog() {
	// sample noise texture
	vec2 noise_uv = UVW.xz;
	float rot_with_time = TIME;
	float rot_with_height = UVW.y * TAU * rotate_with_height;
	float rot_final = rot_with_time + rot_with_height;
	noise_uv = rotate(noise_uv, rotation_pivot, rot_final * rotation_speed);
	float noi1 = texture(noise_tex, noise_uv * noise_scale).r;

	// compute distance to the rotation center
	float dist = length(noise_uv - rotation_pivot);

	// sample grad texture
	vec2 grad_uv = vec2((1.0 - UVW.y) * grad_scale, 0.5);
	float grad = texture(grad_tex, grad_uv).r;

	// compute final density
	float dens = clamp( (noi1 * grad) - dist, 0.0, 1.0 );
	dens *= density_scale;

	// set output values
	ALBEDO = mix(albedo_color_a, albedo_color_b, dens);
	EMISSION = emission_color;
	DENSITY = dens;
}
