Retro Post-Processing

Canvas item shader that can handle resolution scaling, color depth adjustments, and dithering, as well as handling a LUT light recoloring of the scene using a target gradient.

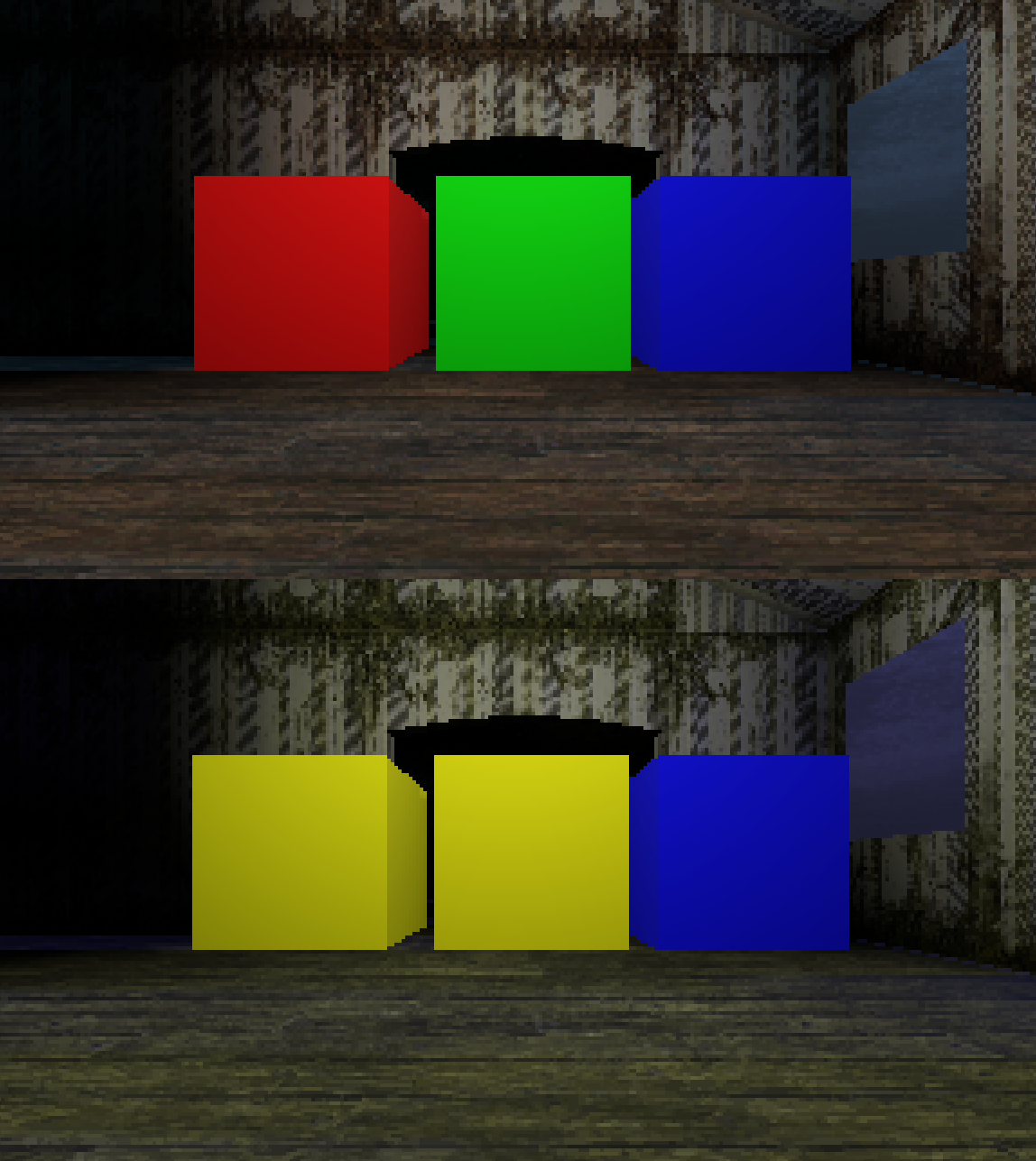

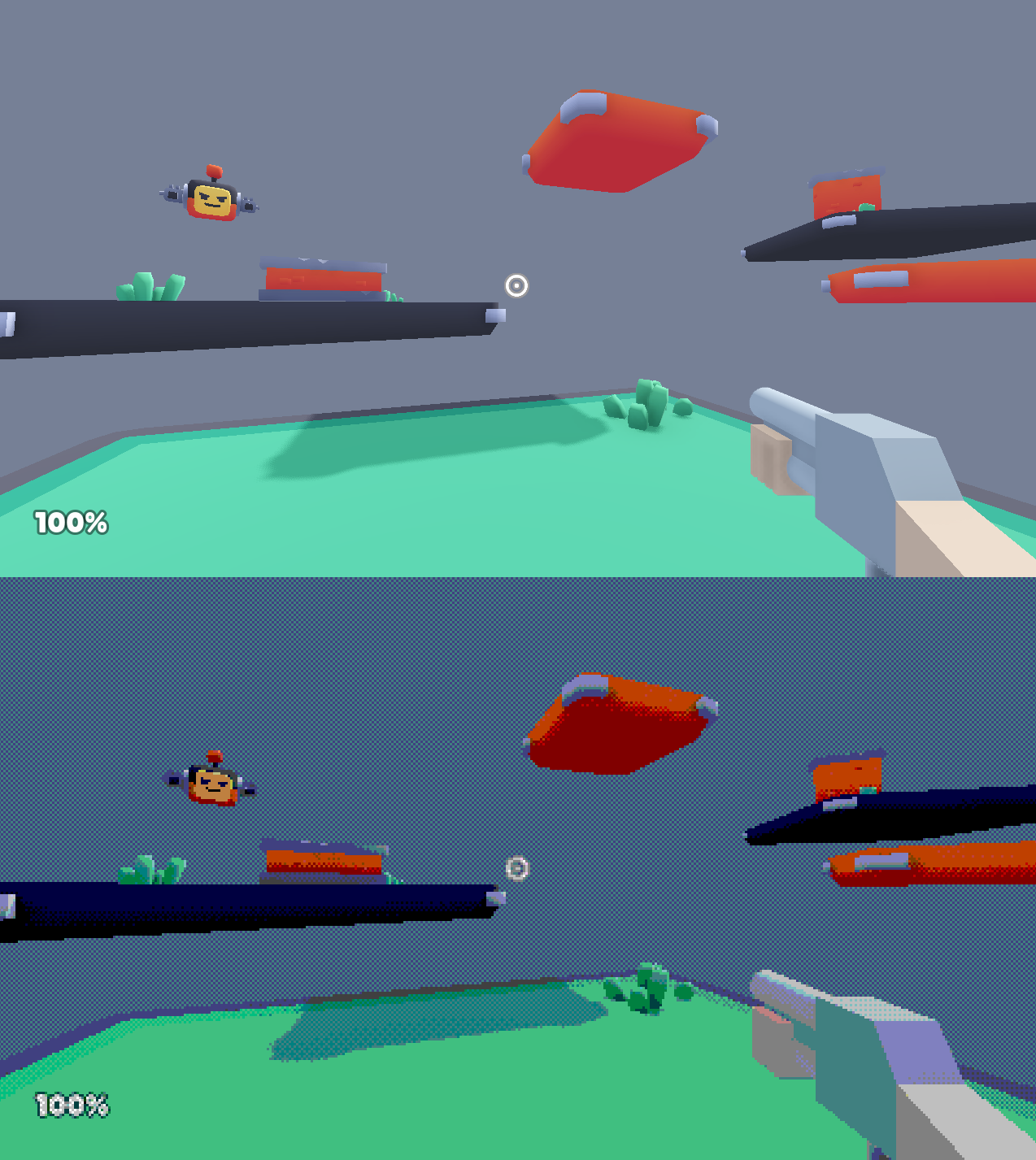

Heavily based on the PS1 Post-processing shader by Might Duke, but is now a canvas_item shader you apply to a SubViewportContainer and should also handle transparency.  The recoloring target gradient should be based on the HSV editors RGB gradient for reference and can be seen in the linked video explaining the shader.

Usage:
Create a RenderContainer scene consisting of the following structure
SubViewportContainer -> SubViewport -> [The 3D scene you want to render]

Then add a new ShaderMaterial to the SubViewportContainer, create a new Shader, and paste the below shader code into the new shader.  The parameters should be under that shader and you can play with them to get the visual you want.



Shader code
shader_type canvas_item;

// Handles the resolution changes, color depth, and dithering
group_uniforms resolution_and_colors;
uniform bool change_color_depth = false;
uniform int target_color_depth : hint_range(1, 8) = 5;
uniform bool dithering = false;
uniform bool scale_resolution = false;
uniform int target_resolution_scale = 3;

// Handles the LUTish recoloring
group_uniforms gradient_recoloring;
uniform bool enable_recolor = false;
uniform sampler2D to_gradient: hint_default_black;

int dithering_pattern(ivec2 fragcoord) {
	const int pattern[] = {
		-4, +0, -3, +1,
		+2, -2, +3, -1,
		-3, +1, -4, +0,
		+3, -1, +2, -2
	};

	int x = fragcoord.x % 4;
	int y = fragcoord.y % 4;

	return pattern[y * 4 + x];
}

vec3 rgb2hsv(vec3 rgb) { //Converts RGB values to HSV
	float r = rgb.r;
	float g = rgb.g;
	float b = rgb.b;

	float cmax = max(r,max(g,b));
	float cmin = min(r,min(g,b));
	float delta = cmax - cmin;

	float h = 0.f; //hue

	if (delta > 0.f){
		if (cmax == r){
			h = (g-b)/delta;
			h = mod(h,6.f);
		} else if (cmax == g){
			h = ((b - r) / delta) + 2.f;
		} else {
			h = ((r-g)/delta) + 4.f;
		}
		h = h * 60.f;
	}

	float s = 0.f; //saturation
	if (cmax > 0.f){
		s = delta / cmax;
	}

	return vec3(h,s,cmax); // Keep original alpha value

}

vec3 hsv2rgb(vec3 hsv) { //Converts HSV values to RGB
	float h = hsv.r;
	float s = hsv.g;
	float v = hsv.b;
	float c = v * s;
	//X = C × (1 - |(H / 60°) mod 2 - 1|)
	float x = h / 60.f;
	x = mod(x,2.f);
	x = abs(x - 1.f);
	x = c * (1.f - x);

	float m = v - c;

	vec3 rgb = vec3(0.f,0.f,0.f);

	if (h < 60.f) {
		rgb = vec3(c,x,0.f);
	} else if (h < 120.f){
		rgb = vec3(x,c,0.f);
	} else if (h < 180.f){
		rgb = vec3(0.f,c,x);
	} else if (h < 240.f){
		rgb = vec3(0.f,x,c);
	} else if (h < 300.f){
		rgb = vec3(x,0.f,c);
	} else if (h >= (8 - target_color_depth);
		final_color = vec3(c) / float(1 << target_color_depth);
	} else {
		final_color = vec3(c) / float(1 << 8);
	}

	// Convert back to [0.0, 1.0] range
	COLOR.rgb = final_color;
}
Tags
4.x, dither, lowres, lut, psx, recolor, retro
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

Blur Vignette (Post Processing / ColorRect) [Godot 4.2.1]

3D Post-Processing: Dithering + Color Palettes

Bloom post processing for viewports

Subscribe
Notify of
guest

5 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
dootydut
2 months ago

Hey, are you sure this is the right shader? It seems to be a different one responsible for a CRT filter.

RuverQ
2 months ago
Reply to  dootydut

yeah, i’m so cringe. I remade the comment, sorry

Last edited 2 months ago by RuverQ
dootydut
2 months ago
Reply to  RuverQ

Its okay 😀

RuverQ
2 months ago

Cool shader!
But I find it confusing with this **SubViewportContainer -> SubViewport** thing

so I rewrote it to use screen_texture
to use this you need to add ColorRect to your scene and just adjust the size of it to fullscreen
