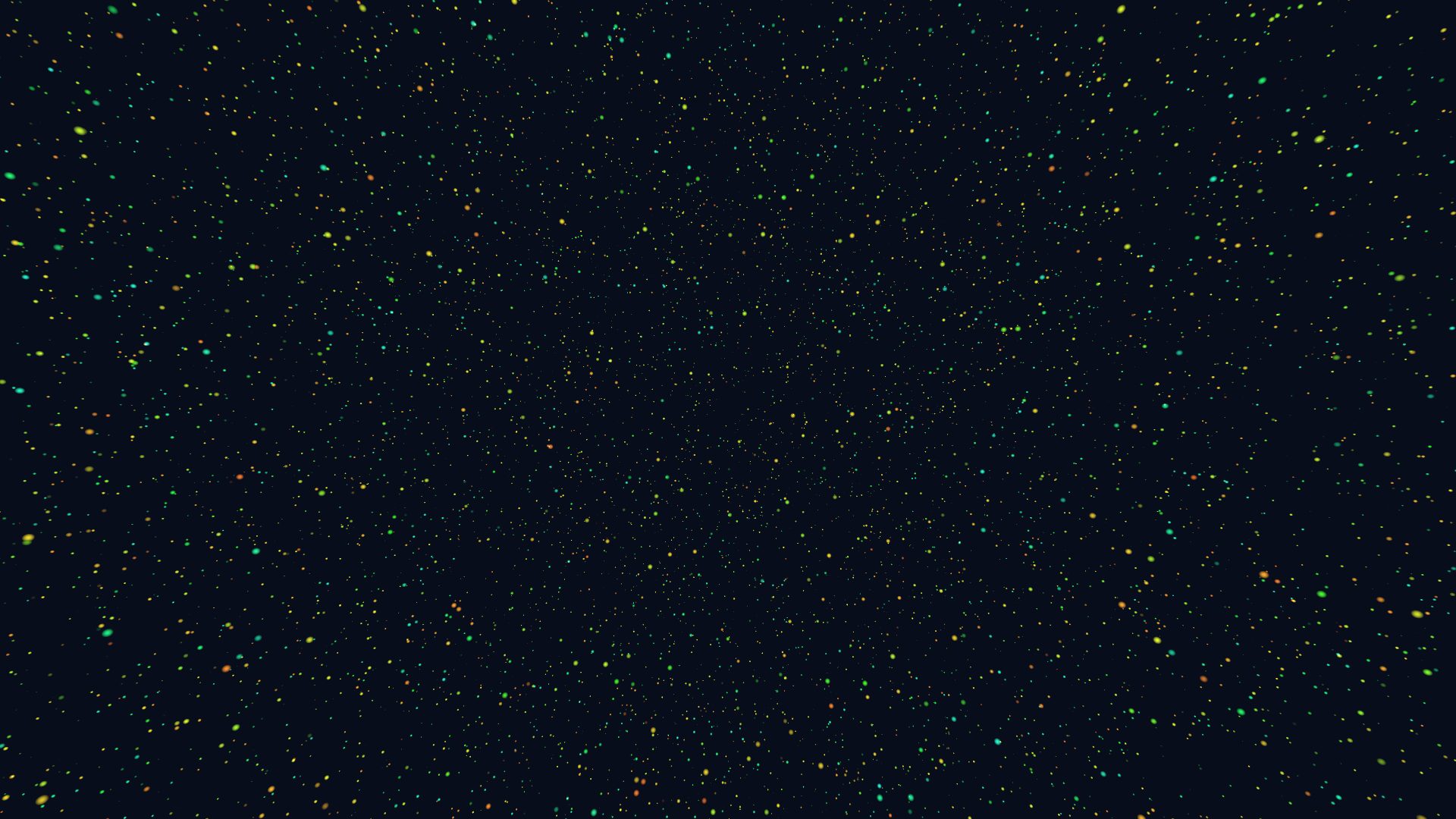

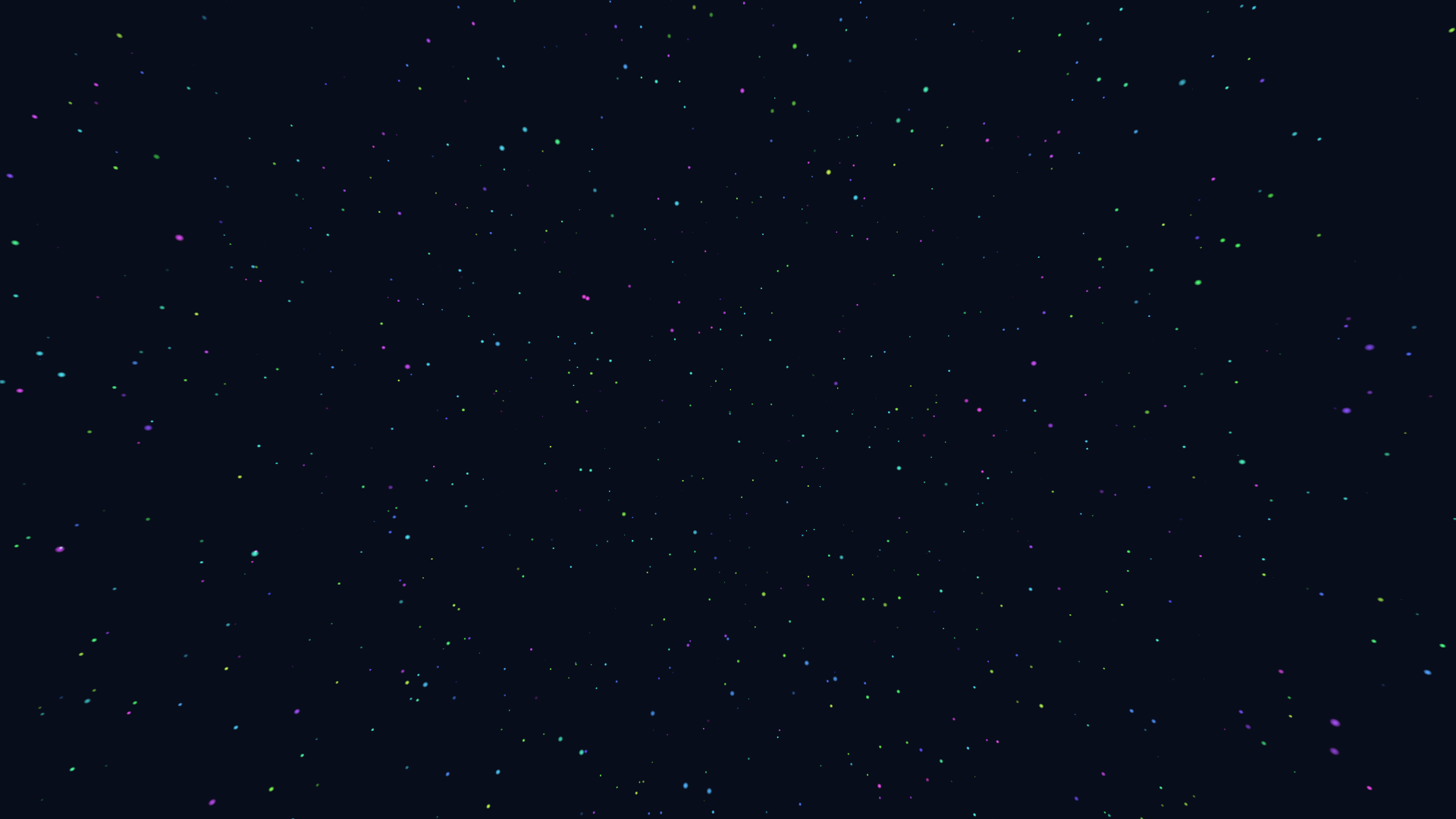

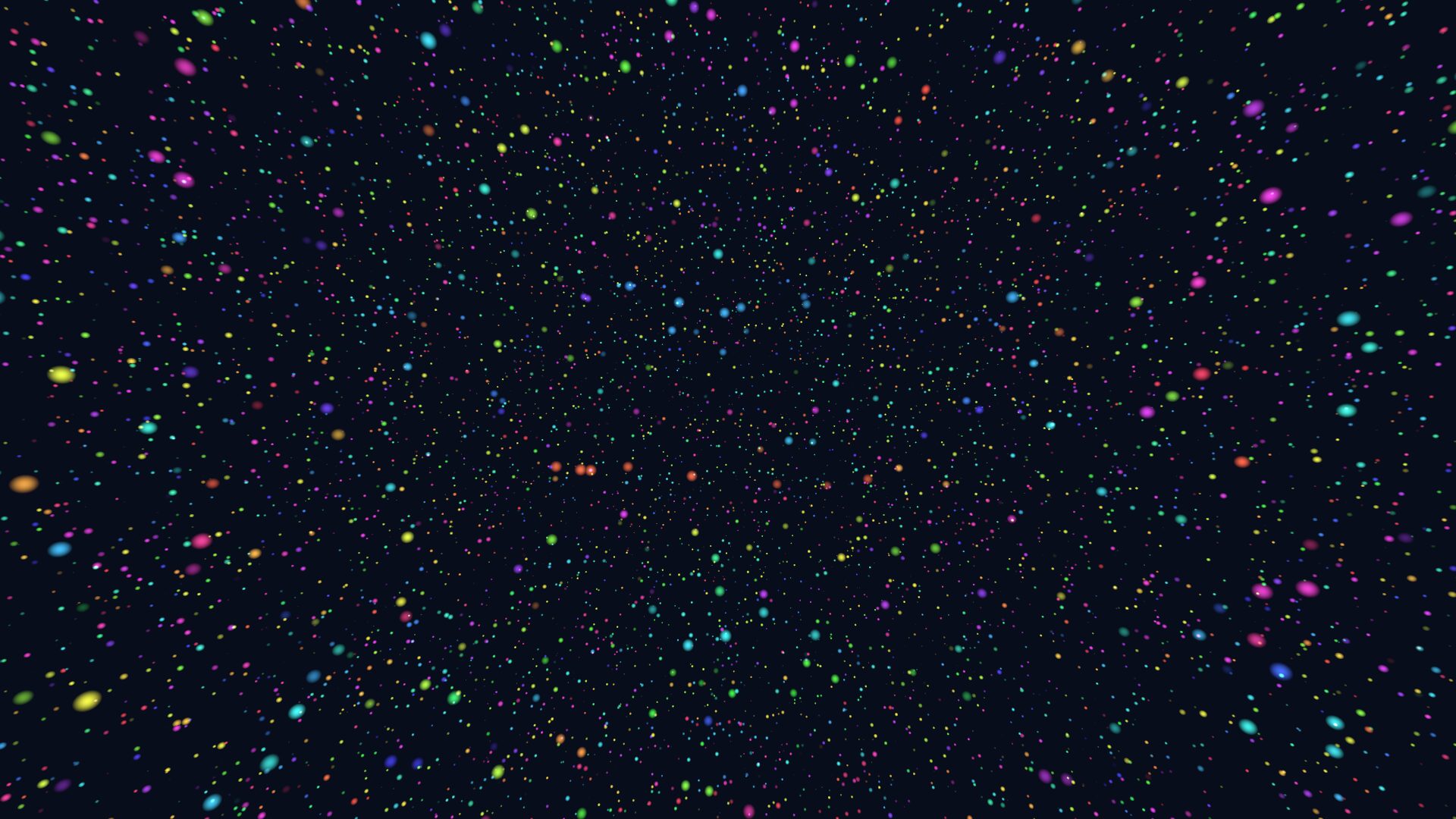

Starry sky

Simple star shader using voronoi.

Inspired by this video and this shader.

Shader code
shader_type sky;

// Comment this if you don't want to use star twinke. However, if you do want to keep it,
// I suggest you to set the sky process mode to High-Quality Incremental or Real-Time,
// as star twinkling may greatly impact performance.
#define USE_TWINKLE

group_uniforms sky;
uniform vec3 sky_color: source_color = vec3(0.03, 0.05, 0.11);

group_uniforms stars;
uniform vec3 star_base_color: source_color = vec3(0.8, 1.0, 0.3);
uniform float star_hue_offset: hint_range(0., 1.) = 0.6;
uniform float star_intensity: hint_range(0., 0.2) = 0.08;
#ifdef USE_TWINKLE
uniform float star_twinkle_speed: hint_range(0.0, 2.0) = 0.8;
uniform float star_twinkle_intensity: hint_range(0.0, 1.0) = 0.2;
#endif

group_uniforms layers;
uniform float layer_scale: hint_range(0., 60.) = 20.;
uniform float layer_scale_step: hint_range(0., 40.) = 10.;
uniform int layers_count: hint_range(0, 12) = 3;

// Hue credit:
// The MIT License
// Copyright © 2024 DigvijaysinhGohil
// https://github.com/DigvijaysinhGohil/Godot-Shader-Lib

vec3 hue(vec3 input, float offset, int range_index) {
	// RGB to HSV
	vec4 k = vec4(0., -1./3., 2./3., -1.);
	vec4 p = mix(vec4(input.bg, k.wz), vec4(input.gb, k.xy), step(input.b, input.g));
	vec4 q = mix(vec4(p.xyw, input.r), vec4(input.r, p.yzx), step(p.x, input.r));
	float d = q.x - min(q.w, q.y);
	float e = 1.e-10;
	vec3 hsv = vec3(abs(q.z + (q.w - q.y) / (6. * d + e)), d / (q.x + e), q.x);

	offset = (range_index == 0) ? offset / 360. : offset;
	float hue = hsv.x + offset;
	if (hue < 0.) {
		hsv.x = hue + 1.;
	} else if (hue > 1.) {
		hsv.x = hue - 1.;
	} else {
		hsv.x = hue;
	}

	// HSV to RGB
	vec4 k2 = vec4(1., 2./3., 1./3., 3.);
	vec3 p2 = abs(fract(hsv.xxx + k2.xyz) * 6. - k2.www);
	vec3 rgb = hsv.z * mix(k2.xxx, clamp(p2 - k2.xxx, 0., 1.), hsv.y);
	return rgb;
}

// Voronoi method credit:
// The MIT License
// Copyright © 2013 Inigo Quilez
// https://www.shadertoy.com/view/ldl3Dl

vec3 hash(vec3 x) {
	x = vec3(dot(x, vec3(127.1,311.7, 74.7)),
			 dot(x, vec3(269.5,183.3,246.1)),
			 dot(x, vec3(113.5,271.9,124.6)));
	return fract(sin(x) * 43758.5453123);
}

vec2 voronoi(in vec3 x){
	vec3 p = floor(x);
	vec3 f = fract(x);

	float res = 100.;
	float id = 0.;

	for (float k = -1.; k <= 1.; k += 1.) {
		for (float j = -1.; j <= 1.; j += 1.) {
			for (float i = -1.; i <= 1.; i += 1.) {
				vec3 b = vec3(i, j, k);
				vec3 r = vec3(b) - f + hash(p + b);
				float d = dot(r, r);
				if (d < res) {
					res = d;
					id = dot(p + b, vec3(0., 57., 113.));
				}
		    }
		}
	}

	return vec2(sqrt(res), id);
}

void sky() {
	COLOR = sky_color;

	for (int i = 0; i < layers_count; i++) {
		vec3 pos = EYEDIR * (layer_scale + float(i) * layer_scale_step);
		vec2 layer = voronoi(pos);

		vec3 rand = hash(vec3(layer.y));

		#ifdef USE_TWINKLE
			float twinkle = sin(TIME * PI * star_twinkle_speed + rand.x * TAU);
			twinkle *= star_twinkle_intensity;
			float star = smoothstep(star_intensity + star_intensity * twinkle, 0., layer.x);
		#else
			float star = smoothstep(star_intensity, 0., layer.x);
		#endif

		vec3 star_color = star * hue((COLOR + star_base_color), rand.y * star_hue_offset, 1);

		COLOR += star_color;
	}
}
Tags
sky, space, Stars
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
